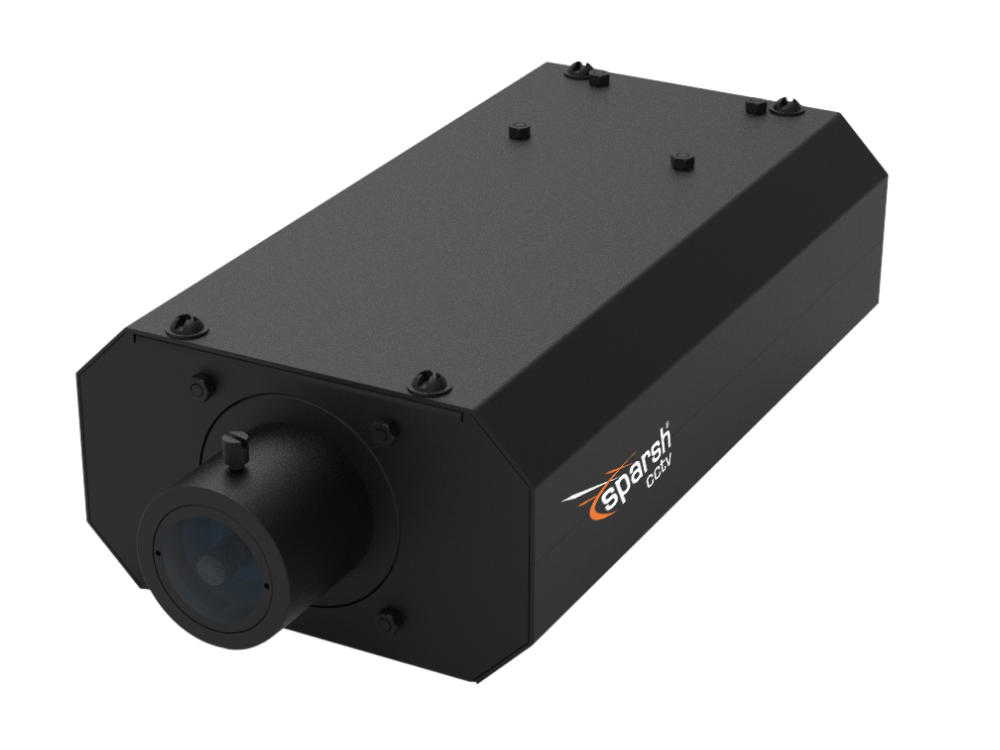

Sparsh SC-IND82XP-IZS 8MP 4K Box Camera – 6–22mm Varifocal Lens, 120dB WDR, 16Mbps Bit Rate, H.265/H.264/MJPEG, PoE, C/CS Mount

The Sparsh SC-IND82XP-IZS 8MP Box Camera is a professional surveillance camera designed to deliver detailed 4K imaging and reliable monitoring in demanding environments. Sparsh SC-IND82XP-IZS it features a 1/1.8-inch low-illumination progressive-scan CMOS sensor with a resolution of 3840 × 2160 pixels. Its 6–22mm varifocal lens provides adjustable viewing angles, with optional 10–50mm and 2.7–13.5mm lens configurations available.

The camera supports up to 120dB Wide Dynamic Range (WDR) to help balance bright and dark areas within a scene. With H.265, H.264, and MJPEG video compression, Sparsh SC-IND82XP-IZS it provides flexible video encoding options. Sparsh SC-IND82XP-IZS its quad-stream capability supports a 4K main stream at 25/30fps, a 1080P sub-stream at 25/30fps, and two VGA streams at 10fps each.

For monitoring and event management, the SC-IND82XP-IZS includes motion detection with configurable detection areas, schedules, and sensitivity levels. Sparsh SC-IND82XP-IZS tampering detection can generate alerts when the camera is blocked, defocused, or tampered with. Event actions include alarm output, email notifications, recording, audio warnings, PTZ linkage, and snapshots.

Network connectivity is provided through an RJ45 10/100 Mbps Ethernet port, with PoE support for compatible installations. ONVIF Profile S, G, and T compatibility supports integration with compatible surveillance systems. Security features include HTTPS, AES-256 encryption, SHA256, RSA2048, signed firmware, firmware anti-rollback, Trusted Execution Environment (TEE), and hardware secure boot.

Designed for challenging operating conditions, the camera supports temperatures from -40°C to 70°C and humidity levels up to 95% non-condensing. Sparsh SC-IND82XP-IZS its compact aluminum housing measures 16.2 × 8.4 × 5 cm and weighs 0.44 kg.

Key Features

1. 8MP 4K Imaging: Features a 1/1.8-inch low-light CMOS sensor with 3840 × 2160 resolution for detailed surveillance video.
2. Varifocal Lens Options: Includes a 6–22mm varifocal lens, with optional 10–50mm and 2.7–13.5mm configurations. Supports C/CS mounting and auto/manual focus.
3. Advanced Video Performance: Supports up to 120dB WDR, H.265/H.264/MJPEG compression, quad-stream video, and bit rates up to 16 Mbps.
4. Intelligent Event Monitoring: Provides motion detection, tampering alerts, configurable detection sensitivity, and event actions such as recording, email, alarm output, and snapshots.
5. Secure Network Connectivity: Features 10/100 Mbps Ethernet, IEEE 802.3af PoE, ONVIF Profile S/G/T compatibility, and advanced firmware and data security features.

Best Suited For

• Commercial and industrial security monitoring
• Surveillance applications requiring 8MP 4K video
• Installations needing adjustable focal length and viewing angles
• Compatible IP surveillance systems using ONVIF
• Sites requiring PoE connectivity and advanced security features
• Monitoring environments exposed to very low or high temperatures within the specified operating range

Not Suited For

• Applications requiring a built-in infrared illuminator or specified IR illumination distance, as IR distance is listed as NA
• Installations requiring a confirmed ingress protection or vandal-resistance rating, as both are listed as NA
• Network installations requiring Ethernet speeds above 100 Mbps
• Applications requiring frame rates above 30fps for the 4K main stream
• Systems requiring a lens focal length outside the listed configurations
