Synology DS3622xs+ 12-Bay NAS Storage | Enterprise Mass Storage, Backup & Virtualization Solution

Why Choose This Product?

The Synology DS3622xs+ is built for organizations that require large-scale storage with strong performance and reliability. Combining a powerful Intel Xeon processor, high-speed connectivity, and scalability up to 36 drives, it serves as a complete solution for storage, backup, surveillance, and virtualization. With DSM’s robust ecosystem, it goes beyond storage to become a full IT infrastructure platform.

Core Features & Benefits

Centralized Storage & Scalability

The Synology DS3622xs+ offers 12 drive bays supporting both HDDs and SSDs, enabling flexible storage configurations. It can scale up to 36 drives using expansion units, making it suitable for rapidly growing enterprise data requirements.

Connectivity & Compatibility

The system includes dual 10GbE and additional 1GbE ports, providing high-speed networking out of the box. It also supports PCIe expansion for 10GbE, 25GbE, and Fibre Channel connectivity, ensuring compatibility with advanced enterprise infrastructures.

Performance & Hardware

Powered by a 6-core Intel Xeon D-1531 processor with ECC memory, the system delivers strong performance for demanding workloads. It achieves over 4,600 MB/s read and 2,500 MB/s write speeds, along with high IOPS for intensive applications.

Software & Ecosystem (DSM)

Running on Synology DiskStation Manager (DSM), it provides an intuitive interface for managing files, backups, and system operations. Built-in applications support collaboration, file syncing, and communication, enabling efficient workflows across teams.

Security & Data Protection

Advanced protection features include Snapshot Replication, Hyper Backup, and Active Backup Suite. The Btrfs file system enhances data integrity with self-healing, snapshots, and efficient storage management, protecting against data loss and corruption.

Virtualization & Surveillance

The system supports virtualization platforms such as VMware, Hyper-V, Citrix, and OpenStack. It can also function as a powerful NVR, supporting up to 90 IP cameras with Surveillance Station, making it suitable for enterprise surveillance deployments.

Key Features & Highlights

• 12-Bay Storage – Expandable up to 36 drives
• Intel Xeon 6-Core CPU – Enterprise-grade processing
• Up to 4,600 MB/s Performance – High-speed data access
• Dual 10GbE Ports – Fast networking
• PCIe Expansion – Supports 25GbE & Fibre Channel
• NVMe SSD Cache Support – Boost performance
• DSM OS – Advanced data management platform
• Supports 90 IP Cameras – Enterprise surveillance
• 5-Year Warranty – Long-term reliability

Hardware Overview

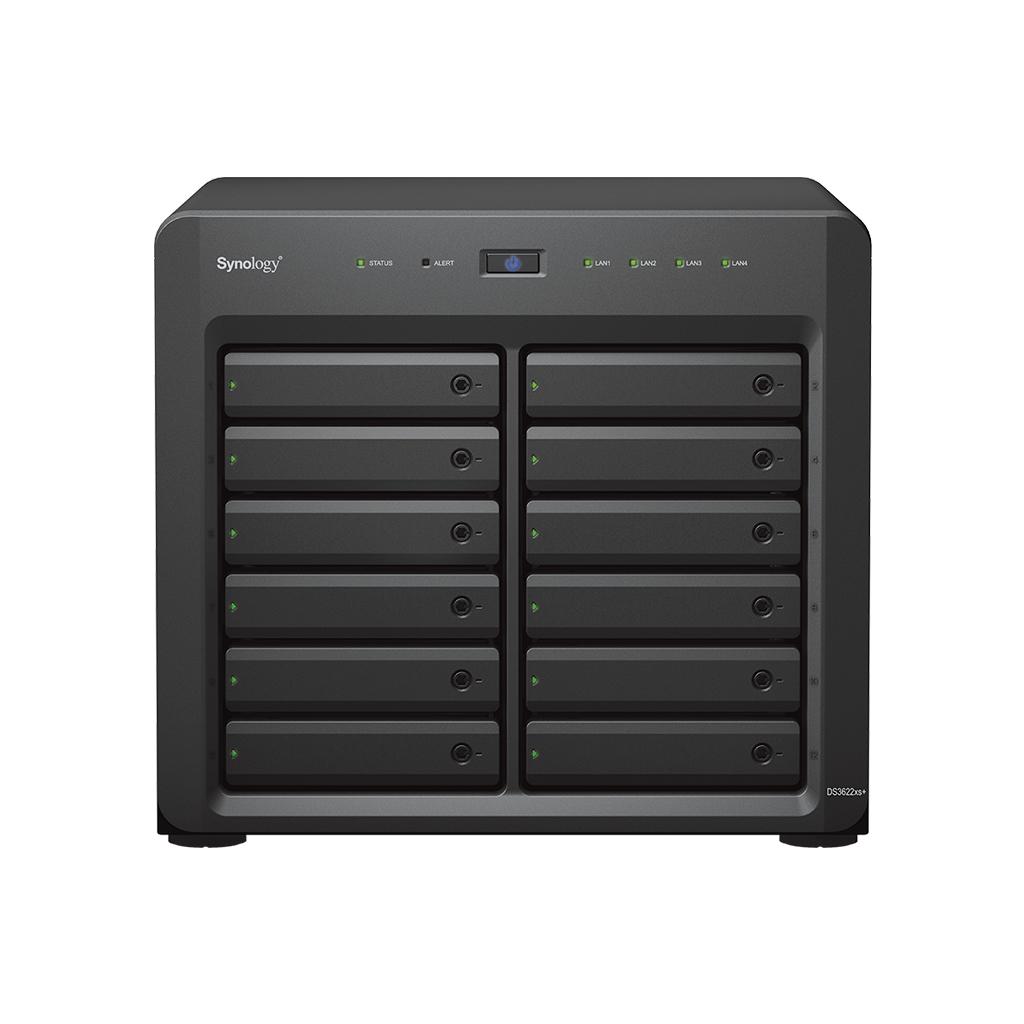

Front Panel

• Status indicator
• Alert indicator
• Power button
• LAN indicators
• Drive status indicators
• Drive trays
• Drive tray locks

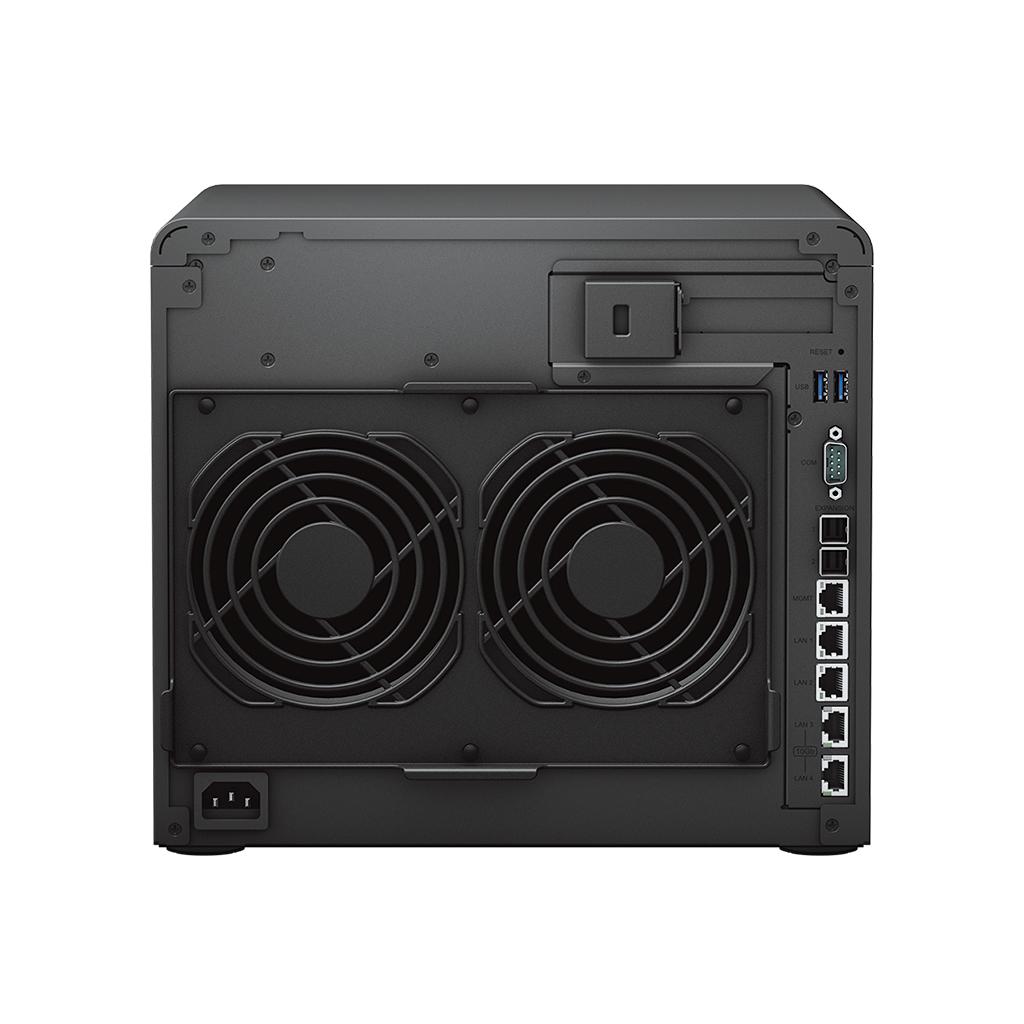

Rear Panel

• Power port
• System fans
• PCIe expansion slot
• Reset button
• USB 3.2 Gen 1 ports
• Console port
• Expansion ports
• Management (OOB) port
• 1GbE RJ-45 ports
• 10GbE RJ-45 ports

Software & Ecosystem

The NAS runs on Synology DSM and supports key protocols such as SMB, NFS, FTP, WebDAV, and Rsync. It includes tools like Synology Drive, Office, MailPlus, and Chat for collaboration, along with backup and virtualization solutions for enterprise IT environments.

Ideal Use Cases

• Enterprise Storage – Large-scale centralized data storage
• Backup & Disaster Recovery – Protect critical infrastructure
• Virtualization – Host and manage virtual machines
• Surveillance System – Large-scale IP camera management
• Media & Video Editing – High-performance file access
• IT Infrastructure – Consolidate multiple workloads

FAQs

1. How many drives does it support?
It supports 12 drives and can expand up to 36 drives.

2. Does it include 10GbE connectivity?
Yes, it includes dual 10GbE ports along with additional 1GbE ports.

3. Is it suitable for enterprise workloads?
Yes, it is designed for high-performance enterprise environments.

4. Can it be used for surveillance?
Yes, it supports up to 90 IP cameras with Surveillance Station.

5. What warranty does it include?
It comes with a 5-year limited hardware warranty.
