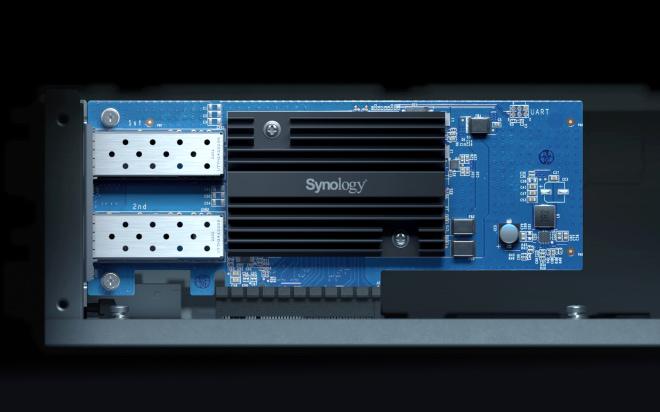

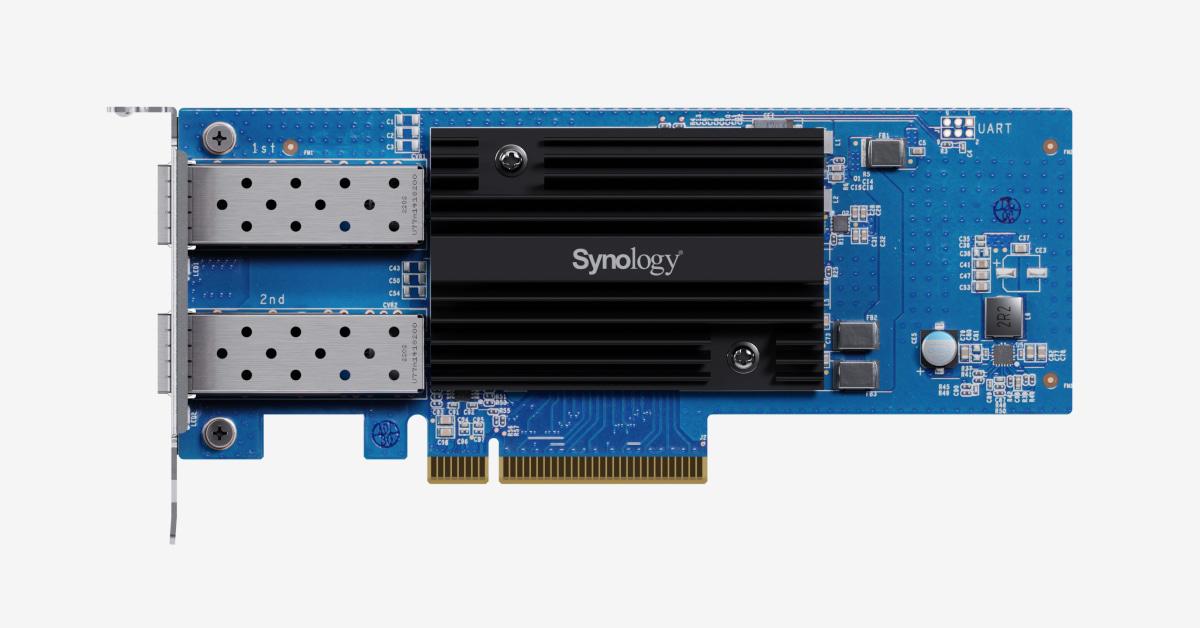

The Synology E10G30-F2 is a dual-port 10GbE SFP+ PCIe network adapter designed for enterprise-grade networking and high-performance Synology NAS deployments. Supporting SR/LR optical transceivers and DAC cables, it delivers flexible high-speed connectivity for virtualization, backup, media production, and storage-intensive enterprise applications.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
The Synology E10G30-F2 enables organizations to integrate compatible Synology NAS systems into modern 10GbE SFP+ enterprise networks with enhanced throughput, resiliency, and scalability. With support for link aggregation, CPU offloading technologies, and flexible transceiver options, it is optimized for bandwidth-intensive workloads and professional storage environments.
Provides two high-speed 10GbE SFP+ ports for enterprise-grade networking and storage applications.
Supports SR and LR optical transceivers along with DAC cable options for versatile enterprise network integration.
Supports IEEE 802.3ad link aggregation to increase throughput, provide failover protection, and improve load balancing.
Uses a PCIe 3.0 x8 host interface for high-performance data transfer and efficient system integration.
Supports LRO, GSO, TSO, RSS, TSS, jumbo frames, and checksum offloading to reduce CPU overhead and improve networking efficiency.
| Category | Specification |
|---|---|
| Product Model | Synology E10G30-F2 |
| Host Interface | PCIe 3.0 x8 |
| Ethernet Ports | 2 Ă— 10GbE SFP+ |
| Connector Type | SFP+ |
| Supported Speed | 10Gbps |
| Network Standards | IEEE 802.3ae, IEEE 802.3ad |
| Link Aggregation | Yes |
| Duplex Mode | Full Duplex |
| Jumbo Frame Support | 1.5 KB to 9 KB |
| Advanced Features | LRO, GSO, TSO, RSS, TSS |
| Bracket Support | Low-profile & Full-height |
| Module Dimensions | 69 Ă— 168 Ă— 17.3 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
| DSM Requirement | DSM 7.1.1-42962 Update 5 or above |
| Warranty | 5 Years |
Dual 10GbE SFP+ ports help eliminate storage and networking bottlenecks in demanding enterprise environments.
Link aggregation improves redundancy and protects against network disruptions while increasing throughput.
Advanced CPU offloading technologies reduce processing overhead during high-speed network transfers.
It is a dual-port 10GbE SFP+ PCIe network adapter for compatible Synology NAS systems.
The adapter uses SFP+ connectors for 10GbE networking.
Yes, IEEE 802.3ad link aggregation is supported for higher throughput and redundancy.
The adapter uses a PCIe 3.0 x8 host interface.
DSM 7.1.1-42962 Update 5 or above is required.
| # | Lab name | Location | Certificate no. | Valid till |
|---|---|---|---|---|
| 1 | Precise Testing Solution Pvt. Ltd. | E-81, Second Floor, Sector 63, Noida, U.P. | STQC-SAB-SETL-3 | 10 Dec 2027 |
| 2 | AQM Technologies Pvt. Ltd. | 4th Floor, A Wing, 401 Raheja Plaza, LBS Road, Ghatkopar (W), Mumbai 400086 | STQC-SAB-SETL-10 | 19 Oct 2026 |
| 3 | AKS Information Technology Services Pvt. Ltd. | B-21, Sector 59, Noida 201309, U.P. | STQC-SAB-SETL-9 | 05 Sep 2026 |
| 4 | Information Technology Quality Certification and Research (ITQCR) | C-202, Infotech Park, Tower No-8, CBD Belapur, Navi Mumbai 400614 | STQC-SAB-SETL-1 | 11 Sep 2027 |
| 5 | Quality Kiosk Technologies Pvt. Ltd. | 419 A, Rupa Solitaire, Sector 1, Millennium Business Park, Mahape, Navi Mumbai 400710 | STQC-SAB-SETL-4 | 19 Dec 2027 |
| 6 | Maverick Quality Advisory Services Pvt. Ltd. | 123 Radhey Shyam Park, PO Sahibabad, Ghaziabad, U.P. 201005 | STQC-SAB-SETL-11 | 28 Jul 2027 |
| 7 | Redinent Innovations Pvt. Ltd. | 18, Novel MSR Park, Varthur Main Road, Munnekolalu, Marathahalli, Bengaluru 560037 | STQC-SAB-SETL-12 | 05 Aug 2027 |
| 8 | Levithan Technologies Pvt. Ltd. | Shop No. 374A, Bhoor Colony, Old Faridabad, Haryana 121002 | STQC-SAB-SETL-13 | 05 Aug 2027 |
| 9 | CyberSRC Consultancy Pvt. Ltd. | Unit 605, 6th Floor, World Trade Tower, Sector 16, Noida 201301 | STQC-SAB-SETL-14 | 18 Aug 2028 |
| 10 | ITOrizin Technology Solution Pvt. Ltd. | 8/14, Sahid Nagar, Ground Floor, Haltu, Garfa, Kolkata 700078 | STQC-SAB-SETL-15 | 23 Nov 2028 |
| Category | Specification |
|---|---|
| Product Name | Synology E10G30-F2 |
| Product Type | Dual-Port 10GbE Adapter |
| Function | High-speed 10GbE SFP+ networking upgrade for Synology NAS systems |
| Ports | 2 x 10GbE SFP+ |
| Connector Type | SFP+ |
| Network Operation Mode | Full Duplex |
| Data Transfer Rate | 10Gbps |
| Link Aggregation | IEEE 802.3ad Supported |
| Category | Specification |
|---|---|
| Host Bus Interface | PCIe 3.0 x8 |
| Bracket Height | Low-profile |
| Full-height | |
| Dimensions (H Ă— W Ă— D) | 69 Ă— 168 Ă— 17.3 mm |
| Category | Specification |
|---|---|
| IEEE 802.3ae | 10Gbps Ethernet |
| IEEE 802.3ad | Link Aggregation |
| Category | Specification |
|---|---|
| Supported Transceivers | SR Transceivers |
| LR Transceivers | |
| Supported Cable Type | DAC (Direct Attach Copper) |
| Flexible Connectivity | Supports multiple SFP+ deployment options |
| Category | Specification |
|---|---|
| Jumbo Frames | 1.5 KB to 9 KB |
| Offloading Features | TCP/UDP Checksum Offloading |
| Large Receive Offload (LRO) | |
| Generic Segmentation Offload (GSO) | |
| TCP Segmentation Offload (TSO) | |
| Receive Side Scaling (RSS) | |
| Transmit Side Scaling (TSS) |
| Category | Specification |
|---|---|
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 8% to 80% RH |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Storage Humidity | 5% to 95% RH |
| Category | Specification |
|---|---|
| DSM Requirement | DSM 7.1.1-42962 Update 5 or later |
| Compatible Systems | Supported Synology NAS with PCIe expansion slot |
| Validation | Purpose-built and validated for Synology systems |
| Category | Specification |
|---|---|
| Warranty | 5 Years |
