Synology SA3410 12-Bay Rackmount NAS | High Scalability Enterprise Storage & Virtualization Solution

Why Choose Synology SA3410 Product?

The Synology SA3410 is engineered for enterprises and production environments that require scalable storage with high availability and exceptional performance. Supporting up to 1.728 PB of raw storage capacity and advanced networking configurations, it provides a reliable platform for virtualization, backup, surveillance, and collaborative workloads. With built-in 10GbE networking, dual PCIe expansion slots, and DSM-powered management tools, it offers a complete enterprise storage solution for modern IT infrastructure.

Core Features & Benefits of Synology SA3410 :

Petabyte-Scale Storage & Expansion

The Synology SA3410 features 12 drive bays supporting SAS and SATA HDDs and SSDs. With support for up to seven RX1222sas expansion units, the system can scale up to 96 drive bays and deliver over 1.7 PB of raw storage capacity, making it ideal for rapidly growing enterprise data environments.

Flexible High-Speed Networking

Built-in dual 10GbE RJ-45 ports provide high-bandwidth connectivity out of the box, while additional 1GbE ports support flexible deployment. Two PCIe Gen3 expansion slots allow upgrades with 10/25/40GbE and Fibre Channel adapters for demanding enterprise applications.

Enterprise Performance & Reliability

Powered by an Intel Xeon D-1541 8-core processor with ECC memory, the system delivers over 6,200 MB/s read and 3,000 MB/s write throughput. Redundant power supplies, redundant cooling fans, and out-of-band management ensure maximum service uptime and simplified remote maintenance.

Advanced Data Protection

The Btrfs file system provides snapshot-based recovery, file self-healing, and efficient storage management. Snapshot Replication, Hyper Backup, and Active Backup Suite deliver comprehensive backup and disaster recovery for servers, endpoints, virtual machines, and SaaS workloads.

Collaboration & Private Cloud

Running on Synology DSM, the system includes integrated collaboration tools such as Synology Drive, Office, Chat, MailPlus, and Calendar. These applications enable secure private cloud collaboration, remote access, and real-time file synchronization across teams and locations.

Virtualization & Container Support

It supports VMware vSphere, Microsoft Hyper-V, Citrix Hypervisor, and OpenStack environments. Synology Virtual Machine Manager and Container Manager enable virtualization, container deployment, and isolated testing environments for enterprise IT workloads.

Key Features & Highlights

• 12-Bay Enterprise Rackmount NAS
• Expandable Up to 96 Drives
• Up to 1.728 PB Raw Storage Capacity
• Intel Xeon 8-Core Processor
• Up to 6,200 MB/s Read Throughput
• Dual Built-in 10GbE Ports
• PCIe Gen3 Expansion Slots
• Redundant PSU & Cooling Fans
• DSM Enterprise Management Platform
• 5-Year Limited Warranty

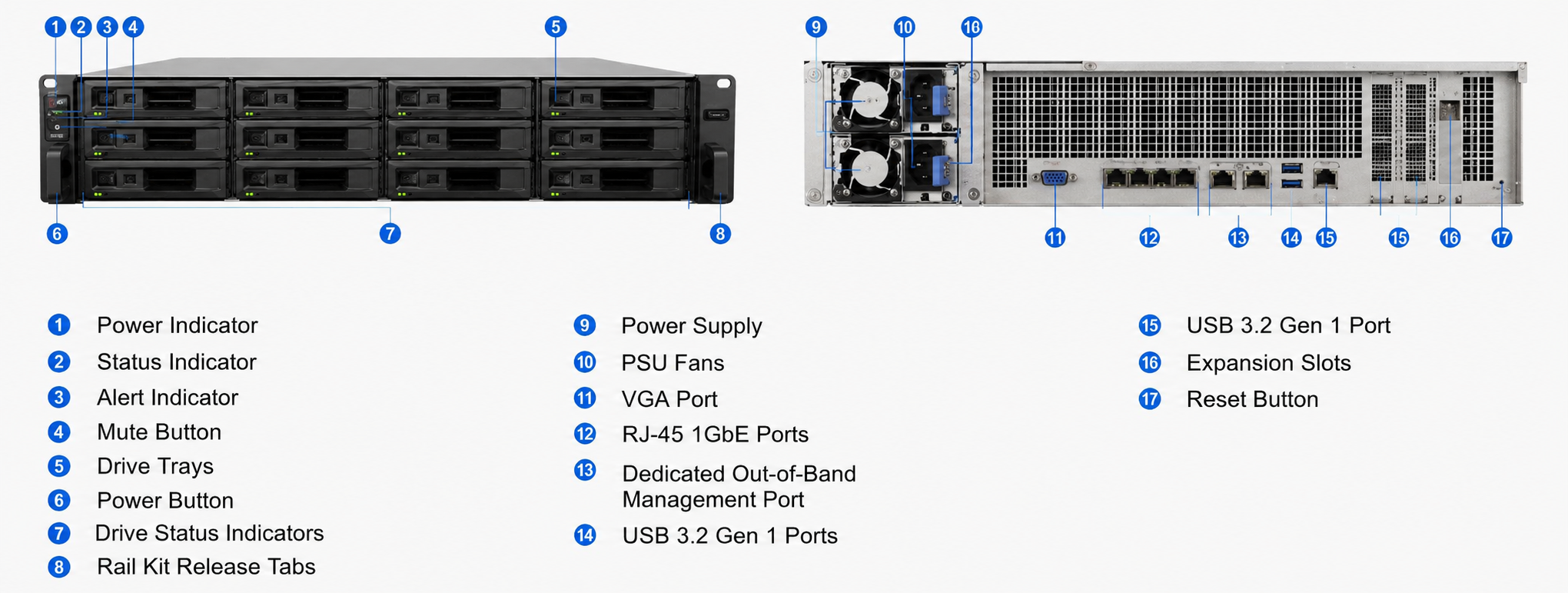

Hardware Overview

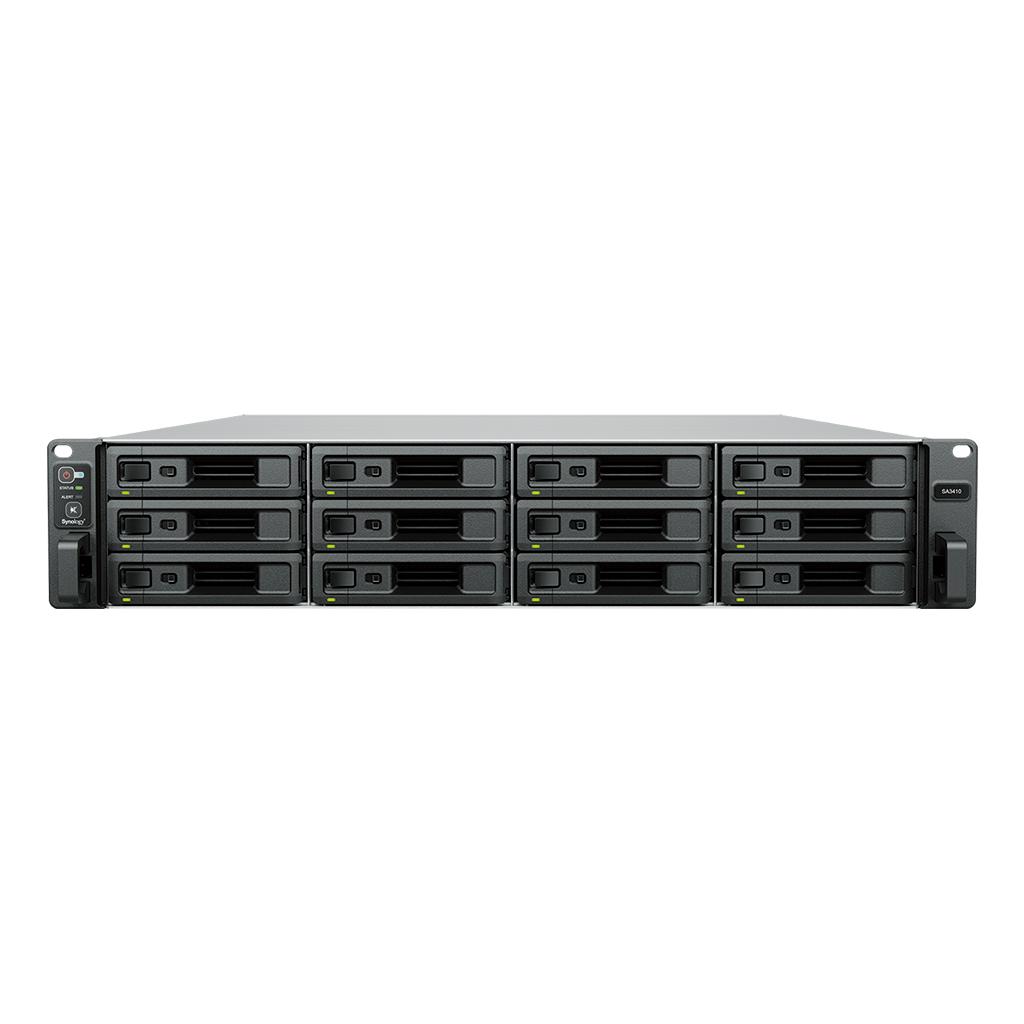

Front Panel

• Power button & indicator
• Status indicator
• Alert indicator
• Mute button
• Drive status indicators
• Drive trays
• Rail kit release tabs

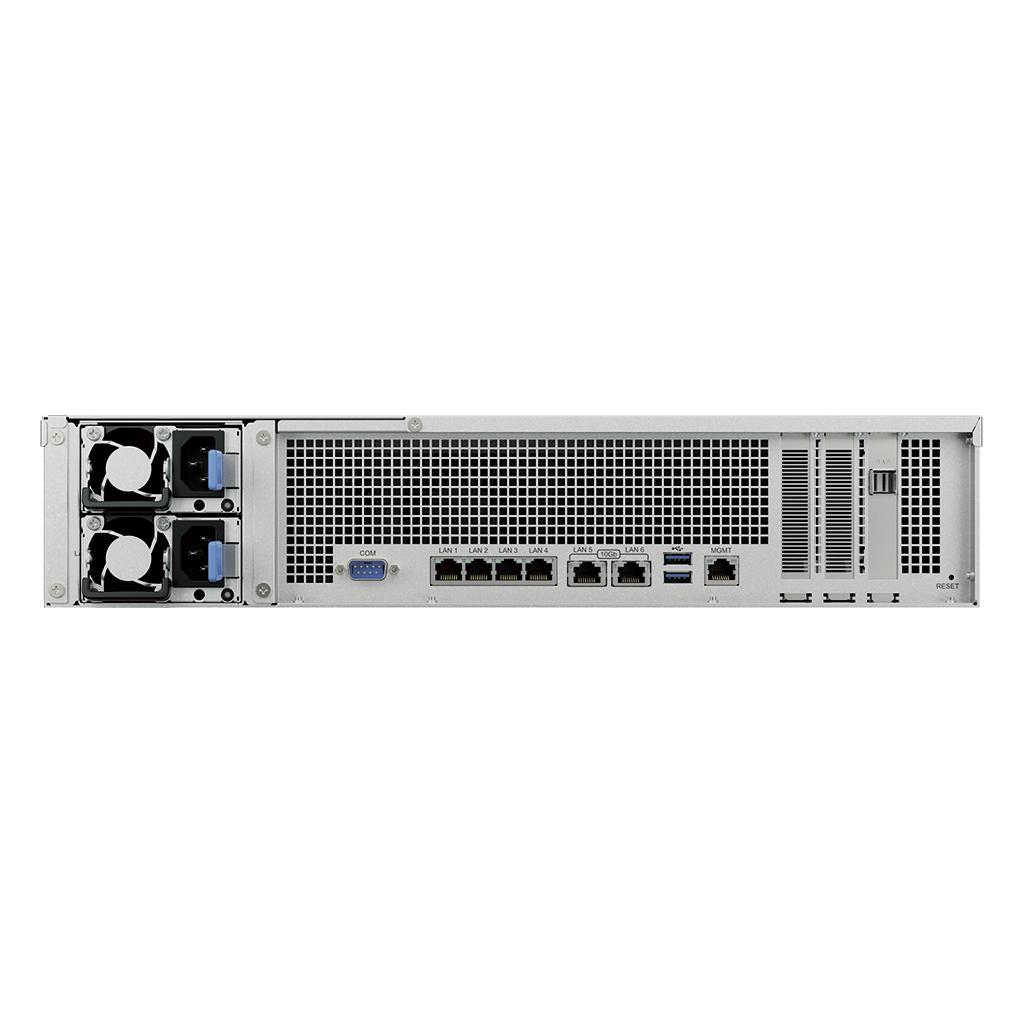

Rear Panel

• Redundant power supply units
• PSU indicators
• Console port
• 4 x 1GbE RJ-45 ports
• 2 x 10GbE RJ-45 ports
• USB 3.2 Gen 1 ports
• Management port
• PCIe expansion slots
• Expansion port
• Reset button

Software & Ecosystem

The NAS runs on Synology DSM and supports SMB, NFS, FTP, WebDAV, Rsync, iSCSI, Fibre Channel, LDAP, and CalDAV protocols. Enterprise applications include Synology Drive, Synology Office, Chat, MailPlus, Active Backup Suite, Hyper Backup, Snapshot Replication, SAN Manager, Virtual Machine Manager, and Hybrid Share for collaboration, protection, and virtualization.

Ideal Use Cases

• Enterprise Data Storage
• Large-Scale Backup & Disaster Recovery
• Virtualization Infrastructure
• Media Production & Video Storage
• Multi-Site Collaboration
• Surveillance & Video Recording
• High-Capacity Private Cloud Deployments

FAQs

1. How many drives does the SA3410 support?
It supports 12 drives and can expand up to 96 drives with expansion units.

2. Does it include 10GbE networking?
Yes, it includes dual built-in 10GbE RJ-45 ports.

3. What is the maximum storage capacity?
It supports up to 1.728 PB of raw storage capacity.

4. Is it suitable for virtualization?
Yes, it supports VMware vSphere, Hyper-V, Citrix Hypervisor, and OpenStack.

5. Does it include redundant hardware components?
Yes, it includes redundant power supplies and system fans for high availability.
