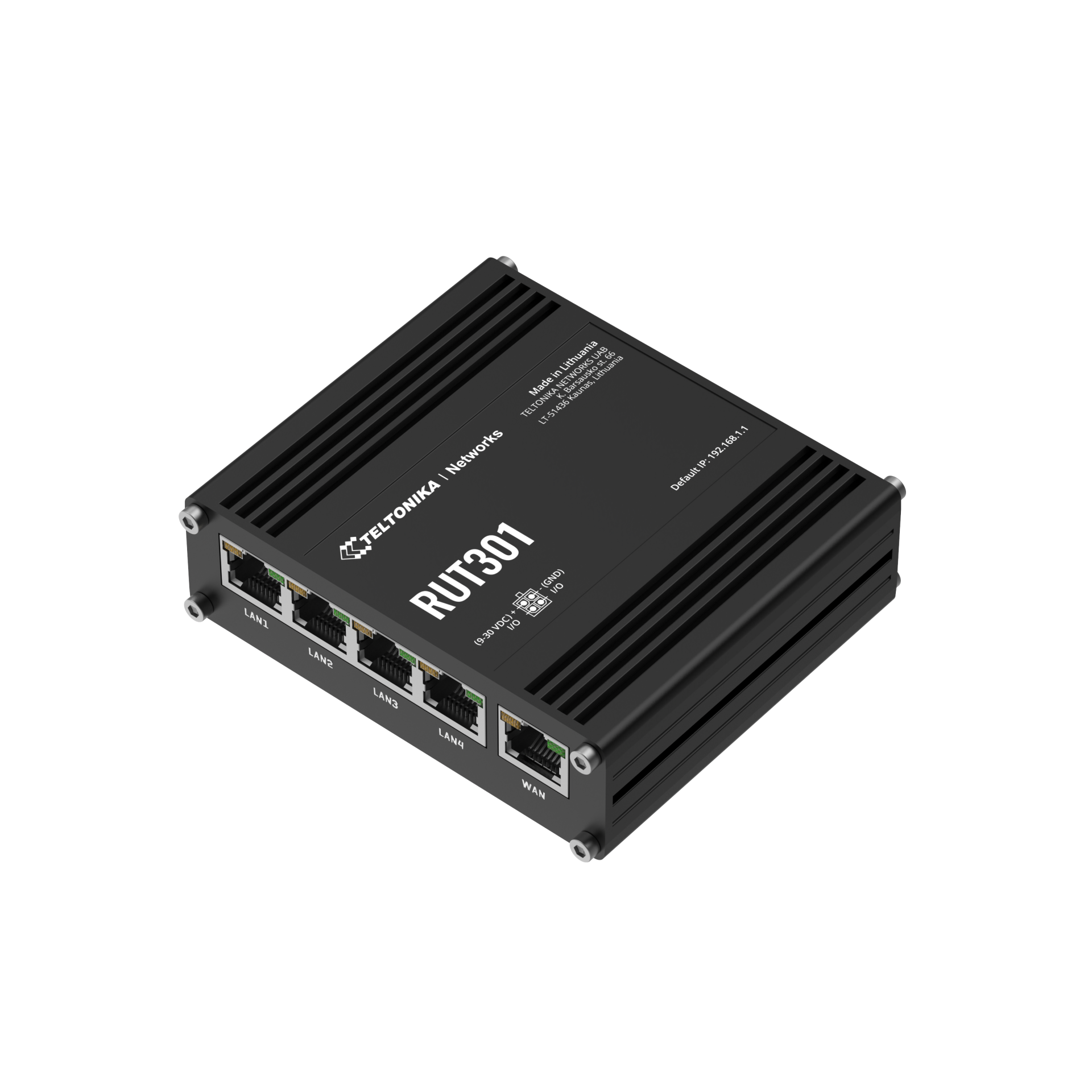

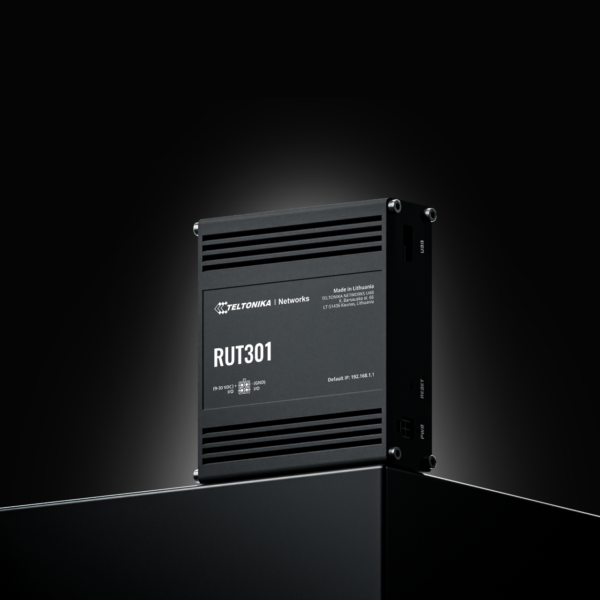

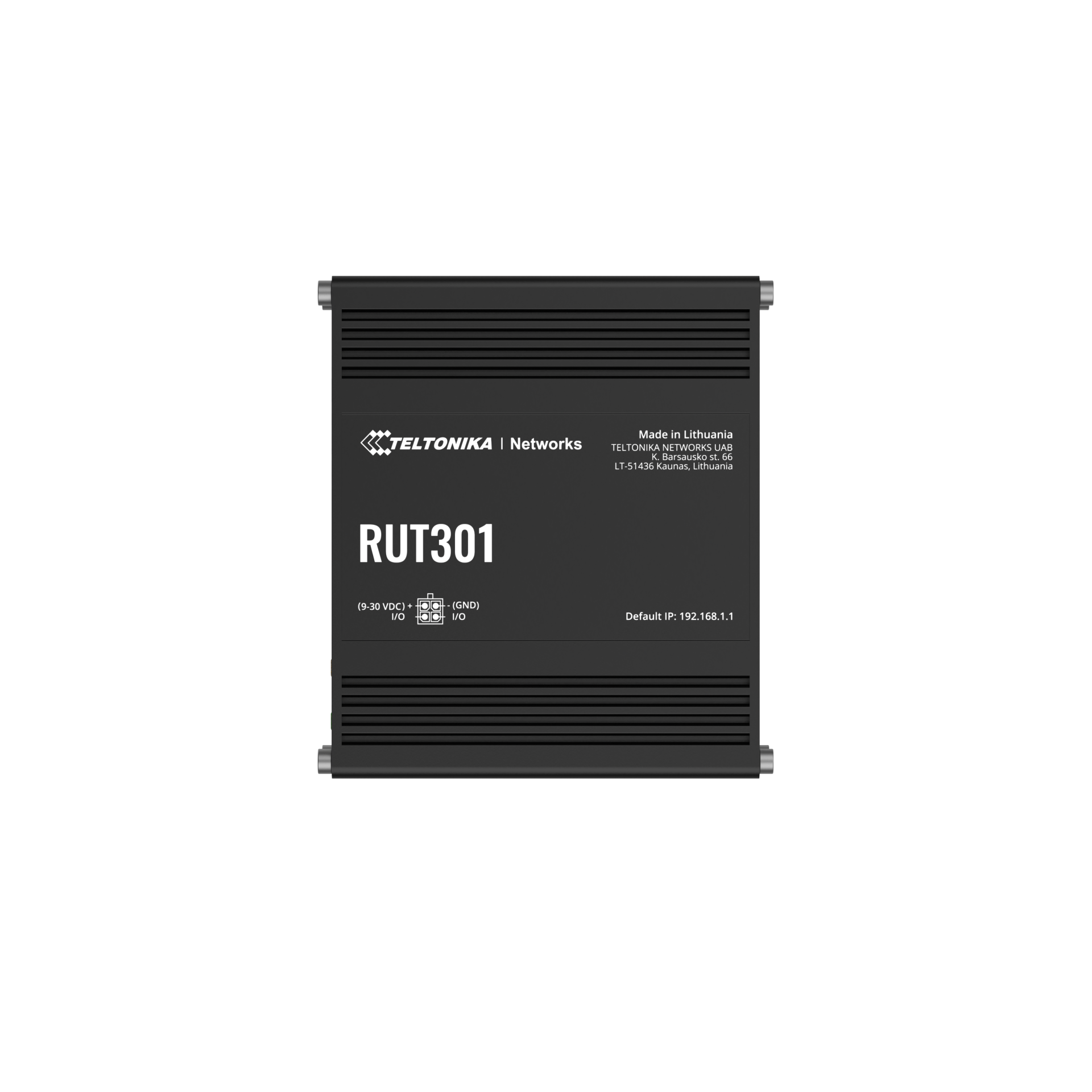

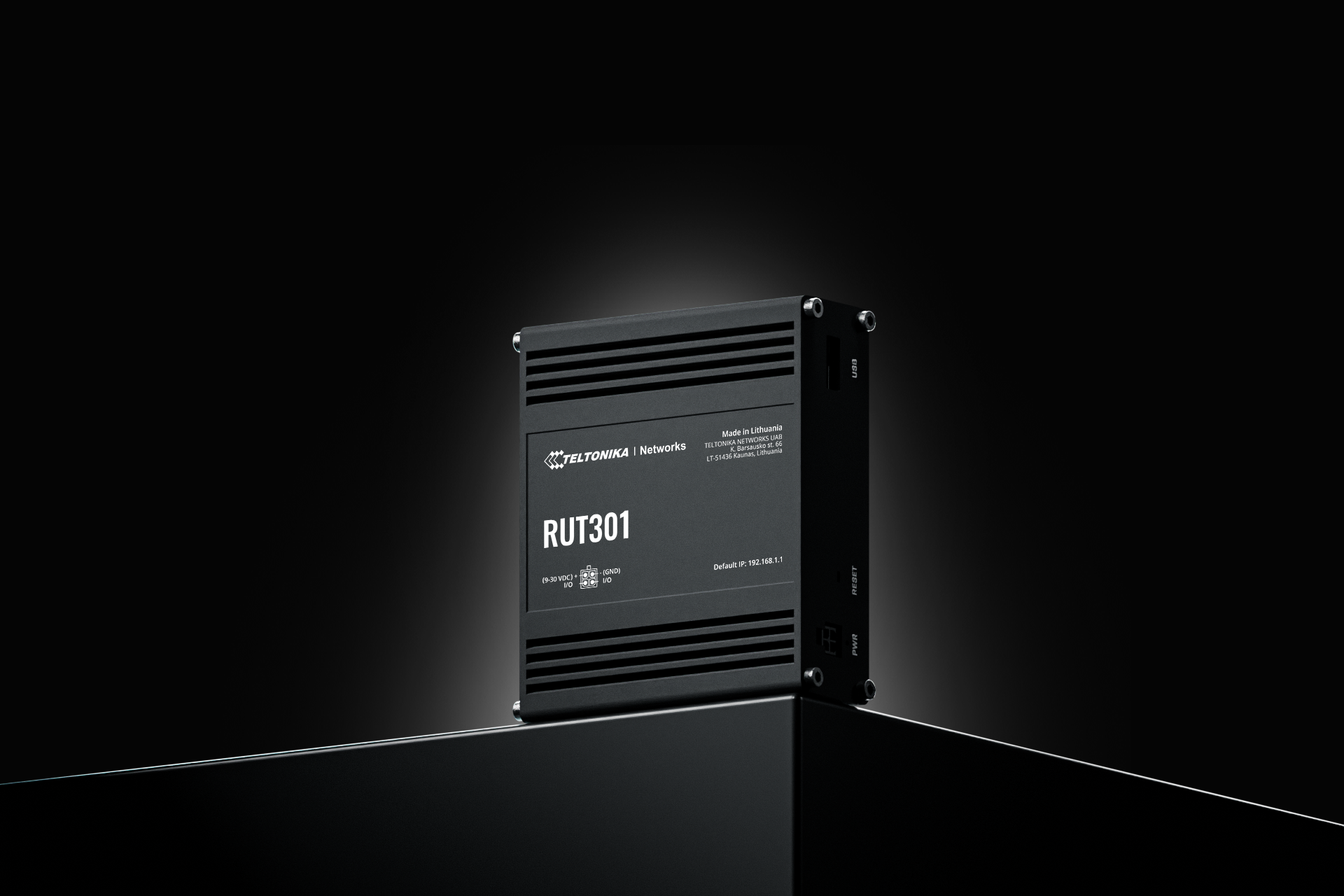

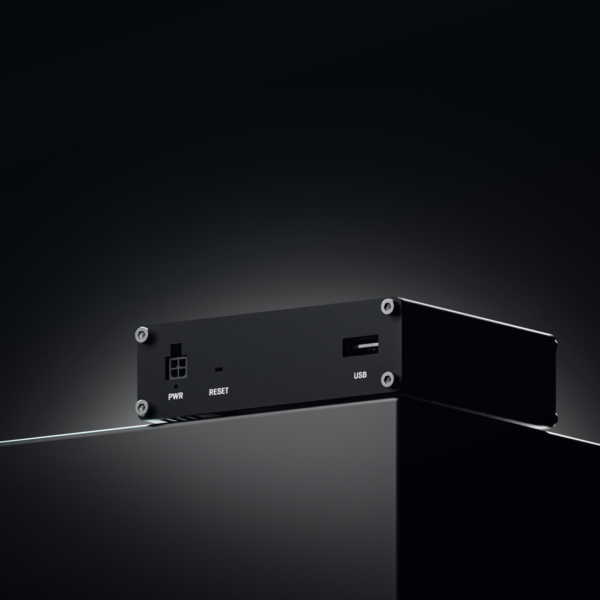

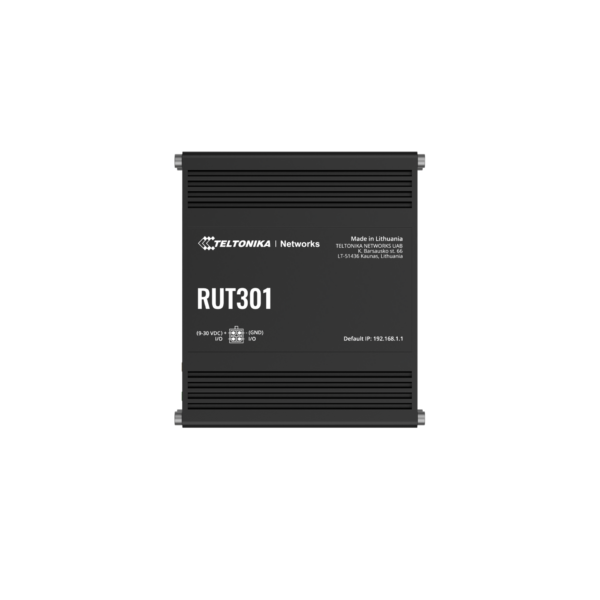

Teltonika RUT301 Industrial Ethernet Router | 5× 10/100 Mbps Ethernet Ports | USB 2.0 | Digital I/O | VPN | RMS Remote Management

Original price was: ₹18,399.00.Current price is: ₹9,199.00. Inc. tax (₹7,795.76Exc. Tax)

The Teltonika RUT301 is an industrial Ethernet router designed for reliable wired networking in demanding environments. Teltonika RUT301 it features 5 × 10/100 Mbps Ethernet ports, USB 2.0, configurable digital I/O, and multiple VPN protocols including OpenVPN, IPsec, WireGuard, and ZeroTier. With advanced firewall and security features, industrial protocol support, RMS remote management, and -40°C to 75°C operating temperature, it suits industrial and IoT applications.

Compare

Pick up from the FGTECH Store

To pick up today

0-1 Days

Free

Courier delivery

Our courier will deliver to the specified address

4-7 Days

Free

Porter / WeFast

Currently available only in Mumbai

0-1 Days

To be paid directly to service vendor

Fast Delivery ( By Air )

We ship your products by air to the nearest delivery center to ensure faster and more reliable delivery.

2-4 Days

Start from Rs250 Extra

SKU: FGIN8A1V3WO7 Categories: Networking Devices, Routers Brand: Teltonika

Description

The Teltonika RUT301 Industrial Ethernet Router is a professional wired networking solution designed for industrial, automation, and IoT applications. Teltonika RUT301 it features 5 × 10/100 Mbps Ethernet ports, including 1 WAN and 4 LAN ports, providing reliable connectivity for multiple network devices.

The RUT301 supports a wide range of VPN technologies, including OpenVPN, IPsec, GRE, PPTP, L2TP, DMVPN, SSTP, ZeroTier, WireGuard, and Tinc. Teltonika RUT301 its security features include a preconfigured firewall, VLAN separation, DDoS prevention, web filtering, access control, certificate management, and 802.1x support.

For industrial communication, the router supports OPC UA, MODBUS TCP, BACnet, MQTT, DNP3, and DLMS/COSEM protocols. Teltonika RUT301 it also provides MQTT Gateway and Data to Server functionality for transferring data between different sources and servers.

The RUT301 includes 1 × USB 2.0 Type-A port for external devices and up to 2 configurable digital inputs and 2 configurable digital outputs. Remote monitoring and management are supported through Teltonika RMS, FOTA, Web UI, SSH, SNMP, MQTT, and JSON-RPC.

Powered by a MediaTek 580 MHz MIPS 24KEc processor, 128 MB DDR2 RAM, and 16 MB serial NOR flash, the router runs on RutOS, an OpenWrt-based Linux operating system. Teltonika RUT301 it supports 9–30 VDC input and passive PoE as an optional hardware configuration.

The RUT301 features an anodised aluminium housing, IP30 rating, and an operating temperature range of -40°C to 75°C, making it suitable for professional industrial networking environments requiring secure wired connectivity, VPN support, and industrial protocol integration.

Key Features

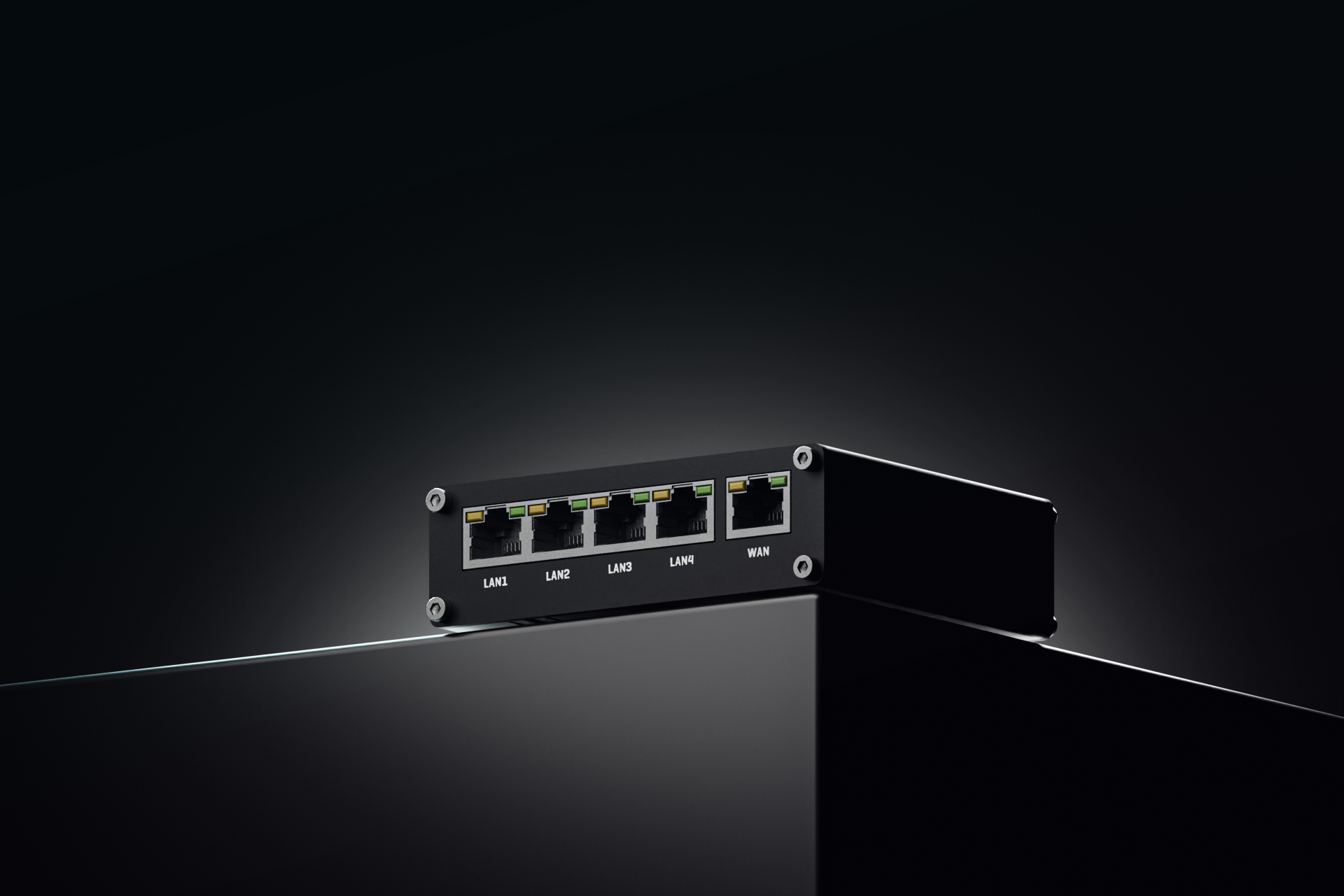

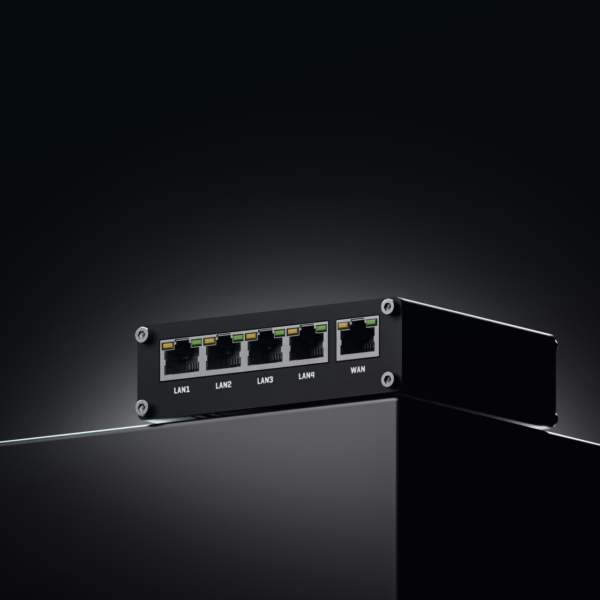

5 × Ethernet Ports: Includes 1 WAN and 4 LAN ports supporting 10/100 Mbps with auto MDI/MDIX.
Advanced VPN Support: Supports OpenVPN, IPsec, GRE, PPTP, L2TP, DMVPN, SSTP, ZeroTier, WireGuard, and Tinc.
Industrial Protocol Support: Supports OPC UA, MODBUS TCP, BACnet, MQTT, DNP3, and DLMS/COSEM.
Network Security: Provides firewall, VLAN separation, DDoS prevention, web filtering, access control, certificate management, and 802.1x.
USB & Digital I/O: Includes 1 × USB 2.0 Type-A port and up to 2 configurable digital inputs/outputs.
Remote Management & Industrial Design: Supports Teltonika RMS, FOTA, Web UI, SSH, SNMP, MQTT, and JSON-RPC, with an operating temperature of -40°C to 75°C and IP30 rating.

Best Suited For

Industrial automation and IoT networking.
Professional wired network installations.
Applications requiring VPN connectivity.
Industrial systems using Modbus, MQTT, DNP3, or DLMS/COSEM.
Remote device monitoring and management through RMS.

Not Suited For

Applications requiring built-in Wi-Fi connectivity.
Networks requiring more than five Ethernet ports.
Applications requiring 4G or 5G cellular connectivity.
Installations requiring an IP rating higher than IP30.
Networks requiring standard IEEE 802.3af, 802.3at, or 802.3bt PoE.

Product Details

Specification	Details
Brand	Teltonika
Model	RUT301
Product Type	Industrial Ethernet Router
WAN	1 × WAN, 10/100 Mbps
LAN	4 × LAN, 10/100 Mbps
Ethernet Ports	5 × RJ45, 10/100 Mbps
Ethernet Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3az
Routing	Static, Dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based
VPN	OpenVPN, IPsec, GRE, PPTP, L2TP, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
Industrial Protocols	OPC UA, MODBUS TCP, BACnet, MQTT, DNP3, DLMS/COSEM
USB	1 × USB A, USB 2.0
Digital I/O	Up to 2 × configurable digital inputs and 2 × configurable digital outputs
Digital Input Voltage	0–6 V logic low; 8–30 V logic high
Digital Output	Open collector, max. 30 V / 300 mA
Firewall	Port forwarding, traffic rules, custom rules, DMZ, NAT, NAT-T, NAT64
Security	DDoS prevention, web filter, VLAN, access control, certificate manager, 802.1x
Remote Management	Teltonika RMS, FOTA, Web UI, SSH, TR-069, MQTT, SNMP, JSON-RPC
CPU	MediaTek, 580 MHz, MIPS 24KEc
RAM	128 MB DDR2
Flash Storage	16 MB serial NOR flash
Operating System	RutOS, OpenWrt-based Linux OS

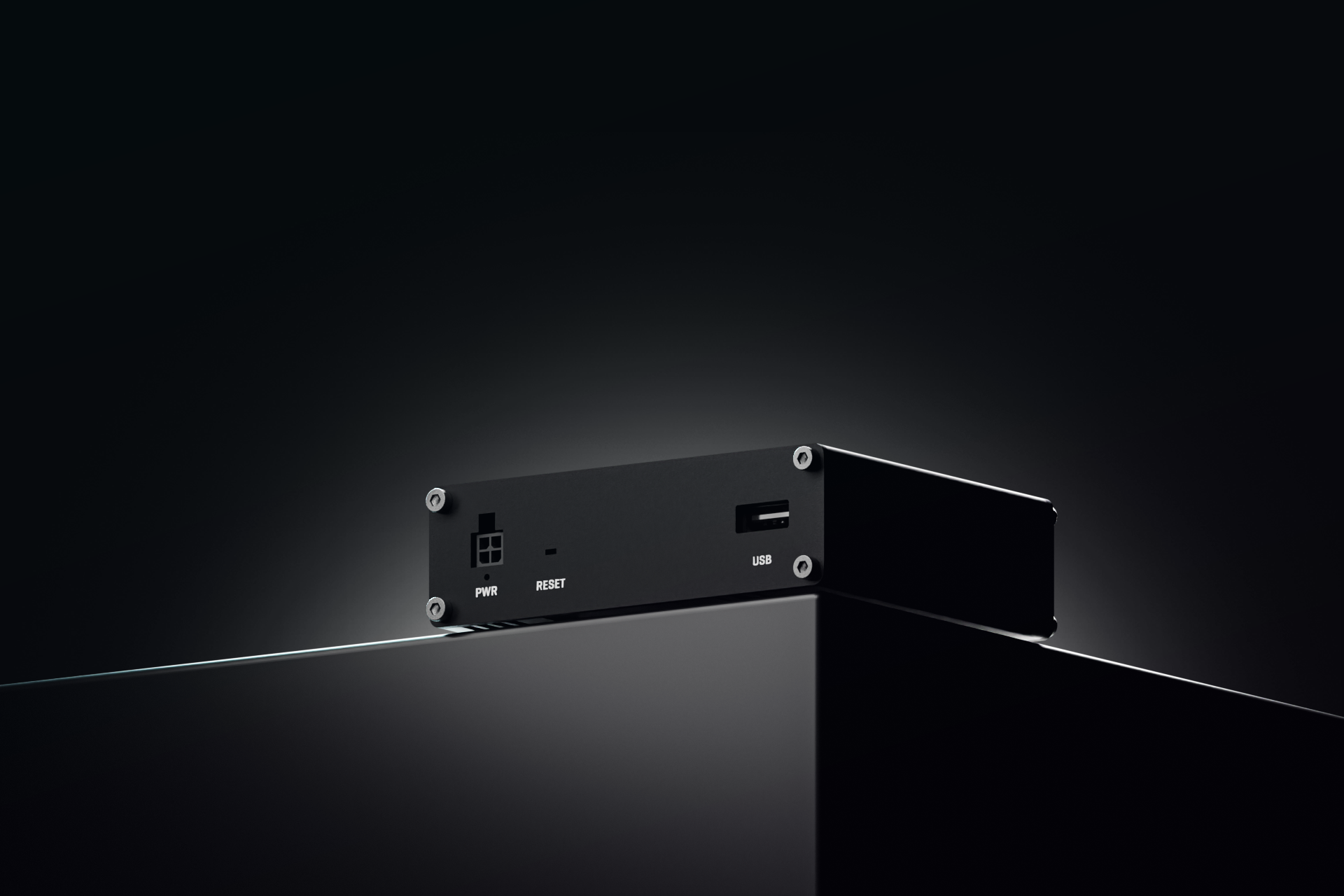

Power Connector	1 × 4-pin industrial DC power socket
Input Voltage	9–30 VDC
Passive PoE	Optional; requires different hardware
Power Consumption	Idle: < 0.8 W; Max: < 3.8 W
Housing Material	Anodised aluminium housing and panels
Dimensions (W × H × D)	10 × 3 × 8.5 cm
Weight	0.233 kg
Mounting	DIN rail, wall mount, flat surface; additional kit required
Operating Temperature	-40°C to 75°C
Operating Humidity	10%–90% non-condensing
Ingress Protection	IP30
Status LEDs	1 × WAN, 4 × LAN, 1 × Power
Reset	Reboot/User default reset/Factory reset button
Grounding	1 × grounding connection
