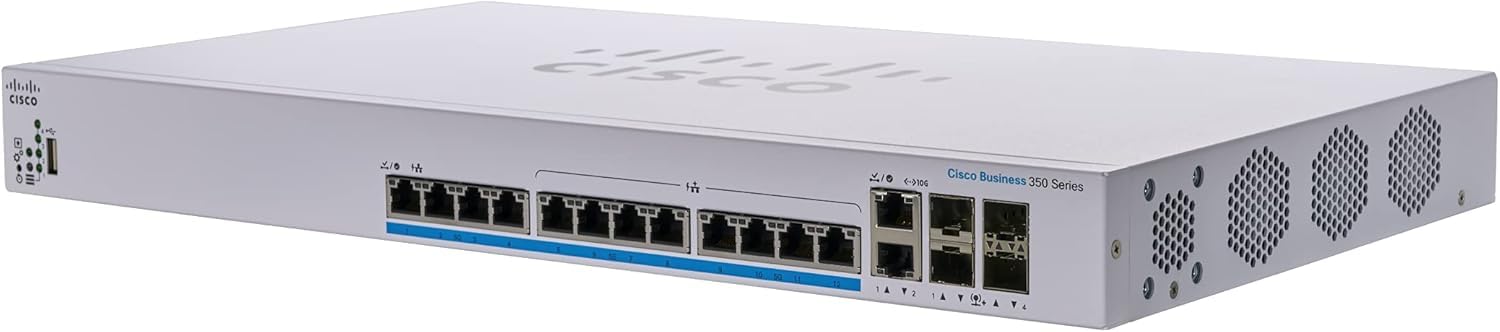

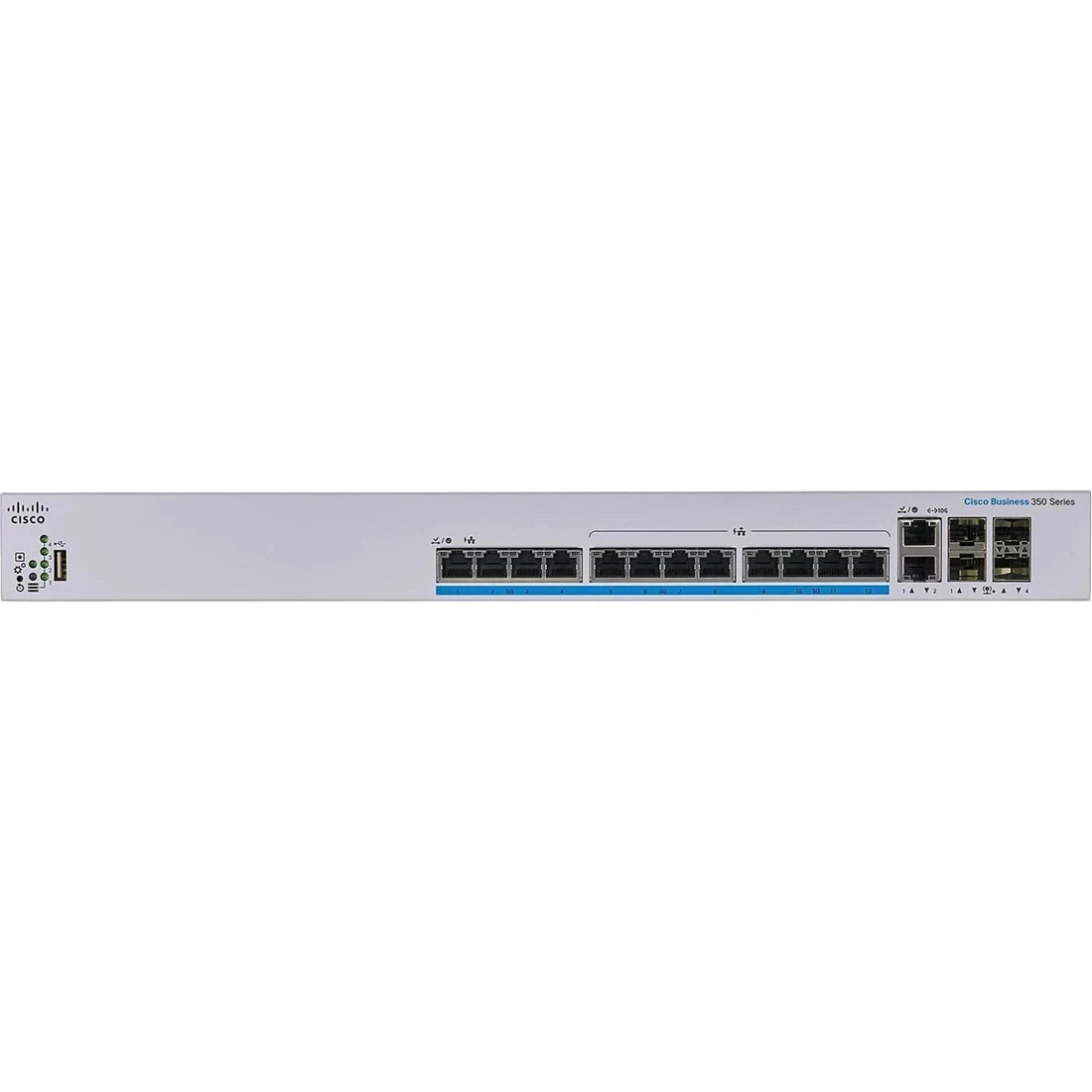

Cisco Business CBS350-12NP-4X Powerful Multi-Gigabit PoE+ Managed Switch with 12 Ports & 4x 10G SFP+ Uplinks – High-Performance Network Solution by Cisco

The Cisco Business CBS350-12NP-4X is a high-performance, Layer 3 managed switch designed for small to medium-sized businesses needing robust network connectivity with PoE+ capabilities. The Cisco Business CBS350-12NP-4X features 12 multigigabit Ethernet PoE+ ports supporting speeds up to 5 Gbps, along with 4 x 10 Gigabit SFP+ uplink ports for high-speed connections and network expansion. The Cisco Business CBS350-12NP-4X switch delivers a switching capacity of 200 Gbps and forwarding performance of 148.8 million packets per second (Mpps), ensuring low latency and high throughput for demanding applications.

We are trying hard to provide best price, still not satisfied. Let us know


    Please prove you are human by selecting the flag.

    • Pick up from the FGTECH Store

    To pick up today

    0-1 Days

    Free

    • Courier delivery

    Our courier will deliver to the specified address

    4-7 Days

    Free

    • Porter / WeFast

    Currently available only in Mumbai

    0-1 Days

    To be paid directly to service vendor

    • Fast Delivery ( By Air )

    We will ship from your product By Air to nearest center to speed up the delivery

    2-4 Days

    Start from Rs250 Extra

    SKU: FGIN7ZRI959M Categories: , Brand:
    Description

    The Cisco Business CBS350-12NP-4X is a versatile and powerful Layer 3 managed switch tailored for growing businesses. With 12 multigigabit PoE+ ports delivering up to 5 Gbps per port and 4 x 10G uplinks, the CBS350-12NP-4X facilitates flexible, high-speed connectivity and network scalability. It offers advanced Layer 3 routing, robust security, and IPv6 support to future-proof enterprise networks. The Cisco Business CBS350-12NP-4X stacking capability simplifies network management for expanding infrastructures. The Cisco Business CBS350-12NP-4X Cisco business switch is ideal for powering IP devices while maintaining smooth data flow across the enterprise network. With a strong PoE budget and comprehensive management features, the CBS350-12NP-4X empowers IT teams to build resilient, high-performance networks efficiently.

    Technical Key Features

    • Ports: 12 x 100/1000/2.5G/5GBase-T PoE+ ports and 4 x 10G SFP+ uplink ports (2 combo RJ45/SFP+ and 2 SFP+ dedicated)

    • PoE Budget: 375 Watts to power devices like IP cameras, VoIP phones, and wireless access points

    • Switching Capacity: 200 Gbps total switch capacity

    • Forwarding Performance: 148.8 Mpps (64-byte packets)

    • Layer 3 Features: Static routing and advanced Layer 3 traffic management for VLAN segmentation and efficient network traffic handling

    • MAC Address Table: Supports 16,000 entries

    • Stacking: Supports hardware stacking up to 4 units, allowing management of up to 48 ports as a single system

    • VLAN Support: Supports 4,094 VLANs for network segmentation

    • Security: Advanced security features including 802.1X authentication, ACLs, DHCP snooping, and IP Source Guard

    • IPv6 Support: Full IPv6 capability with USGv6 and IPv6 Gold certification

    • Management: Intuitive web-based interface, CLI, SNMP, and Cisco FindIT support for easy deployment and monitoring

    • Operating Temperature: 0°C to 50°C (32°F to 122°F)

    • Form Factor: Rack-mountable with dimensions 440 x 257 x 44 mm and weight approximately 4.24 kg

    • Power Supply: Internal, universal AC input (100-240V, 50-60 Hz)

    • Other Features: Jumbo frame support up to 9,216 bytes, 3 MB packet buffer memory, USB Type-A port for file/image management

    The Cisco Business CBS350-12NP-4X product provides outstanding network performance, security, and reliability under the trusted Cisco Business brand, designed to meet the needs of modern digital workplaces and small to medium-sized enterprises.Cisco Business CBS350-12NP-4X

    Product Details

    FeatureSpecification
    ModelCisco Business CBS350-12NP-4X
    Device TypeManaged Layer 3 Multi-Gigabit Switch
    Enclosure TypeRack-mountable
    Total System Ports12 x Multi-Gigabit Ethernet ports (100M/1G/2.5G/5G) (PoE+)
    Uplink Ports4 x 10G SFP+ (2 x combo 10G copper/SFP+)
    PoE Power BudgetUp to 494.5 Watts
    Switching Capacity148.8 Gbps
    Forwarding Rate200 million packets per second (Mpps)
    MAC Address Table Size16,000 entries
    Jumbo Frame SupportUp to 9,216 bytes
    VLANs SupportedUp to 4,094 VLANs
    VLAN Types SupportedPort-based, 802.1Q tagged, MAC-based, protocol-based, IP subnet-based VLANs
    Stacking SupportYes, supports hardware stacking up to 4 units
    CPUARM-based processor, specifics not publicly detailed
    MemoryNot publicly detailed
    Packet BufferNot specifically detailed
    Spanning Tree Protocol802.1d, Rapid STP (802.1w), MST (802.1s), Per-VLAN STP Plus (PVST+) with 126 instances
    Link Aggregation802.3ad LACP, up to 8 groups with 8 ports per group
    Quality of Service (QoS)Advanced QoS features with traffic prioritization
    Security FeaturesGuest VLAN, Private VLAN, Dynamic VLAN assignment via RADIUS and 802.1x
    ManagementWeb-based GUI, SNMP, Cisco Business Dashboard
    Power SupplyInternal, universal 100-240V AC, 50-60 Hz
    Power Consumption~60W (typical), up to 494.5W (max PoE)
    Operating Temperature0° to 50°C (32° to 122°F)
    Dimensions (WxDxH)440 x 257 x 44 mm (17.3 x 10.12 x 1.73 in)
    WeightApproximately 4.24 kg (9.35 lbs)
    CertificationsUL, CSA, CE, FCC Class A
    The Cisco Business CBS350-12NP-4X switch is designed for small to medium business environments requiring high-performance multi-gigabit network ports with Power over Ethernet capability, advanced management, and security features, providing both flexibility and scalability for business needs.
