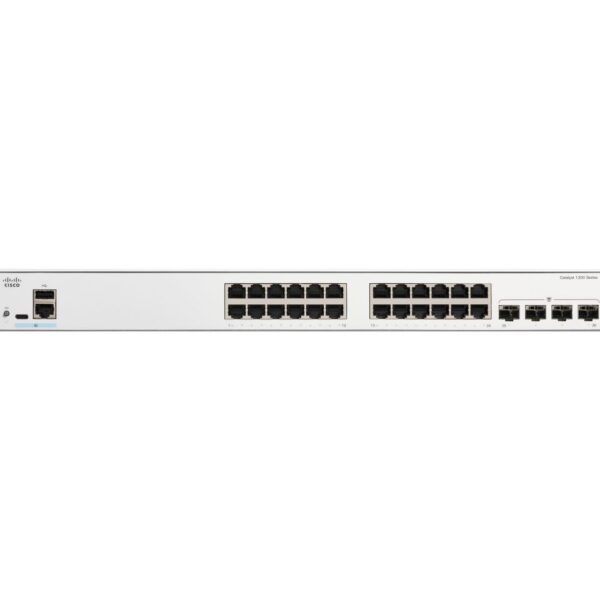

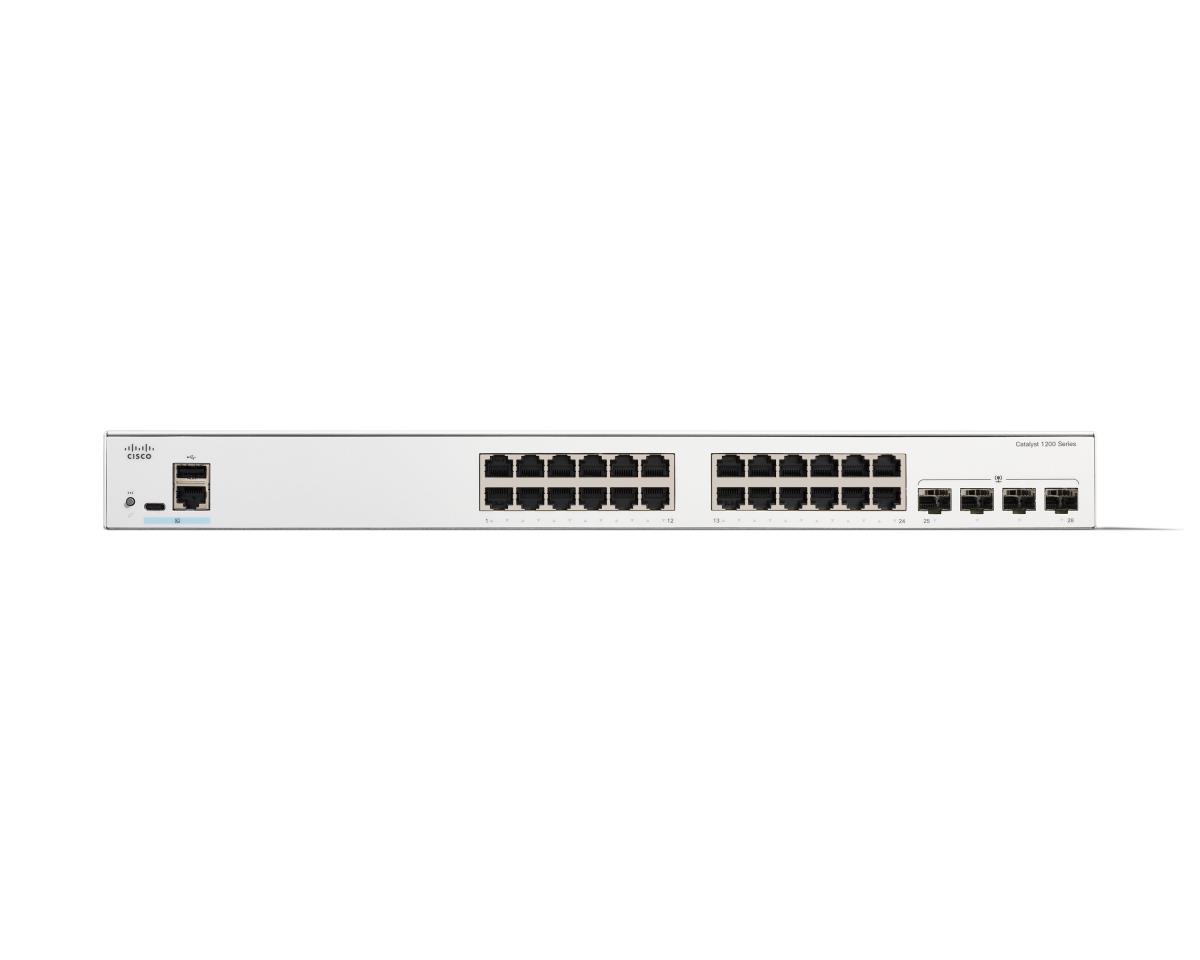

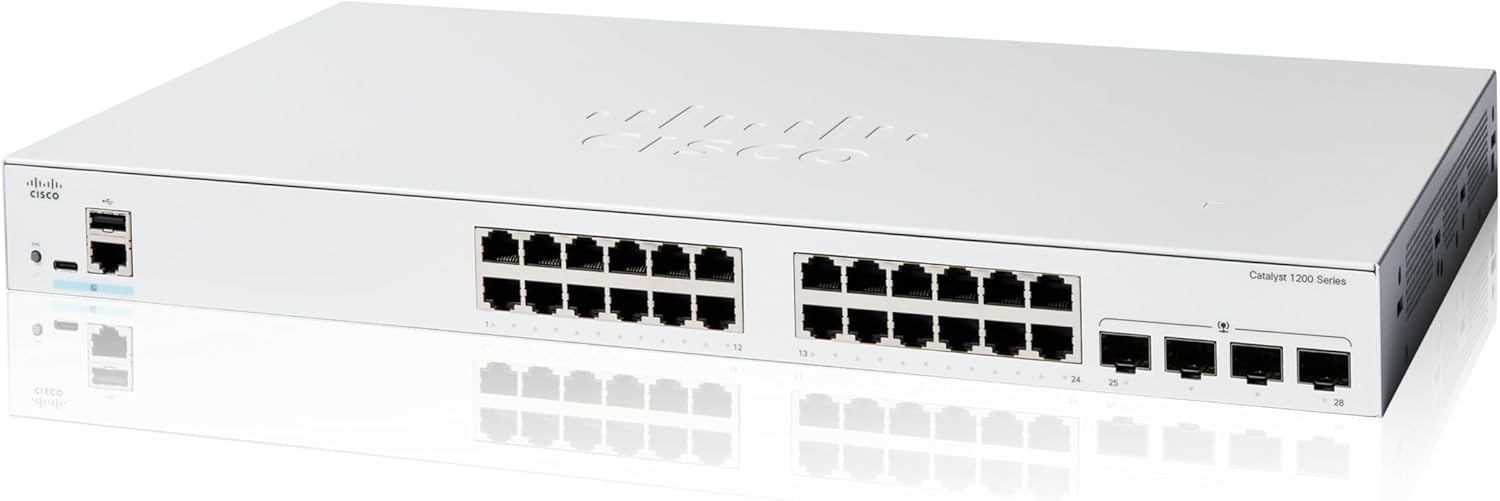

The Cisco C1200-24T-4G is a high-performance, enterprise-class managed switch designed to deliver dependable, secure, and scalable network connectivity. Optimized for small to medium businesses and branch deployments, the Cisco Catalyst C1200-24T-4G powerful switch combines intuitive management with enterprise-grade features to ensure seamless data flow and business continuity. With Gigabit Ethernet access and flexible uplink connectivity, Cisco Catalyst C1200-24T-4G is built to handle today’s demanding network environments.
24 Gigabit Ethernet Ports (10/100/1000 Mbps):Â Provides high-speed wired connectivity for desktops, servers, and access points.
4 Gigabit SFP Uplink Ports:Â Supports fiber uplinks for flexible network expansion and reliable long-distance connections.
Advanced Security:Â Features access control lists (ACLs), 802.1X authentication, port security, and DHCP snooping to safeguard critical data.
Layer 2 Switching with Advanced Layer 3 Features:Â Includes static routing, VLAN support, and enhanced traffic management for efficient network segmentation.
Scalability & Flexibility:Â Ideal for growing businesses, supporting up to hundreds of devices with simplified management.
Energy Efficiency:Â Cisco Energy-Efficient Ethernet (EEE) reduces power usage without compromising performance.
Intuitive Management:Â Easily managed via Cisco Business Dashboard, CLI, or SNMP with centralized monitoring and control.
High Reliability:Â Built with robust hardware and software resiliency features for continuous uptime and reduced downtime.
Delivers fast Gigabit connectivity for seamless collaboration and enhanced productivity.
Secures your network with enterprise-grade protection against unauthorized access and threats.
Provides future-ready scaling to adapt as your business network grows.
Ensures consistent performance across critical workloads like VoIP, video conferencing, and cloud-based applications.
| Specification Category | Details |
|---|---|
| Model | Cisco Catalyst C1200-24T-4G |
| Port Configuration | 24 x 10/100/1000 Mbps RJ-45 Ports + 4 x 1G SFP Uplink Ports |
| Switching Capacity | 56 Gbps |
| Forwarding Rate (64-byte packets) | 41.66 million packets per second (mpps) |
| Packet Buffer | 1.5 MB |
| CPU | Dual-core ARM processor, 1.4 GHz |
| Memory | 1 GB DDR4 RAM |
| Operating System | Customized Linux-based OS |
| Management | Cisco Business Dashboard, Cisco Business mobile app, CLI, SNMP, HTTP/HTTPS, SSH |
| Layer 2 Features | VLAN (up to 255 active VLANs), VLAN tagging (802.1Q), Port-based VLANs, Voice VLANs, STP (802.1D), RSTP (802.1w), MSTP (802.1s) |
| Layer 3 Features | Static routing (up to 32 routes), IP interfaces (up to 16), IPv4 & IPv6 routing support |
| Security Features | 802.1X port security, ACLs (512 rules, time-based), DoS attack prevention, DHCP snooping |
| QoS Features | 8 hardware queues, strict priority, Weighted Round Robin, traffic classification (802.1p, DSCP), rate limiting and shaping |
| Power Consumption | 13.9W (110V), 14.2W (220V) idle power 4.7W (110V), 4.9W (220V) |
| Cooling | Fanless design |
| Dimensions (W x D x H) | 445 x 240 x 44 mm (17.5 x 9.45 x 1.73 in) |
| Weight | 2.63 kg (5.8 lbs) |
| Power Supply | Internal, universal 100-240V, 50-60 Hz |
| Environmental | Operating temperature: 23° to 122°F (-5° to 50°C) |
| Acoustic Noise Level | Fanless (silent operation) |
| Compliance | UL 62368, CSA 22.2, CE mark, FCC Part 15 Class A |
| Energy Efficiency | Supports IEEE 802.3az Energy Efficient Ethernet, automatic power off on idle ports, LED disablement |
| Additional Ports | USB Type C port (front panel) for file/image management and console access |
| Console Ports | Standard RJ-45 and USB Type C console ports |
| Jumbo Frames Support | Up to 9000 bytes |
| Multicast | Supports IGMP Snooping, MLD, 255 multicast groups, PIM-lite support |
| Redundancy and Resiliency | Link Aggregation Control Protocol (LACP) support up to 4 groups with max 8 ports per group |
| Warranty | Limited lifetime warranty with return-to-factory replacement |
