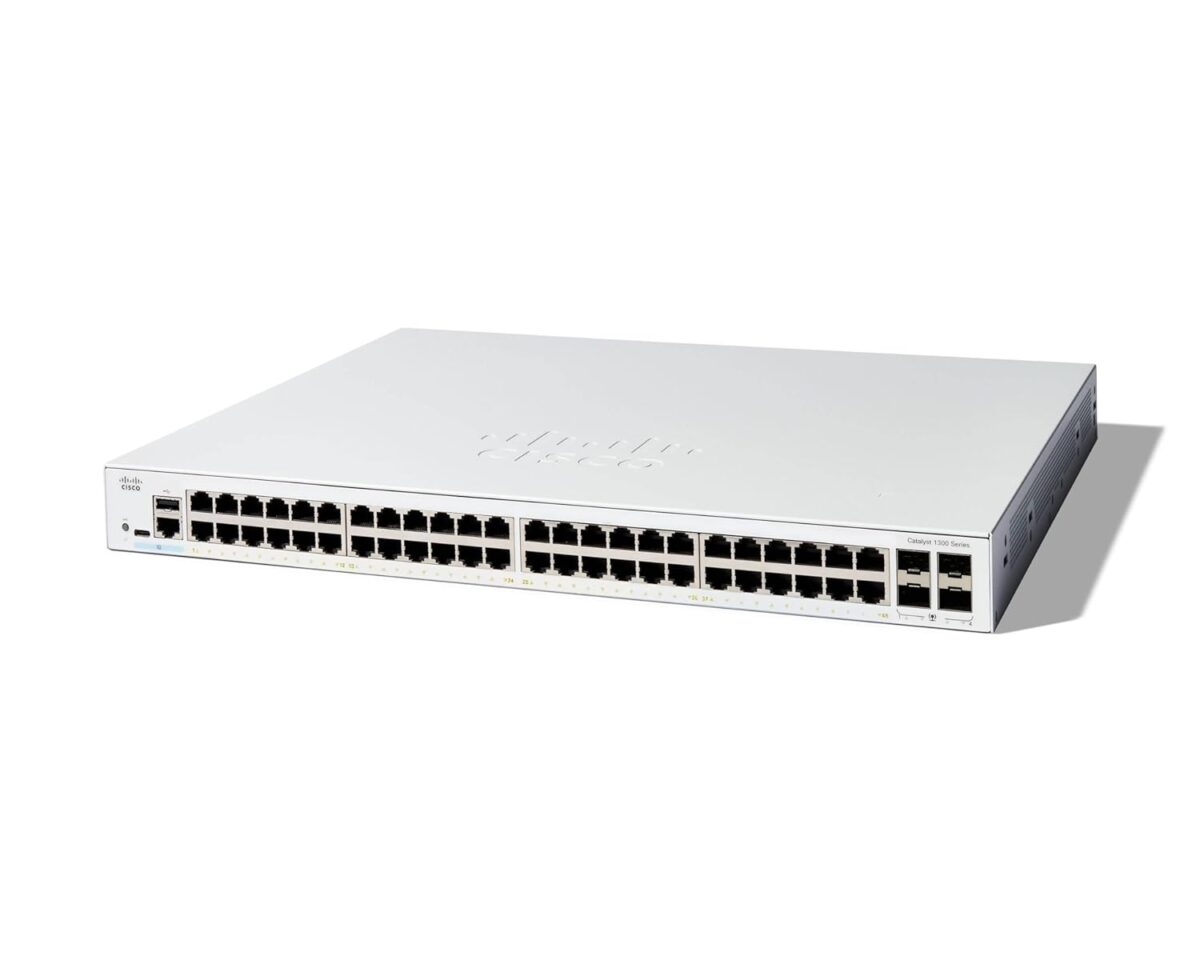

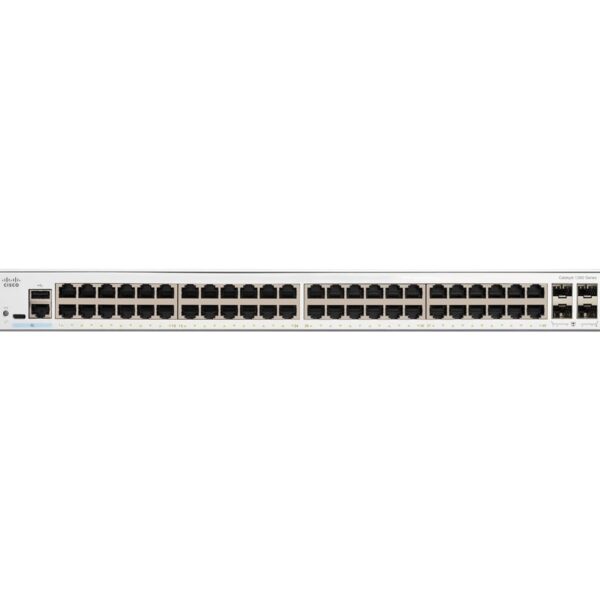

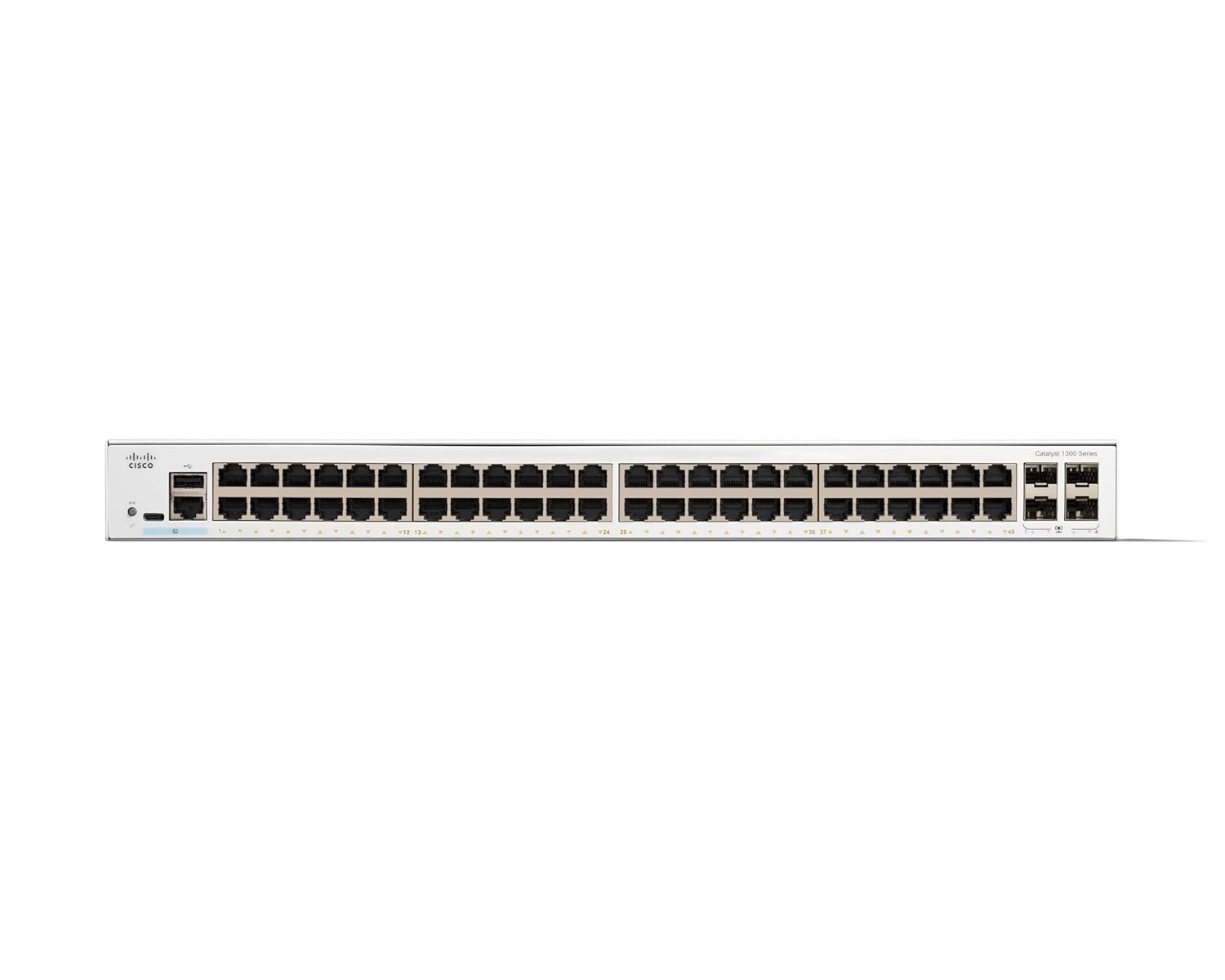

Cisco Catalyst C1300-48T-4G High-Density 48-Port Gigabit Ethernet Switch with 4x 1G SFP Uplinks

The Cisco Catalyst C1300-48T-4G is a high-density, fixed-configuration managed Gigabit Ethernet switch designed for small and medium-sized businesses and enterprise-edge deployments. The Cisco Catalyst C1300-48T-4G provides 48 auto-sensing 10/100/1000 Mbps Ethernet ports, delivering robust and scalable connectivity for demanding network environments. In addition, The Cisco Catalyst C1300-48T-4G includes 4 Gigabit SFP fiber uplink ports to enable flexible network expansion and integration with higher-speed cores or fiber backbone infrastructure.

The Cisco Catalyst C1300-48T-4G Powered by an ARM dual-core 1.4 GHz processor and equipped with 1 GB DDR4 memory, The Cisco Catalyst C1300-48T-4G achieves a switching capacity of 104 Gbps and forwards traffic at 77.38 million packets per second (Mpps), supporting high-throughput applications with low latency. A 1.5 MB packet buffer optimizes data flow to minimize congestion.

The C1300-48T-4G supports advanced Layer 2 and basic Layer 3 features, including VLAN segmentation (802.1Q), link aggregation (802.3ad LACP), Quality of Service (QoS) for traffic prioritization, and network security with 802.1X authentication and Cisco Discovery Protocol. It offers comprehensive remote and local management options via Web GUI, CLI, and the Cisco Business mobile app to simplify configuration and monitoring.

Its design includes a single fan for efficient cooling while maintaining low acoustic noise levels, suitable for office environments. The switch supports a wide operating temperature range and features an internal power supply (100-240V AC). It is housed in a compact, rack-mountable chassis measuring 445 x 288 x 44 mm and weighing approximately 3.95 kg.

Key Features:

• 48 x 10/100/1000 Mbps Gigabit Ethernet RJ45 ports for high-density connectivity

• 4 x 1G SFP uplink ports for flexible fiber connections

• Switching capacity of 104 Gbps and forwarding rate of 77.38 Mpps

• ARM dual-core 1.4 GHz CPU with 1 GB DDR4 RAM and 512 MB flash memory

• 1.5 MB packet buffer

• Layer 2 switching with advanced security and basic Layer 3 routing capabilities

• Support for VLANs, QoS, link aggregation, and 802.1X authentication

• Managed via Web GUI, CLI, and Cisco Business app

• Fan-cooled with low acoustic noise (29.7 dBA at 25°C)

• Operating temperature: -5°C to 50°C; Relative humidity: 10% to 90% (non-condensing)

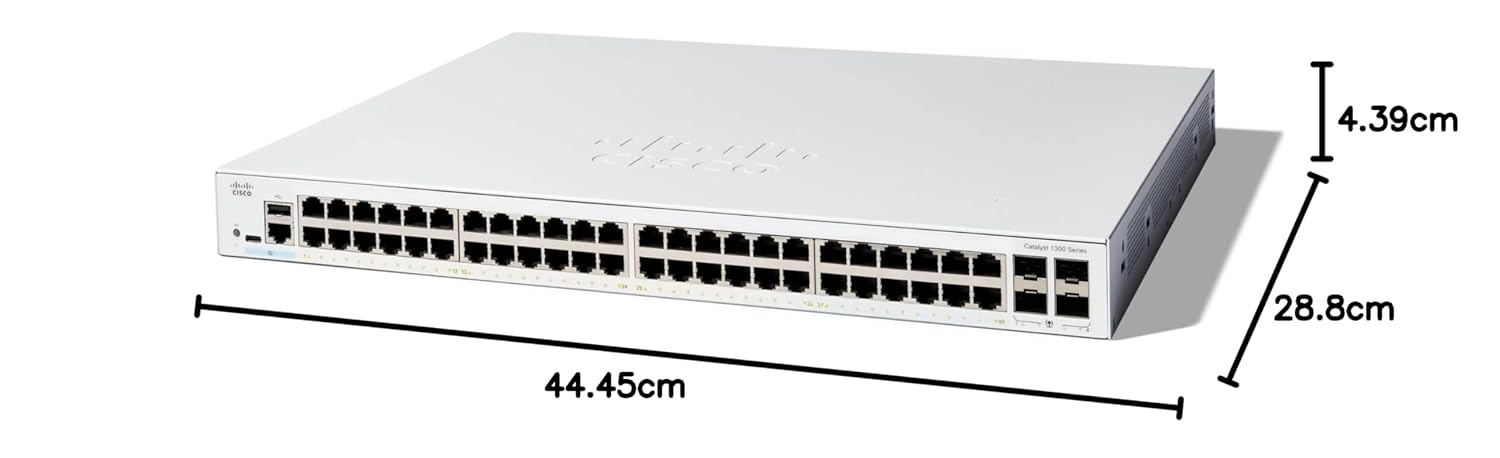

• Dimensions: 445 x 288 x 44 mm; Weight: 3.95 kg

• Internal universal AC power supply (100-240V)

• USB Type-C port for file and image management

• Cisco Limited Lifetime Warranty for long-term reliability and support

Ideal for enterprise-edge and SMB deployments requiring high port density, reliable performance, and robust Layer 2/3 capabilities, the Cisco Catalyst C1300-48T-4G ensures scalable and secure network operations.
