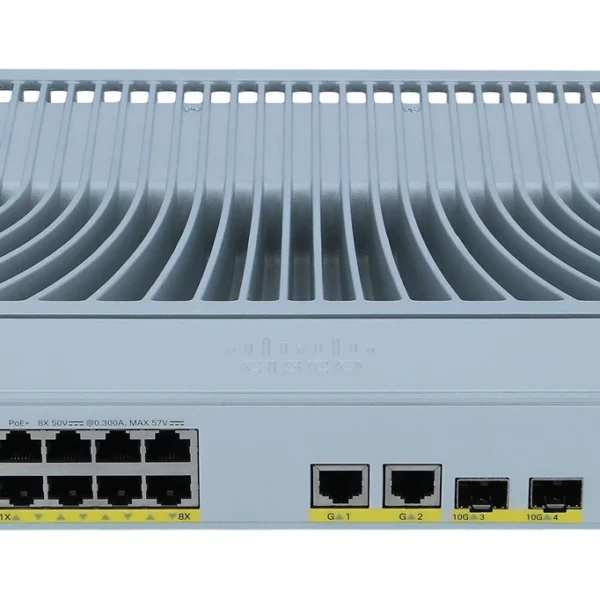

The Cisco Catalyst C9200CX-8P-2X2G is a high-performance, compact 8-port Gigabit Ethernet PoE+ switch designed for modern enterprise networks. Featuring a flexible uplink configuration with 2x 10G SFP+ and 2x 1G copper ports, the Cisco Catalyst 9200CX-8P-2X2G fanless switch delivers silent operation and energy-efficient performance. Powered by Cisco IOS XE software, it provides advanced security with AES-256 MACsec encryption and scalable Layer 3 routing protocols and supports up to a 240 W PoE budget for powering devices like IP phones and wireless access points.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
The Cisco Catalyst C9200CX-8P-2X2G is the industry-leading compact switch designed for advanced enterprise networking solutions. Engineered with cutting-edge technology, the Cisco Catalyst C9200CX-8P-2X2G model offers unparalleled performance, flexibility, and security, making it the perfect choice for modern branch offices, campus environments, and edge networks. Built on the foundation of Cisco’s renowned IOS XE operating system and equipped with the latest UADP 2.0 Mini ASIC, the Cisco Catalyst C9200CX-8P-2X2G ensures a seamless, intelligent networking experience.
The Cisco Catalyst C9200CX-8P-2X2G highly reliable and robust switch is optimised for high-density PoE+ deployments, supporting up to 8 ports with IEEE 802.3bt class 6 UPOE and PoE+ standards, capable of delivering up to 60W power per port. Its fanless, compact design ensures silent operation and energy efficiency, certified with ENERGY STAR for sustainability.the Cisco Catalyst C9200CX-8P-2X2G integrates flexible power options, supporting internal AC power supplies, HVDC, or DC microgrid power sources, enabling sustainable energy solutions in diverse environments.
8 Gigabit Ethernet PoE+ Ports delivering up to 30W per port to power IP phones, wireless access points, and other PoE devices.
Flexible Uplink Configuration with 2x 10G SFP+ and 2x 1G copper uplink ports for high-speed network expansion and scalability.
Fanless Compact Design ensures silent operation and fits perfectly in noise-sensitive or space-constrained environments.
Advanced Security including AES-256 MACsec encryption and Cisco TrustSec policy-based segmentation for secure data transmission.
Powered by Cisco IOS XE Software supporting advanced Layer 2 features, automation, and streamlined network management.
Integrated PoE Budget of 240WÂ to effectively support multiple powered devices without additional power supplies.
Energy Efficient Ethernet (EEE) Compliance for reduced power consumption and operational cost savings.
Supports up to 16 Virtual Networks and comprehensive Layer 3 routing protocols like OSPF, EIGRP, RIP, and basic BGP.
Internal 315W AC Power Supply with options for HVDC and DC microgrid energy sources, promoting sustainable and flexible power usage.
Robust Performance with 60 Gbps switching capacity and 95.23 Mpps forwarding rate for responsive and scalable networking.
Cloud-Ready Management via Cisco Meraki Dashboard, Cisco Catalyst Center, or traditional CLI for ease of monitoring and configuration.
High Reliability with Mean Time Between Failures (MTBF) over 569,000 hours, ensuring dependable uptime.
| Specification | Details |
|---|---|
| Model | Cisco Catalyst C9200CX-8P-2X2G |
| Switch Type | Compact, fanless |
| Dimensions (HxWxD) | 1.73 x 10.6 x 9.6 inches (4.4 x 26.9 x 24.4 cm) |
| Weight | 6.6 lbs (2.99 kg) |
| Downlink Ports | 8 x 1G full Power over Ethernet Plus (PoE+) ports |
| Uplink Ports | 2 x 1G copper + 2 x 10G SFP+ fixed uplinks |
| Power Supply | Internal 315W AC power supply |
| PoE Power Budget | 240W dynamic PoE allocation |
| Fan | Fanless |
| Switching Capacity | 60 Gbps |
| Forwarding Rate | 44.64 Million packets per second (Mpps) |
| MAC Address Table Size | 32,000 entries |
| IPv4 Routes | 14,000 (10,000 direct + 4,000 indirect) routes |
| IPv6 Routes | 2,000 |
| QoS Scale Entries | 1,000 |
| ACL Scale Entries | 1,600 |
| VLAN IDs Supported | 4,096 |
| Layer 3 Routing | Static routes, RIP, OSPF, EIGRP, IS-IS, basic BGP (from IOS-XE 17.13.1) |
| MACsec Encryption | AES-256 encryption |
| Precision Time Protocol (PTP) | Supported (IEEE 1588v2) |
| Stacking Support | Not supported |
| Software | Cisco IOS XE with Smart Licensing, SD-Access support |
| Security Features | Policy-based segmentation, Cisco Trust Anchor Technologies |
| Energy Efficiency | ENERGY STAR qualified, Energy Efficient Ethernet (EEE), per-port power sensing |
| Environmental Operating Temp | -5°C to 40°C, altitude up to 10,000 feet |
| Mean Time Between Failures | 736,000 hours |
| Storage | Supports up to 4GB Micro-SD card |
| Management | CLI, Cisco DNA Center, Meraki dashboard, WebUI, RESTCONF/NETCONF APIs |
| Power Input Voltage Range | 100–240 VAC |
| LED Indicators | Front blue beacon LED for easy identification |
| PoE Features | Perpetual PoE, Fast PoE, IEEE 802.3bt Class 6, Cisco UPOE compatible |
| Bluetooth Support | Supports Bluetooth dongle for management interface |
| Compliance and Safety | UL, IEC, FCC Class A, CE Marking, ROHS 5 |
