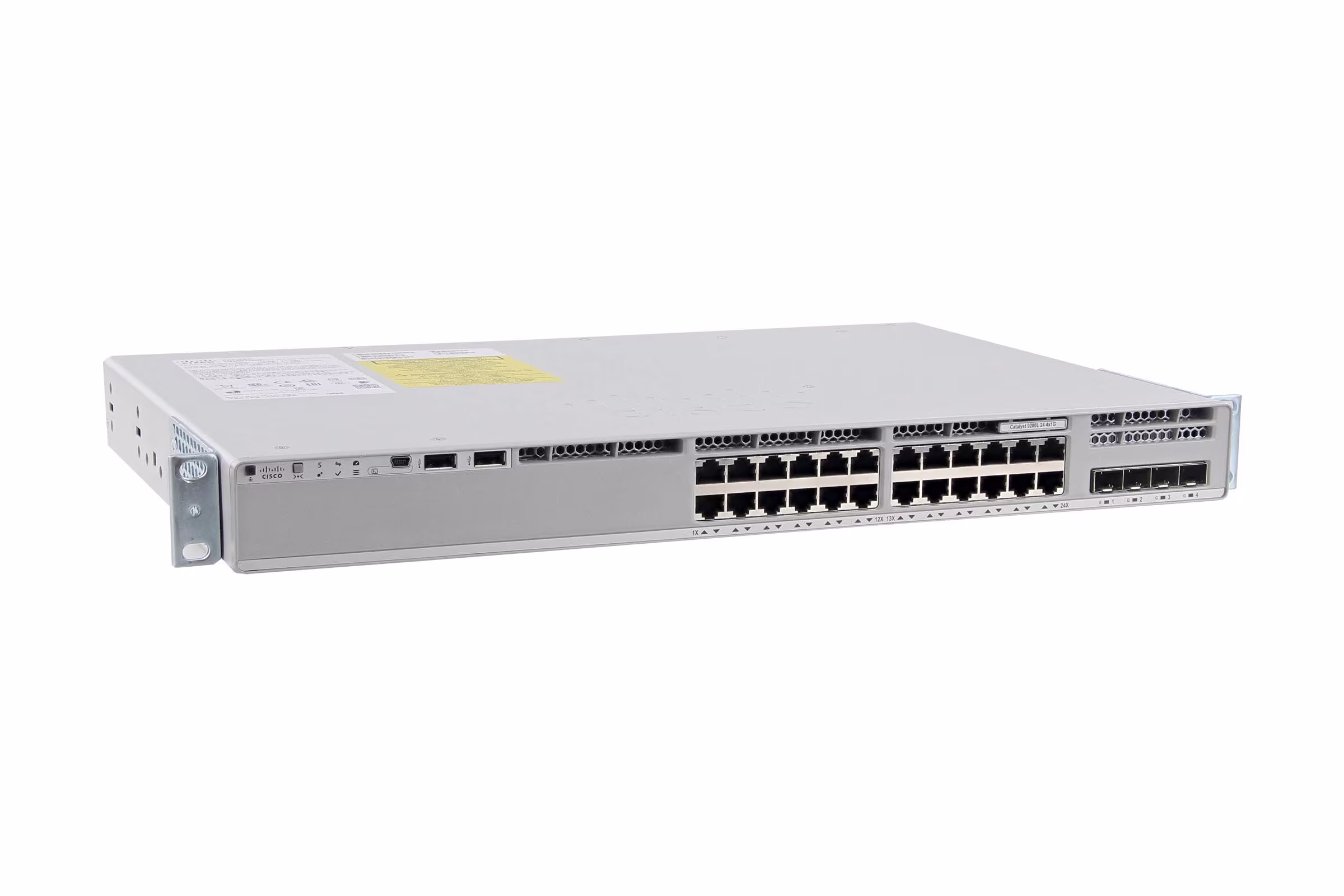

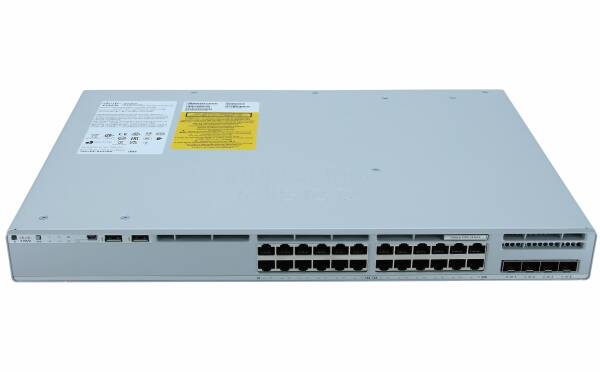

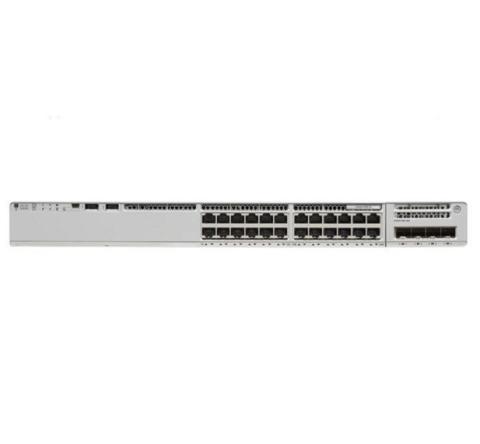

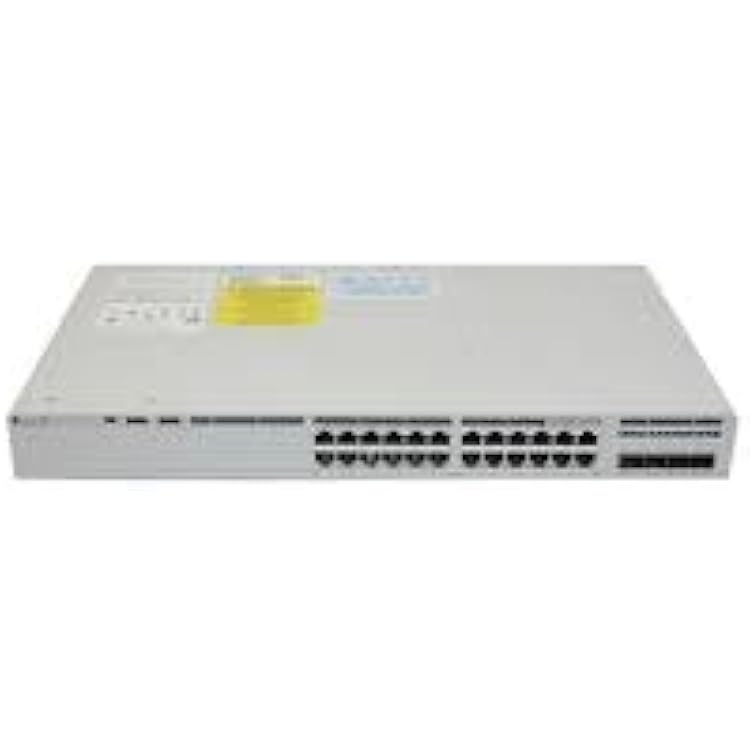

The Cisco Catalyst C9200L-24T-4G-E is a high-performance Layer 3 managed switch that provides reliable and scalable connectivity for enterprise and SMB networks. Equipped with 24 auto-sensing 10/100/1000 Mbps Ethernet ports and 4 dedicated 1 Gigabit SFP uplinks, The Cisco Catalyst C9200L-24T-4G-E switch supports efficient data transfer and flexible network expansion. The Cisco Catalyst C9200L-24T-4G-E delivers a switching capacity of 56 Gbps and a forwarding rate of 41.66 million packets per second (Mpps), making The CiscoΒ Catalyst C9200L-24T-4G-E suitable for data-intensive applications.
Built on Ciscoβs UADP 2.0 Mini chipset with 4 GB flash memory and 2 GB DRAM, The Cisco Catalyst C9200L-24T-4G-E switch ensures high reliability and rapid performance. The CiscoΒ Catalyst C9200L-24T-4G-E supports Cisco StackWise-160 technology, enabling stacking bandwidth up to 160 Gbps to simplify management and increase redundancy. Advanced Layer 3 features include static routing, RIP, OSPF, and EIGRP, enhancing network segmentation and routing capabilities.
Security isΒ robust with featuresΒ such as EncryptedΒ Traffic AnalyticsΒ (ETA), MACsecΒ encryption, accessΒ control listsΒ (ACLs), andΒ 802.1x networkΒ access control. Management isΒ seamless viaΒ Web GUI, CLI, and Cisco DNAΒ Center compatibilityΒ for automatedΒ network assuranceΒ and simplifiedΒ deployment.
The Cisco Catalyst C9200L-24T-4G-E switch supports Cisco Software-Defined Access (SD-Access) with policy-based automation from the edge to the cloud, improving operational efficiency. The compact form factor (445 x 288 x 44 mm) and moderate weight (3.3 kg) make it easy to deploy in various environments.
Key Features:
24 x 10/100/1000 Mbps EthernetΒ ports (non-PoE)
4 x 1G SFP fixed uplinkΒ ports
SwitchingΒ capacity: 56Β Gbps; Forwarding rate: 41.66 Mpps
4 GBΒ flash, 2 GB DRAM memory

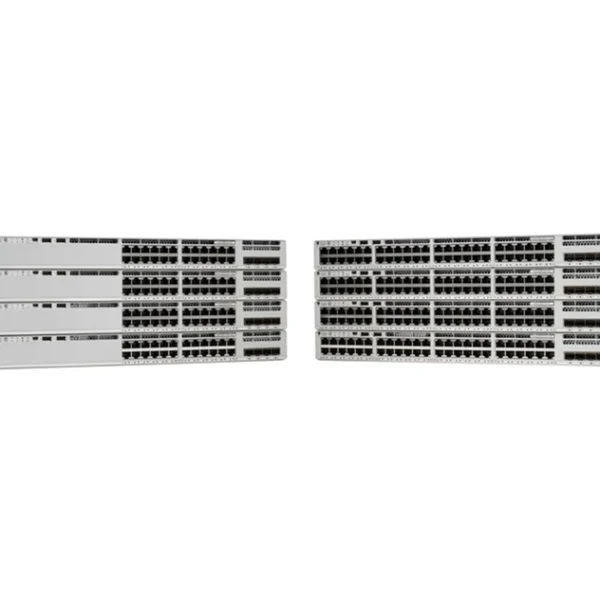

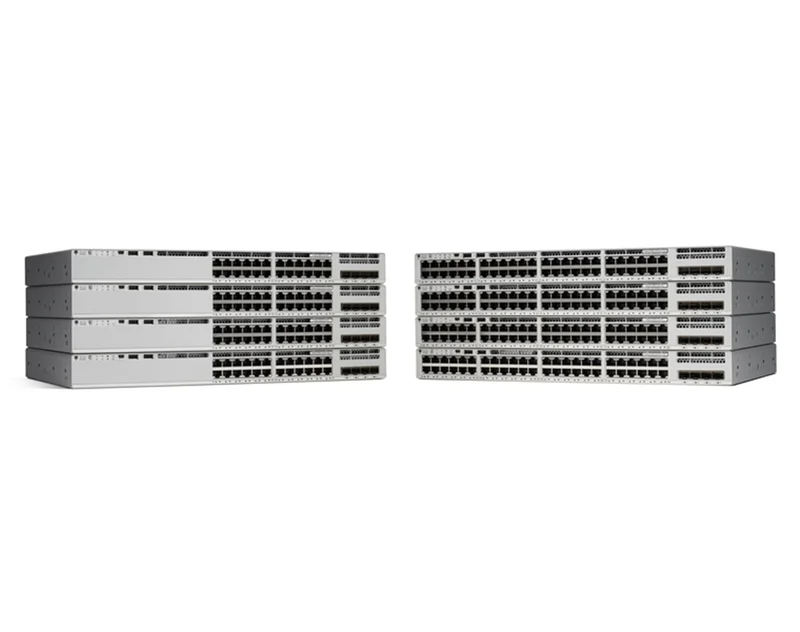

CiscoΒ StackWise-160Β stacking supportΒ with up to 160Β Gbps bandwidth
Layer 3 switchingΒ with RIP, OSPF, EIGRP staticΒ routing
AdvancedΒ security: MACsec, ETA, ACLs, 802.1x authentication
Cisco DNA CenterΒ compatibilityΒ for network automationΒ and assurance
Energy EfficientΒ Ethernet (EEE) for power savings

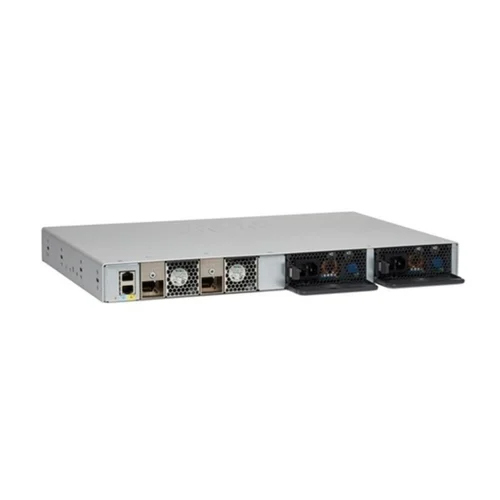

Compact rack-mountable designΒ with reliableΒ internal powerΒ supply
CiscoΒ Limited LifetimeΒ Warranty
ThisΒ switch is idealΒ for organizationsΒ seeking a balanceΒ of reliable LayerΒ 3 features, enhancedΒ security, andΒ scalable managementΒ within a cost-effective, compactΒ design.
