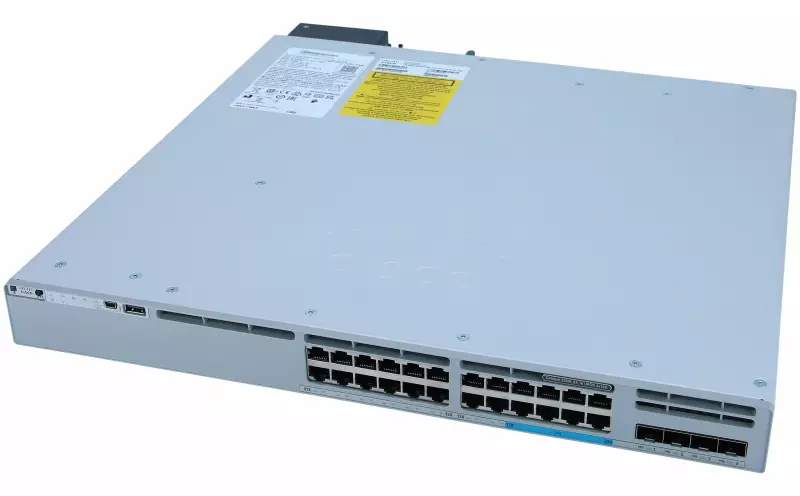

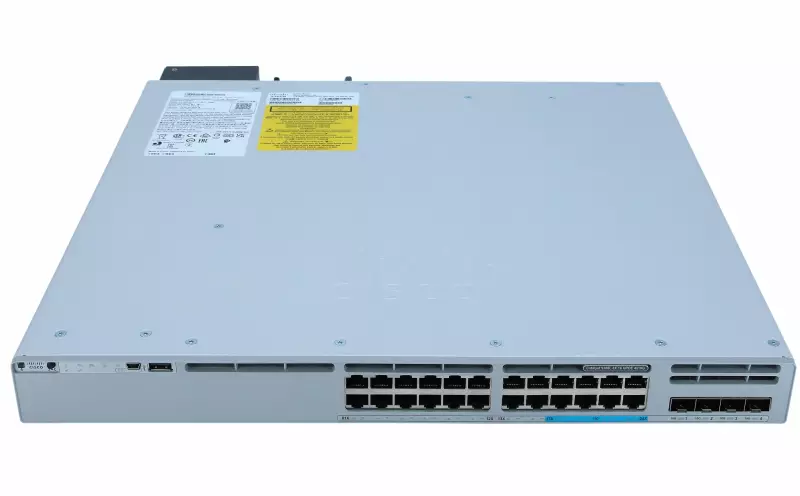

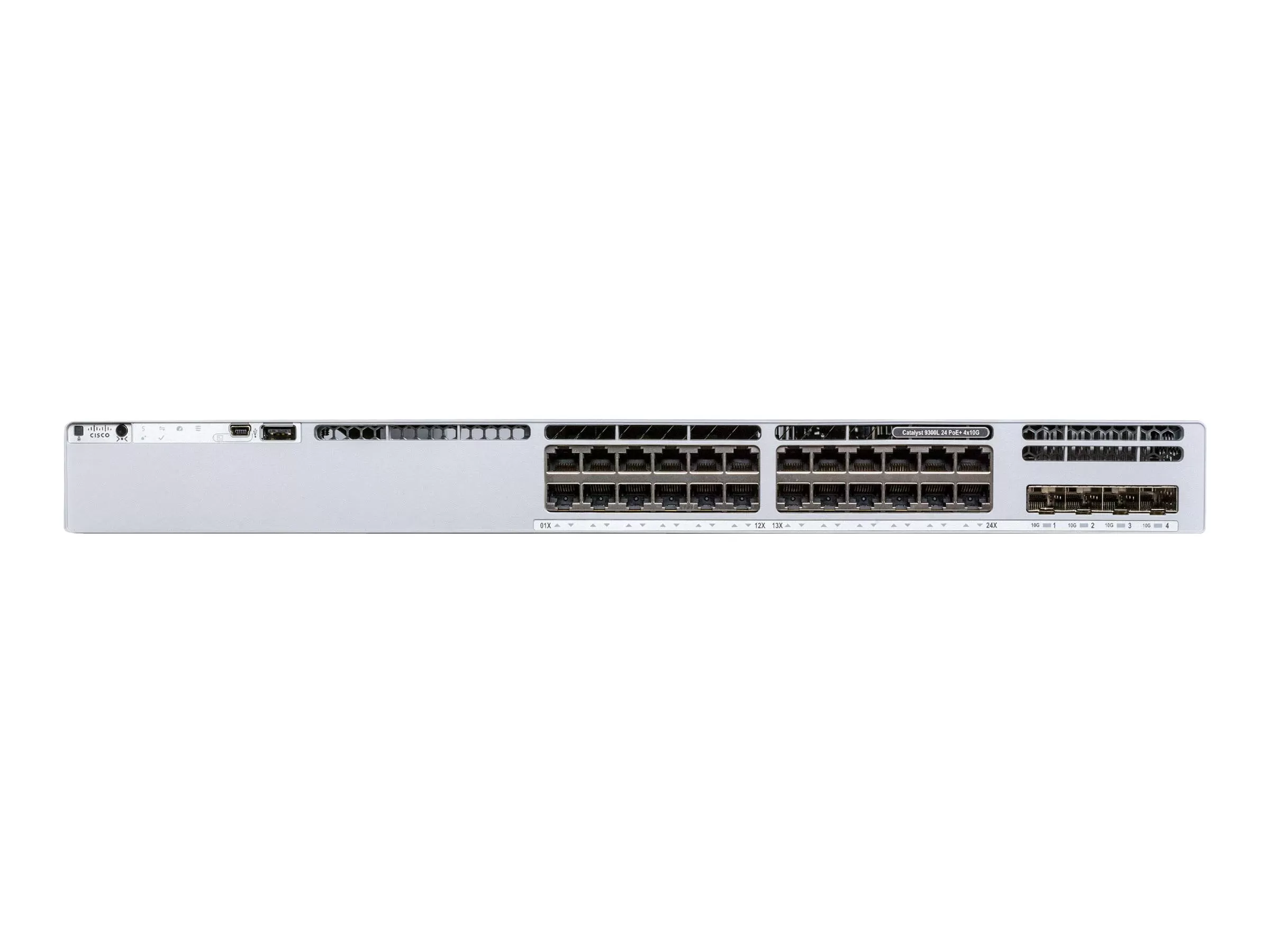

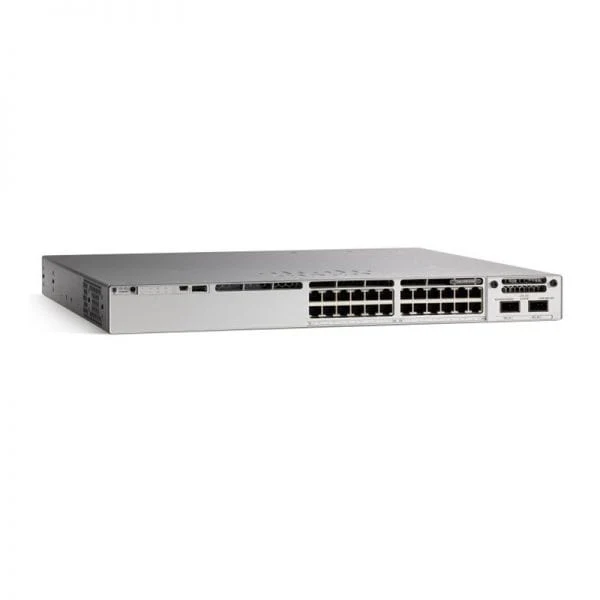

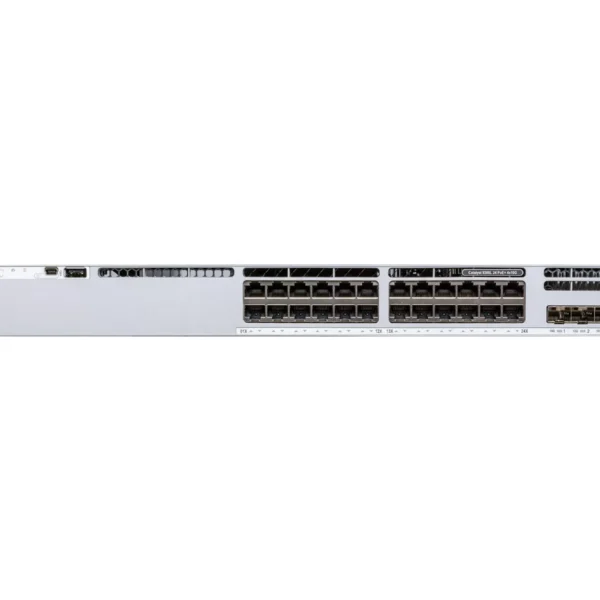

The Cisco Catalyst C9300L-24UXG-4X Switch is a next-generation fixed-uplink enterprise-class switch designed to deliver superior performance, scalability, and security for modern digital networks. Part of the Cisco Catalyst 9300 Series, this model provides 24 ports of Cisco UPOE, including 8 Multigigabit (10G/5G/2.5G/1G/100M) and 16 Gigabit (1G/100M/10M) ports, combined with 4 fixed 10G/1G uplinks for flexible connectivity.
Built on Cisco’s Unified Access Data Plane (UADP) 2.0 ASIC, the switch enables hardware-based forwarding for IPv4/IPv6, supports AES-256 MACsec encryption, and offers Cisco StackWise-320 technology for 320 Gbps stacking bandwidth and centralized management across up to eight switches.

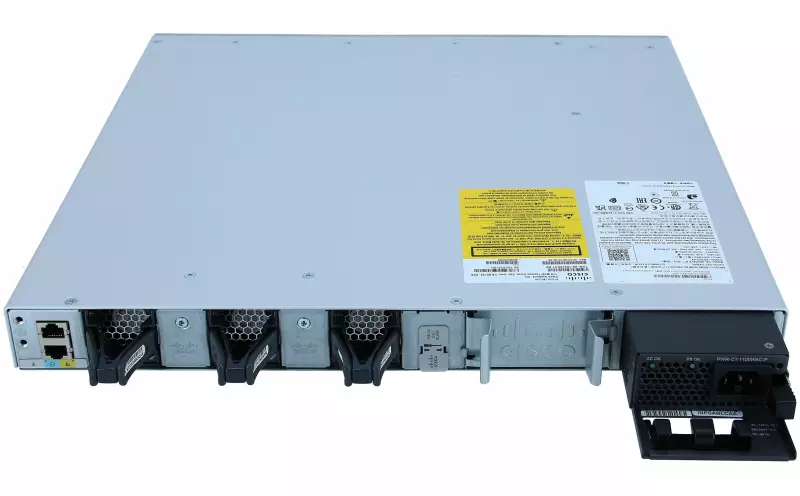

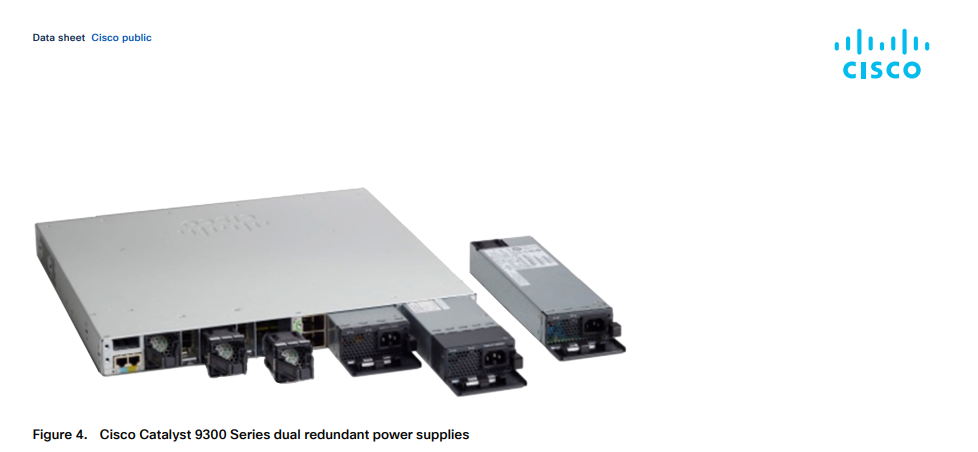

The C9300L-24UXG-4X ensures resilient power with a 1100 W AC power supply supporting up to 880 W of PoE power, ideal for high-power devices such as Wi-Fi 6/6E access points, IP cameras, and smart IoT devices. With integrated Cisco DNA software, Software-Defined Access (SD-Access), and ThousandEyes visibility, this switch provides cloud-ready automation, analytics, and security for today’s hybrid environments.
Whether deployed in large campuses or small enterprises, this switch delivers advanced programmability, intelligent PoE power management, and secure network segmentation — making it the best choice for modern business networks that require speed, flexibility, and future-ready performance.
Key Features
- Model: Cisco Catalyst C9300L-24UXG-4X
- Ports: 24 × UPOE ports (8 × Multigigabit + 16 × 1G)
- Uplinks: 4 × 10G/1G fixed SFP+ uplinks
- Power Supply: 1100 W AC (default)
- PoE Budget: Up to 880 W available
- Stacking Support: Cisco StackWise-320 (up to 8 switches, 320 Gbps stack bandwidth)
- Switching Capacity: 272 Gbps (standalone) | 592 Gbps (with stacking)
- Forwarding Rate: 202.38 Mpps (standalone) | 440.47 Mpps (with stacking)
- UADP ASIC: UADP 2.0 programmable architecture for high-speed forwarding
- Security: AES-256 MACsec encryption | Trust Anchor | Secure Boot
- Software: Cisco IOS XE | Supports SD-Access | DNA Advantage license
- PoE Standards: IEEE 802.3bt UPOE + PoE+ support
- Layer Support: L2 & L3 Switching | IPv4/IPv6 Routing | QoS | ACLs
- Stacking Hardware: C9300L-STACK-KIT / KIT2 (optional)
- Form Factor: 1 RU rack-mountable switch
- Ideal For: Enterprise access layer, smart buildings, Wi-Fi 6 networks, IoT deployments
