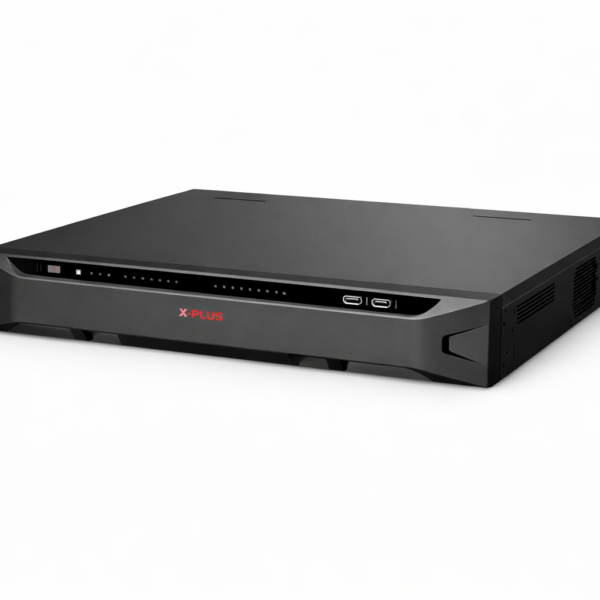

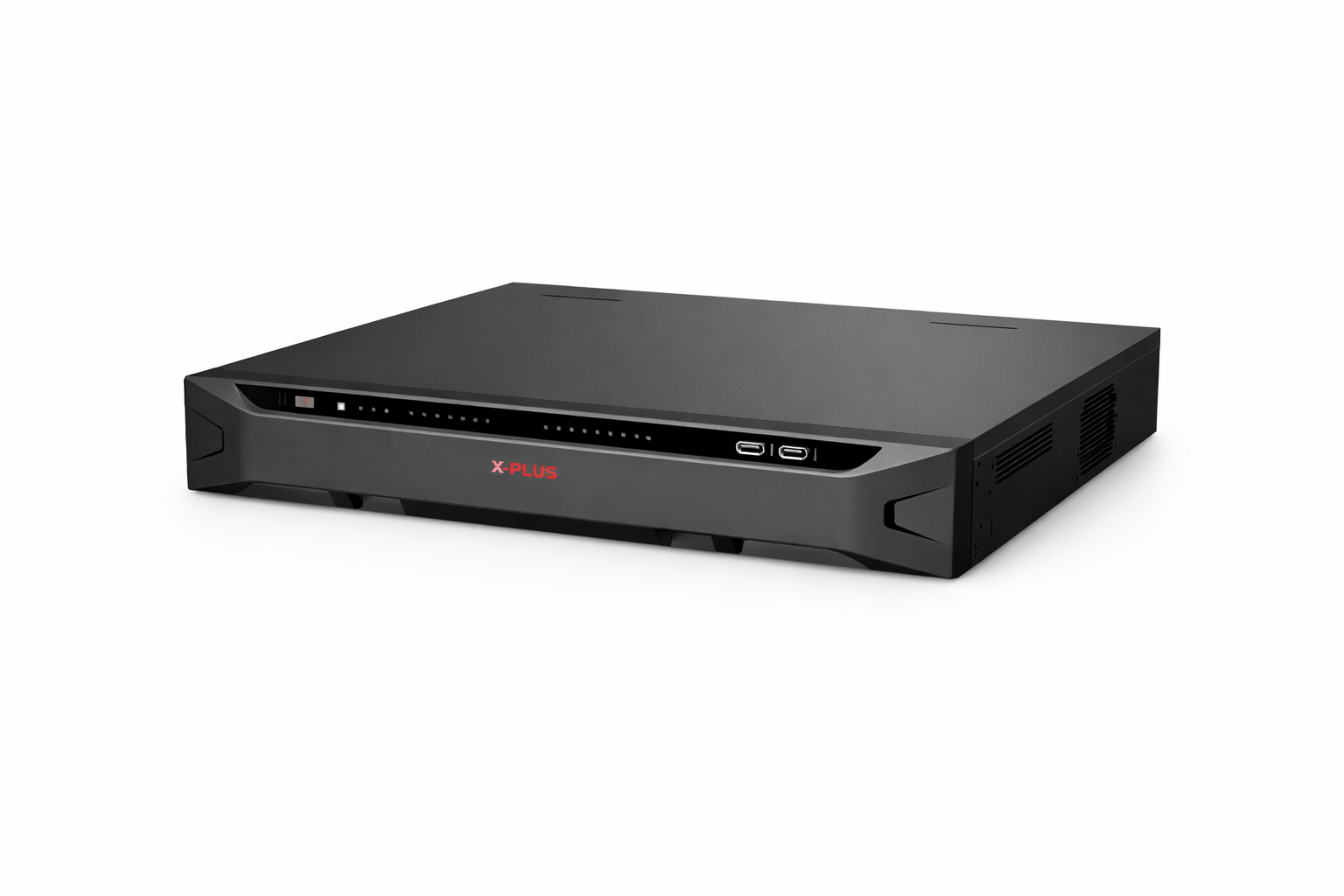

| Model | CP-UNR-4K4324-FI |
| Product Type | 32 Channel H.265 Network Video Recorder (NVR) |
| Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| User Interface | Web, Local GUI |
| IP Camera Input | 32 channels |
| Video Compression | H.265, H.264, MJPEG |
| Encode Strategy | Instastream |
| Maximum Video Resolution | Up to 16MP |
| Supported Resolutions | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 960p, 1MP, D1, CIF |
| Decoding Capability (AI Disabled) | 2×16MP@30fps, 2×12MP@30fps, 4×8MP@30fps, 6×5MP@30fps, 8×4MP@30fps, 16×1080p@30fps |
| Decoding Capability (AI Enabled) | 1×16MP@30fps, 2×12MP@30fps, 3×8MP@30fps, 4×5MP@30fps, 6×4MP@30fps, 12×1080p@30fps |
| Network Bandwidth (AI Disabled) | 256 Mbps incoming / 256 Mbps recording / 256 Mbps outgoing |
| Network Bandwidth (AI Enabled) | 180 Mbps incoming / 180 Mbps recording / 180 Mbps outgoing |
| Video Output Ports | 1 × HDMI, 1 × VGA |
| HDMI Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720 |
| VGA Resolution | 1920×1080, 1280×1024, 1280×720 |
| Simultaneous Video Output | Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable |
| Video Display Split (Main Screen) | 1 / 4 / 8 / 9 / 16 / 25 / 36 |
| Video Display Split (Sub Screen) | 1 / 4 / 8 / 9 / 16 |
| AI by NVR | Face detection, Face recognition, Perimeter protection, SMD Plus |
| AI by Camera | Face detection, Face recognition, Perimeter protection, SMD Plus, ANPR, People counting, Stereo analysis, Heat map |
| Perimeter Performance (AI by NVR) | 2 channels, 10 IVS rules for each channel |
| Perimeter Performance (AI by Camera) | 8 channels |
| Face Attributes | Gender, Age group, Glasses, Expressions, Face mask, Beard |
| Face Detection (AI by NVR) | 1 channel (up to 12 face images/s each channel) |
| Face Detection (AI by Camera) | 8 channels |
| Face Recognition (AI by NVR) | 8-channel FD (by camera) + FR (by recorder), image stream: 12 face images/s; 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Face Recognition (AI by Camera) | 8 channels |
| Face Database Capacity | Up to 10 face databases with 200,000 images, total capacity 2.5GB |
| License Plate Database Capacity | Create up to 20,000 plate numbers; Blocklist and Allow list |
| ANPR (by Camera) | 4 channels |
| SMD Plus (by NVR) | 4 channels |
| SMD Plus (by Camera) | 8 channels |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, Motion detection, Intelligent, Alarm, POS |
| Playback Mode | Instant playback, General playback, Event playback, Tag playback, Smart playback (face) |
| Backup Method | USB device and Network |
| Hard Disk Support | 4 SATA ports |
| Maximum HDD Capacity | Up to 16TB each (maximum HDD capacity varies with environment temperature) |
| Disk Group Support | Supported |
| Ethernet Ports | 2 × 10/100/1000 Mbps RJ-45 |
| Network Mode | Multi-address mode, load balance, fault tolerance and other network port binding modes |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search, Multicast, InstaOn cloud, Auto Registration, ONVIF 21.12 (Profile T, Profile S, Profile G) |
| Browser Support | Chrome, IE9 and later, Firefox, Edge |
| Smart Phone Support | iPhone, iPad, Android Phone |

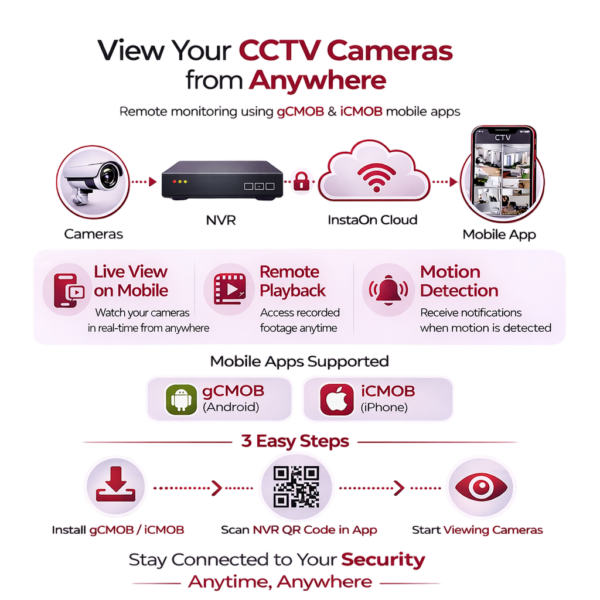

| Mobile Software | iCMOB, gCMOB |
| CMS Software | KVMS Pro Lite |
| Alarm Input | 16 channels |
| Alarm Output | 4 channels |
| Abnormality Alarm | Camera offline, Storage error, Disk full, IP conflict, MAC conflict, Login lock, Cybersecurity exception |
| Intelligent Alarm | Face detection, Face recognition, Perimeter protection, SMD Plus, People counting, Stereo analysis, Heat map |
| General Alarm | Motion detection, Privacy masking, Local alarm |
| Alarm Linkage | Record, Snapshot, IPC external alarm output, Audio, Buzzer, Log, Preset, Email |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Audio Compression | G.711a, G.711u, PCM, G726, AAC |
| USB Ports | 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| Additional Interfaces | 1 × RS232, 1 × RS485, 1 × eSATA |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Power Consumption | ≤ 10 W (without HDD) |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%–93% RH |
| Storage Temperature | -20°C to +60°C |
| Dimensions (W × D × H) | 440.0 mm × 415.1 mm × 70.0 mm |
| Weight | 4250 g (without HDD) |
