CP PLUS CP-UVR-0401E1-HC Powerful 4-channel HD DVR from CP PLUS with auto-adaptive signal support, dual-stream H.265 compression, support for 2MP IP cameras, and extensive storage, perfect for comprehensive surveillance in retail, home, and traffic applications.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra

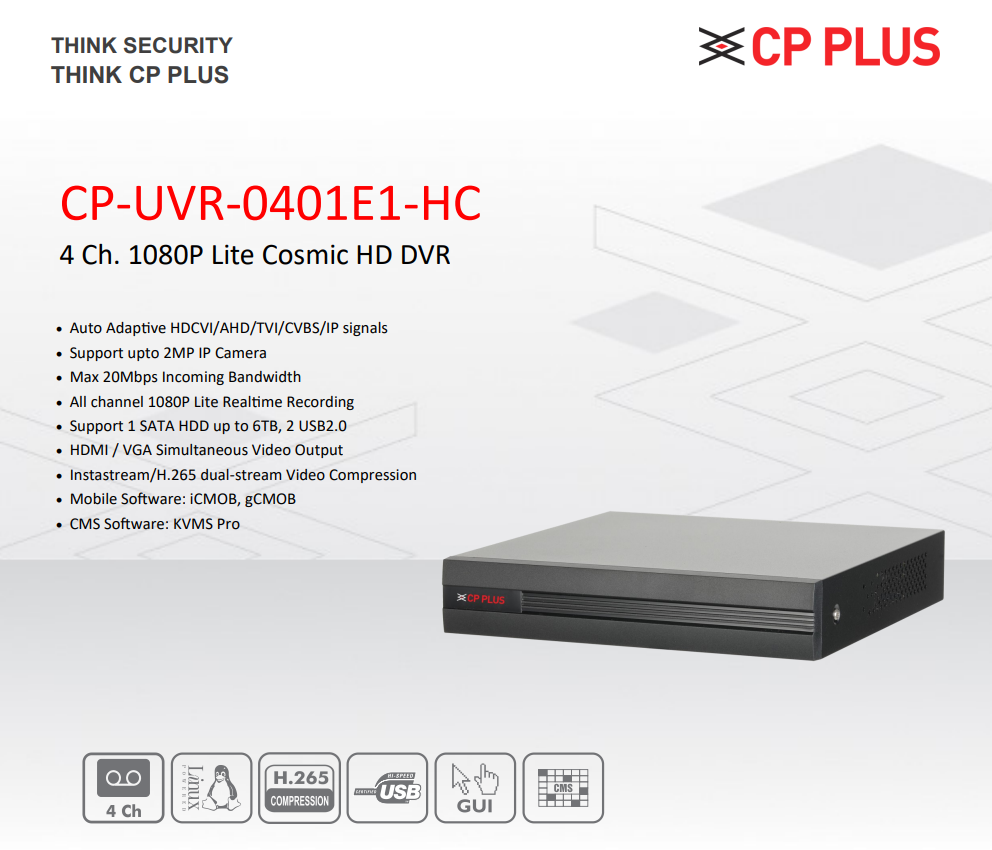

The CP PLUS CP-UVR-0401E1-HC is a high-performance 4-channel 1080P Lite Cosmic HD DVR designed for versatile surveillance applications. This advanced CCTV recorder features auto-adaptive HDCVI/AHD/TVI/CVBS/IP signals, enabling seamless compatibility with multiple access technology platforms, eliminating the need for costly system overhauls. Its robust hardware supports up to 2MP IP cameras, ensuring high-resolution footage for critical security needs.
CP PLUS CP-UVR-0401E1-HC recorder boasts all channels recording in real-time at 1080P Lite quality, providing crisp, clear video for enhanced monitoring. CP PLUS CP-UVR-0401E1-HC supports a max bandwidth of 20 Mbps, ensuring smooth data transmission. With support for 1 SATA HDD up to 6TB, users can store extensive footage, and the device offers simultaneous HDMI and VGA video outputs, facilitating easy connection to various display setups.
Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals compatibility for versatile surveillance setups
Support for up to 2MP IP cameras, ensuring clear HD video capture
All channels support 1080P Lite real-time recording for smooth and high-quality footage
Maximum incoming bandwidth of 20 Mbps for smooth data transfer
Supports one SATA hard disk drive (HDD) up to 6TB for extended storage capacity
Dual video output via HDMI and VGA ports for flexible display options
Utilizes advanced H.265 and Instastream dual-stream video compression for efficient storage optimization
Remote monitoring and management through mobile apps iCMOB and gCMOB
CMS software compatibility with KVMS Pro for comprehensive surveillance control
Certified USB ports supporting high-speed data transfer
Compact dimensions of 197 x 192 x 41 mm for easy installation
| Specification | Details | Notes |
|---|---|---|
| Model Name | CP-UVR-0401E1-HC | Full model designation |
| Channels | 4 channels | Supports 4 HD channels |
| Video Input | 4 x BNC (CVI, TVI, AHD, CVBS auto-adaptive) | Signal auto-detect |
| Maximum Camera Resolution | Up to 2MP (1920x1080) | Support for IP cameras up to 2MP |
| Video Output | HDMI, VGA (simultaneous) | Supports multiple display options |
| Compression Format | H.265, H.264+, H.264, H.264/MPEG-4 AVC | Efficient dual streaming compression |
| Video Resolution | 1080P Lite (1920x1080), 1280x1024, 1280x720 | High-definition output |
| Max Bandwidth | 20 Mbps | Data transfer rate |
| Hard Drive Support | 1 SATA port, up to 6TB HDD | Large storage capacity |
| USB Ports | 2 x USB 2.0 | For backup and software control |
| Network Interface | RJ-45 Ethernet (100 Mbps) | Supports TCP/IP, ONVIF, HTTPS |
| Audio Input/Output | 1 RCA input, 1 RCA output | Supports audio recording and playback |
| Support for IP Cameras | Yes, supports additional IP cameras with two-way communication | Flexible system upgrade |
| Supported Mobile Software | iCMOB, gCMOB | Remote access via smartphones |
| Power Supply | DC 12V / 1.5A | Power consumption below 10W without HDD |
| Operating Temperature | -10°C to +45°C | Suitable for various environments |
| Dimensions (mm/inch) | 197 x 192 x 41 mm / 7.76 x 7.56 x 1.61 inches | Compact design |
| Weight | Approx. 0.56 kg (without HDD) | Lightweight, easy to install |
| Certifications | RoHS, CE, FC, ONVIF compliant | Industry standards compliance |
