CP PLUS CP-UVR-0801L1B-4KH Cosmic Series DVR delivers 8-channel 4K H.265 recording, auto-adaptive multi-signal and IP camera support, 10TB storage, and robust remote management for enterprise surveillance.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
The CP PLUS Cosmic Series CP PLUS CP-UVR-0801L1B-4KH is a feature-rich 8-channel 4K H.265 HD DVR designed for enterprise and institutional security deployments. CP PLUS CP-UVR-0801L1B-4KH advanced DVR incorporates cutting-edge 4K video processors for exceptional image detail and leverages H.265 dual-stream compression to maximise storage efficiency while minimising bandwidth consumption.
CP PLUS has engineered this model with auto-adaptive signal support for CVI, TVI, AHD, CVBS, and IP cameras, alongside third-party device compatibility for seamless expansion. The intuitive graphical user interface simplifies control, management, and remote operation, making this DVR ideal for versatile installation scenarios ranging from city centers and educational facilities to critical infrastructure sites.
This CP PLUS CP-UVR-0801L1B-4KH DVR supports up to 8MP IP camera input per channel and boasts flexible storage options via an SATA port supporting hard drives up to 10TB. The system is powered by an embedded Linux OS and secures your data with advanced password policies.
Enjoy simultaneous HDMI and VGA video output, compatibility with CMS software (KVMS Pro), and powerful mobile connectivity via iCMOB and gCMOB applications. The CP PLUS CP-UVR-0801L1B-4KH model delivers multi-signal recording, robust user account management for up to 128 users, and comprehensive network protocol support, including IPv4/IPv6, ONVIF 16.12, and more. With CP PLUS, safeguard your environment with reliability, scalability, and leading-edge surveillance intelligence encapsulated in the CP PLUS CP-UVR-0801L1B-4KH Cosmic Series DVR.

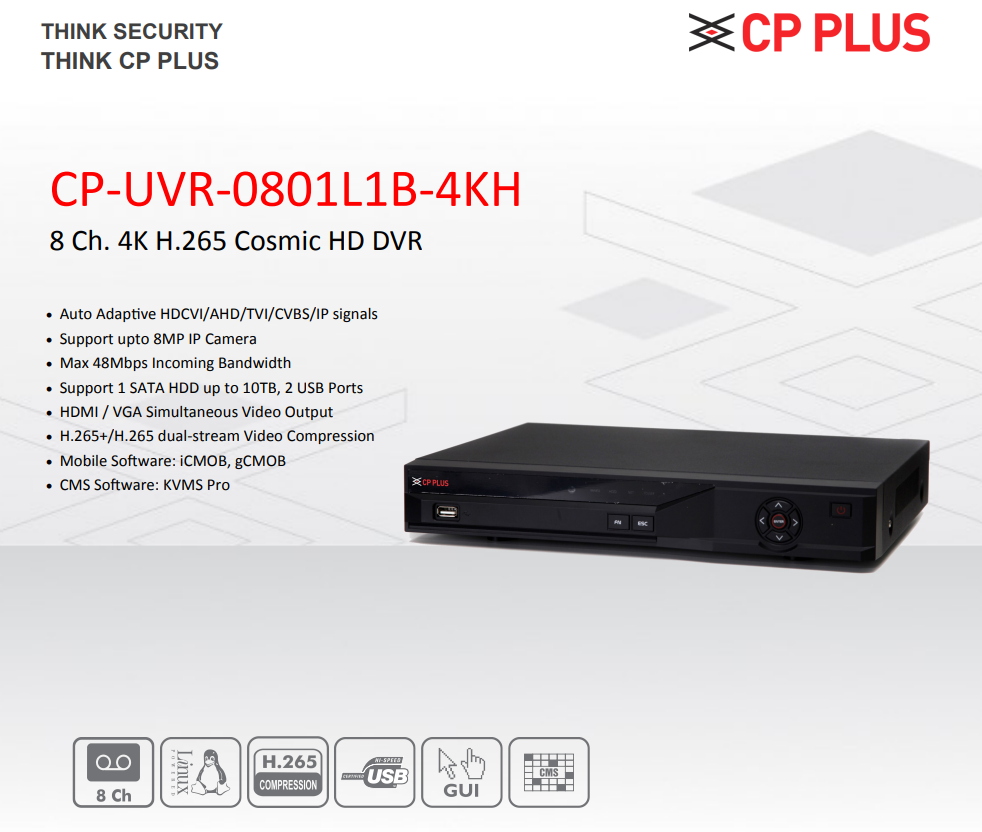

8 Channel 4K H.265 Cosmic HD DVR
Auto-adaptive support for CVI/TVI/AHD/CVBS/IP signals
Up to 8MP IP camera input per channel
Max 48Mbps incoming bandwidth
Supports 1 SATA HDD up to 10TB
Simultaneous HDMI and VGA output
H.265 dual-stream video compression
Compatible with iCMOB, gCMOB mobile apps and KVMS Pro CMS
Embedded Linux OS for stability and security
Supports third-party device integration
2 USB ports (1 USB 2.0, 1 USB 3.0), 1 RS485 port
Advanced secured password policy
Multi-signal UNI technology support for all HD and analog formats
Flexible recording, playback, and backup management
Comprehensive alarm, motion detection, and video loss monitoring
128 user accounts supported
ONVIF 16.12, CGI conformant for interoperability
Power supply: DC12V/2A, Consumption: 10W (without HDD)
Compact dimensions: 325mm x 255mm x 55mm
Operating temperature: -10°C to 55°C
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Series | Cosmic Series |
| Model Name | CP-UVR-0801L1B-4KH |
| Processor | Embedded Processor |
| OS | Embedded Linux |
| Video Input | 8 Channel, BNC |

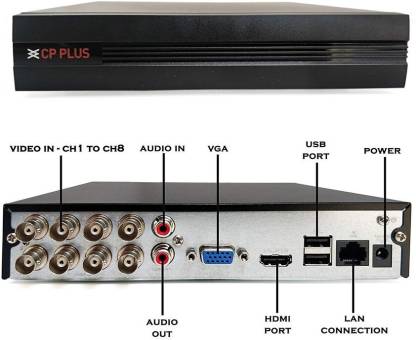

| Video Output | 1 HDMI, 1 VGA (Simultaneous) |
| Max Input Resolution | Up to 8MP/IP Camera per channel |
| Video Compression | H.265 / H.264 Dual-Stream |
| Max Recording Bandwidth | 48Mbps |
| Recording Resolution | 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, CIF, etc. |
| Supported Signals | CVI, TVI, AHD, CVBS, IP (auto-adaptive) |
| Hard Disk Support | 1 SATA port, up to 10TB |
| USB Ports | 1 USB 2.0, 1 USB 3.0 |
| Network Port | RJ-45, 1000M |
| Audio Input/Output | 1 Ch RCA In, 1 Ch RCA Out |
| Two-way Talk | Supported |
| Motion Detection | Supported |
| Alarm Input/Output | Not Applicable |
| Max User Accounts | 128 Users |
| Power Supply | DC12V/2A |
| Power Consumption | 10W (without HDD) |
| Operating Temperature | -10°C to 55°C (14°F to 131°F); 10–90% RH |
| Dimensions (WxDxH) | 325mm x 255mm x 55mm |
| Weight | 1.2kg (without HDD) |
| Supported Phones | iPhone, iPad, Android |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, ONVIF 16.12, CGI, etc. |
| CMS Software | KVMS Pro |
| Mobile Applications | iCMOB, gCMOB |
| Certifications | RoHS, FC, ONVIF Compliant |
