Mikrotik CRS504-4XQ-IN

SKU: FGINZ9YAN84V
Your most affordable, compact, energy-efficient doorway to the world of 100 Gigabit networking. This switch is the next step in upgrading existing 10 or 25 Gigabit networks. Multiple powering options, dual hot-swap power supplies.

Original price was: ₹94,999.00.Current price is: ₹75,999.00. Inc. tax (64,405.93Exc. Tax)

Payment Methods:

Description

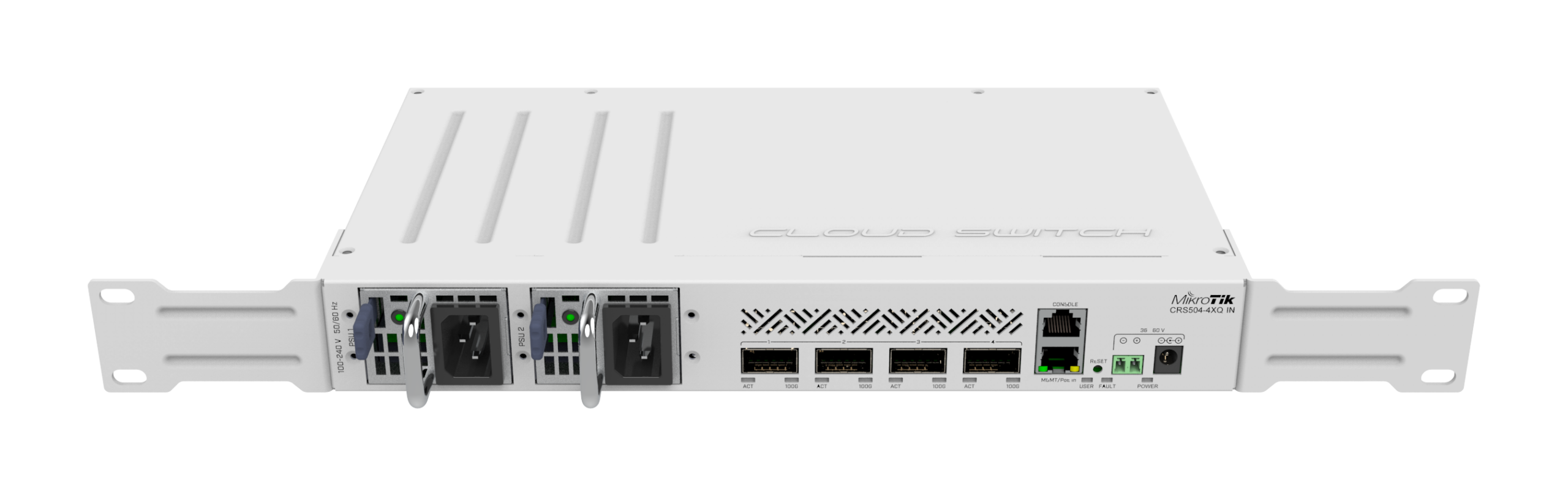

Mikrotik CRS504-4XQ-IN image 0

Our 100 Gigabit family keeps expanding – you’ve already seen the incredible CCR2216 100 Gigabit router. Now it’s time for a matching switch – the CRS504-4XQ-IN. The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers, ISPs, and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club!

There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4×25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. The mighty Marvell DX4310 switch-chip will handle everything without breaking a sweat!

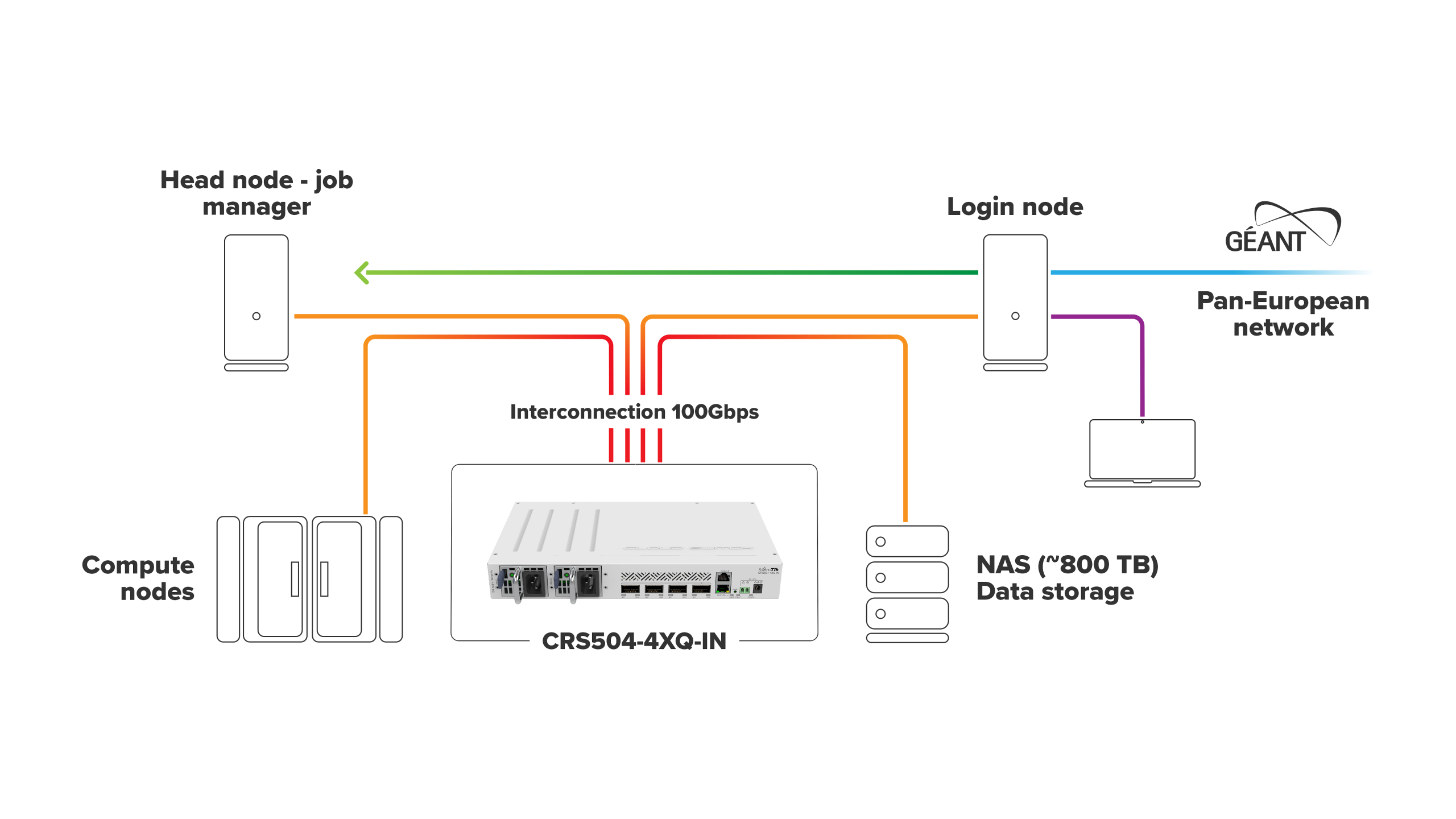

Obviously, there is an Ethernet port for management purposes as well.We’ve been using this switch for quite some time now in the Genomics Data Network project. A high-capacity data network for our local scientists working on ground-breaking cancer treatments. Genome data can take up a lot of space, so you need exceptionally fast connections there. Also, with these devices, Latvia became the first Baltic country to establish a 100 Gigabit connection to the pan-European research network.

With multiple powering options and the ability to be mounted on the wall, this switch will make any system administrator happy.

Mikrotik CRS504-4XQ-IN Video

Included parts


Rack ears (CRS504)
Rack ears (CRS504)
K10 screw kit
K10 screw kit
IEC cord

IEC cord




IEC cord

IEC cord

Switching results

CRS504-4XQ-IN
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Switching Non blocking Layer 2 throughput 32,517.9 394,897.1 94,008.5 385,058.6 595,386.9 304,838.1
Switching Non blocking Layer 2 capacity 32,517.9 789,794.3 94,008.5 770,117.3 595,386.9 609,676.2
Switching Non blocking Layer 1 throughput 32,517.9 400,100.0 94,008.5 400,100.0 595,386.9 400,100.0
Switching Non blocking Layer 1 capacity 32,517.9 800,200.0 94,008.5 800,200.0 595,386.9 800,200.0

Ethernet test results

CRS504-4XQ-IN QCA9531 all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 37,4 454.2 82,8 339.1 162,5 83.2
Bridging 25 bridge filter rules 33,8 410.5 47,8 195.8 75,6 38.7
Routing none (fast path) 37,2 451.8 73,3 300.2 144,9 74.2
Routing 25 simple queues 36,4 442.0 52,4 214.6 54,4 27.9
Routing 25 ip filter rules 33,8 410.5 41,4 169.6 41,7 21.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544).
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes.
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results.

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

Product Details

Brand Mikrotik
Model Name CRS504-4XQ-IN
Dimension(cm) 30X38X8
Weight(kg) 2.4
Product code CRS504-4XQ-IN
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model 98DX4310
Dimensions 320 x 185 x 44 mm
RouterOS license 5
Operating System RouterOS v7
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $799.00

Powering

Number of AC inputs 2
AC input range 100-240
Number of DC inputs 3 (DC jack, 2-pin terminal, PoE-IN)
DC jack input Voltage 36-57 V
2-pin terminal input Voltage 36-57 V
Frequency (Hz) 47-63
Max power consumption 41 W
Max power consumption without attachments 25 W
Cooling type 2 fans
PoE in 802.3 bt
PoE in input Voltage 43-57 V

Ethernet

10/100 Ethernet ports 1

Fiber

Number of 100G QSFP28 ports 4

Peripherals

Serial console port RJ45

Other

PCB temperature monitor Yes

Certification & Approvals

Certification CE, EAC, ROHS
IP 20

Warranty & Manufacturer Details

Warranty Period 1 Year
Warranty Provider Contact Fgtech Store for service warranty
Country of Origin Latvia
Manufacturer Details SIA Mikrotlks, Unijas iela 2, Riga, LV-1039 LATVIA
Importer Details Mikrotik India, Green Park, Delhi 110016
Packer Details FGTECH INNOVATIONS LLP, Sakinaka, Andheri East, Mumbai 400072


Download Brochure

Brochure Open
Quick Guide Open
User Manual Open
RouterOS current release Download

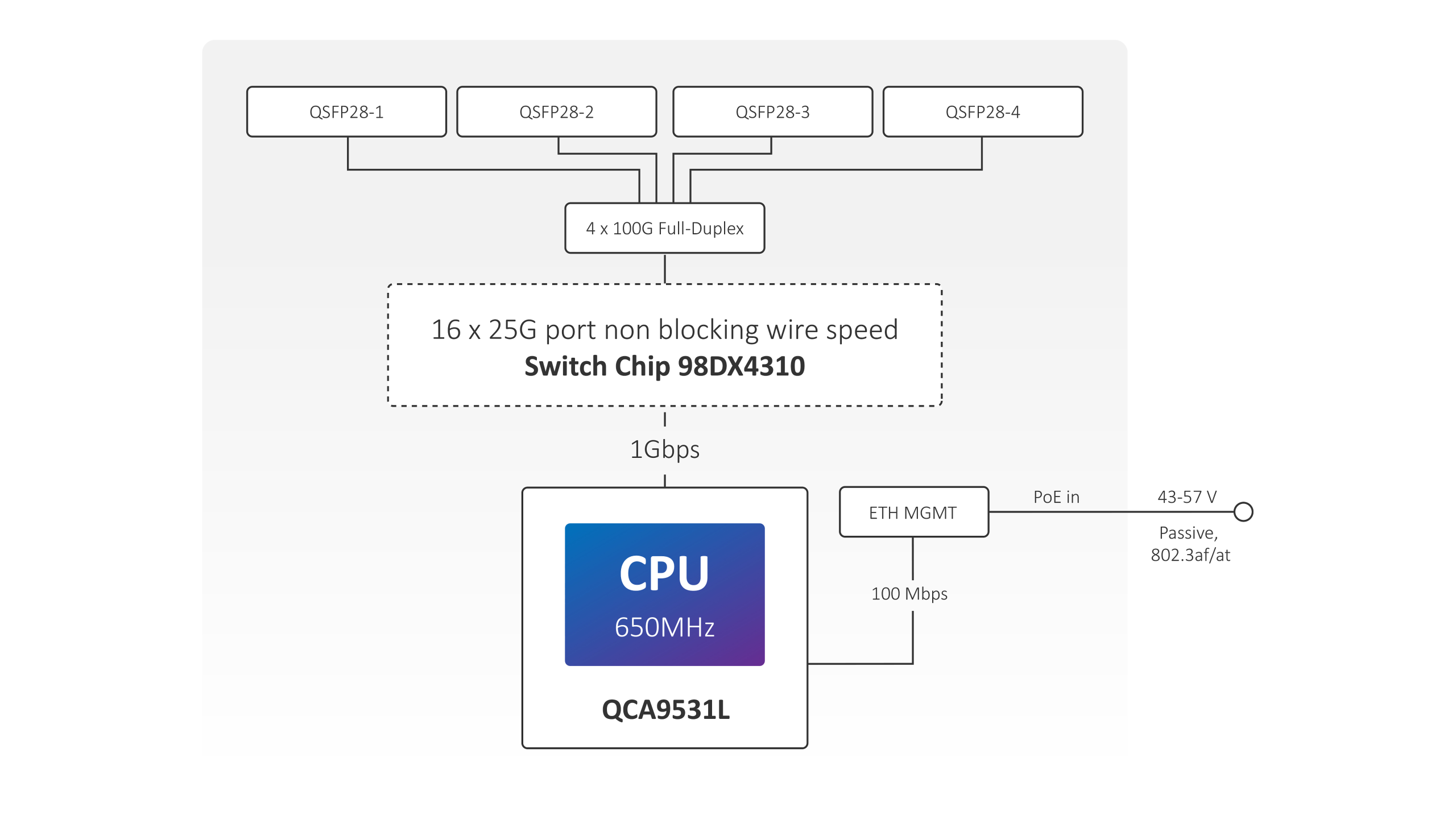

Block Diagram Open
SFP compatibility list Open
RouterOS software manual Open
Declaration of conformity Open (CE)
