Why Choose eSSL inBio460 Pro Plus PCB?

The eSSL inBio460 Pro Plus PCB is designed for organizations that require advanced centralized biometric access control with flexible installation and enterprise-level security management. Supporting up to four doors and multiple reader technologies, it enables businesses to manage access permissions, monitor activity logs, and implement advanced security policies across multiple entry points.

Its Linux operating system, high fingerprint storage capacity, real-time monitoring capabilities, and support for advanced security features such as anti-passback and interlock make it ideal for professional security installations and customized access control enclosures.

Core Features & Benefits of eSSL inBio460 Pro Plus PCB

Centralized Four-Door Access Management

The inBio460 Pro Plus PCB is designed to centrally manage up to four doors from a single controller platform. It supports biometric authentication and RFID reader integration for secure and scalable access management.

This makes it suitable for enterprises, office buildings, server rooms, educational institutions, and industrial facilities requiring centralized access control.

Large Fingerprint & User Capacity

The controller supports:

• 20,000 fingerprint templates
• 30,000 card users by default
• Expandable user capacity up to 1,00,000 users with licensing support
• 5,00,000 transaction records

This large storage capacity makes it suitable for medium and large organizations with high daily access activity.

Flexible Reader Compatibility

The system supports both RS-485 readers and 26-bit Wiegand readers, including compatible fingerprint readers, RFID readers, and QR code readers.

Reader support includes:

• 8 RS-485 readers
• 4 Wiegand readers

This flexibility allows integration into professional access control infrastructures with multiple authentication devices.

Advanced Enterprise Security Functions

eSSL inBio460 Pro Plus PCB the controller includes advanced security features such as:

• Anti-passback
• Global anti-passback
• Interlock function
• Global interlock
• Linkage function
• Multi-card opening
• Multiple verification methods
• Remote door opening and closing

These functions help organizations implement controlled movement and enhanced security across restricted zones.

Real-Time Monitoring & Web Management

The inBio460 Pro Plus PCB supports real-time monitoring through a web browser using eSSL BioCVSecurity 6.4.1 software.

Administrators can manage users, monitor door activity, configure access levels, and remotely operate doors from a centralized management interface.

Professional PCB-Based Integration

As a PCB-based access controller, the inBio460 Pro Plus PCB is suitable for integration inside professional security cabinets and customized access control installations.

The controller supports:

• Lock outputs
• Door sensor inputs
• Exit button connections
• Alarm integration
• Auxiliary inputs and outputs

This enables seamless deployment in enterprise security infrastructure and centralized control environments.

Key Features & Highlights of eSSL inBio460 Pro Plus PCB

• Linux-Based Biometric PCB Controller – Stable enterprise-grade architecture
• Four Door Access Management – Centralized multi-door security control
• Supports 20,000 Fingerprints – Large biometric storage capacity
• 30,000 Card Capacity – Expandable up to 1,00,000 users
• 5,00,000 Transaction Logs – High-capacity event storage
• TCP/IP Communication – Network-based centralized management
• Supports RS-485 & Wiegand Readers – Flexible reader compatibility
• Real-Time Browser Monitoring – Web-based access management
• Anti-Passback Function – Enhanced security workflow control
• Interlock & Global Interlock – Controlled entry management
• Multi-Card Opening – Multi-user authorization support
• Remote Door Operation – Centralized remote access control
• Multiple Verification Methods – Flexible authentication configuration
• PCB Form Factor – Suitable for professional enclosure integration

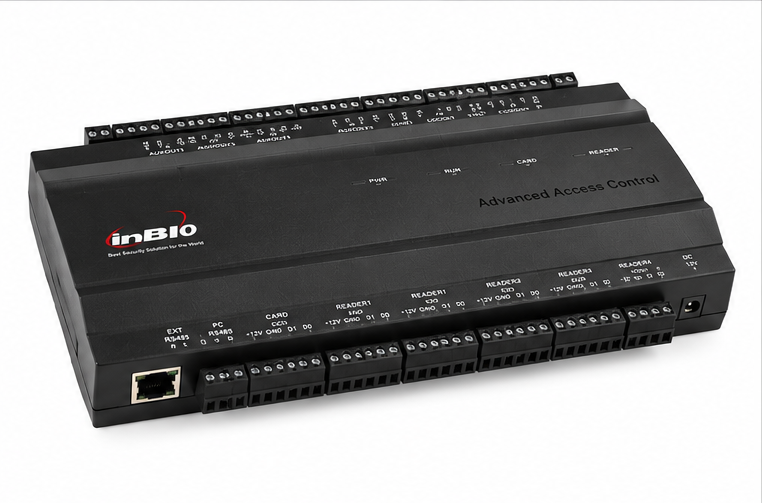

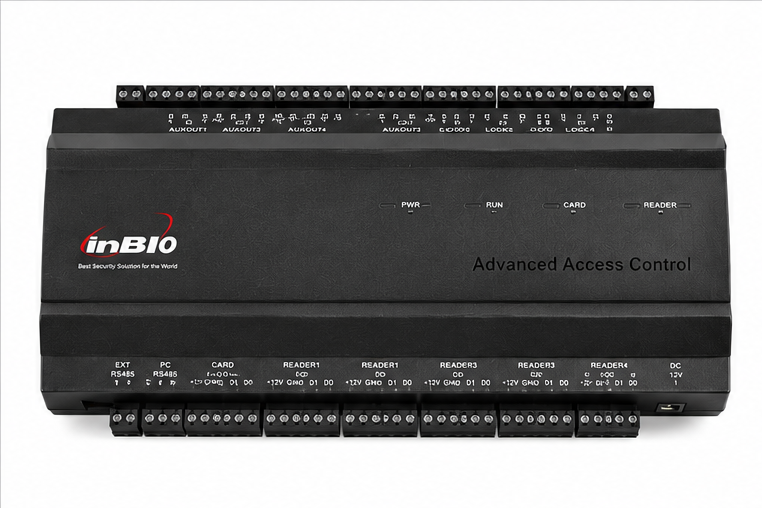

Hardware Overview of eSSL inBio460 Pro Plus PCB

The eSSL inBio460 Pro Plus PCB is designed as a professional biometric access control PCB for enterprise security deployments.

Hardware connectivity includes:

• 8 RS-485 reader interfaces
• 4 Wiegand reader interfaces
• 4 lock outputs
• 4 door sensor inputs
• 4 exit button inputs
• 4 auxiliary inputs
• 4 auxiliary outputs
• Alarm interfaces

The controller operates on 9.6V–14.4V DC power and features dimensions of 226 × 106 × 36.07 mm for integration into professional access control cabinets and centralized security systems.

Software & Ecosystem of eSSL inBio460 Pro Plus PCB

The inBio460 Pro Plus PCB supports:

• eSSL BioCVSecurity 6.4.1 (Web Version)
• PGSQL database
• MSSQL database
• Oracle database

Software capabilities include:

• 256 Time Zones
• 256 Access Levels
• Holiday Management
• Linkage Functions
• Global Anti-Passback
• Global Interlock
• Multi-Card Opening
• Multiple Verification Methods
• Remote Door Operations
• Real-Time Browser Monitoring

The platform is designed for centralized enterprise biometric access management and monitoring.

Ideal Use Cases of eSSL inBio460 Pro Plus PCB

• Enterprise biometric access control
• Multi-door office security
• Server room protection
• Industrial facility access management
• Commercial building security infrastructure
• Educational institution access control
• Centralized employee authentication systems
• Professional biometric security deployments

FAQs

1. How many doors can the inBio460 Pro Plus PCB manage?

The controller supports centralized management for up to four doors.

2. What is the fingerprint capacity of the controller?

The system supports up to 20,000 fingerprint templates.

3. What reader types are supported?

The controller supports 26-bit Wiegand readers and RS-485 readers, including compatible biometric and RFID readers.

4. Does the system support web-based monitoring?

Yes. The controller supports real-time browser monitoring using eSSL BioCVSecurity software.

5. Does the controller support advanced security functions?

Yes. The system supports anti-passback, global interlock, linkage functions, multi-card opening, and remote door operations.
