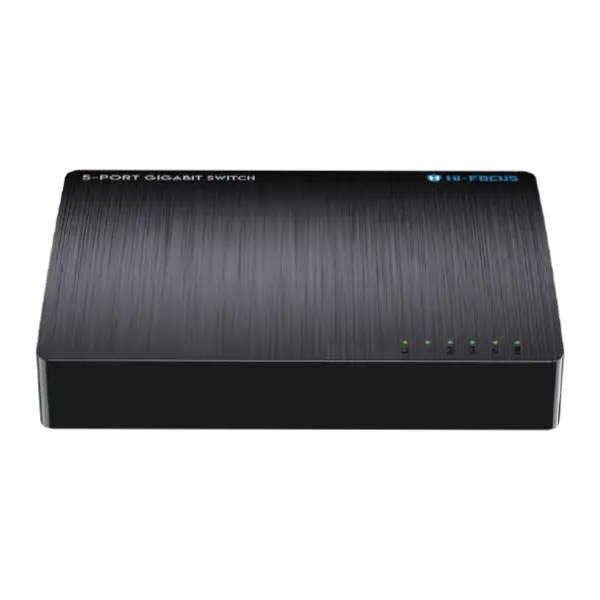

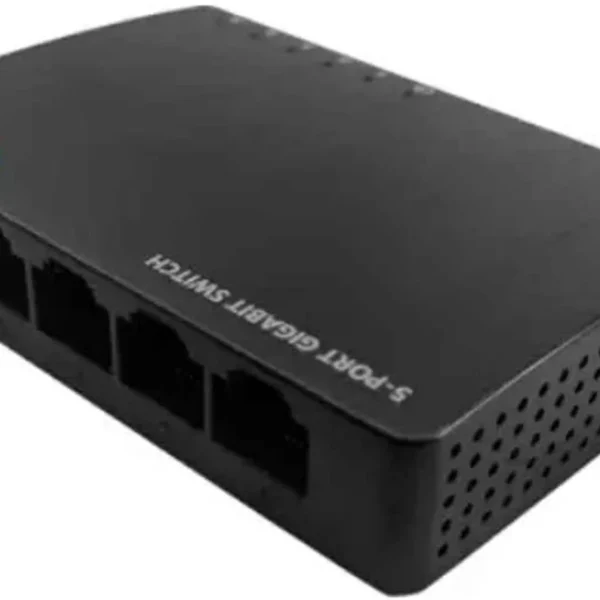

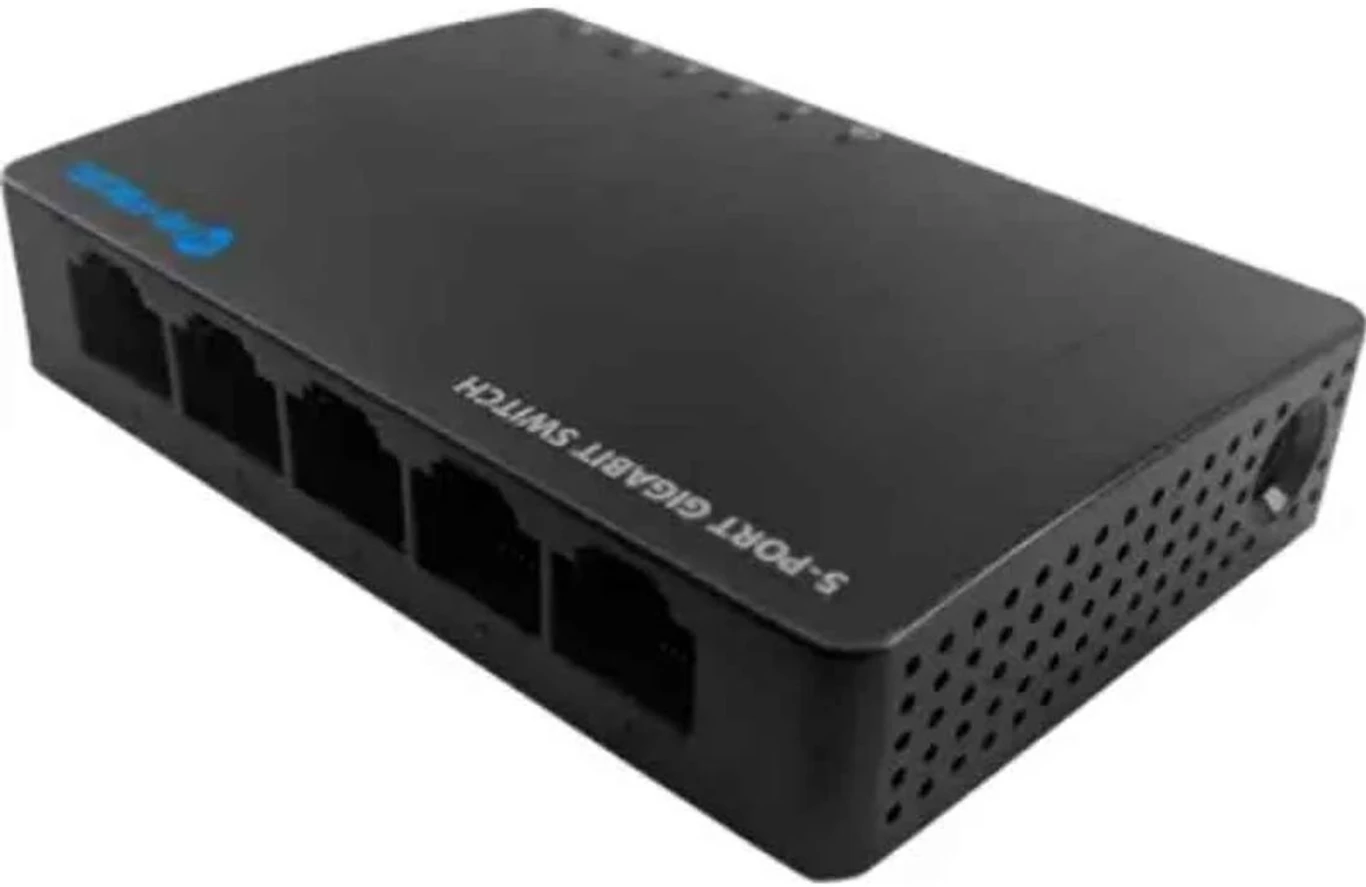

Hi-Focus HF-EGT05-V2 5-Port Gigabit Ethernet Switch – 5× 10/100/1000Mbps RJ45, Auto MDI/MDIX, 10Gbps Switching Capacity, 4K MAC Address Table, Store-and-Forward, 1.7W Low Power Consumption

The Hi-Focus HF-EGT05-V2 5-Port Gigabit Ethernet Switch provides network connectivity through 5 × 10/100/1000Mbps auto-negotiation RJ45 ports with Auto MDI/MDIX support. Hi-Focus HF-EGT05-V2 5-Port it is designed as a compact desktop switch for small home, office, and network expansion applications.

The switch supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standards. Hi-Focus HF-EGT05-V2 5-Port it provides 10Gbps switching capacity, a 4K MAC address table, and forwarding rates of 14,880pps at 10Mbps, 148,800pps at 100Mbps, and 1,488,000pps at 1000Mbps. Hi-Focus HF-EGT05-V2 5-Port it uses Store and Forward transmission with automatic MAC learning.

For network connections, the switch supports Cat5e UTP or better cable with a recommended transmission distance of less than 100m. Auto MDI/MDIX allows automatic detection of straight-through and crossover connections, while plug-and-play operation simplifies installation.

The switch uses an external 5V DC 0.6A power adapter with AC 100–240V, 50/60Hz input. Its maximum power consumption is 1.7W at 5V DC. Hi-Focus HF-EGT05-V2 5-Port it features 1 Power LED and 5 Link/Act LEDs for basic status indication. Its compact dimensions are 9.3 × 6.6 × 2.3 cm.

Key Features

• 5 × 10/100/1000Mbps auto-negotiation RJ45 ports with Auto MDI/MDIX
• 10Gbps switching capacity and 4K MAC address table
• Store and Forward transmission with automatic MAC learning
• Supports IEEE 802.3, 802.3u, 802.3x, and 802.3ab standards
• Compact desktop design, plug-and-play operation, and maximum power consumption of 1.7W

Best Suited For

• Small home networks requiring Gigabit connectivity
• Small office network setups
• Network expansion with up to 5 Gigabit Ethernet ports
• Connecting computers, printers, smart TVs, NAS devices, game consoles, and IP cameras
• Users looking for a compact and easy-to-install Gigabit switch

Not Suited For

• Networks requiring more than 5 Ethernet ports
• Applications requiring PoE power delivery
• Networks requiring speeds above 1Gbps per port
• Installations requiring SFP or fiber uplink ports
• Networks requiring managed features such as VLAN, QoS, SNMP, or advanced network management
