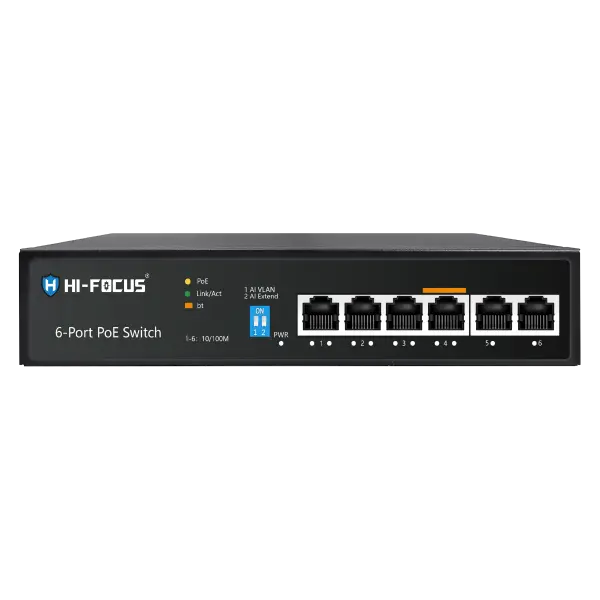

Hi-Focus HF-S04E2-65WH 4-Port PoE Switch – 4× 10/100Mbps PoE, 2× 10/100Mbps Uplink, 65W PoE Budget, IEEE 802.3af/at/bt

The Hi-Focus HF-S04E2-65WH 4-Port PoE Switch provides network connectivity with 4 × 10/100 Mbps PoE RJ45 ports and 2 × 10/100 Mbps RJ45 uplink ports. The PoE ports are available on Ports 1–4, while Ports 5–6 provide simultaneous 10/100 Mbps RJ45 uplink connectivity.

The switch supports multiple networking standards, including IEEE 802.3i, 802.3u, 802.3x, 802.3af, 802.3at, and 802.3bt. Hi-Focus HF-S04E2-65WH 4-Port it provides a total bandwidth of 1.2 Gbps and a packet forwarding rate of 0.89 Mpps.

For PoE applications, the switch offers a 65 W PoE budget, with Port 4 supporting up to 60 W maximum power. The PoE pin configuration is 1/2 (+), 3/6 (-).

The switch uses storage-and-forwarding technology and features a 1K MAC table size. LED indicators provide Power, LINK/ACT, and PoE status information. Hi-Focus HF-S04E2-65WH 4-Port  all ports support 6KV lightning protection for added protection against electrical surges.

Key Features

• 4 × 10/100 Mbps PoE RJ45 ports and 2 × 10/100 Mbps uplink ports
• 65 W PoE budget with up to 60 W on Port 4
• Supports IEEE 802.3af/at/bt PoE standards
• 1.2 Gbps bandwidth and 0.89 Mpps forwarding rate
• 6KV lightning protection on all ports

Best Suited For

• Small network installations requiring PoE connectivity
• Devices compatible with IEEE 802.3af/at/bt
• Network setups requiring up to 4 PoE ports
• Installations requiring separate 10/100 Mbps uplink ports
• Applications requiring a 65 W total PoE budget

Not Suited For

• Networks requiring Gigabit Ethernet ports
• Applications requiring more than 4 PoE ports
• Devices requiring PoE power beyond the available 65 W budget
• Port 4 applications requiring more than 60 W
• Networks requiring uplink speeds above 10/100 Mbps
