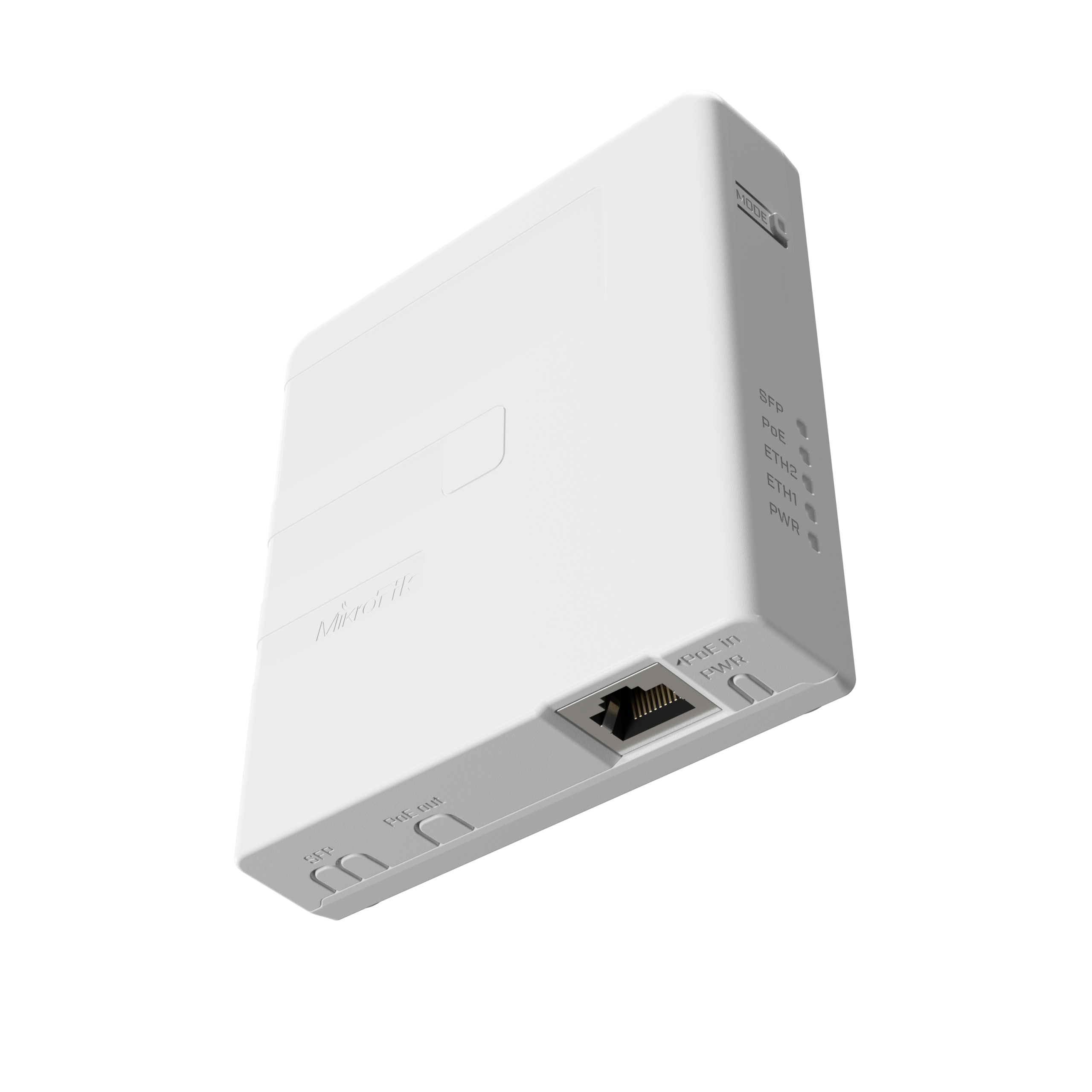

Mikrotik GPEN21 | Smart power injector that serves as an advanced software controlled repeater
Warranty Period :- 1 Year
Upgrade your network setup with the Mikrotik GPEN21. This smart power injector functions as an advanced software-controlled repeater, perfect for extending GPEN installations with power and data support.
Original price was: ₹5,999.00.₹4,559.00Current price is: ₹4,559.00. Inc. tax (₹3,863.56Exc. Tax)
Description
Mikrotik GPEN21 is a multifunctional smart power injector designed to enhance and support GPEN (Gigabit Passive Ethernet Network) installations. It acts not only as a power injector but also serves as an advanced, software-controlled repeater, bridging the gap between traditional ISP setups and individual customer locations.
The GPEN21 is a smart power injector that serves as an advanced software controlled repeater. Not only can it power your uplink devices via PoE, it can also provide a range of useful software features:
• Interface management and monitoring
• GPEN link fault detection
• VLAN support
• SNMP reporting
• Basic traffic shaping

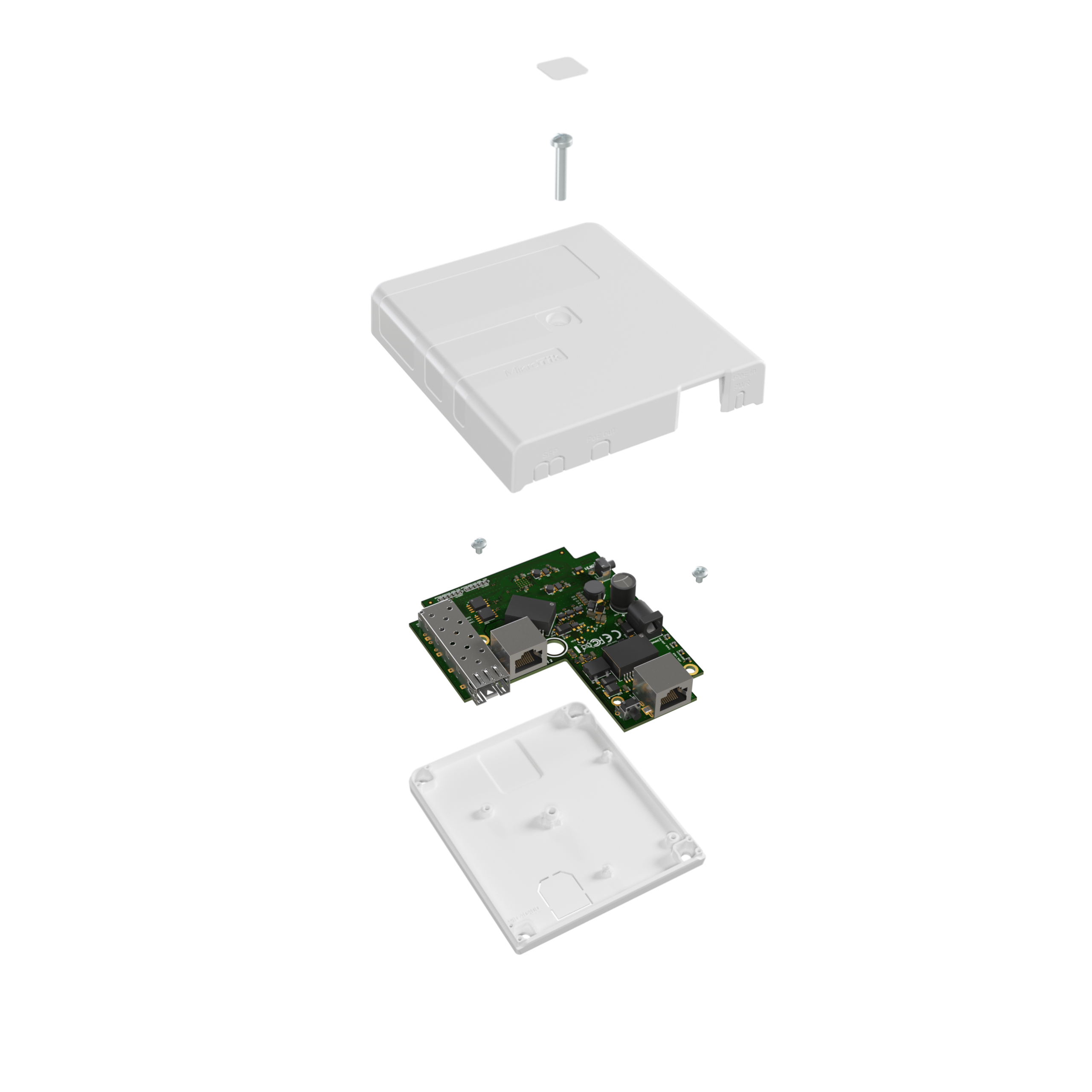

GPEN21 has an Ethernet and SFP port for fiber connectivity. Customers can choose to use GPEN21 to power optical module for uplink to provider, or to provide PoE to power Ethernet uplink to provider (that uses our GPeR and/or netPower products) The GPEN unit can be securely attached to a wall or the communications cabinet. The Ethernet cable can be routed either directly through its bottom cable opening or into the wall, as preferred.
| Brand | |
|---|---|
| MODEL |
GPEN21 |
| Badges |
24Hr Dispatch |
| Details | |
|---|---|
| Product code | GPEN21 |
| Switch chip model | 88E6341 |
| Input voltage | 12 - 57 V, Passive or 802.3af/at |
| Tested ambient temperature | -20°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 30 W |
| Max power consumption without attachments | 3 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 850 mA |
| Max out per port output (input 30-57 V) | 625 mA |
| Max total out (A) | 850 mA |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 2 |
| Number of 1G Ethernet ports with PoE-out | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 |
Other
| Details | |
|---|---|
| Output Voltage | Yes, Passive PoE up to 57 V |
| Mode button | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
