Mikrotik hEX Lite RB750r2 Compact and Cost Effective Wired Router

SKU: FGINPKMX9TA3

Mikrotik hEX Lite RB750r2 – a compact, cost-effective wired router with 5x Ethernet ports, housed in a small plastic case. Featuring an 850MHz CPU, 64MB RAM, and running RouterOS with an L4 license, this is the most affordable MPLS router for reliable network management.


Original price was: ₹5,299.00.Current price is: ₹3,899.00. Inc. tax (3,304.24Exc. Tax)

Estimated shipping date: 21/11/2024 - 22/11/2024

Description

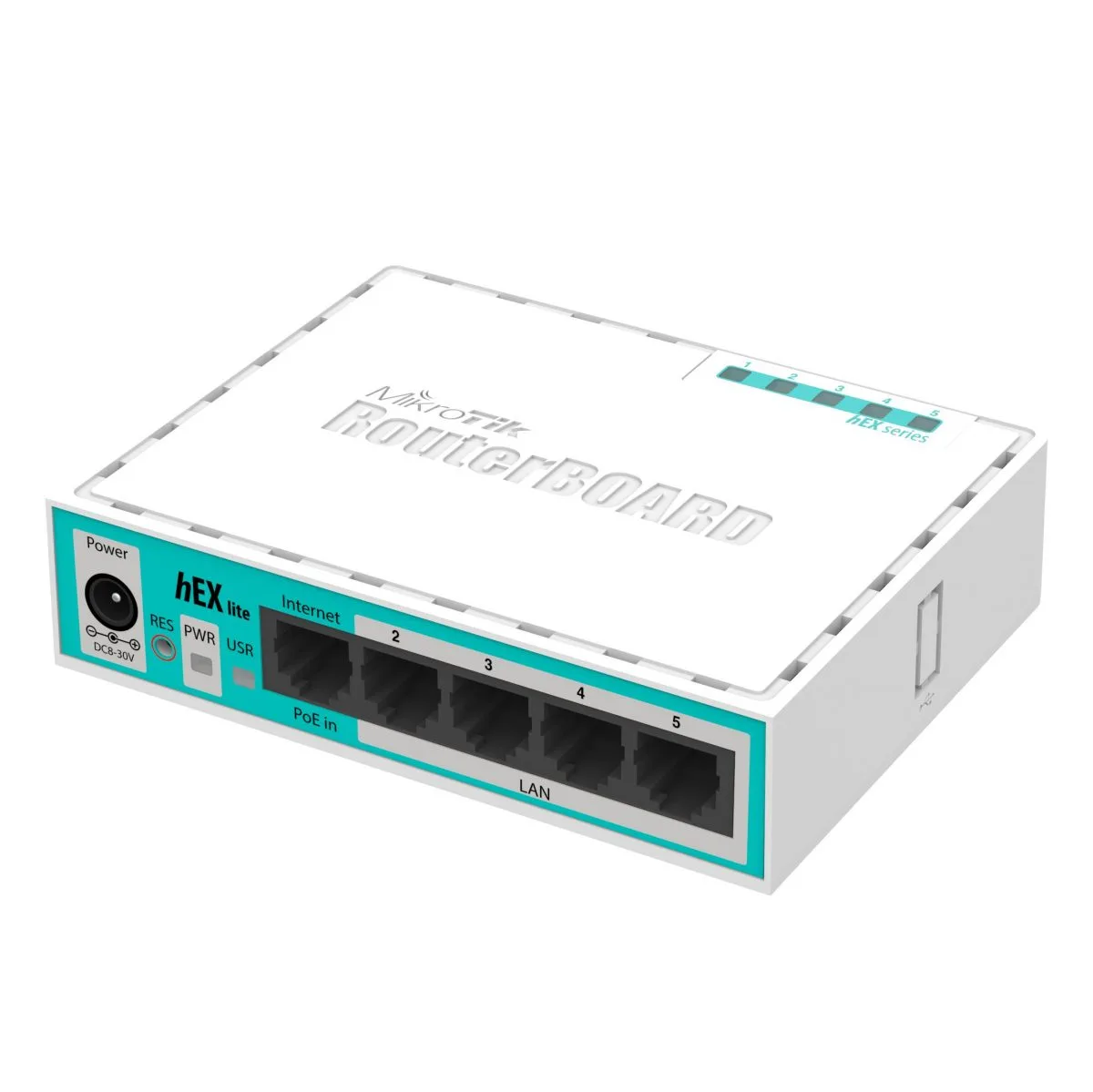

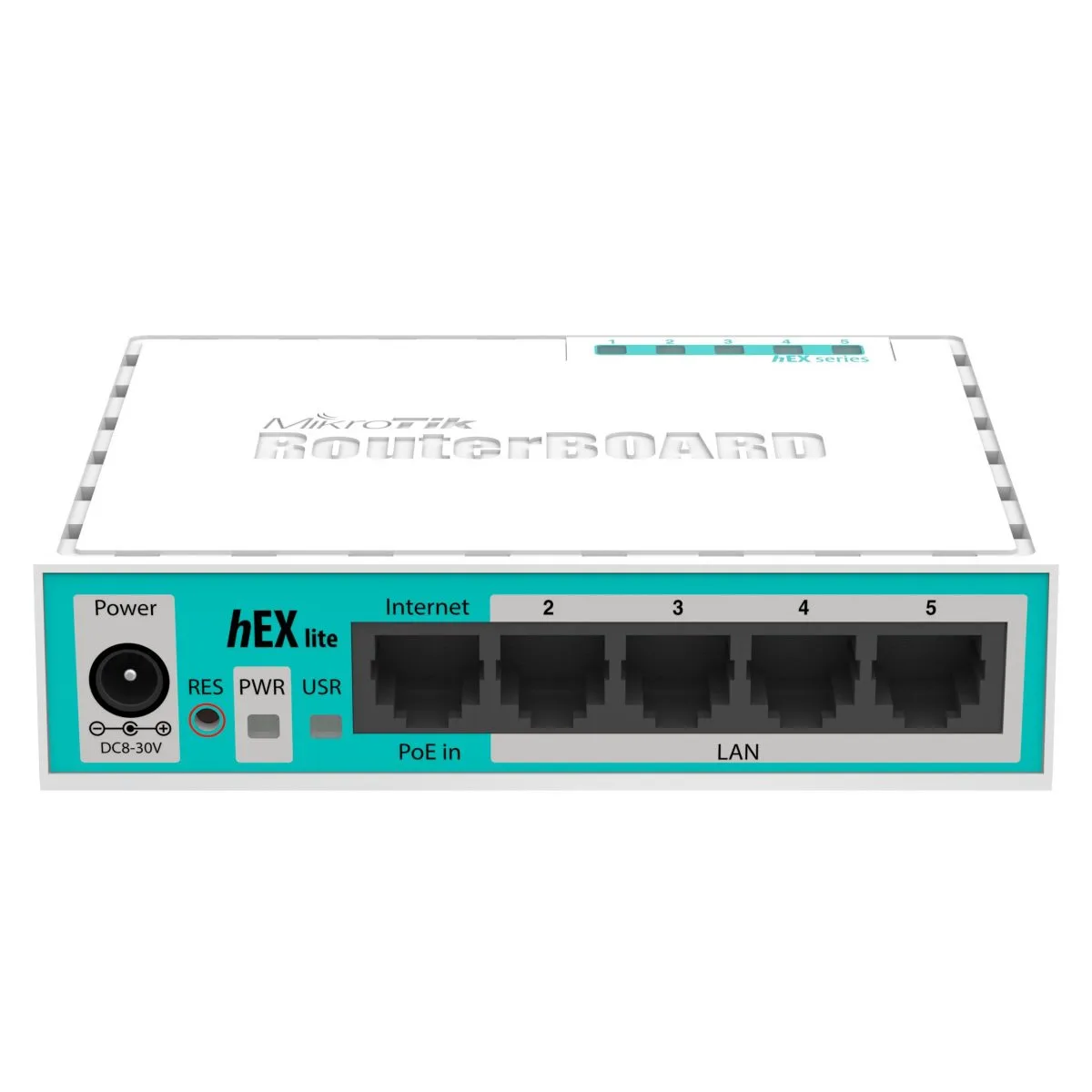

Mikrotik HEX LITE RB750r2- image 0

Mikrotik hEX Lite RB750r2 is an affordable yet powerful small wired router designed for home and small office networks. This compact device is perfect for users who need basic, reliable routing without the complexities of wireless networking.

Key Features:

  • Compact Design: The hEX Lite comes in a sleek, compact form factor, making it an ideal choice for space-constrained environments. Despite its size, it packs enough power to handle basic networking tasks efficiently.
  • Five Fast Ethernet Ports: Equipped with five 10/100 Mbps Ethernet ports, the RB750r2 offers enough connectivity options for small networks, ensuring stable and fast wired connections for multiple devices.
  • MikroTik RouterOS: The hEX Lite runs on MikroTik’s RouterOS with a Level 4 license, giving users access to a range of powerful features such as advanced routing, firewall configuration, and network management tools.
  • Energy Efficient: The device is designed to be energy efficient, consuming minimal power while delivering consistent performance, making it a budget-friendly and eco-conscious choice.
  • User-Friendly: Easy to set up and configure, the hEX Lite is suitable for both beginners and more advanced users who need a straightforward router without additional features like Wi-Fi.

The Mikrotik hEX Lite RB750r2 is perfect for those who need an economical and reliable router for wired networks, offering essential features and performance for everyday connectivity needs.

Included parts

24V 0.38A power adapter

Ethernet test results

RB750r2 QCA9531 (850Mhz) 100M all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 40.6 493.0 117.4 480.9 234.8 120.2
Bridging 25 bridge filter rules 40.6 493.0 90.4 370.3 94.3 48.3
Routing none (fast path) 40.6 493.0 117.4 480.9 217.8 111.5
Routing 25 simple queues 40.6 493.0 98.9 405.1 101.2 51.8
Routing 25 ip filter rules 40.6 493.0 52.0 213.0 52.7 27.0
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544).
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes.
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results.
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.



Additional information
Weight 0.27 kg
Dimensions 13 × 9.5 × 6.5 cm
MODEL

hEX Lite

Badges

24Hr Dispatch

Product Details

Brand Name Mikrotik
Model Name Mikrotik HEX LITE
Dimension(cm) 13X9.5X6.5
Weight(kg) 0.27
Product code RB750r2
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 850 MHz
Switch chip model QCA9533
Dimensions 113x89x28mm. Weight without packaging and cables: 129g
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $39.95

Powering

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 6-30 V
Max power consumption 2 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 6-30 V

Ethernet

10/100 Ethernet ports 5

Certification & Approvals

Certification CE, EAC, ROHS
IP IP20

Warranty & Manufacturer Details

Warranty Period 1 Year
Warranty Provider Contact Fgtech Store for service warranty
Country of Origin China
Manufacturer Details SIA Mikrotlks, Unijas iela 2, Riga, LV-1039 LATVIA
Importer Details Mikrotik India, Green Park, Delhi 110016
Packer Details FGTECH INNOVATIONS LLP, Sakinaka, Andheri East, Mumbai 400072

Download Brochure

Brochure Open
Quick Guide Open
User Manual Open
RouterOS current release Download
Design Files DXF-PDF Open
Block Diagram Open
STEP file for CAD Open
RouterOS software manual Open
Declaration of conformity Open (CE)
