₹9,999.00 Original price was: ₹9,999.00.₹9,480.00Current price is: ₹9,480.00. Inc. tax (₹8,033.90Exc. Tax)
Warranty Period :- 1 Year
Experience the Mikrotik L11UG-5HaxD—an outdoor 5 GHz CPE/AP featuring Wi-Fi 6 and RouterOS v7 for high-speed, efficient, and reliable connectivity. Perfect for outdoor networking solutions.
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Similar Products
Mikrotik RB911G-5HPnD | Small wireless router with an integrated 5Ghz high power wireless card
Out of stock
Mikrotik RB912UAG-5HPnD | High-Performance 5GHz Wireless Router with miniPCIe Slot
Out of stock
Mikrotik RBM33G | Customizable OEM Board with Gigabit LAN & MiniPCIe Slots
Out of stock
Mikrotik L11UG-5HaxD is a robust, custom outdoor 5 GHz CPE (Customer Premises Equipment) or Access Point (AP) featuring the latest Wi-Fi 6 technology. Equipped with RouterOS v7, this device brings enhanced network performance, efficiency, and a broad range of customization options to meet demanding connectivity needs in outdoor environments.

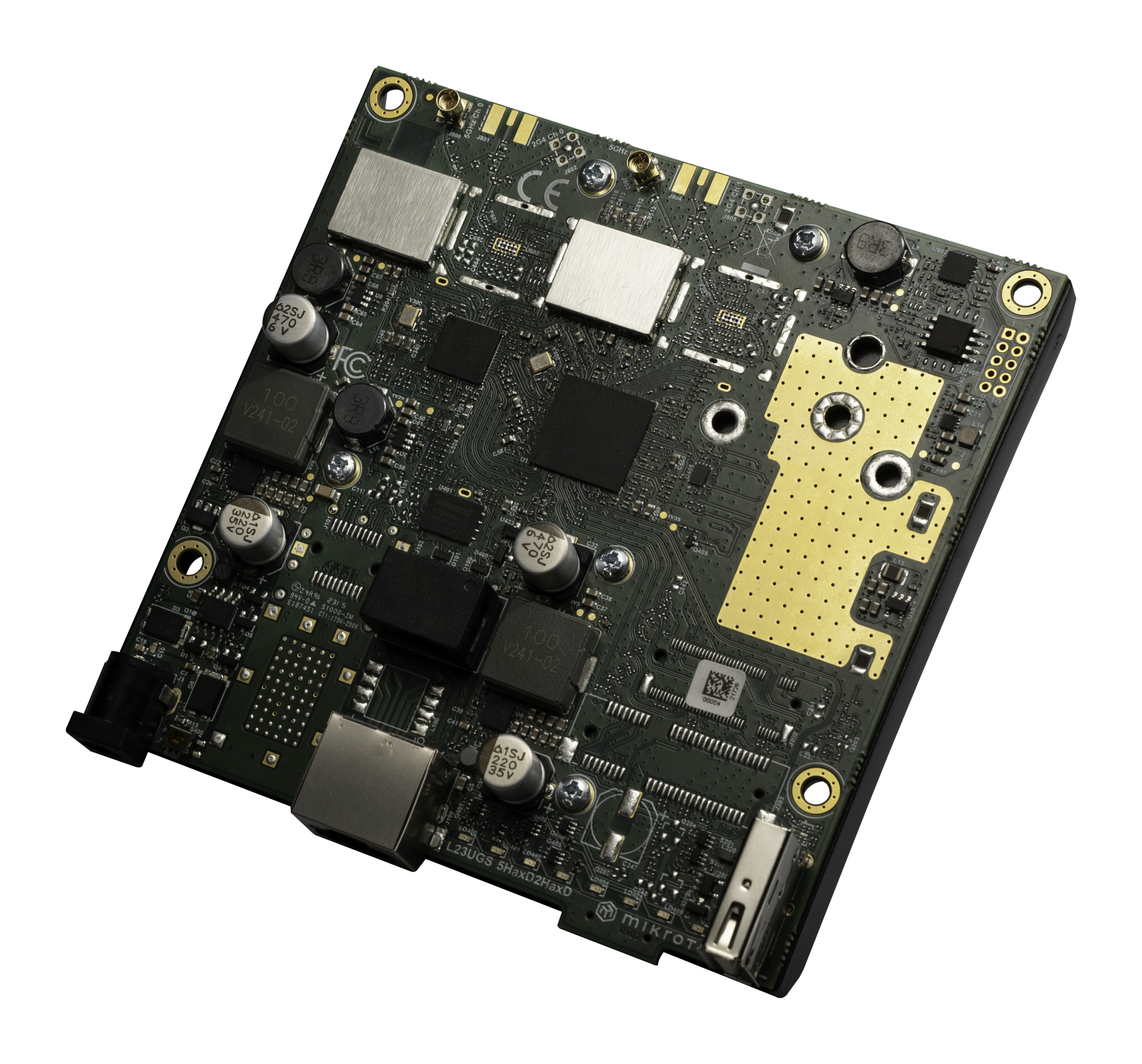

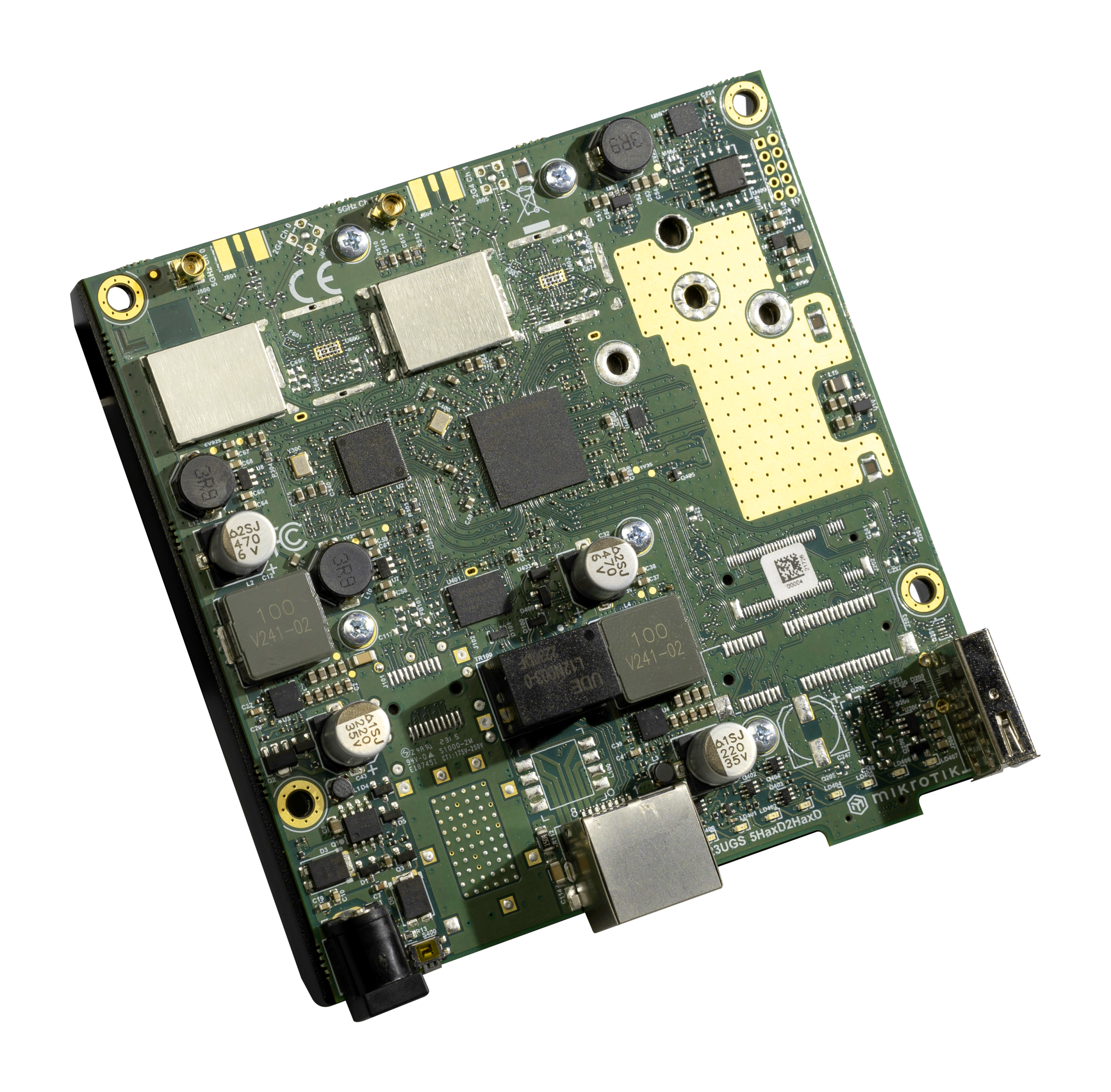

Remember the thrill of crafting your custom solutions with our RouterBoard series? Get ready for even more DIY achievements: we’re refreshing the RB product line with Wi-Fi 6! Like the trusty RB911, our brand new L11UG-5HaxD is going to be your best friend when it comes to building low-cost outdoor CPEs or APs! This tiny board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.
The powerful Wi-Fi 6 radio with MMCX connectors enables further customization: add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link!

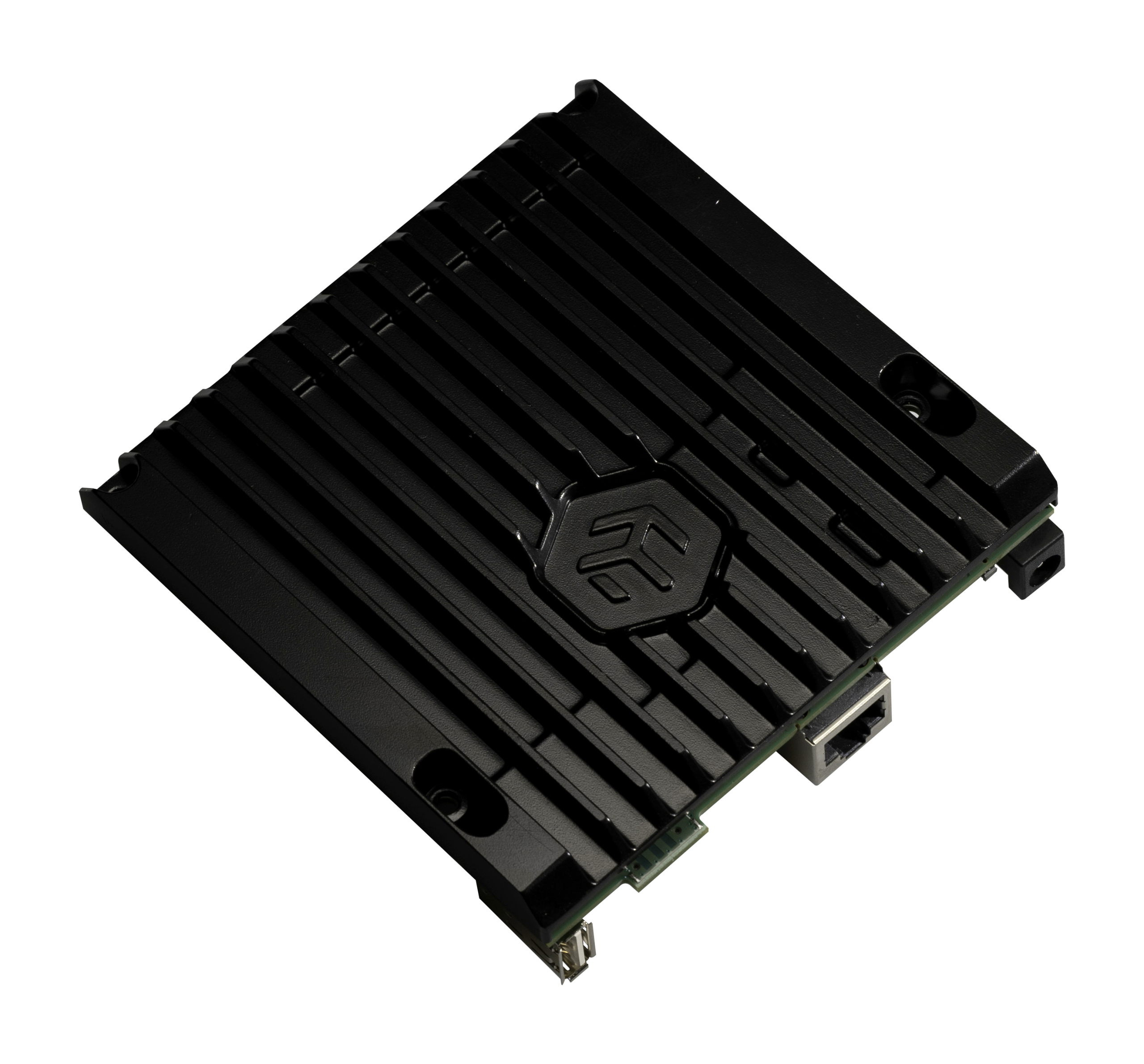

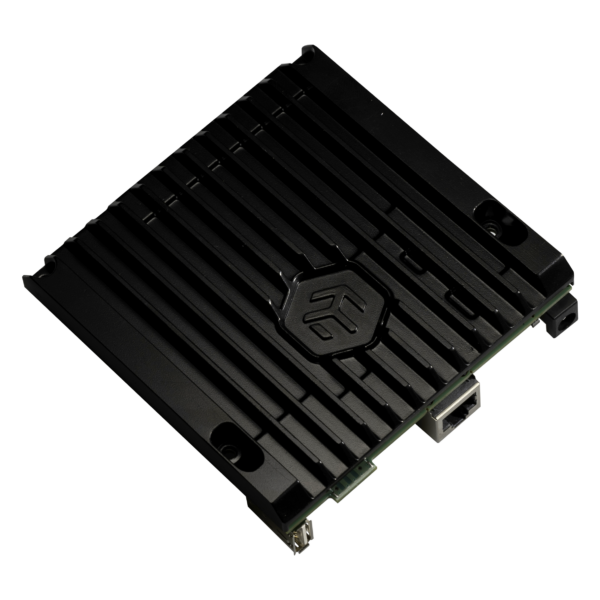

You can integrate L11UG-5HaxD in a variety of setups, such as vending machines, ATM’s, ticket stations, and more, but for a standalone build you might want to order one of our aluminum cases. The same ones you would use for RB411, 911, 912 and 922, so they are reusable. You can save the planet and your wallet at the same time!
If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.
Ethernet test results
L11UG-5HaxD | IPQ-5010 one port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 81.1 | 984.6 | 233.3 | 955.6 | 689.2 | 374.9 |
Bridging | 25 bridge filter rules | 81.1 | 984.6 | 201.6 | 825.6 | 204.8 | 111.4 |
Routing | none (fast path) | 81.3 | 987.4 | 219.1 | 897.3 | 398 | 216.5 |
Routing | 25 simple queues | 81.3 | 987.4 | 178.6 | 731.4 | 181 | 98.5 |
Routing | 25 ip filter rules | 81.3 | 987.4 | 123.4 | 505.5 | 122.6 | 66.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
Buy MikroTik Products in India – Best Deals at FGTech Store
MikroTik – Powering Networks with Innovation
MikroTik is a globally recognized leader in networking solutions, offering high-performance routers, switches, and wireless devices tailored for businesses, ISPs, and advanced home users. Known for their durability, scalability, and cost-effectiveness, MikroTik products are a top choice for those seeking reliable and customizable networking solutions.
Why MikroTik is Important for Indian Customers
India’s growing digital infrastructure demands networking solutions that are both affordable and high-performing. MikroTik caters to:
✅ ISPs & Enterprises – Scalable routing solutions for seamless connectivity.
✅ Small Businesses & Startups – Cost-effective network management tools.
✅ Home & SOHO Users – Advanced Wi-Fi solutions for uninterrupted internet.
MikroTik’s RouterOS provides unparalleled control, security, and flexibility, making it a preferred choice for Indian businesses looking for customized and budget-friendly networking solutions.
Why FGTech Store is the Best for MikroTik Purchases?
At FGTech Store, we ensure:
🔹 100% Genuine MikroTik Products – We are authorised partner to bring Mikrotik products in India
🔹 Competitive Pricing – Best value for your investment.
🔹 Expert Support & Consultation – Pre-sales and post-sales assistance.
🔹 Fast Shipping Across India – Quick and reliable delivery.
🔹 Diverse Product Range – From entry-level routers to enterprise-grade networking gear.
MikroTik’s L2TP VPN (Layer 2 Tunneling Protocol) is a widely used VPN solution that provides secure remote access, site-to-site connectivity, and network extension. Some of its advanced features include:
✅ L2TP Over IPsec – Enhances security by encrypting L2TP traffic with IPsec, ensuring end-to-end encryption and data protection.
✅ Multi-User VPN – Supports multiple remote clients for secure workforce connectivity.
✅ Dynamic IP Support – Works even when ISPs assign dynamic IPs, making it ideal for home offices and remote access.
✅ MSS Clamping & MTU Adjustments – Prevents fragmentation issues, improving VPN performance and stability.
✅ User Authentication – Supports local user authentication, RADIUS, and external authentication methods for flexible access control.
✅ MPLS over L2TP – Allows seamless integration into multi-site MPLS networks, enhancing network flexibility.
With the release of RouterOS v7, MikroTik has introduced major upgrades in performance, routing capabilities, and security:
🚀 New Kernel & Improved Performance – The upgraded Linux kernel brings better stability, improved hardware support, and enhanced processing speeds.
🔹 BGP, OSPF, and MPLS Enhancements – Optimized for large-scale ISPs, better handling of full BGP tables, improved OSPF stability, and faster MPLS switching.
🔹 WireGuard VPN Support – A modern, lightweight VPN alternative to L2TP/IPsec, providing faster and simpler encrypted tunnels.
🔹 IPv6 Improvements – Enhanced dual-stack routing, making MikroTik devices more future-proof for growing IPv6 networks.
🔹 Multi-Threaded Performance – RouterOS v7 fully utilizes multi-core processors, improving performance in routing, NAT, and firewall processing.
🔹 VXLAN Support – Enables Layer 2 connectivity over Layer 3 networks, useful for data center interconnects and cloud networking.
🔹 NAT64 & DNS64 – Helps transition from IPv4 to IPv6 by allowing IPv6 clients to communicate with IPv4-only services.
Upgrade your network with MikroTik’s cutting-edge technology and experience unparalleled performance.
Product Name | Category | Key Features | Ideal For |
---|
MikroTik hAP ax³ | Wi-Fi Router | Wi-Fi 6, Quad-Core CPU, Gigabit Ports, High-Speed Performance | Homes, Small Offices |
MikroTik RB5009UPr+S+IN | Router | 7x PoE Gigabit Ports, 1x SFP+, 2.5G Ethernet, Passive Cooling | ISPs, Enterprises, Powering Multiple Devices |
MikroTik L009UiGS-RM | Router | 1x SFP, 8x Gigabit Ports, ARM CPU, Rackmount & Desktop | Small Businesses, Branch Offices |
MikroTik CCR2004-1G-12S+2XS | Cloud Core Router | 12x SFP+ Ports, 2x 25G SFP28, ARM 64-bit CPU | Data Centers, Large Networks |
MikroTik CRS304-4XG-IN | Ethernet Switch | 4x 10G Ethernet Ports, Compact Metal Case, Fanless | High-Speed Networking, Servers |
MikroTik CRS305-1G-4S+IN | Fiber Switch | 4x 10G SFP+, 1x Gigabit Port, Fanless Design | High-Speed Fiber Networks |
MikroTik WAP ax | Wi-Fi Access Point | Wi-Fi 6, Dual-Band, Compact Weatherproof Design | Indoor & Outdoor Wireless |
MikroTik LHG XL HP5 | Wireless CPE | Long-Range 5GHz, 27 dBi Antenna, High Power Output | Point-to-Point Wireless Links |
MikroTik E50UG | Router | Compact, 5x Gigabit Ports, USB, Affordable & Efficient | SOHO, Small Networks |
Shop now at FGTech Store – India’s trusted destination for MikroTik products.
Details | |
---|---|
Product code | L11UG-5HaxD |
Architecture | ARM |
CPU | IPQ-5010 |
CPU core count | 2 |
CPU nominal frequency | 800 MHz |
RouterOS license | 4 |
Operating System | RouterOS v7 |
Size of RAM | 256 MB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Powering
Details | |
---|---|
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 12-28 V |
Max power consumption | 15 W |
Max power consumption without attachments | 6 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 18-28 V |
Wireless specifications
Details | |
---|---|
Wireless 5 GHz Max data rate | 2400 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac/ax |
Wireless 5 GHz chip model | QCN-6102 |
Wireless 5 GHz generation | Wi-Fi 6 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 1 |
Peripherals
Details | |
---|---|
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1.5 |
Other
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Beeper | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, FCC, IC, EAC, ROHS |
Wireless specifications
5 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 28 | -96 |
54MBit/s | 26 | -80 |
MCS0 | 28 | -96 |
MCS7 | 25 | -75 |
MCS9 | 23 | -70 |
MCS11 | 20 | -67 |
