Mikrotik LDF 5 AC Outdoor Dual Chain 5GHz System
The MikroTik LDF 5 ac is an outdoor dual-chain 5GHz system with integrated directional antenna, ideal for point-to-point or satellite dish deployments for extended range
Original price was: ₹9,999.00.₹4,999.00Current price is: ₹4,999.00. Inc. tax (₹4,236.44Exc. Tax)
Out of stock
Out of stock
Description
The MikroTik LDF 5 ac (Lite Dish Feed) is a compact and versatile outdoor wireless system designed for 5GHz networks. Mikrotik LDF 5 It features dual-chain 802.11ac support for enhanced performance and speed, making it suitable for long-range point-to-point setups. Mikrotik LDF 5 device is intended to be used with a standard satellite dish, effectively transforming it into a powerful directional antenna.
Mikrotik LDF 5 comes with a built-in 9 dBi antenna which can go upto 33 dBi, the Mikrotik LDF 5 ac can function as a standalone unit or enhance its range when paired with larger dishes. Its lightweight and weatherproof design ensure reliable outdoor operation. TheMikrotik LDF 5 is equipped with a Gigabit Ethernet port, offering data rates of up to 867 Mbps, making it an efficient and cost-effective solution for extending wireless networks or creating dedicated links.

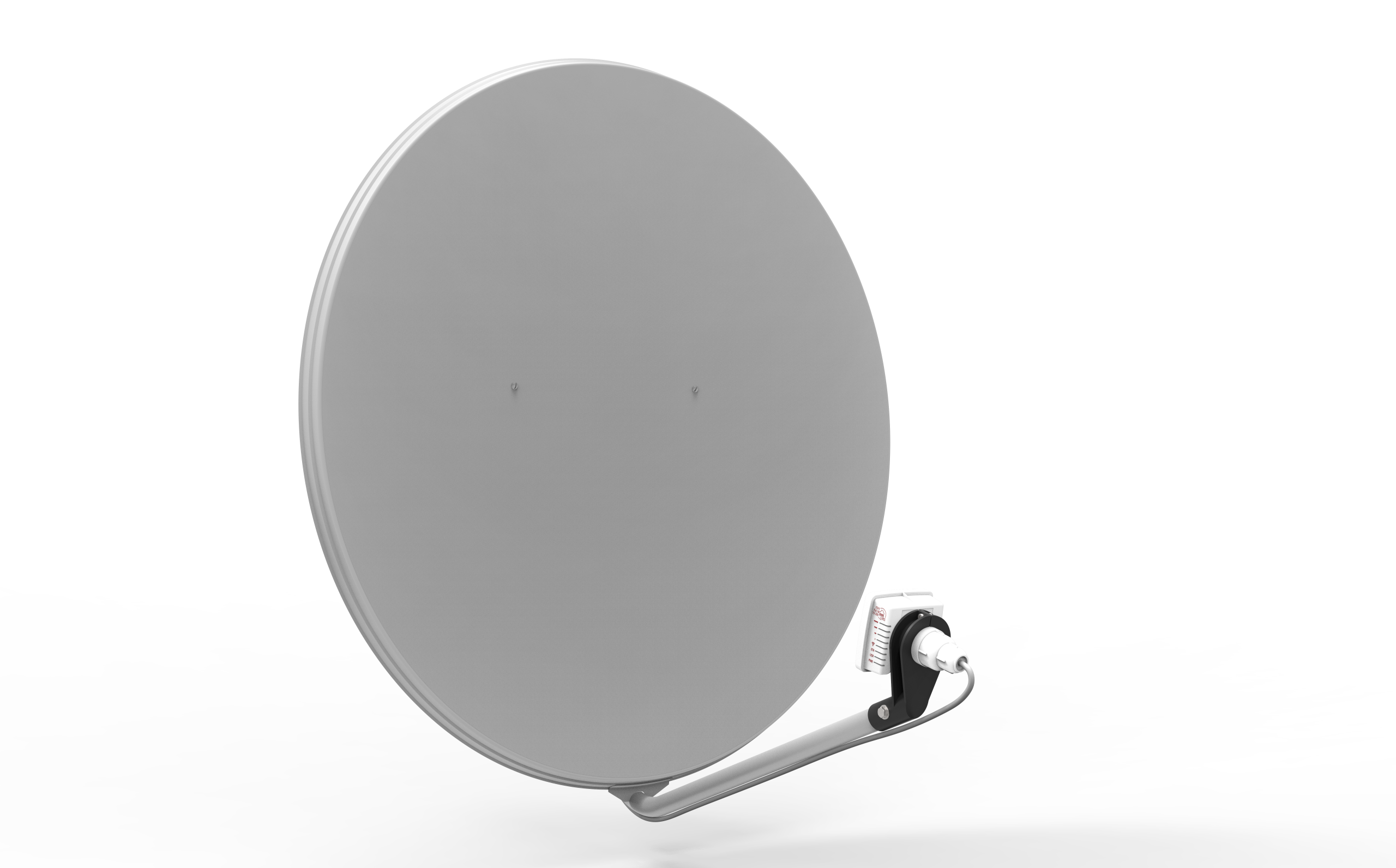

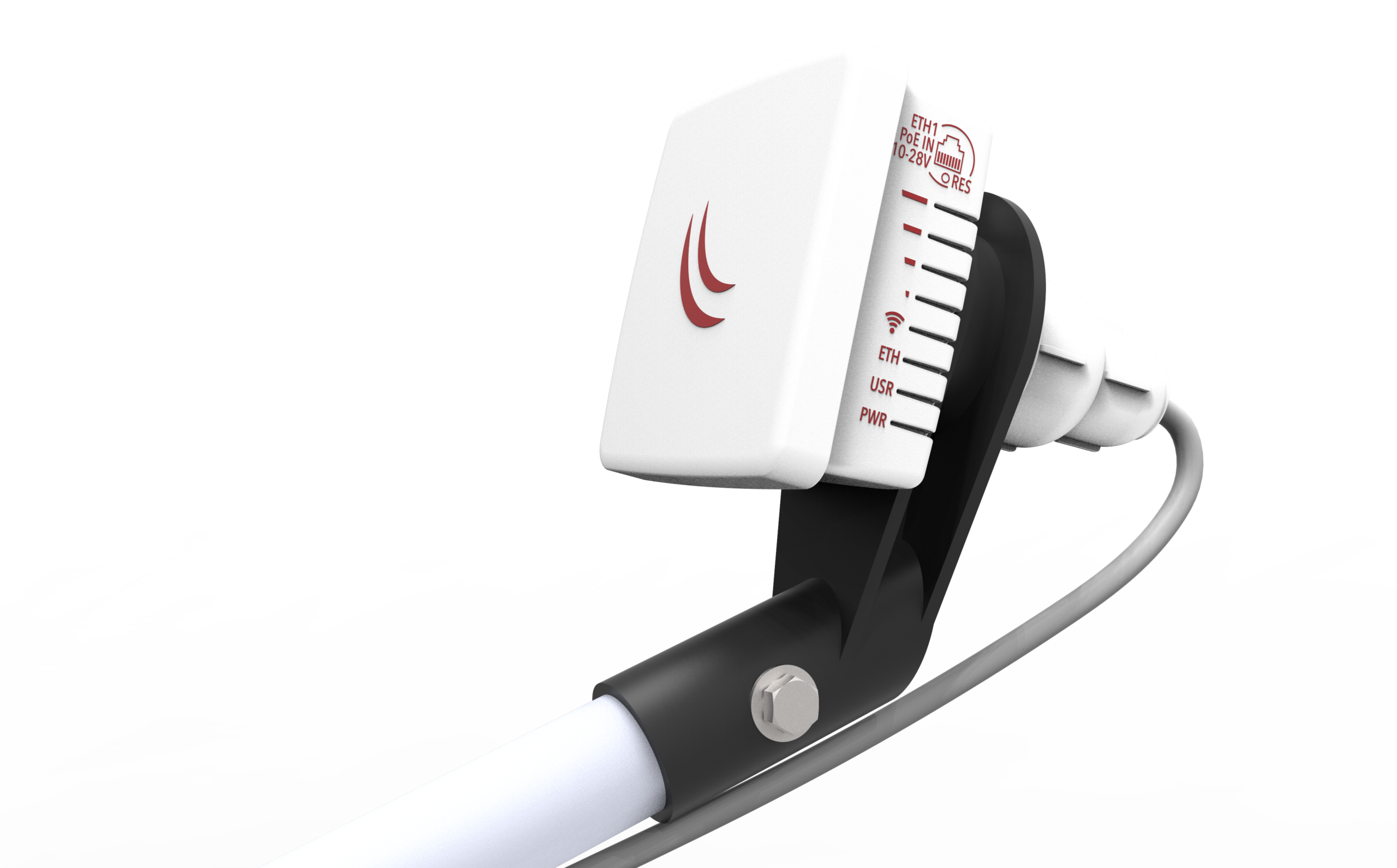

Mikrotik LDF 5 (Lite Dish Feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.
This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost.
Using a dish of up to 100cm in diameter, it is possible to obtain antenna amplification of up to 33dBi. The device comes preinstalled with RouterOS and is ready to use.
– LDF 5 US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– LDF 5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Ethernet test results
| RBLDF-5nD | AR9344 (600MHz) 100M 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 182.5 | 93.4 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 182.5 | 93.4 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 60.5 | 31.0 |
| Weight | 0.340 kg |
|---|---|
| Dimensions | 8.4 × 8.4 × 11.5 cm |
| Brand | |
| MODEL |
LDF 5 |
| Brand Name | Mikrotik |
| Model Name | LDF 5 |
| Dimension(cm) | 8.4X8.4X11.5 |
| Weight(kg) | 0.340 |
Specifications
| Details | |
|---|---|
| Product code | RBLDF-5nD |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 84x84x115mm |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 9 |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 25 | -96 |
| 54MBit/s | 20 | -80 |
| MCS0 | 25 | -96 |
| MCS7 | 19 | -75 |
