Mikrotik RB450Gx4 | 5-Port Gigabit Ethernet Router with RouterOS L5

SKU: FGINK117AW1L

Warranty Period :- 1 Year

Mikrotik RB450Gx4, a high-performance Ethernet router with five Gigabit ports, quad-core ARM processor, and RouterOS L5. Perfect for SMEs and advanced home networks needing efficient wired connectivity.


Original price was: ₹11,999.00.Current price is: ₹11,880.00. Inc. tax (10,067.80Exc. Tax)

Out of stock

Out of stock

Description

Mikrotik RB450Gx4 is a powerful and efficient Ethernet router equipped with five Gigabit Ethernet ports and advanced routing capabilities. Powered by a quad-core ARM processor and featuring RouterOS Level 5 license, this router is designed for applications that require robust performance and scalability. It’s ideal for both home and business environments that need reliable wired connectivity and enhanced network management.

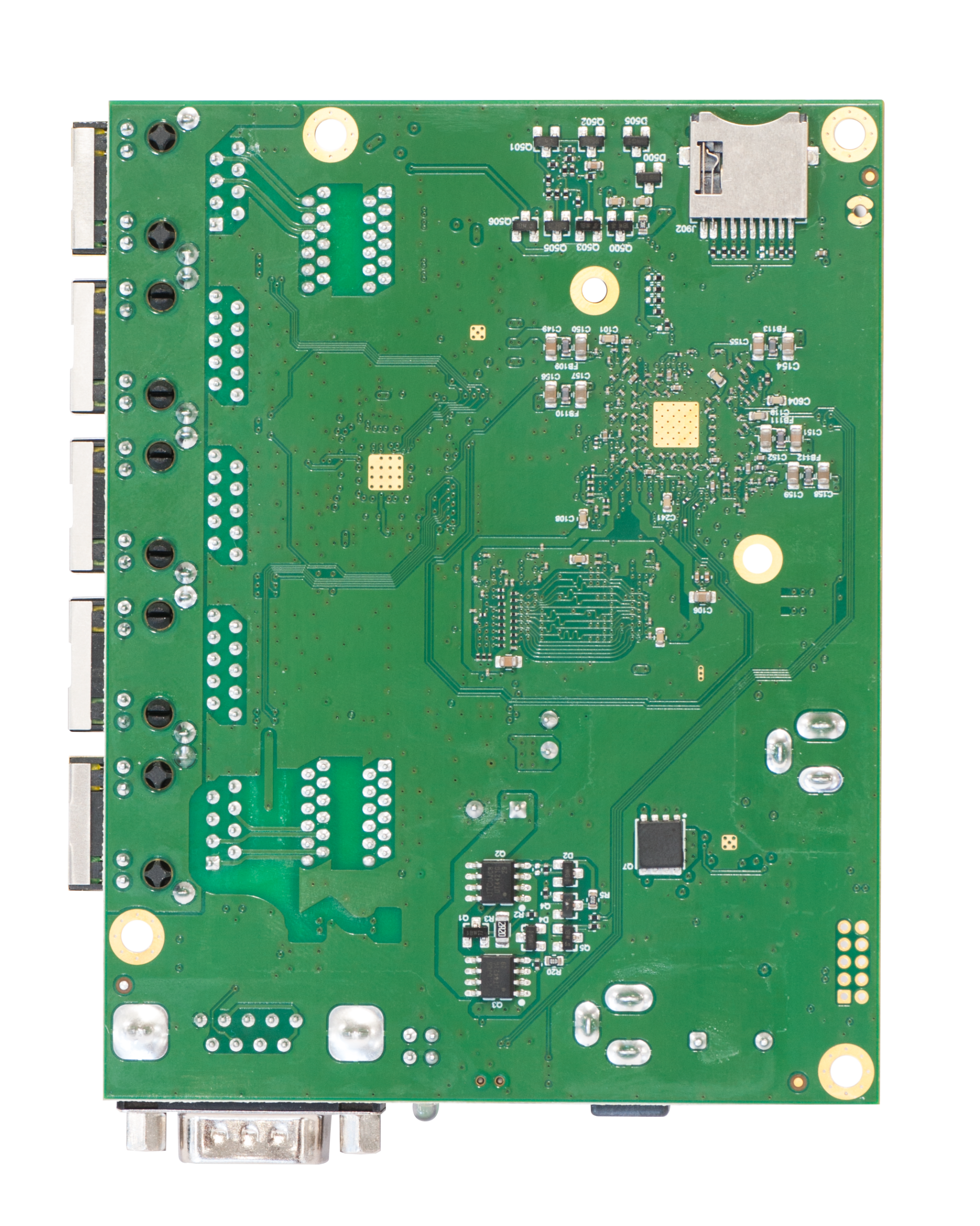

The RB450Gx4 is an Ethernet router with five Gigabit Ethernet ports, a serial port, 512 MB NAND memory and a microSD card slot. In addition, it supports full 10 V – 57 V input by two power jacks or PoE (802.3af/ at or passive PoE) and can provide PoE output for Ethernet port #5.

It is powered by MikroTik RouterOS. It comes without an enclosure, you are free to use it in your own. The device form factor is identical to our previous RB850 and RB450 series, so you can even use the same enclosures.

The device is powered by a quad core ARM CPU, has 1 GB of RAM and supports hardware IPsec encryption. The device is powered by RouterOS – the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.







Ethernet test results

RB450Gx4 IPQ-4019 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 162,5 1973.4 469,9 1924.7 1488,4 762.1
Bridging 25 bridge filter rules 162,5 1973.4 351,2 1438.5 352,1 180.3
Routing none (fast path) 162,5 1973.4 469,9 1924.7 1488,4 762.1
Routing 25 simple queues 162,5 1973.4 468,6 1919.4 493,4 252.6
Routing 25 ip filter rules 162,5 1973.4 222,8 912.6 227,4 116.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB450Gx4 IPQ-4018 IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 37.9 424.5 59 241.7 61.6 31.5
256 tunnels AES-128-CBC + SHA1 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-128-CBC + SHA256 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-256-CBC + SHA1 34.4 385.3 37.9 155.2 39.8 20.4
256 tunnels AES-256-CBC + SHA256 34.4 385.3 37.9 155.2 39.8 20.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..



Additional information
Brand

MODEL

RB450Gx4

Product Details

Details
Product code RB450Gx4
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Switch chip model IPQ-4019
Dimensions 90 x 116 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes

Powering

Details
Number of DC inputs 3 (DC jack, PoE-IN)
DC jack input Voltage 10-57 V
Max power consumption 16 W
Max power consumption without attachments 4 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V

PoE-out

Details
PoE-out ports Ether5
PoE out Passive PoE
Max out per port output (input 18-30 V) 500 mA
Max out per port output (input 30-57 V) 500 mA
Max total out (A) 500 mA

Ethernet

Details
10/100/1000 Ethernet ports 5

Peripherals

Details
Memory card type microSD
Serial console port RS232

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP00
