New STQC Certified

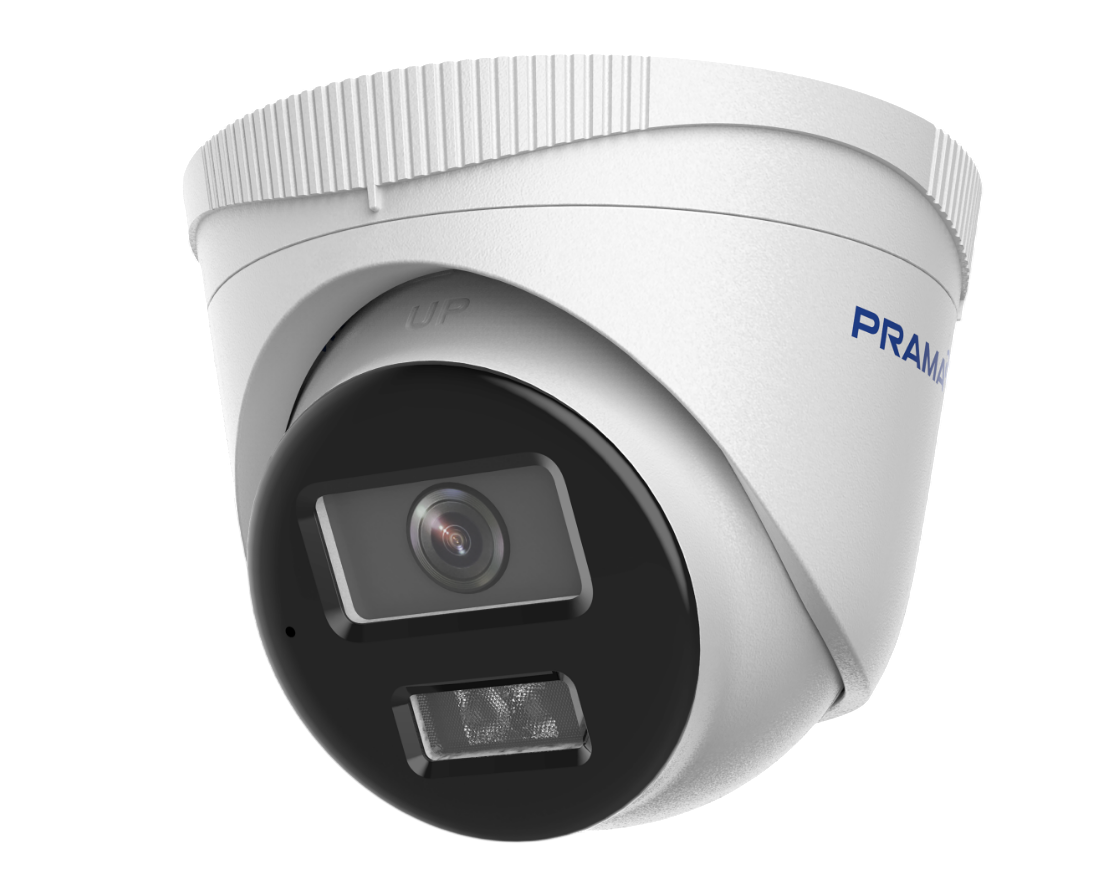

PRAMA 2MP Fixed Turret IP Camera PT-NC123D3-N(D2) | Pan/Tilt, 30m IR, IP67, PoE, ONVIF, STQC Approved (4mm)

PT-NC123D3-N(D2) is a 2MP turret IP camera with 1920×1080 resolution, 30m IR night vision, 2.8/4mm lens options, H.265 compression, and human & vehicle detection. Supports motion alerts, digital WDR, IP67 housing, PoE (802.3af), and ONVIF Profile S & T compatibility.

Focal Length	2.8mm 4mm

Pick up from the FGTECH Store

To pick up today

0-1 Days

Courier delivery

Our courier will deliver to the specified address

4-7 Days

Porter / WeFast

Currently available only in Mumbai

0-1 Days

To be paid directly to service vendor

Fast Delivery ( By Air )

We will ship from your product By Air to nearest center to speed up the delivery

2-4 Days

Start from Rs250 Extra

SKU: FGIN5C8N84SH Categories: Surveillance and Security, IP Cameras Brand: Prama

Similar Products

-52% 24Hr Dispatch STQC Certified

CP PLUS 2MP IP Dome Camera CP-UNC-DA21L3C-LQ

Quick view

CP PLUS 2MP IP Dome Camera CP-UNC-DA21L3C-LQ | Dual Light, Built-in Mic, IP67, POE, STQC APPROVED, 2 Year Warranty (3.6mm)

Rated 0 out of 5

In stock

Inc. tax (₹2,541.53Exc. Tax)

Add to cart

SKU: FGIN2LA75BS5

Weight	0.25 kg
Dimensions	10.9 × 8.55 cm
Brand	CP Plus
Model	CP-UNC-DA21L3C-LQ
Warranty	2 Years
Use Case	Surveillance Cameras
Distance	30m
Focal Length	3.6mm
Certification	STQC
Badges	24Hr Dispatch, STQC Certified

-56% 24Hr Dispatch STQC Certified

Quick view

CP PLUS 2MP IP Dome Camera CP-UNC-DA21L3C-Q | Built-in Mic, IR 30m, IP67, POE, STQC APPROVED | 2 Year Warranty (2.8mm)

Rated 0 out of 5

In stock

Inc. tax (₹2,287.29Exc. Tax)

Add to cart

SKU: FGIN9B79MYW6

Weight	0.250 kg
Brand	CP Plus
Model	CP-UNC-DA21L3C-Q
Use Case	Surveillance Cameras
Warranty	2 Years
Distance	30m
Focal Length	2.8mm
Certification	STQC
Badges	24Hr Dispatch, STQC Certified

-55% 24Hr Dispatch

Quick view

TP-link VIGI C220I 2MP 2.8MM IR Dome Network IP CAMERA

Rated 5.00 out of 5

Out of stock

Inc. tax (₹2,287.29Exc. Tax)

SKU: FGINVRZQ7O2M

Weight	0.44 kg
Dimensions	15 × 19 × 12 cm
Focal Length	2.8mm
Brand	TP-Link
Model	VIGI C220I 2.8mm
Badges	24Hr Dispatch

-55% 24Hr Dispatch

Tp-link VIGI C220I 4mm 2MP Dome Network IP CAMERA

Quick view

Tp-link VIGI C220I 2MP 4mm Dome Network IP CAMERA

Rated 0 out of 5

Out of stock

Inc. tax (₹2,287.29Exc. Tax)

SKU: FGIN9DIXZATS

Weight	0.44 kg
Dimensions	15 × 19 × 12 cm
Brand	TP-Link
Focal Length	4mm
Badges	24Hr Dispatch

Description

PRAMA PT-NC123D3-N(D2) is a fixed-lens 2MP network IP turret camera designed for wired surveillance installations using Ethernet and PoE. It delivers Full HD video at up to 25/30 fps with a maximum resolution of 1920 × 1080 and supports H.265 and H.264 compression for efficient bandwidth and storage usage.

The camera features infrared (IR) illumination with a range of up to 30 meters, enabling clear monitoring in complete darkness. With an F1.6 aperture and minimum illumination of 0.005 lux (0 lux with IR), it ensures reliable day and night performance using an automatic IR cut filter.

PT-NC123D3-N(D2) includes intelligent human and vehicle classification along with motion detection and video tampering alerts for event-based monitoring and reduced false alarms. Image enhancement features such as digital WDR, 3D DNR, BLC, and HLC improve visibility in challenging lighting conditions.

The PT-NC123D3-N(D2) supports power input via 12V DC or PoE (IEEE 802.3af), allowing flexible installation. It is ONVIF Profile S and T compliant for seamless integration with NVRs and third-party systems.

Additional features include support for multiple network protocols (TCP/IP, RTSP, HTTP, HTTPS, DHCP, IPv4, IPv6), advanced security functions such as TLS 1.3 and password protection, and multi-user access with up to 32 users.

PT-NC123D3-N(D2) is built with a durable metal and plastic housing and rated IP67, the camera is suitable for outdoor environments. It operates reliably in temperatures from -30°C to 60°C with up to 95% humidity (non-condensing).

Best Suited For

Wired Ethernet surveillance systems
PoE-based installations
Indoor and outdoor environments requiring IP67 protection
Homes, shops, offices, and general monitoring
NVR-based or network-managed camera systems
Installations needing basic human and vehicle detection

Not Suitable For

Wi-Fi-only installations
Battery-powered deployments
Color night vision applications (no white light)
Two-way audio or built-in microphone requirements
Advanced analytics such as face recognition or ANPR
High dynamic range scenes requiring true WDR (only digital WDR available)

Product Details

Category	Parameter	Specification
Camera	Image Sensor	1/2.9" Progressive Scan CMOS
Camera	Max Resolution	1920 × 1080
Camera	Shutter Time	1/3 s to 1/100,000 s
Camera	Min Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Camera	Day/Night	IR cut filter
Camera	Angle Adjustment	Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°
Lens	Lens Type	Fixed focal lens
Lens	Focal Length	2.8 mm / 4 mm
Lens	Aperture	F1.6
Lens	Lens Mount	M12
Lens	Iris Type	Fixed
Lens	FOV (2.8 mm)	Horizontal 103°, Vertical 56°, Diagonal 121°
Lens	FOV (4 mm)	Horizontal 83°, Vertical 44°, Diagonal 99°
Lens	DORI (2.8 mm)	Detect 45 m, Observe 18 m, Recognize 9 m, Identify 4 m
Lens	DORI (4 mm)	Detect 56 m, Observe 22 m, Recognize 11 m, Identify 5 m
Illuminator	Supplement Light Type	IR
Illuminator	IR Range	Up to 30 m
Illuminator	Smart IR	Yes
Illuminator	IR Wavelength	850 nm
Video	Main Stream	25 fps (50 Hz), 30 fps (60 Hz) @ 1920×1080, 1280×720
Video	Sub Stream	25 fps (50 Hz), 30 fps (60 Hz) @ 640×480, 640×360
Video	Compression	Main: H.265/H.264; Sub: H.265/H.264/MJPEG
Video	Bit Rate	32 Kbps to 8 Mbps
Video	H.264 Profile	Baseline / Main / High
Video	H.265 Profile	Main Profile
Video	Bit Rate Control	CBR / VBR
Video	ROI	1 fixed region (main stream)
Network	API	ONVIF (Profile S, Profile T)
Network	Protocols	TCP/IP, UDP, Multicast, NTP, DDNS, SNMP, QoS, DHCP, IPv4, IPv6, DNS, HTTP, HTTPS, RTSP, SRTP/RTSPS, Bonjour, NAT, RTCP, UPnP, ONVIF, SSH, SMTP
Network	Simultaneous Live View	Up to 6 channels
Network	Users	Up to 32 users
Network	User Levels	Administrator, Operator, User
Security	Security Features	Password protection, complicated password, watermark, digest authentication (HTTP, ONVIF), WSSE, TLS 1.3
Browser	Supported Browsers	IE10, IE11 (plug-in), Chrome 57+, Firefox 52+
Image	WDR	Digital WDR
Image	SNR	≥ 52 dB
Image	Day/Night Switch	Day / Night / Auto / Schedule
Image	Image Enhancement	BLC, HLC, 3D DNR
Image	Image Settings	Rotate, saturation, brightness, contrast, sharpness, gain, white balance
Image	Privacy Mask	4 programmable polygon masks
Interface	Ethernet	1 × RJ45 10/100 Mbps self-adaptive
Event	Basic Events	Motion detection (human and vehicle classification), video tampering, exception
Event	Linkage	FTP/SFTP upload, email, surveillance center notification, trigger capture
Power	Power Supply	12 VDC ±25%, 0.5 A
Power	Power Consumption	Max. 6 W
Power	PoE	IEEE 802.3af, Class 3, max. 7.2 W
General	Material	Metal & Plastic
General	Dimensions	11.2 × 11.2 × 8.2 cm
General	Weight	Approx. 0.34 kg
General	Weight (With Package)	Approx. 0.56 kg
General	Storage Conditions	-30°C to 60°C, ≤95% humidity (non-condensing)
General	Operating Conditions	-30°C to 60°C, ≤95% humidity (non-condensing)
General	Protection	IP67
General	Functions	Heartbeat, anti-banding, mirror, password protection, password reset via email
