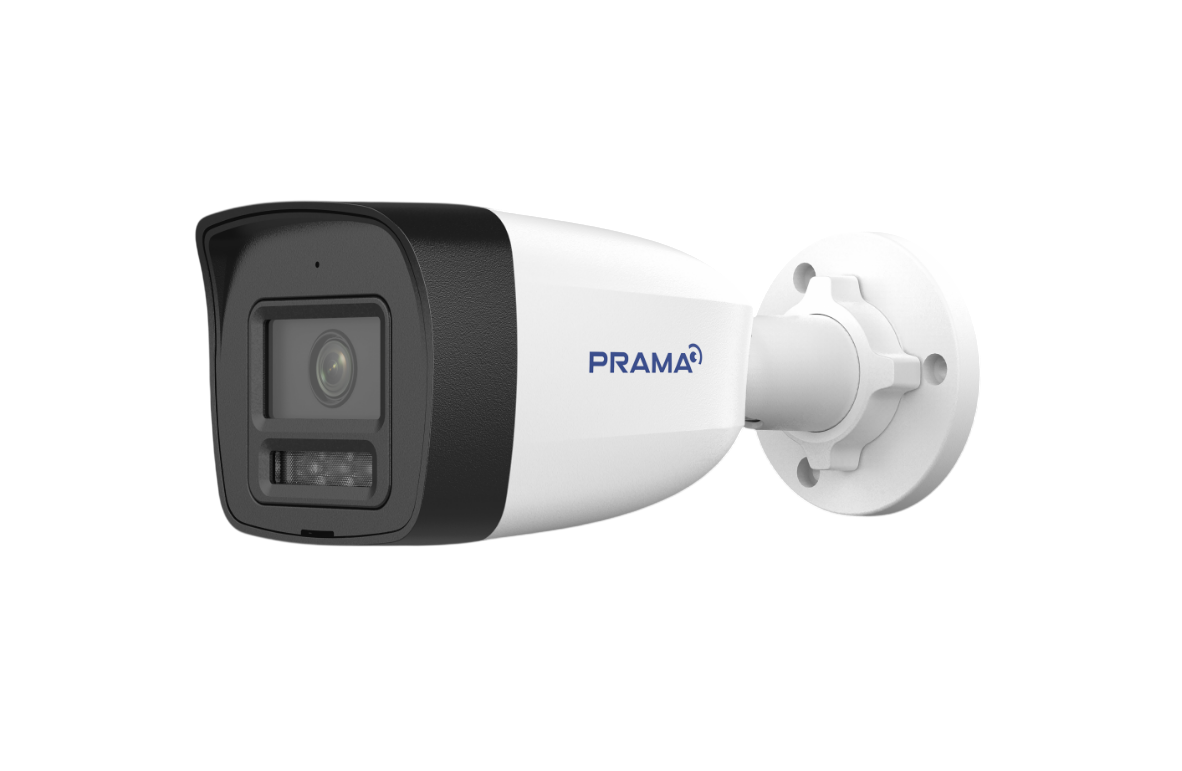

PRAMA 6MP Dual Light Fixed Bullet IP Camera PT-NC160D3-WNM(D2) | 30m IR+White Light, Human/Vehicle Detection, Built-in Mic, 4mm Lens, IP67, H.265, ONVIF, STQC Approved

PRAMA PT-NC160D3-WNM(D2) is a 6MP dual light fixed bullet network IP camera designed for wired surveillance systems using Ethernet and PoE. It captures video at up to 3200 × 1800 resolution (20 fps) and supports H.265 and H.264 compression, ensuring efficient bandwidth and storage usage while maintaining high image quality.

The PT-NC160D3-WNM(D2) features a dual illumination system (IR + white light) with a range of up to 30 meters, providing clear visibility in low-light and complete darkness. With an F1.6 aperture, minimum illumination of 0.005 lux (0 lux with IR), and 120 dB WDR, it delivers reliable image clarity even in challenging lighting conditions. Image enhancement features such as BLC, HLC, and 3D DNR further improve detail and reduce noise.

Equipped with a fixed 4 mm lens, the PT-NC160D3-WNM(D2) provides a stable field of view suitable for general surveillance applications. It supports intelligent human and vehicle classification, along with motion detection (with target filtering) and video tampering alerts, enabling accurate event-based monitoring with reduced false alarms.

For audio, the device includes a built-in microphone with noise filtering, allowing real-time audio monitoring.

The PT-NC160D3-WNM(D2) supports ONVIF Profiles S and T, ensuring compatibility with NVRs and third-party systems. It supports a wide range of network protocols including RTSP, HTTP, HTTPS, DHCP, IPv4/IPv6, SMTP, SNMP, and more. Security features include password protection, digest authentication, watermarking, and TLS 1.3 encryption. It supports up to 32 users with multiple access levels and allows up to 6-channel simultaneous live view.

Powered by 12V DC or PoE (IEEE 802.3af), the camera offers flexible installation options. It features a durable metal and plastic housing with an IP67 rating for dust and water resistance, making it suitable for outdoor environments. It operates reliably in temperatures from -30°C to 60°C with up to 95% humidity (non-condensing).

Best Suited For

• Wired IP surveillance systems
• PoE-based installations
• Indoor and outdoor environments (IP67)
• General-purpose monitoring with fixed field of view
• Surveillance with human and vehicle detection
• ONVIF-compatible NVR systems

Not Suitable For

• Wi-Fi-only installations
• Battery-powered deployments
• Installations requiring zoom/varifocal adjustment
• Installations needing audio input/output or alarm I/O
• Advanced analytics such as face recognition or ANPR
