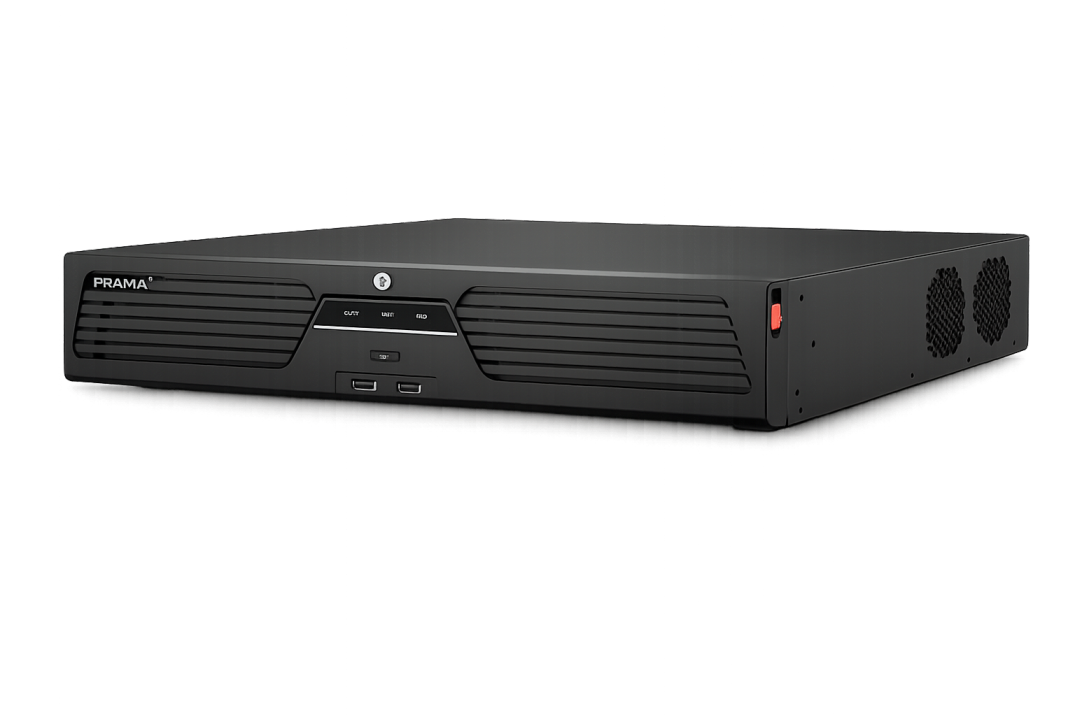

PRAMA 64 Channel 8K NVR PT-NR3A64-M8/R | Up to 32MP | 8 SATA (16TB Each) | RAID & N+M Hot Spare | H.265 Technology | 3 Year Warranty

The PRAMA PT-NR3A64-M8/R is a 64-channel Network Video Recorder designed for enterprise surveillance deployments requiring high-capacity recording, reliable storage protection, and ultra-high-definition video output. Supporting up to 64 IP camera inputs and recording resolutions up to 32MP, the PT-NR3A64-M8/R is suitable for commercial, industrial, institutional, and large-scale security applications. The recorder features dual HDMI and dual VGA outputs with independent display sources, supporting HDMI output resolutions up to 8K (7680 × 4320) or dual 4K video output for detailed live monitoring and playback.

The PT-NR3A64-M8/R supports H.265 compression technology for efficient storage utilization and provides up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth for stable multi-camera performance. The recorder supports decoding capabilities of up to 2-channel 32MP plus 2-channel 8MP, 10-channel 8MP, 20-channel 4MP, or 40-channel 1080p video streams, enabling efficient monitoring of large surveillance deployments.

The recorder supports configurable intelligent functions through compatible cameras, including motion detection, line crossing detection, intrusion detection, heat mapping, ANPR (Automatic Number Plate Recognition), people counting, and VCA events. Additional features include POS information overlay, POS-triggered recording and alarms, dual-stream recording for bandwidth optimization, stream-over-TLS encryption for secure video transmission, advanced streaming technology for smooth live viewing under unstable network conditions, and dual verification for playback and download access The PT-NR3A64-M8/R is designed for long-term surveillance storage and system reliability.

It supports RAID 0, 1, 5, 6, and 10 configurations along with N+M hot spare functionality to help reduce the risk of data loss. The recorder provides 8 hot-swappable SATA interfaces supporting hard drives up to 16TB each, delivering a maximum raw storage capacity of 128TB, along with one eSATA interface for additional storage expansion. The PT-NR3A64-M8/R also supports specialized camera types including people counting cameras, ANPR cameras, and fisheye cameras. Additional interfaces include dual Gigabit Ethernet ports, 16 alarm inputs, 9 alarm outputs, RS-232 and RS-485 ports, two front USB 2.0 ports, two rear USB 3.0 ports, two audio outputs, one channel of two-way audio, one CVBS video output, and a controllable 12V DC output for external alarm devices.

Featuring a redundant power supply, 16-channel synchronous playback, direct web access without plug-ins, mobile app support, and a 2U chassis design, the PT-NR3A64-M8/R is built for continuous surveillance deployments requiring scalability, high bandwidth performance, and dependable storage protection.

Key Features

• 64-channel IP camera support with recording resolutions up to 32MP
• HDMI output up to 8K (7680 × 4320) or dual 4K video output
• H.265 compression with 400 Mbps incoming and outgoing bandwidth
• Decoding capability of up to 2-ch@32MP + 2-ch@8MP / 10-ch@8MP / 20-ch@4MP / 40-ch@1080p
• RAID 0, 1, 5, 6 and 10 support with N+M hot spare functionality
• 8 hot-swappable SATA bays supporting up to 16TB per HDD with redundant power supply

Best Suited For

• Enterprise and large-scale surveillance deployments with up to 64 IP cameras
• Installations requiring RAID-protected storage and redundant power supply protection
• Projects requiring 8K or dual 4K display output
• Long-term video retention applications with up to 16TB capacity per HDD
• Applications utilizing ANPR, people counting, fisheye cameras, and VCA analytics

Not Suited For

• Small surveillance systems with only a few cameras
• Deployments that do not require RAID or enterprise-grade storage protection
• Applications requiring built-in PoE ports for camera connectivity
• Installations requiring more than 64 IP camera channels
• Projects requiring localized storage beyond 8 HDD bays
