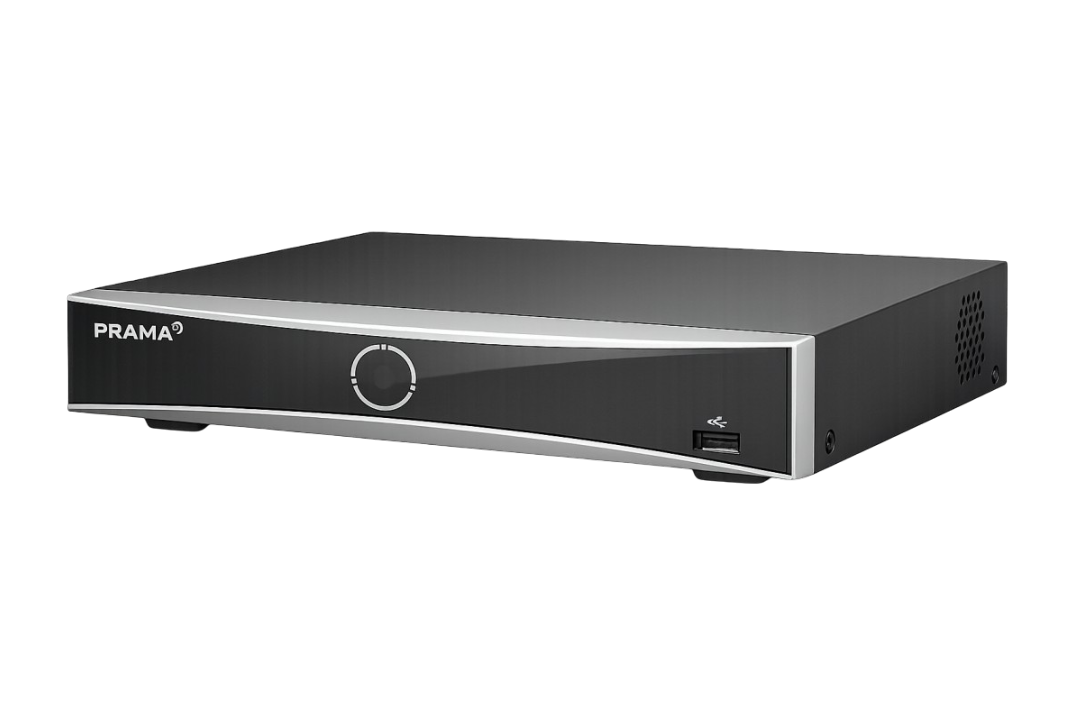

PRAMA 8 Channel NVR PT-NRAS2A08-K1 | Aisense AI | Up to 12MP | 1 SATA (10TB) | H.25+ Technology | 3 Year Warranty

The PRAMA PT-NRAS2A08-K1 is an 8-channel Network Video Recorder (NVR) designed for IP-based surveillance systems requiring centralized video recording, monitoring, playback, and intelligent video analytics. PT-NRAS2A08-K1 supports up to 8 IP cameras with recording resolutions up to 12MP and provides 4K HDMI output at 3840 × 2160 resolution along with VGA output. The recorder supports simultaneous and independent HDMI/VGA display modes, enabling flexible live viewing and playback across multiple display devices.

The PT-NRAS2A08-K1 supports H.265+, H.265, H.264+, and H.264 video compression technologies to optimize storage utilization and network bandwidth. It features Aisense intelligent analytics, including facial recognition, face picture comparison, face picture search, face picture capture, and human/vehicle analysis across up to 8 channels. The system supports up to 16 face picture libraries with a total capacity of 20,000 face pictures and provides face comparison alarm functions for enhanced security monitoring. With up to 80 Mbps incoming bandwidth and 80 Mbps outgoing bandwidth, the recorder is designed to support multi-camera surveillance applications efficiently.

PT-NRAS2A08-K1 includes one SATA interface supporting hard drives up to 10TB capacity, USB 2.0 ports on both the front and rear panels, Gigabit Ethernet connectivity, RCA audio input/output, and two-way audio support. It supports up to 128 remote user connections and provides synchronous playback of up to 8 channels. Operating on a 12V DC power supply with power consumption below 10W (excluding HDD), the NVR is suitable for residential, commercial, retail, office, and institutional surveillance installations.

Key Features

• 8-channel IP camera support with resolutions up to 12MP
• Facial recognition, face comparison, face search, and face capture functions
• Human and vehicle analysis on up to 8 channels
• 4K HDMI output up to 3840 × 2160 resolution
• Up to 80 Mbps incoming and 80 Mbps outgoing bandwidth
• 1 SATA HDD support up to 10TB with 8-channel synchronous playback

Best Suited For

• Small and medium IP surveillance installations with up to 8 cameras
• Projects requiring facial recognition and intelligent video analytics
• Offices, retail stores, schools, and commercial premises
• Installations requiring 4K display output for monitoring and playback
• Applications requiring human and vehicle classification functions
• Users requiring up to 10TB local storage capacity

Not Suited For

• Installations requiring more than 8 camera channels
• Projects requiring multiple HDD bays or RAID storage
• Systems requiring built-in PoE camera connectivity
• Applications requiring bandwidth greater than 80 Mbps
• Analog-only CCTV systems without IP camera integration
