| Specification | Details |
|---|
| Brand | Sparsh |
| Model Number | SC-IND41DP-IZS |

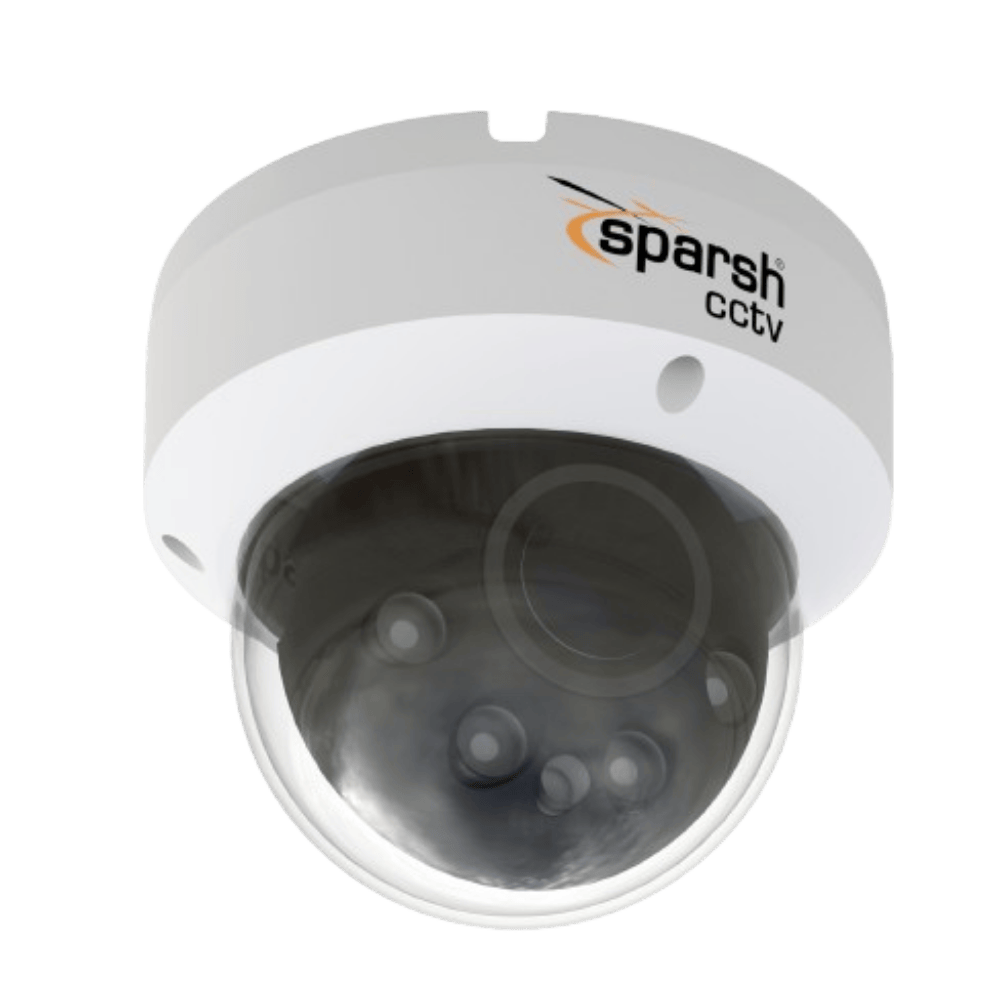

| Camera Type | 4MP Dome Network Camera |
| Image Sensor | 1/2.8-inch 4MP Low Illumination Progressive Scan Sony CMOS Sensor |
| Effective Pixels | 2560 (H) Γ 1920 (V) |
| Aspect Ratio | 16:9 |
| Minimum Illumination | Color: 0.001 Lux @ F1.2 (AGC ON); 0.014 Lux @ F1.4 (AGC ON); 0 Lux with IR |
| Signal-to-Noise Ratio | β₯58dB (AGC OFF) |
| Shutter Speed | Auto, Slow Shutter (1/1 sec to 1/100,000 sec, adjustable) |
| Lens Type | 3.6mm Fixed Lens |
| Optional Lens | 2.8mm, 6mm, 8mm Fixed Lens; 2.7β13.5mm Motorized Lens |
| Mount Type | M12 |
| Maximum Aperture | F1.4 |
| Iris Control | Auto, DC Control |
| Focus Control | Auto / Manual |
| Field of View | 3.6mm: 75.9Β° (H), 47.6Β° (V), 83.1Β° (D) |
| Optional Lens Field of View | 2.8mm: 90.2Β° (H), 59.2Β° (V), 98.1Β° (D); 6mm: 50.2Β° (H), 29.7Β° (V), 56.3Β° (D); 8mm: 36.3Β° (H), 27.6Β° (V), 43.5Β° (D); 2.7β13.5mm: 87Β°β22Β° (H), 72.6Β°β16.6Β° (V), 99Β°β27.4Β° (D) |
| IR Distance | 3.6mm: up to 30m; 2.8mm: up to 30m; 6mm: up to 50m; 8mm: up to 50m; 2.7β13.5mm: up to 50m |
| IR LED Control | Auto / Manual / Off |
| Video Compression | H.265 / H.264 / MJPEG |
| H.265 Encoding | Main Profile |
| H.264 Encoding | Baseline / Main / High Profile |
| Streaming Capability | Quad Streams |
| Supported Resolutions | 5MP / 4MP / 2MP / 720P / VGA |
| Main Stream | 5MP (2560 Γ 1920) @ 20fps; 4MP (2560 Γ 1440) @ 25/30fps; 1080P (1920 Γ 1080) @ 60fps |
| Sub Stream | 720P (1280 Γ 720) @ 25/30fps |
| Third Stream | VGA (640 Γ 480) @ 15fps |
| Fourth Stream | VGA (640 Γ 480) @ 15fps |
| Frame Rate | 1β60fps |
| Video Bit Rate | 16kbpsβ8Mbps |
| Bit Rate Control | CBR / VBR |
| I-Frame Interval | 2β255 |
| WDR | Up to 120dB; TWDR Off / Low / Middle / High |
| Day/Night Mode | ICR Switch, Auto, Color, B&W, External Trigger |
| Defog | Off / Low / Middle / High |
| 3D Digital Noise Reduction | Low / MID-Low / MID / MID-High / High |
| Exposure Mode | Off, Highlight Correction, Backlight Correction, Range (1β10) |
| Backlight Mode | Off / BLC / HLC |
| HLC Levels | 1β10 |
| White Balance | Auto, Manual, Warm Light, Natural Light, Incandescent Lamp, Fluorescent Lamp, Locked WB |
| Gain Control | Low / MID-Low / MID / MID-High / High |
| Image Settings | Brightness, Contrast, Sharpness, Saturation, Chroma |
| Sharpness | 0β255 |
| Digital Zoom | 25Γ |
| Anti-Flicker | Off / On |
| AE Algorithms | Shutter Priority / Gain Priority |
| Mirror / Flip | Off, Horizontal, Vertical, 180Β° Flip |
| Gamma Mode | Curve 1.6 / 1.8 / 2.0 / 2.2 |
| Privacy Masking | 4 Areas |
| Region of Interest (ROI) | 4 Zones |
| On-Screen Display | Title, Time and Date, Multi-line OSD, OSD Colour Selection |
| Motion Detection | Configurable detection area, period and multi-level sensitivity |
| Tampering Detection | Alerts when blocked, defocused or tampered with |
| Face Detection | Supported |
| Intelligent Video Analytics | Optional: People Counting, Line Crossing, Loitering, Intrusion, Retrograde and Absent Detection |
| Event Actions | Alarm Out, Email, Recording, Custom Audio Warning, PTZ Linkage, Snapshot |
| Manual Pan | 0Β°β360Β° |
| Manual Tilt | 0Β°β90Β° |
| Audio Compression | G.711U / G.711A |
| Audio Bit Rate | 8β64kbps |
| Audio Input | Mic In / Line In |
| Optional Audio Interface | Built-in Microphone or 1 In / 1 Out Full Duplex |
| Optional Alarm Interface | 1-Channel Alarm In / 1-Channel Alarm Out |
| SD Card Support | Up to 2TB |
| Ethernet | RJ45 10/100M Auto-Adaptive |
| Network Protocols | TCP/IP, IPv4, IPv6, SSL, TLS, HTTP, HTTPS, HTTP-Base64, HTTP-Digest, DHCP, DNS, RTP, RTSP, RTSPS, RTCP, ICMP, NTP, SMTP, IGMP, SNMP V1/V2/V3, UDP, Multicast |
| ONVIF Compatibility | Profiles S, G, M and T |
| Maximum User Access | 20 Users (8 Simultaneous) |
| Discovery Interface | ONVIF, Sparsh Utility |
| Web Server | Built-in Web Server with Graphical User Interface |
| Security Features | User Authentication, HTTPS, HTTPS Digest Authentication, Watermark, IP Address Filtering, RTSPS |
| Cybersecurity | AES-256, SHA256, RSA2048, OTP, Signed Firmware, Anti-Rollback, TEE, TRNG, Encrypted Firmware, Hardware Secure Boot |
| ANR | Supported |
| Streaming Mode | Unicast / Multicast |
| Operating Temperature | -40Β°C to 70Β°C |
| Storage Temperature | -40Β°C to 70Β°C |
| Operating / Storage Humidity | β€95% RH, non-condensing |
| Ingress Protection | IP67 |
| Vandalism Protection | IK10 |
| Housing Material | Aluminium |
| Front Lens Cover | PC Glass |
| Surge Protection | TVS 4000V lightning, surge and voltage transient protection |
| Power Supply | DC 12V Β±10% / PoE (802.3af) |
| Power Consumption | Less than 12W |
| Dimensions | 9.2 cm (H) Γ 11.2 cm diameter |
| Weight | 0.48 kg |
| Certifications | CE, FCC, IS 13252 (Part 1):2010, BIS Registered, STQC ER Certified |
