Synology RS1619xs+ 4-Bay Rackmount NAS | High-Performance Storage, Virtualization & Backup Solution

Why Choose Synology RS1619xs+ Product?

The Synology RS1619xs+ is a flagship 1U NAS designed for businesses that require strong performance and efficient data management. With a powerful Intel Xeon processor, built-in NVMe SSD caching, and scalable storage up to 16 drives, it provides a flexible platform for virtualization, collaboration, and backup. Its DSM ecosystem ensures seamless integration and advanced data protection capabilities.

Core Features & Benefits of Synology RS1619xs+

Centralized Storage & Scalability

The Synology RS1619xs+ features 4 drive bays supporting both 3.5″ and 2.5″ SATA drives, along with M.2 NVMe/SATA SSD slots for caching. It can expand up to 16 drives using an expansion unit, allowing businesses to scale storage as their data grows.

Connectivity & Compatibility

Equipped with four 1GbE LAN ports, the system supports network failover and load balancing. It also offers a PCIe expansion slot for optional 10GbE network upgrades, enabling higher bandwidth for demanding environments.

Performance & Hardware

Powered by an Intel Xeon D-1527 quad-core processor and ECC memory, the system delivers high performance for intensive workloads. It achieves over 1,500 MB/s sequential read speeds and up to 209,000 iSCSI random read IOPS, making it suitable for virtualization and multi-user access.

Software & Ecosystem (DSM)

Running on Synology DiskStation Manager (DSM), it provides a unified platform for file management, collaboration, and system administration. Built-in tools support file sharing, synchronization, and business applications for improved productivity.

Security & Data Protection

The system uses the Btrfs file system for advanced data integrity, offering snapshot-based protection, file self-healing, and efficient storage management. Additional security features include encryption, firewall protection, and secure access controls.

Virtualization & Advanced Features

The Synology RS1619xs+ is optimized for virtualization, supporting VMware, Hyper-V, Citrix, and OpenStack. It includes Virtual Machine Manager for running multiple virtual machines and containerized applications, making it ideal for IT environments.

Key Features & Highlights of Synology RS1619xs+

• 4-Bay Rackmount NAS – Expandable up to 16 drives
• Intel Xeon Quad-Core CPU – Enterprise-grade performance
• Up to 1,500 MB/s Speed – High data throughput
• 209K+ IOPS – Optimized for virtualization
• M.2 NVMe SSD Cache – Accelerated performance
• 4 x 1GbE Ports – Network redundancy
• 10GbE Upgrade Support – Scalable networking
• DSM OS – Advanced data management platform
• 5-Year Warranty – Long-term reliability

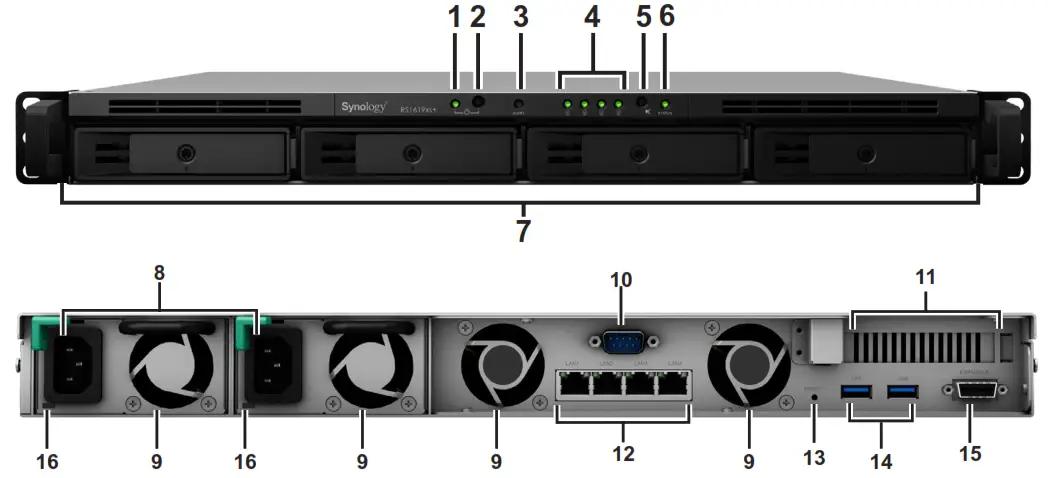

Hardware Overview

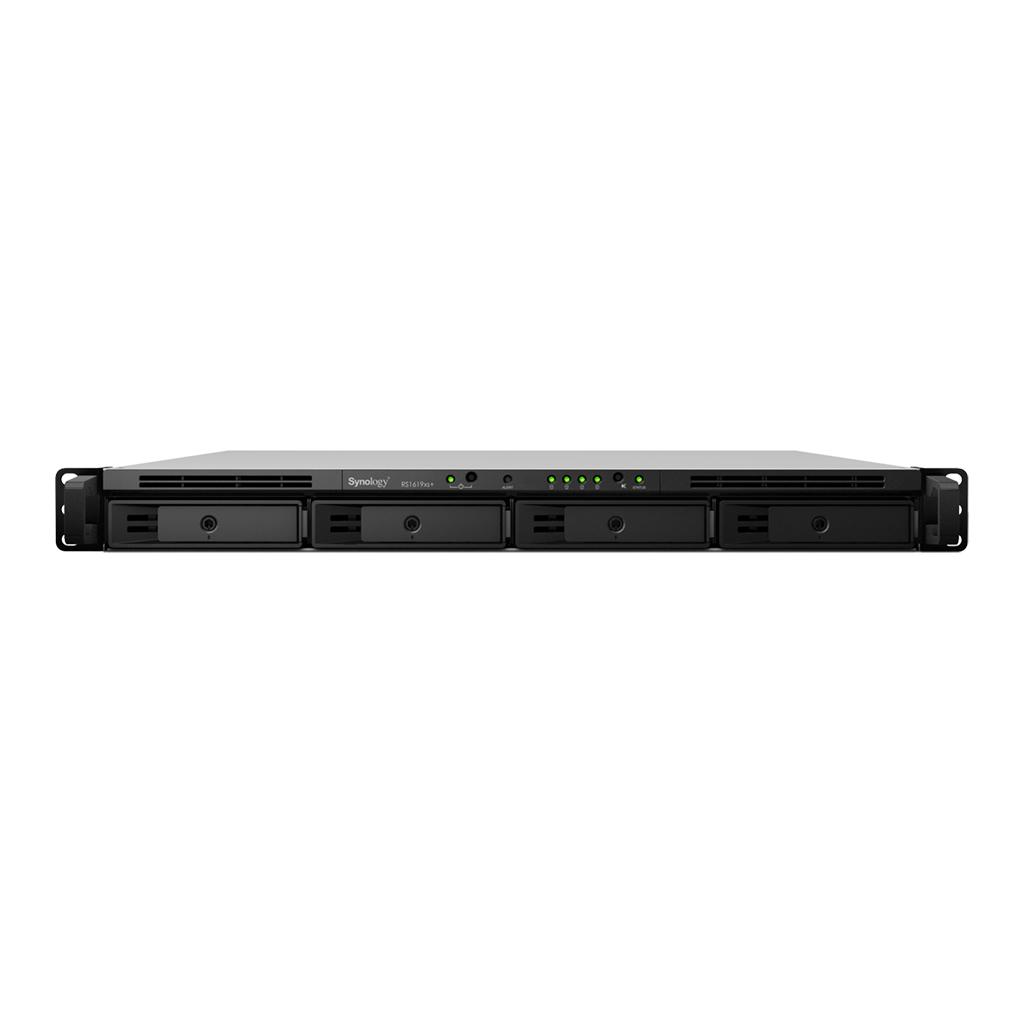

Front Panel

• Power indicator
• Power button
• Alert indicator
• Status indicator
• Drive status indicators
• Beep off button
• Drive trays

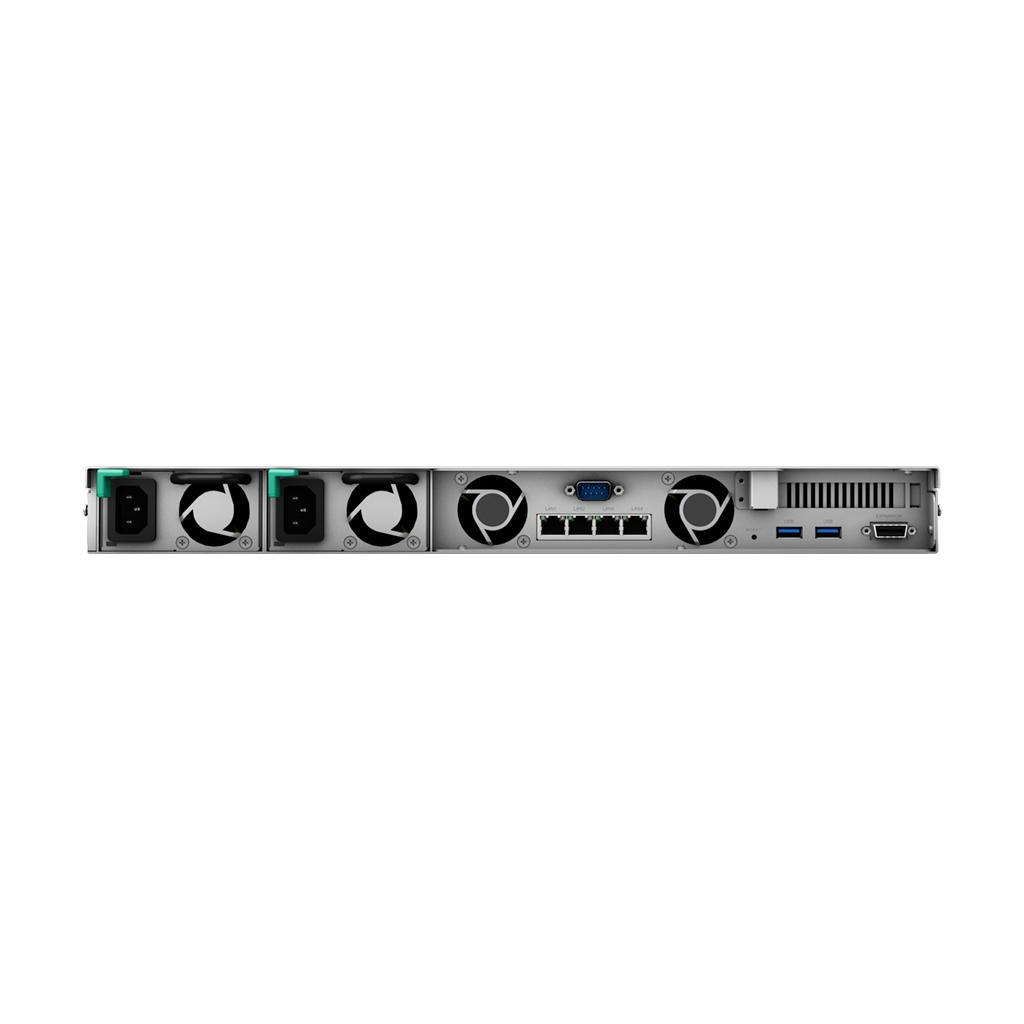

Rear Panel

• Power port
• System fans
• Console port
• 4 x 1GbE RJ-45 ports
• USB 3.2 Gen 1 ports
• Expansion port
• PCIe expansion slot

Software & Ecosystem

The NAS runs on Synology DSM and supports protocols such as SMB, NFS, FTP, WebDAV, and Rsync. It includes applications like Synology Drive for file synchronization, Synology Office for collaboration, and Hyper Backup for data protection. Virtual Machine Manager and iSCSI support enhance virtualization capabilities.

Ideal Use Cases

• Small Business Server – Centralized data storage
• Virtualization Storage – Run VMs and containers
• Backup & Disaster Recovery – Protect critical data
• Private Cloud – Secure collaboration platform
• Surveillance System – Manage IP camera storage
• Edge Deployment – Compact rack environments

FAQs

1. How many drives does it support?
It supports 4 drives and can expand up to 16 drives.

2. Does it support SSD caching?
Yes, it includes built-in M.2 NVMe/SATA SSD slots for caching.

3. Is it suitable for virtualization?
Yes, it supports VMware, Hyper-V, Citrix, and OpenStack.

4. Can it be upgraded to 10GbE?
Yes, via the PCIe expansion slot.

5. What warranty does it include?
It comes with a 5-year limited hardware warranty.
