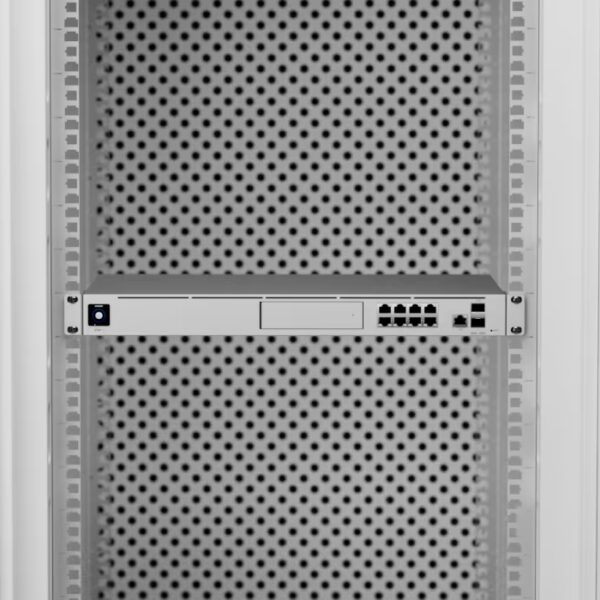

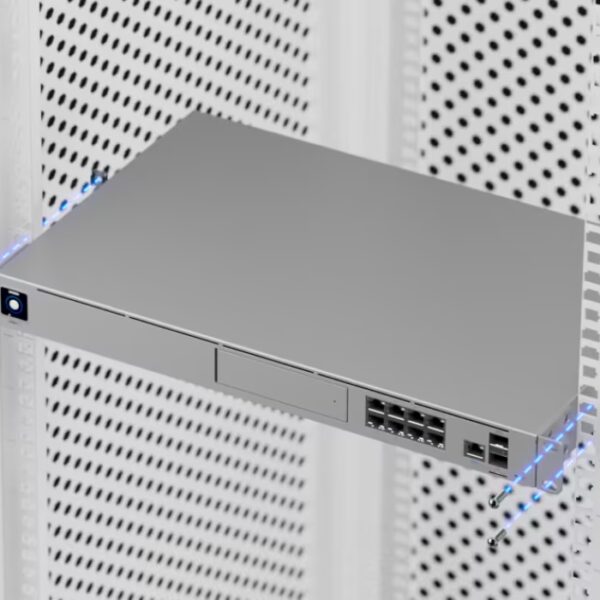

Ubiquiti UDM-SE (Unifi Dream Machine Special Edition) with 8 POE+ Ports and 128GB SSD

SKU: FGIN883Z9Q78

Ubiquiti UDM-SE – an enterprise-grade router supporting 100+ UniFi devices/1,000 clients. It includes an 8-port PoE switch, full UniFi suite, and 3.5+ Gbps IDS/IPS. Key ports are 10G SFP+, 2.5 GbE WAN, and eight GbE LAN ports (two PoE+, six PoE). It has a 3.5″ HDD bay, 128 GB SSD for recordings, and a 1.3″ touchscreen.


Original price was: ₹79,999.00.Current price is: ₹57,999.00. Inc. tax (49,151.69Exc. Tax)

Estimated shipping date: 23/12/2024 - 24/12/2024

Description

Ubiquiti UDM-SE (Unifi Dream Machine Special Edition) brings several key upgrades over the UDM-Pro that enhance its functionality and appeal, especially for users looking for advanced networking features.

  1. Integrated PoE Switch: The Ubiquiti UDM-SE includes an 8-port Gigabit switch with Power over Ethernet (PoE) 180W, allowing it to power devices like IP cameras, access points, and phones directly.
  2. Enhanced Storage Options: The UDM-SE includes a built-in 128GB SSD, providing onboard storage for video recording and network monitoring logs, making it easier to set up UniFi Protect and store video locally. Additionally, it supports an upgradeable 2.5″ SATA drive bay, giving users more flexible storage options for their surveillance needs.
  3. Updated Processor: The UDM-SE is equipped with a more efficient processor, improving performance for handling network traffic and running multiple UniFi applications simultaneously. This enhances overall network speed and stability, especially for networks with heavy loads.
  4. Simplified Network Management: The UDM-SE comes with an upgraded UniFi OS and improved user interface, streamlining network management and troubleshooting. It also features advanced network monitoring and threat management features, making it easier for administrators to ensure network security.
  5. Extended Operating Temperature Range: With better cooling and a broader temperature tolerance, the UDM-SE is designed to perform well in various environments, making it a robust choice for both residential and small-to-medium business settings.

These enhancements make the UDM-SE a compelling upgrade for anyone needing a more powerful, feature-rich network controller and security gateway compared to the UDM-Pro, especially for those already invested in the UniFi ecosystem.

Key features –
10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.

Includes full UniFi application suite for device management

3.5+ Gbps routing with IDS/IPS

(1) 10G SFP+*, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE

(1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports

(1) 3.5″ NVR HDD bay

Built-in 128 GB SSD for NVR detection recordings

Unifi Power Backup ready

1.3″ touchscreen





Ubiquiti UDM-SE image 0



Deployment





In The Box





Build Features





Additional information
Weight 5.79 kg
Dimensions 52 × 42 × 12 cm
MODEL

UDM-SE

Badges

24Hr Dispatch

,

FG Choice

Product Details

Brand Name Ubiquiti
Model Name UDM-SE
Dimension(cm) 45X44X29
Weight(kg) 5.00
Mechanical
Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight 5 kg (10.9 lb)
Enclosure material Aluminium CNC, SGCC steel
Mount material SGCC steel
Hardware
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory 4 GB DDR4
On-board storage 16 GB eMMC Integrated 128 GB SSD
Management interface Ethernet Bluetooth
Networking interface LAN: (8) GbE RJ45 ports (1) 10G SFP+ portWAN: (1) 2.5 GbE RJ45 port (1) 10G SFP+ port
PoE interface (6) PoE (Pair A 1, 2+; 3, 6-) (2) PoE+ (Pair A 1, 2+; 3, 6-)
IDS/IPS throughput 3.5 Gbps* *Measured with iPerf3
Power method (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 3.94A
Power supply AC/DC, internal, 240W
Supported voltage range 100—240V AC
Max. power consumption 50W (Excluding PoE output)
PoE budget 180W
Max. PoE wattage per port by PSE PoE: 15.4W PoE+: 30W
Voltage range PoE mode PoE: 44—57V PoE+: 50—57V
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting
Next-generation security Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall
Advanced networking License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support
LEDs
Ethernet White: link/activity
SFP+ White: link/activity
HDD White: disk activity Amber: disk error
RPS Blue: ready

WARRANTY & MANUFACTURER DETAILS

Warranty Period 1 Year
Warranty Provider Contact Fgtech Store for service warranty
Country of Origin China
Manufacturer Details Ubiquiti Networks International Limited, 18/F Edinburgh Tower, The Landmark, Hong Kong
Importer Details Rashi Peripherals Limited, Palghar, Maharashtra 401208
Packer Details Ubiquiti Networks International Limited
