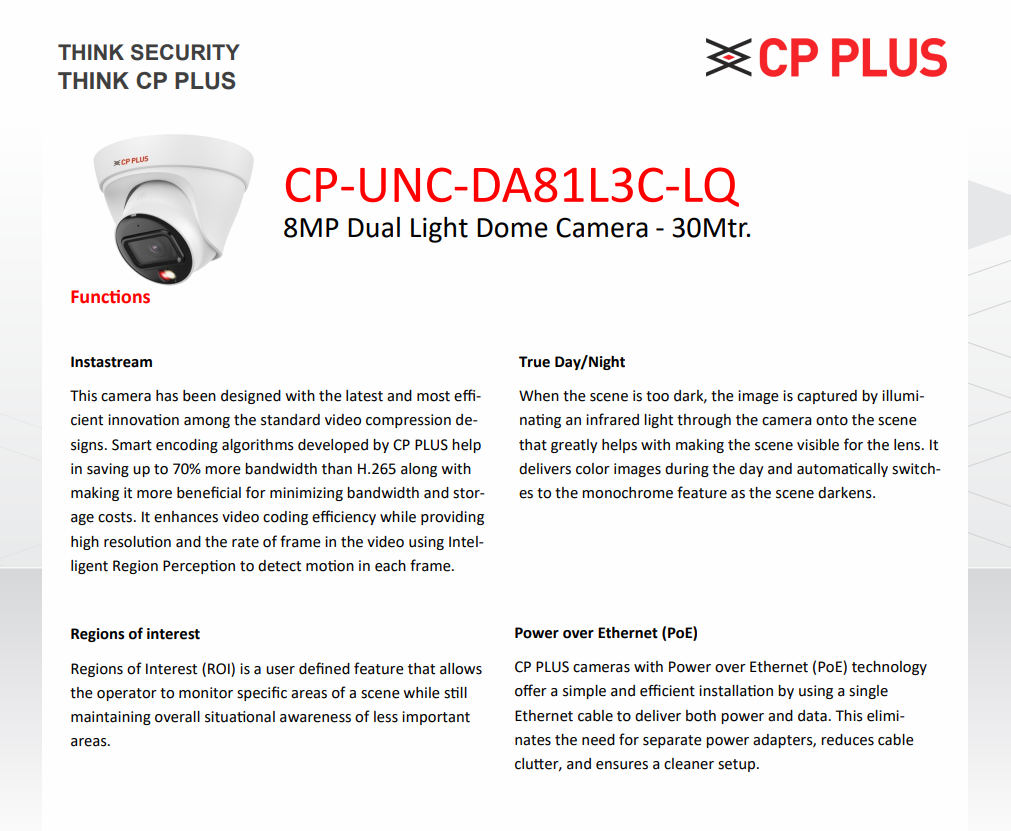

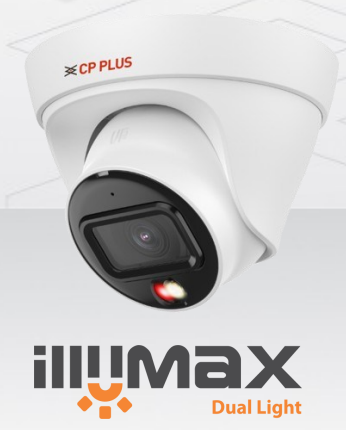

The CP PLUS CP-UNC-DA81L3C-LQ is an 8MP IP dome camera with dual light illumination up to 30 meters, built-in microphone, PoE support, fixed 3.6 mm lens, and IP67-rated weatherproof housing.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
The CP PLUS CP-UNC-DA81L3C-LQ is an 8-megapixel IP dome surveillance camera designed for indoor and outdoor monitoring where high-resolution video, dual-light night visibility, and PoE installation are required.
CP-UNC-DA81L3C-LQ uses a 1/2.7″ 8MP PS CMOS image sensor and supports up to 3840 × 2160 resolution at 20 fps. The camera features dual illumination with infrared and warm light, each offering up to 30 meters of range, enabling clear visibility in low-light environments.
This model includes a built-in microphone for audio recording but does not support two-way audio. Network connectivity is provided through a 10/100 Mbps Ethernet port with support for ONVIF profiles S, G, and T. Power can be supplied via PoE (802.3af) or 12V DC.
The camera is housed in a metal and plastic enclosure with an IP67 weatherproof rating and is approved for India deployment with STQC compliance.
High-resolution IP surveillance requiring 8MP video
PoE-based installations with single-cable power and data
Outdoor monitoring where IP67 protection is required
Installations needing audio recording without audio playback
Systems using ONVIF-compatible NVRs
Installations requiring built-in speakers or two-way audio
Wi-Fi–only surveillance setups
Battery-powered camera deployments
Use cases requiring standalone AI analytics without an AI NVR
General
• Product Type: IP Dome Camera
• Brand: CP PLUS
• Model: CP-UNC-DA81L3C-LQ
• Region Variant: India (STQC)
Image & Video
• Image Sensor: 1/2.7" 8MP PS CMOS
• Effective Pixels: 3840 × 2160
• Maximum Resolution: 8MP (3840 × 2160)
• Frame Rate (8MP): 1–20 fps
• Video Compression: Instastream
• Video Compression (Additional): H.265
• Video Compression (Additional): H.264
• Video Compression (Additional): H.264H
• Video Compression (Additional): H.264B
• Video Compression (Additional): MJPEG (sub stream only)
• Stream Capability: Triple stream
• S/N Ratio: >58 dB
Lens & Field of View
• Lens Type: Fixed-focal
• Lens Mount: M12
• Focal Length: 3.6 mm
• Maximum Aperture: F1.4
• Close Focus Distance: 1.9 m
• Angle of View (Horizontal): 86°
• Angle of View (Vertical): 49°
• Angle of View (Diagonal): 100°
Illumination & Night Mode
• IR Illumination: Supported
• IR Range: 30 m
• Warm Light: Supported
• Warm Light Range: 30 m
• Day/Night Mode: Auto (ICR) / Color / B/W
• Smart IR: Supported
• Smart Illumination: Supported
Audio
• Microphone: Supported (Built-in)
• Speaker: Not supported
• Audio Compression: G.711a
• Audio Compression (Additional): G.711Mu
• Audio Compression (Additional): PCM
• Audio Compression (Additional): G.726
• Audio Compression (Additional): AAC
Smart & Image Features
• DWDR: Supported
• BLC: Supported
• HLC: Supported
• 2D Noise Reduction: Supported
• 3D Noise Reduction: Supported
• ROI: Supported (4 areas)
• Motion Detection: Supported
• Intelligent Motion Detection (Human/Vehicle): Supported
• Privacy Mask: Supported (4 areas)
• Digital Watermarking: Supported
Connectivity & Interfaces
• Ethernet: RJ-45 (10/100 Base-T)
• Wi-Fi: Not supported
• ONVIF: Supported (Profile S, G, T)
• Protocols: IPv4
• Protocols (Additional): IPv6
• Protocols (Additional): HTTP
• Protocols (Additional): HTTPS
• Protocols (Additional): TCP/IP
• Protocols (Additional): UDP
• Protocols (Additional): RTSP
• Protocols (Additional): SNMP v3
• Protocols (Additional): TLS 1.2
Power
• Power Source: 12V DC
• Power Source (Additional): PoE (802.3af)
• Power Consumption (Basic): 2.5 W (12V DC)
• Power Consumption (Basic PoE): 3.5 W
• Power Consumption (Max): 4.5 W (12V DC)
• Power Consumption (Max PoE): 5.8 W
Physical & Environmental
• Weatherproof Rating: IP67
• Casing Material: Metal + Plastic
• Dimensions: 85.5 mm × 109 mm
• Weight: 280 g
• Operating Temperature: –40°C to +55°C
• Operating Humidity: ≤95% RH (non-condensing)
• Storage Temperature: –40°C to +60°C
• Storage Humidity: ≤95% RH (non-condensing)
Certifications
• Certification: ISO 9001:2015
• Certification (Additional): ISO 20000-1:2018
• Certification (Additional): CE
• Certification (Additional): FCC
• Certification (Additional): RoHS
• Certification (Additional): BIS
• Certification (Additional): STQC
