Grandstream GWN7674 | Tri-Band Wi-Fi 7 Access Point | BE21000 21Gbps | 768 Clients | 10G & 2.5G Ports | PoE++

The Grandstream GWN7674 is a high-performance tri-band Wi-Fi 7 access point designed for demanding enterprise environments with medium-to-high user density. With aggregate wireless speeds up to 21 Gbps and 12.5 Gbps wired throughput, it delivers exceptional performance for bandwidth-intensive applications, low-latency real-time services, and high-density client environments.

Next-Generation Wi-Fi 7 Technology
The Grandstream GWN7674 leverages the latest Wi-Fi 7 (802.11be) standard, featuring Multi-Link Operation (MLO), 4096-QAM modulation, Multi-RU, and Preamble Puncturing technology. These advancements ensure a smooth, efficient experience for every user, even in congested wireless environments. The access point supports 2.4GHz, 5GHz, and 6GHz bands with channel bandwidths up to 320MHz on 6GHz.

Superior MIMO & Antenna Design
Grandstream GWN7674 is equipped with 12 built-in antennas and advanced 4×4:4 MU-MIMO on 5GHz/6GHz bands and 2×2:2 MU-MIMO on 2.4GHz, the Grandstream GWN7674delivers maximum network throughput and expanded coverage up to 175 meters. An independent scanning radio module monitors wireless quality and terminal device signal status in real-time, ensuring optimal performance.

High-Density Client Support
Supporting up to 768 concurrent Wi-Fi clients, the GWN7674 is ideal for large offices, educational institutions, hospitality venues, and other high-density environments. The access point also supports 48 SSIDs (16 per radio), advanced QoS, band steering, and load balancing to ensure reliable connectivity for all users.

Flexible Management Options
The Grandstream GWN7674features an embedded controller that can manage up to 50 local GWN series APs directly from its Web UI. For larger deployments, GDMS Networking offers free, unlimited cloud management, while GWN Manager provides on-premise software control for up to 3,000 APs. The GWN APP integrates both platforms for mobile management.

Enterprise-Grade Security
Security features include anti-hacking secure boot, critical data/control lockdown via digital signatures, unique security certificate and random default password per device, WPA3 encryption, 802.1x authentication, PPSK, captive portal, and WIDS (Wireless Intrusion Detection System).

Versatile Connectivity & PoE++

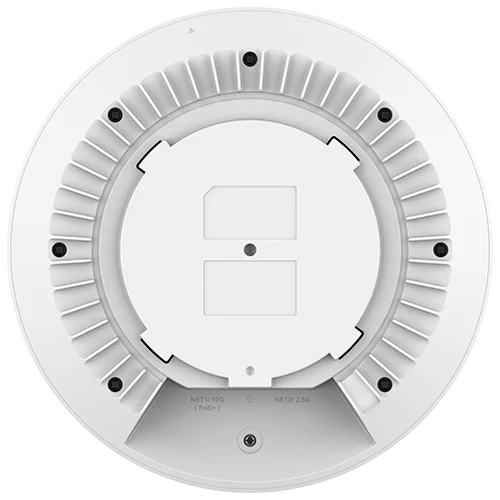

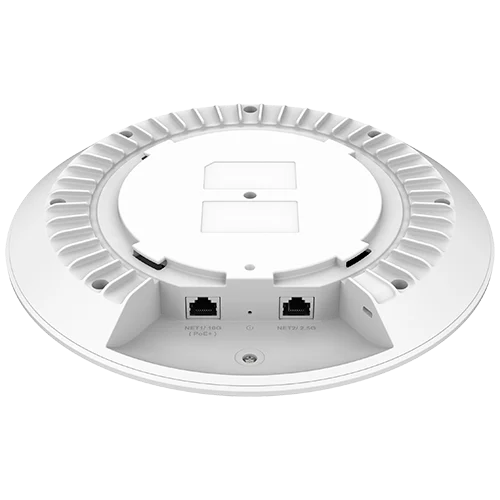

The GWN7674 includes one 10 Gigabit Ethernet port and one 2.5 Gigabit Ethernet port, both supporting PoE++ input for flexible power and data connectivity. Maximum power consumption is 30W.

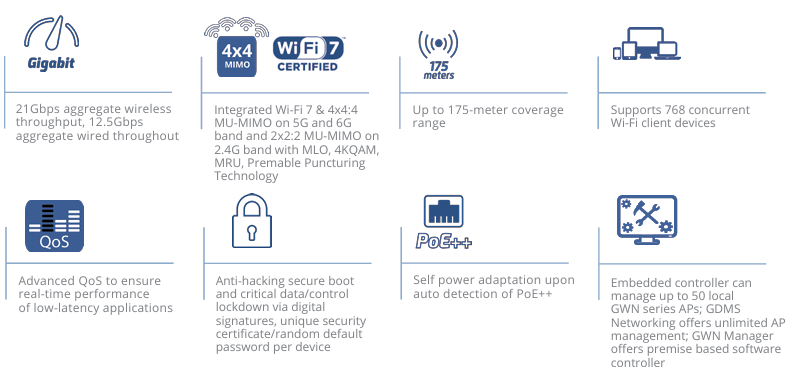

Key Features

• Wi-Fi 7 (BE21000) Performance: 21 Gbps aggregate wireless throughput across 2.4GHz, 5GHz, and 6GHz bands

• Advanced MIMO Technology: 4×4:4 MU-MIMO on 5GHz and 6GHz bands, 2×2:2 MU-MIMO on 2.4GHz band

• Wi-Fi 7 Technologies: Multi-Link Operation (MLO), 4096-QAM modulation, Multi-RU, Preamble Puncturing for maximum efficiency

• High-Speed Wired Connectivity: 1x 10 Gigabit Ethernet port + 1x 2.5 Gigabit Ethernet port, both with PoE++ input

• Massive Client Capacity: Supports up to 768 concurrent Wi-Fi clients per AP

• Extended Coverage: Up to 175-meter coverage range with 12 built-in antennas and advanced antenna design

• Independent Scanning Radio: Monitors wireless quality and terminal device signal status in real-time

• Embedded Controller: Manages up to 50 local GWN APs; GDMS Networking for unlimited cloud management; GWN Manager for on-premise control

• Advanced Security: Anti-hacking secure boot, digital signatures, unique security certificate and random default password per device

• BLE 5.3: Bluetooth Low Energy for IoT and location services

• Self-Power Adaptation: Auto-detects PoE++ for optimal power delivery
