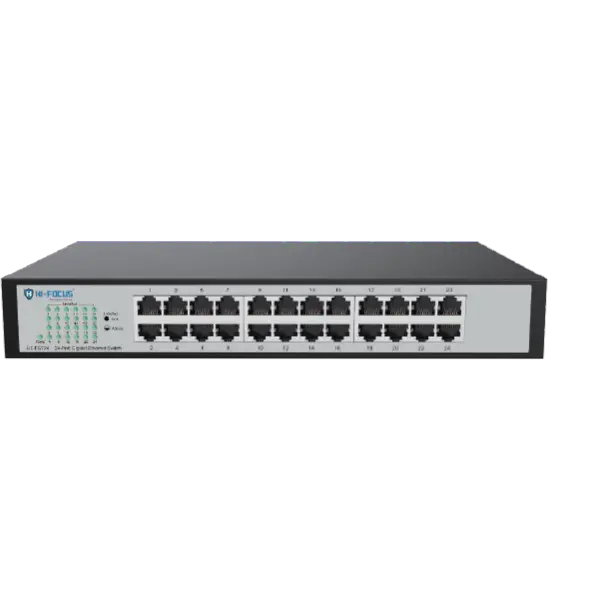

Hi-Focus HF-EGT24 24-Port Gigabit Ethernet Switch – 24× 10/100/1000Mbps RJ45, Auto MDI/MDIX, 48Gbps Switching Capacity, 8K MAC Address Table, Store-and-Forward, 6kV Protection

The Hi-Focus HF-EGT24 24-Port Gigabit Ethernet Switch provides network connectivity through 24 × 10/100/1000Mbps auto-negotiation RJ45 ports with Auto MDI/MDIX support. Hi-Focus HF-EGT24 24-Port it is designed for Ethernet network deployments requiring multiple Gigabit ports and reliable high-speed connectivity.

The switch supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standards. It provides 48Gbps switching capacity, an 8K MAC address table, and forwarding rates of 14,880pps at 10Mbps, 148,800pps at 100Mbps, and 1,488,000pps at 1000Mbps. Hi-Focus HF-EGT24 24-Port it uses Store and Forward transmission with automatic MAC address learning.

For network connections, the switch supports 10Base-T with Cat3 UTP or better, 100Base-TX with Cat5 UTP or better, and 1000Base-T with Cat5e UTP or better. Auto MDI/MDIX automatically identifies parallel and crossover connections, simplifying network installation and configuration.

The switch operates on AC 100–240V, 50/60Hz and has a maximum power consumption of 13W at 220V. It features 6KV common-mode protection for all ports and 6KV common-mode plus 4KV differential-mode protection for the power supply. Hi-Focus HF-EGT24 24-Port it includes 1 Power LED and 24 Link/Act LEDs, with dimensions of 29.4 × 17.8 × 4.4 cm.

Key Features

• 24 × 10/100/1000Mbps auto-negotiation RJ45 ports with Auto MDI/MDIX
• 48Gbps switching capacity and 8K MAC address table
• 1,488,000pps forwarding rate at 1000Mbps with high-speed Gigabit connectivity
• Store and Forward transmission with automatic MAC address learning
• 6KV common-mode port protection and 6KV/4KV power protection

Best Suited For

• Medium and larger Ethernet network deployments
• Networks requiring up to 24 Gigabit Ethernet ports
• Offices and installations requiring multiple wired network connections
• Gigabit network expansion and high-speed Ethernet connectivity
• Networks requiring additional electrical protection for Ethernet and power connections

Not Suited For

• Applications requiring PoE power delivery
• Networks requiring more than 24 Ethernet ports
• Installations requiring SFP or fiber uplink ports
• Networks requiring speeds above 1Gbps per port
• Applications requiring managed networking features such as VLAN, QoS, SNMP, or advanced network management
