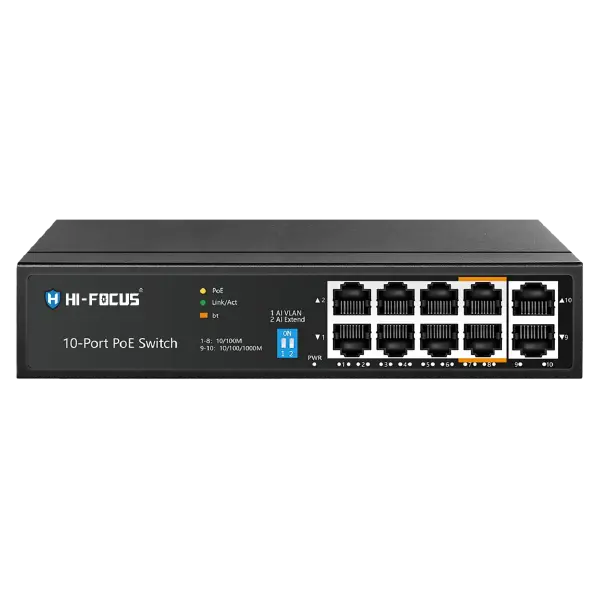

Hi-Focus HF-S08G2-120WH 10-Port PoE Switch – 8× 10/100Mbps PoE RJ45, 2× 10/100/1000Mbps Gigabit Uplink, 120W PoE Budget, Up to 60W/Port, IEEE 802.3af/at/bt, 250m Long-Range Transmission

The Hi-Focus HF-S08G2-120WH 10-Port PoE Switch provides network connectivity through 8 × 10/100Mbps PoE RJ45 ports (Ports 1–8) and 2 × 10/100/1000Mbps RJ45 ports (Ports 9–10). This configuration provides eight PoE ports along with two additional Gigabit RJ45 ports.

The switch supports IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt network standards. Hi-Focus HF-S08G2-120WH 10-Port it provides 5.6 Gbps bandwidth, a 4.16 Mpps packet forwarding rate, and a 1K MAC address table. The switch uses store-and-forward technology for network traffic processing.

For PoE applications, the switch provides a 120 W total PoE budget. Ports 1–6 support up to 30 W per port, while Ports 7–8 support up to 60 W per port. The PoE pin configuration is 1/2 (+), 3/6 (-).

The switch includes Power, LINK/ACT, and PoE LED indicators and provides 6KV lightning protection on all ports. Hi-Focus HF-S08G2-120WH 10-Port it operates at temperatures from 0°C to 40°C and supports 10%–90% RH non-condensing working humidity. Its dimensions are 21 × 15.2 × 4 cm.

Key Features

• 8 × 10/100Mbps PoE RJ45 ports with 2 × 10/100/1000Mbps RJ45 ports
• 120 W total PoE budget, with up to 30 W on Ports 1–6 and 60 W on Ports 7–8
• 5.6 Gbps bandwidth and 4.16 Mpps packet forwarding rate
• Supports IEEE 802.3i/u/x, 802.3af, 802.3at, and 802.3bt
• 6KV lightning protection on all ports with Power, LINK/ACT, and PoE LED indicators

Best Suited For

• CCTV and security surveillance installations
• Networks requiring multiple PoE-powered devices
• Installations requiring up to 120 W total PoE power
• Setups using 10/100Mbps PoE devices with additional Gigabit RJ45 connectivity
• Small and medium-sized network installations requiring PoE connectivity

Not Suited For

• Networks requiring more than 8 dedicated 10/100Mbps PoE ports
• Applications requiring more than 120 W total PoE power
• Individual devices requiring more than 60 W on Ports 7–8
• Devices requiring Gigabit PoE connectivity on Ports 1–8
• Applications requiring SFP or fiber-optic uplink ports, as none are specified in the datasheet
