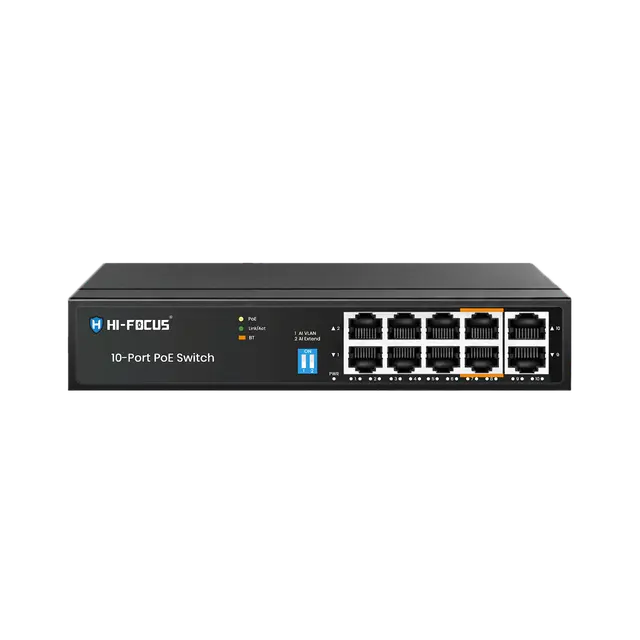

Hi-Focus HF-SG08G2-96WGE 10-Port Gigabit PoE Switch – 8× 10/100/1000Mbps PoE RJ45, 2× 10/100/1000Mbps PoE RJ45, 96W PoE Budget, Up to 60W/Port, IEEE 802.3af/at/bt, 250m Long-Range Transmission

The Hi-Focus HF-SG08G2-96WGE 10-Port Gigabit PoE Switch provides network connectivity through 8 × 10/100/1000Mbps PoE RJ45 ports (Ports 1–8) and 2 × 10/100/1000Mbps PoE RJ45 ports (Ports 9–10). This configuration provides a total of 10 Gigabit PoE RJ45 ports.

The switch supports IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt standards. Hi-Focus HF-SG08G2-96WGE 10-Port it provides 11.2 Gbps bandwidth, a 1.49 Mpps packet forwarding rate, and a 1K MAC address table.

For PoE applications, Hi-Focus HF-SG08G2-96WGE 10-Port the switch provides a 96 W total PoE budget. Ports 1–6 support up to 30 W per port, while Ports 7–8 support up to 60 W per port. The PoE pin configuration is 1/2 (+), 3/6 (-).

The switch uses store-and-forward technology and includes Power, LINK/ACT, and PoE LED indicators. Hi-Focus HF-SG08G2-96WGE 10-Port it also supports a CCTV Extension Mode of up to 250 m and provides 6KV lightning protection on all ports.

The switch operates at 0°C to 40°C and supports 10%–90% RH non-condensing working humidity. Its dimensions are 21 × 15.2 × 4 cm.

Key Features

• 10 × 10/100/1000Mbps PoE RJ45 ports for Gigabit network connectivity
• 96 W total PoE budget, with up to 30 W on Ports 1–6 and 60 W on Ports 7–8
• 11.2 Gbps bandwidth and 1.49 Mpps packet forwarding rate
• Supports IEEE 802.3i/u/x, 802.3af, 802.3at, and 802.3bt
• Up to 250 m CCTV Extension Mode with 6KV lightning protection on all ports

Best Suited For

• CCTV and security surveillance installations
• Network setups requiring multiple Gigabit PoE connections
• PoE-powered cameras and compatible network devices
• Installations requiring extended transmission distances through CCTV Extension Mode
• Networks requiring up to 96 W of total PoE power

Not Suited For

• Networks requiring more than 10 PoE RJ45 ports
• Applications requiring more than 96 W total PoE power
• Individual devices requiring more than 60 W on Ports 7–8
• Installations requiring operating temperatures outside 0°C to 40°C
• Networks requiring SFP or fiber-optic uplink ports, as none are specified in the datasheet
