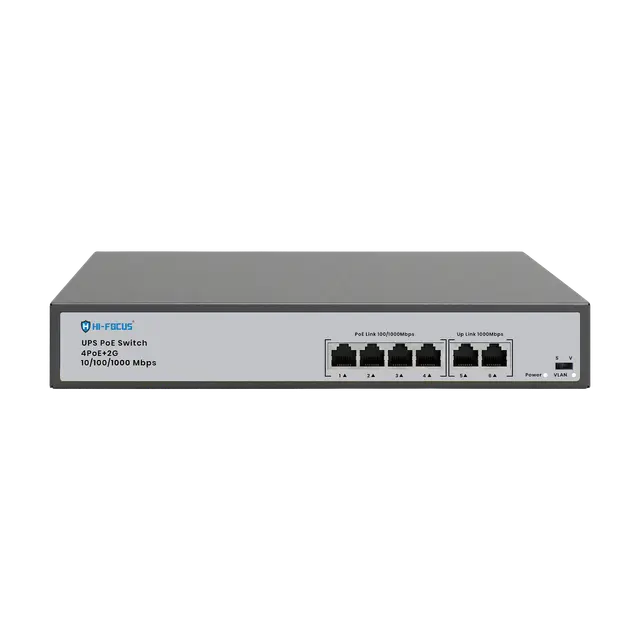

Hi-Focus HF-SG04G2-75WG-U6 4-Port Gigabit Managed PoE Switch – 4× 10/100/1000Mbps PoE, 2× Gigabit Uplink, 65W PoE Budget, 30W/Port, IEEE 802.3af/at, VLAN, QoS, IGMP Snooping, Dual Power Supply

The Hi-Focus HF-SG04G2-75WG-U6 4-Port Managed Gigabit PoE Switch provides network connectivity through 4 × 10/100/1000Mbps Gigabit PoE ports and 2 × 1000Mbps Gigabit uplink ports. Hi-Focus HF-SG04G2-75WG-U6 4-Port it supports IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.1Q, and 802.1p network standards.

For PoE applications, the switch supports IEEE 802.3af/at, with up to 30W output per PoE port and a 65W maximum total PoE power budget. The PoE output voltage is DC 52V ±5%, with a PoE power distance of up to 250m using compatible network cabling.

The switch provides 12 Gbps switching capacity, a 2K MAC address table, and an 8.92 Mpps packet forwarding rate. It supports features including MAC automatic learning and aging, full-duplex operation, backpressure for half-duplex mode, and port speed management.

For network management, Hi-Focus HF-SG04G2-75WG-U6 4-Port it supports VLAN, QoS, IGMP Querier, link aggregation, port mirroring, loopback protection, storm suppression, traffic monitoring, EEE, and PoE configuration. Management options include WEB, TELNET, CLI, and APP cloud management, along with DHCP and static IP configuration.

The switch operates from -10°C to 55°C and supports a working humidity range of 10% to 90% RH, non-condensing. Hi-Focus HF-SG04G2-75WG-U6 4-Port its bare-metal dimensions are 27 × 18.1 × 4.4 cm, while the finished product size is 35 × 24 × 9 cm. The finished product weight is 2.24 kg ±5%.

Key Features

• 4 × 10/100/1000Mbps Gigabit PoE ports with 2 × 1000Mbps Gigabit uplink ports
• 65W maximum total PoE power with up to 30W per PoE port
• 12 Gbps switching capacity and 8.92 Mpps packet forwarding rate
• Supports VLAN, QoS, IGMP Querier, link aggregation, port mirroring, and storm suppression
• Supports WEB, TELNET, CLI, and APP cloud management with PoE configuration

Best Suited For

• CCTV and security monitoring installations
• Small and medium-sized managed network deployments
• PoE-powered devices such as compatible cameras and access points
• Networks requiring VLAN and QoS management
• Installations requiring Gigabit uplinks and centralized network management

Not Suited For

• Networks requiring more than 4 PoE ports
• Applications requiring more than 65W total PoE power
• Individual PoE devices requiring more than 30W per port
• Networks requiring uplink speeds above 1Gbps
• Applications requiring PoE standards other than the supported IEEE 802.3af/at specifications
