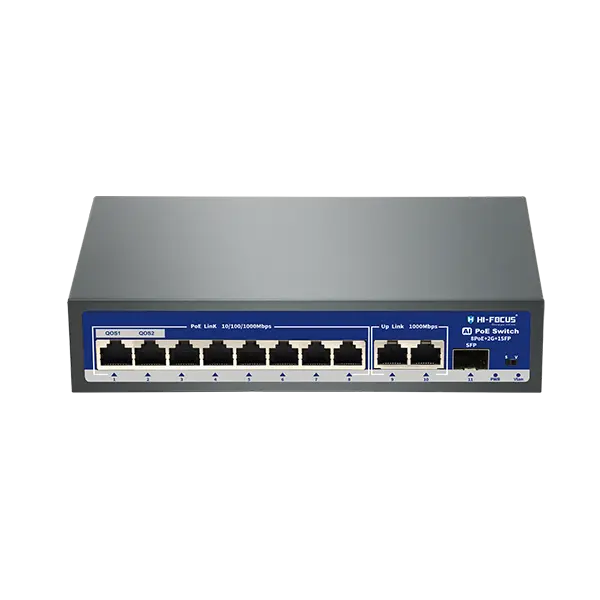

Hi-Focus HF-SG08G2F1-120WG 8-Port Gigabit PoE+ Switch – 8× 10/100/1000Mbps PoE RJ45, 2× Gigabit RJ45 Uplink, 1× Gigabit SFP Uplink, 120W PoE Budget, 30W/Port, IEEE 802.3af/at

The Hi-Focus HF-SG08G2F1-120WG 8-Port Gigabit PoE+ Switch provides network connectivity through 8 × 10/100/1000Mbps RJ45 PoE ports, 2 × 10/100/1000Mbps RJ45 uplink ports, and 1 × 1000Mbps SFP uplink port. Hi-Focus HF-SG08G2F1-120WG 8-Port this configuration provides eight PoE ports along with two Gigabit RJ45 uplinks and one Gigabit SFP uplink.

The switch supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3af/at standards. Hi-Focus HF-SG08G2F1-120WG 8-Port it provides 12 Gbps switching capacity, an 8.92 Mpps packet forwarding rate, and a 2K MAC address table. The switch uses store-and-forward technology for network traffic processing.

For PoE applications, the switch provides a 120 W total PoE budget. Ports 1–8 support PoE+ with up to 30 W per port. The PoE connection supports IEEE 802.3af/at, with PoE pins 1/2 (+), 3/6 (-). The switch also supports automatic PD detection to supply power to compatible PoE devices.

The switch supports power priority, fast and forward operation, automatic MAC address learning and aging, IEEE 802.3x full-duplex flow control, backpressure half-duplex flow control, MDI/MDIX auto-flip, and auto-negotiation. Hi-Focus HF-SG08G2F1-120WG 8-Port  it operates at temperatures from -10°C to 55°C and supports 10%–90% RH non-condensing working humidity. Its dimensions are 23 × 19 × 7 cm, with a weight of 0.95 kg ±5%.

Key Features

• 8 × 10/100/1000Mbps RJ45 PoE ports, 2 × Gigabit RJ45 uplink ports, and 1 × 1000Mbps SFP uplink port
• 120 W total PoE budget, with up to 30 W per port
• 12 Gbps switching capacity, 8.92 Mpps packet forwarding rate, and 2K MAC address table
• Supports IEEE 802.3, 802.3u, 802.3x, 802.3ab, and 802.3af/at
• Automatic PD detection, MDI/MDIX, auto-negotiation, MAC learning/aging, and full/half-duplex flow control

Best Suited For

• CCTV and security surveillance installations
• Networks requiring multiple Gigabit PoE-powered devices
• Installations requiring up to 120 W total PoE power
• Setups requiring Gigabit RJ45 and SFP uplink connectivity
• Wireless access points, IP cameras, teleconference systems, and other compatible PoE devices

Not Suited For

• Applications requiring more than 8 PoE ports
• Networks requiring more than 120 W total PoE power
• Individual PoE devices requiring more than 30 W per port
• Applications requiring more than 1 Gbps SFP uplink speed
• Networks requiring features or interfaces not specified in
