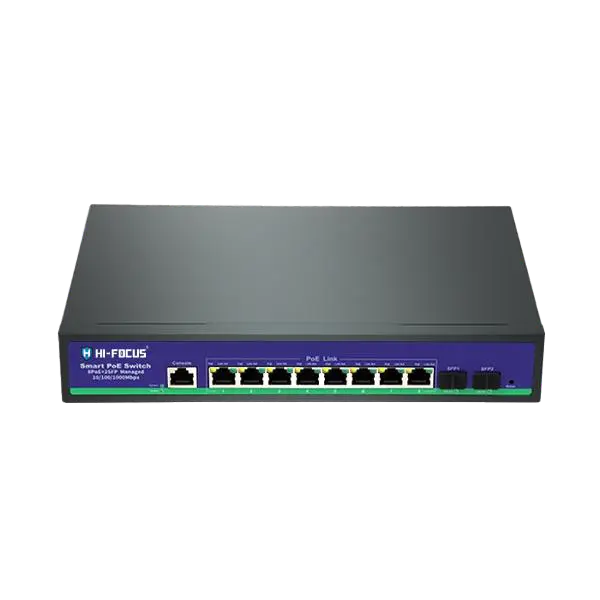

Hi-Focus HF-SG08G0F2M-150WG 8-Port Gigabit Managed PoE+ Switch – 8× 10/100/1000Mbps PoE RJ45, 2× 1000Mbps SFP Uplink, 1× RJ45 Console Port, 120W PoE Power, 20Gbps Backplane, IEEE 802.3af/at, VLAN, QoS

The Hi-Focus HF-SG08G0F2M-150WG 8-Port Gigabit Managed PoE+ Switch provides network connectivity through 8 × 10/100/1000Mbps adaptive RJ45 ports with PoE support, 2 × 1000Mbps SFP uplink ports, and 1 × console port. Hi-Focus HF-SG08G0F2M-150WG 8-Port the switch supports Gigabit Ethernet connectivity along with SFP uplink and serial console management.

The switch supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at, CSMA/CD, and TCP/IP standards. It provides 20 Gbps backplane bandwidth, a 14.9 Mpps forwarding rate, and an 8K MAC address table. It uses store-and-forward technology for network traffic processing.

For PoE applications, the switch supports IEEE 802.3af/at compliant Powered Devices (PD) and provides up to 120 W total power. Hi-Focus HF-SG08G0F2M-150WG 8-Port it also supports PoE configuration and scheduling management, along with port power priority. The switch features wire-speed forwarding, MAC self-learning and aging, IEEE 802.3X full-duplex flow control, and backpressure for half-duplex mode.

The managed switch provides extensive network management and security functions, including VLAN Access/Trunk/Hybrid, port mirroring, port isolation, storm control, link aggregation, spanning tree, IGMP/MLD snooping, ACL, QoS, LLDP, 802.1X, AAA authentication, and ARP binding. Management options include CLI, Telnet, SSH V1/2, SNMP V1/2/3, Web management, and RMON V1. Its dimensions are 27 × 18 × 4.4 cm and its weight is 1 kg.

Key Features

• 8 × 10/100/1000Mbps PoE RJ45 ports, 2 × 1000Mbps SFP uplink ports, and 1 × console port
• Up to 120 W total PoE power with support for IEEE 802.3af/at Powered Devices
• 20 Gbps backplane bandwidth, 14.9 Mpps forwarding rate, and 8K MAC address table
• Advanced management features including VLAN, QoS, port mirroring, link aggregation, storm control, and spanning tree
• Multiple management and security options including CLI, Telnet, SSH, SNMP, Web, RMON, 802.1X, and AAA authentication

Best Suited For

• CCTV and security surveillance installations
• Networks requiring multiple Gigabit PoE-powered devices
• Installations requiring SFP uplink connectivity
• Managed networks requiring VLAN, QoS, port isolation, and bandwidth control
• Network environments requiring advanced management, monitoring, and security features

Not Suited For

• Applications requiring more than 8 PoE RJ45 ports
• Networks requiring more than 120 W total PoE power
• Devices requiring more than the supported IEEE 802.3af/at PoE specifications
• Applications requiring SFP speeds higher than 1000Mbps
• Networks requiring features or interfaces not specified in the datasheet
