Lysora L7 Pro Wi-Fi 7 BE14000 Tri-Band Ceiling Mount Access Point with 2.5GbE & 10GbE SFP+ Ports, 8 Spatial Streams, 200+ Clients, PoE+

The Lysora L7 Pro Wi-Fi 7 BE14000 Tri-Band Ceiling Mount Access Point supports IEEE 802.11 a/b/g/n/ac/ax/be standards and operates on 2.4 GHz, 5 GHz, and 6 GHz frequency bands. Lysora L7 Pro it delivers throughput rates of up to 688 Mbps on 2.4 GHz, 4323 Mbps on 5 GHz, and 8646 Mbps on 6 GHz, with 8 spatial streams and support for 200+ clients.

The access point features 2 × 2 MU-MIMO on 2.4 GHz, 3 × 3 MU-MIMO on 5 GHz, and 3 × 3 MU-MIMO on 6 GHz. Lysora L7Pro it supports channel bandwidths of up to 40 MHz on 2.4 GHz, 160 MHz on 5 GHz, and 320 MHz on 6 GHz. Wireless capabilities include OFDMA, MLO, 4K-QAM, RF Beamforming, Band Steering, Wireless Meshing, WMM, 802.1Q VLAN, Wi-Fi Speed Limiting, Client Device Isolation, and Wi-Fi Schedules.

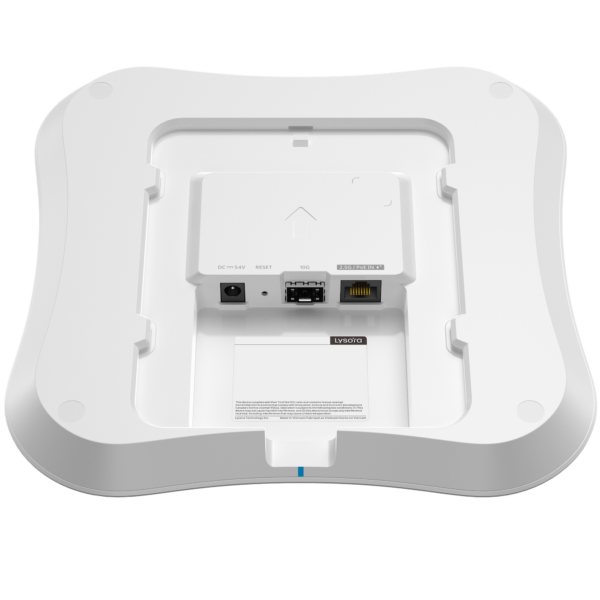

For network connectivity, the Lysora L7 Pro provides 1 × 2.5GbE RJ45 port and 1 × 10GbE SFP+ port. Lysora L7 Pro it supports PoE+ and 54 V DC, 0.55 A, with a DC power adapter included. Maximum power consumption is 30 W.

The Lysora L7 Pro supports Router Mode and AP Mode, with NAT, Static IP Address, DHCP Server, and PPPoE Dial-up functions. Security features include WPA, WPA2, WPA3-SAE, WPA2-PSK/WPA3-SAE, OWE, and 802.1X. It also supports 802.11v, 802.11k, 802.11r, Layer 2 roaming, and Layer 3 roaming.

Management options include Lysora App, Web Interface, Lysora Cloud, and SNMP. Up to 300 APs can be supported on a self-organizing network. The access point supports ceiling and wall mounting, measures 220 × 220 × 45 mm, weighs up to 1.1 kg, and has an IP41 rating.

Key Features

• Wi-Fi 7 — IEEE 802.11 a/b/g/n/ac/ax/be support across 2.4 GHz, 5 GHz, and 6 GHz bands.
• BE14000 — Up to 688 Mbps, 4323 Mbps, and 8646 Mbps throughput on 2.4 GHz, 5 GHz, and 6 GHz respectively.
• 8 Spatial Streams — Supports 8 spatial streams and 200+ clients.
• 10GbE SFP+ — Includes 1 × 10GbE SFP+ port and 1 × 2.5GbE RJ45 port.
• 320 MHz — Supports up to 320 MHz channel bandwidth on the 6 GHz band.
• Lysora Cloud — Supports remote management through Lysora Cloud and up to 300 APs on a self-organizing network.

Best Suited For

• Wi-Fi 7 tri-band network deployments
• Networks supporting 200+ clients
• Installations requiring 2.5GbE and 10GbE SFP+ connectivity
• Deployments requiring ceiling or wall mounting
• Networks using Lysora Cloud, Lysora App, or Web Interface management

Not Suited For

• Environments requiring a rating higher than IP41
• Operating conditions outside 0°C to 40°C
• Deployments requiring more than the specified 200+ client capacity
• Installations requiring channel bandwidth above 320 MHz
• Environments requiring operation outside the specified frequency ranges
