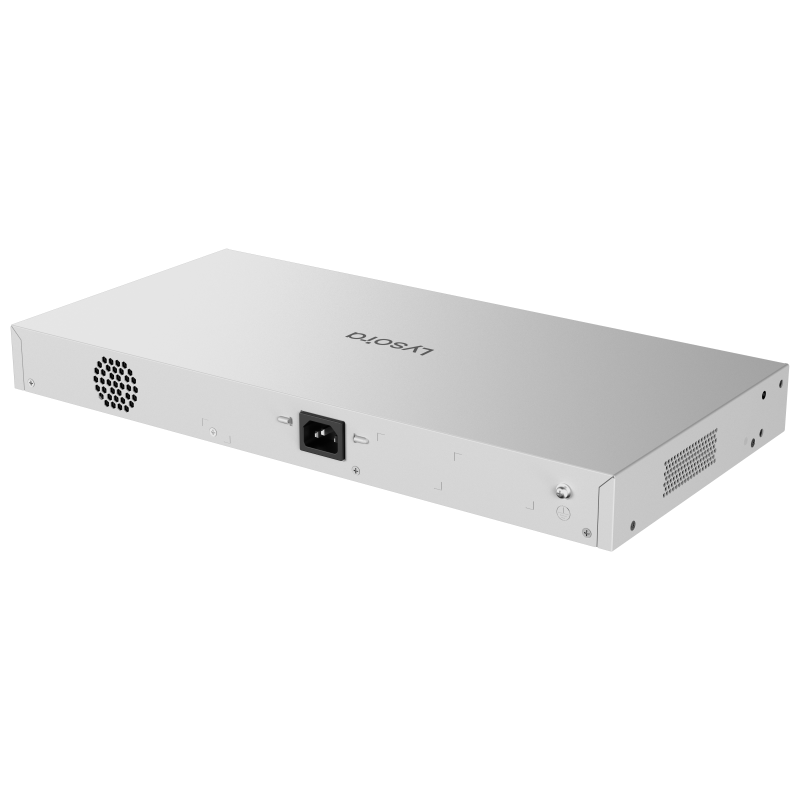

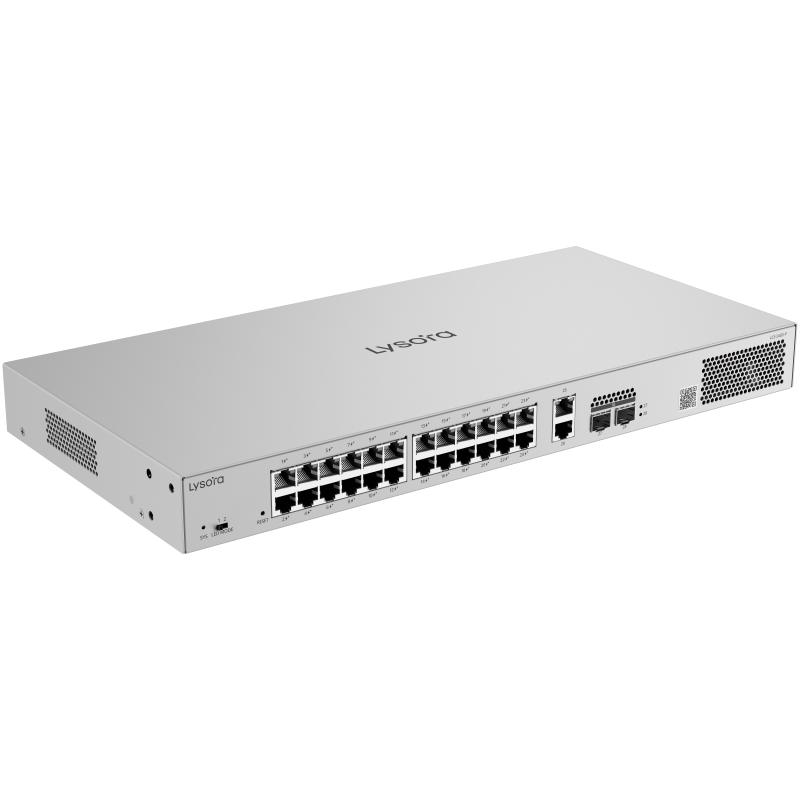

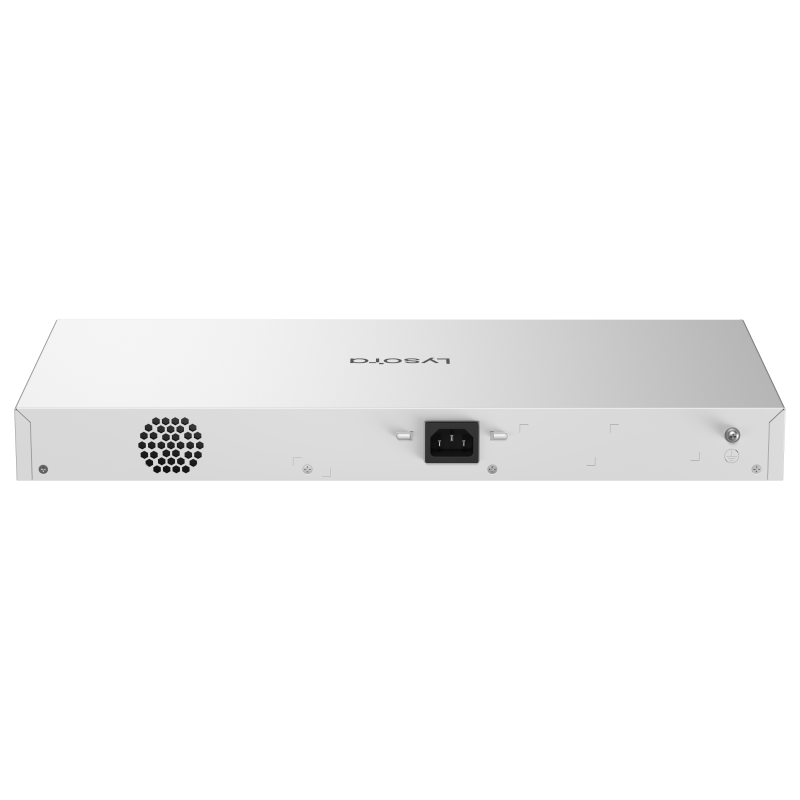

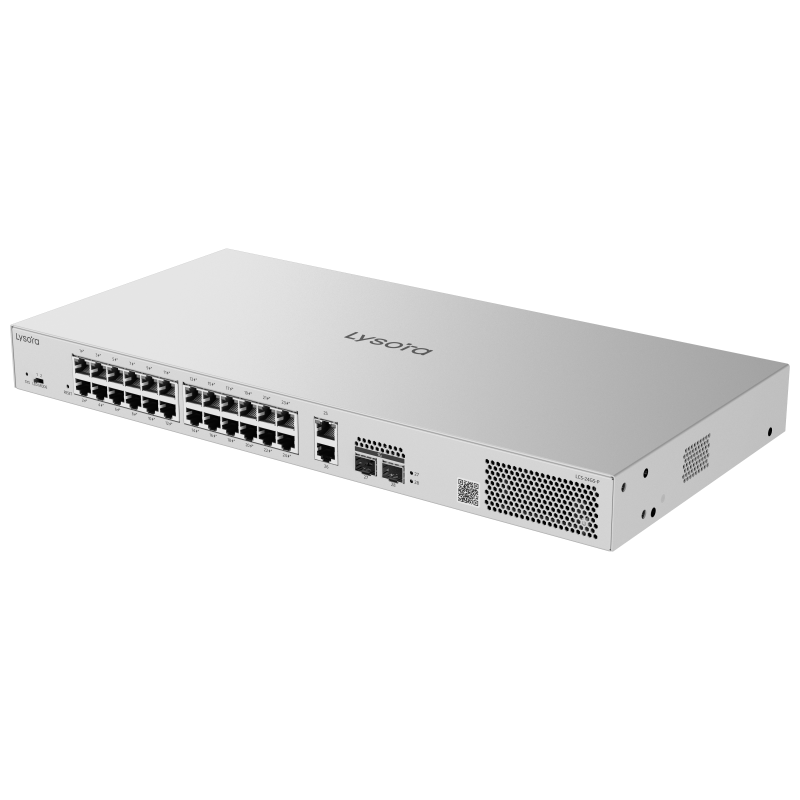

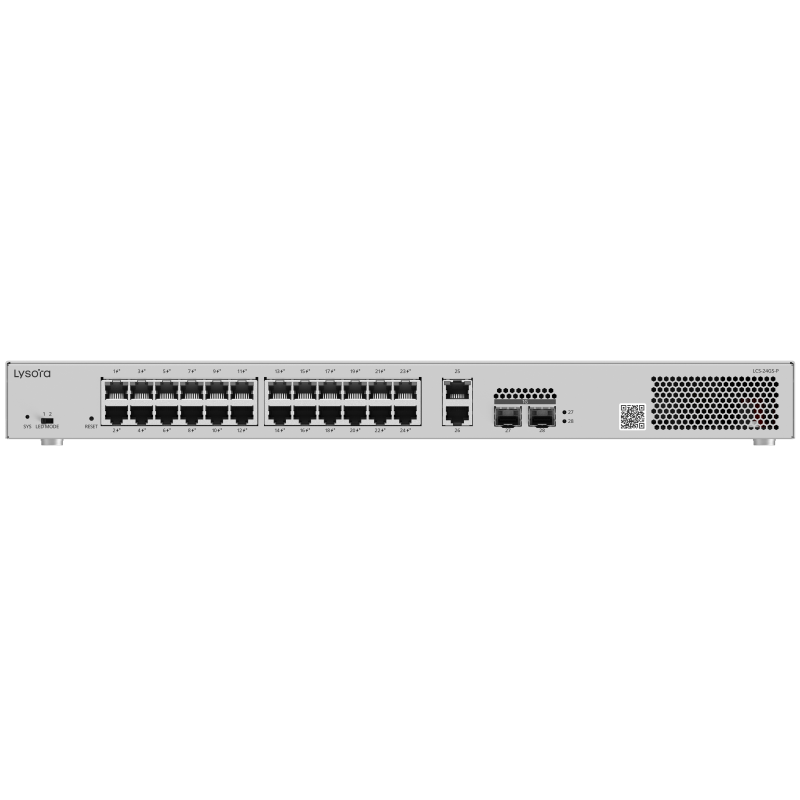

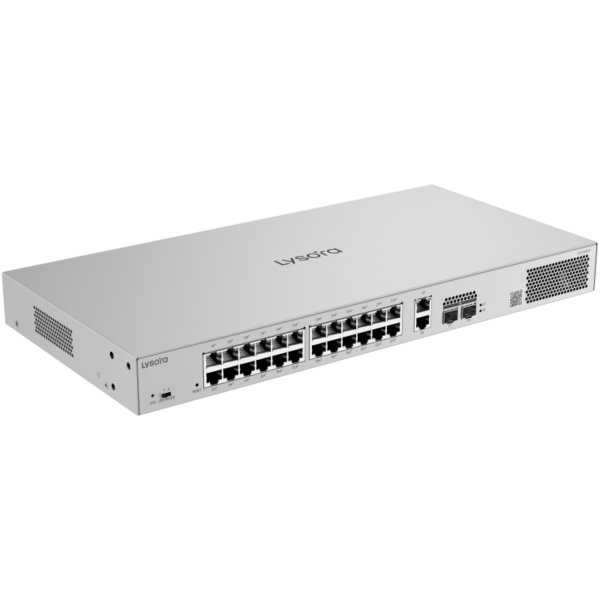

Lysora LCS-24GS-P 24-Port Cloud Managed PoE Switch with 26× Gigabit RJ45 Ports, 2× 1GE SFP Ports and 370W PoE Budget

The Lysora LCS-24GS-P 24-Port Cloud Managed PoE Switch is a Gigabit Ethernet switch designed for network connectivity, PoE deployments, and surveillance applications. Lysora LCS-24GS-P it provides 26 × 10/100/1000BASE-T RJ45 ports, including 24 PoE/PoE+ output ports, along with 2 × 1GE SFP ports for optical connectivity. With a 370W PoE budget, it supports power and data transmission to compatible PoE devices.

The LCS-24GS-P supports cloud management, web management, and app management, providing flexible options for network configuration and monitoring. Lysora LCS-24GS-P it also features PoE watchdog, online upgrade, camera detection, Self-Organizing Network, mirroring, cable testing, IEEE 802.1Q VLAN, static MAC addresses, port isolation, DHCP snooping, and broadcast, multicast, and unknown-unicast storm control.

For network performance, the switch provides a 56 Gbps switching capacity, 41.6 Mpps forwarding rate, and a 4.1 Mbit buffer size. Lysora LCS-24GS-P it supports jumbo frames up to 10000 bytes, EEE, interface flow control, and inbound or outbound rate limiting based on interface traffic. The switch supports up to 16 VLANs and 8000 MAC address entries.

The LCS-24GS-P features a metal enclosure with rack/desk mounting for flexible installation. Lysora LCS-24GS-P it uses one fixed fan with air cooling and front-to-rear airflow. The switch operates from 0°C to 40°C, supports 10% to 90% non-condensing operating humidity, and provides ESD and surge protection. Its specified MTBF is 200,000 hours.

Key Features

• 370W PoE Budget — Provides a total PoE budget of 370W for compatible PoE/PoE+ devices.
• Gigabit RJ45 — Includes 26 × 10/100/1000BASE-T Gigabit Ethernet ports.
• 24-Port PoE — Provides 24 PoE/PoE+ output ports for connected devices.
• 1GE SFP — Includes 2 × 1GE SFP ports for optical network connectivity.
• Cloud Management — Supports cloud, web, and app-based network management.
• 56Gbps Switching — Provides 56 Gbps switching capacity and 41.6 Mpps forwarding rate.

Best Suited For

• Medium-sized and high-density PoE network deployments
• IP camera and surveillance installations within the 370W PoE capacity
• Networks requiring multiple Gigabit Ethernet ports
• Deployments requiring 1GE SFP optical connectivity
• Installations requiring cloud, web, or app management
• Rack or desk-mounted networking environments

Not Suited For

• Deployments requiring 10GE or higher-speed SFP+ connectivity
• Networks requiring more than 24 PoE/PoE+ output ports
• Applications requiring a PoE budget above 370W
• Deployments requiring fanless operation, as this model uses one fixed fan
• Environments operating outside the specified 0°C to 40°C operating temperature range
