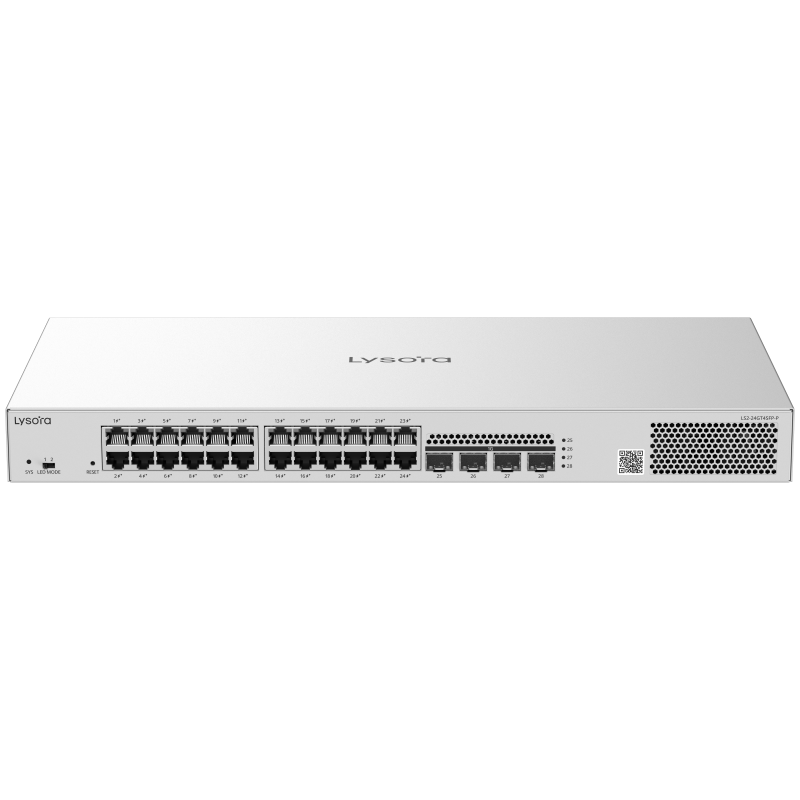

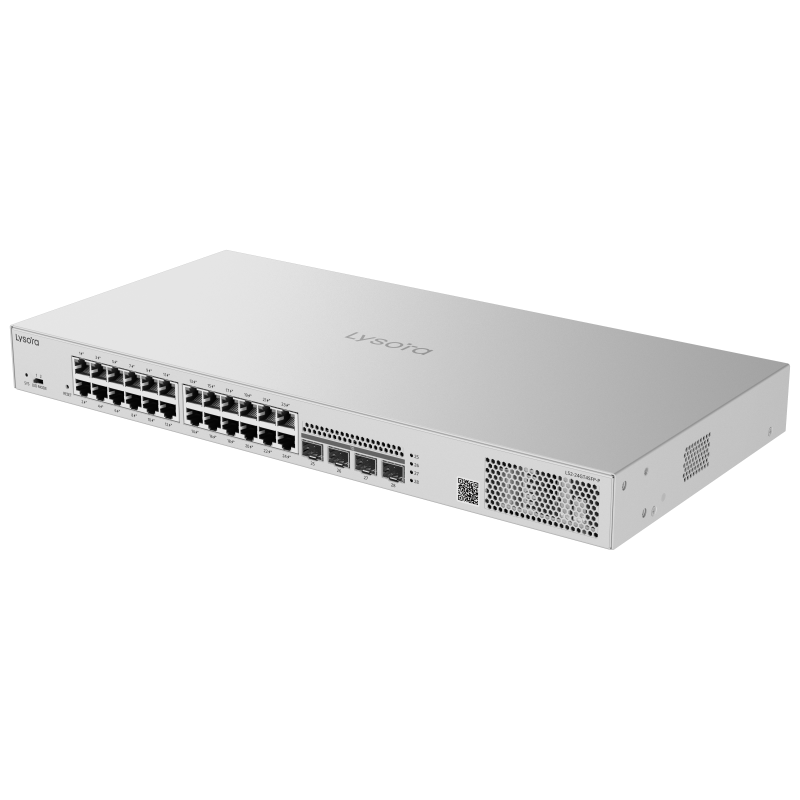

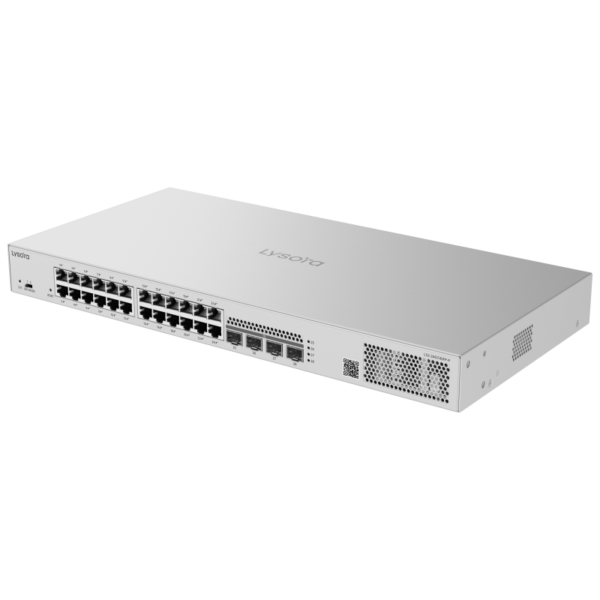

Lysora LS2-24GT4SFP-P 24-Port Layer 2 Managed PoE Switch with 24× Gigabit RJ45 Ports, 4× 1GE SFP Ports and 370W PoE Budget

The Lysora LS2-24GT4SFP-P 24-Port Layer 2 Managed PoE Switch provides 24 × 10/100/1000BASE-T RJ45 ports, 4 × 1GE SFP ports, and 24 PoE/PoE+ output ports with a 370W PoE budget. Lysora LS2-24GT4SFP-P  it is designed for Layer 2 network deployments requiring Gigabit Ethernet connectivity and PoE support. The switch provides a 56 Gbps switching capacity, 41.66 Mpps forwarding rate, and 4.1 Mbit buffer size.

The LS2-24GT4SFP-P supports Layer 2 features including port-based VLAN, IEEE 802.1Q VLAN, Voice VLAN, STP/RSTP/MSTP, LLDP/LLDP-MED, static MAC addresses, MAC address filtering, static aggregation, and LACP. Lysora LS2-24GT4SFP-P it supports up to 4094 VLANs and 8000 MAC address entries, along with interface flow control and inbound or outbound rate limiting based on interface traffic.

The switch also provides network services including ARP, IPv4 ping, IPv4 traceroute, ICMPv6, IPv6 ping, IPv6 traceroute, DNS client, DNSv6 client, and DHCP client. For multicast traffic, it supports IGMPv1 snooping, IGMPv2 snooping, basic IGMPv3 snooping, and IGMP filtering.

Security and traffic management features include standard and extended ACLs, 802.1p and DSCP priority-based traffic classification, egress queues, queue scheduling, 802.1X authentication, MAC address-based and port-based 802.1X authentication, RADIUS, port isolation, DHCP snooping, IP-MAC-port binding, ARP anti-spoofing, IP source guard, and CPU protection policy.

For management and monitoring, the LS2-24GT4SFP-P supports web management, cloud management, app management, HTTPS login, Syslog, SNMPv1/v2c/v3, NTP client, mirroring, Self-Organizing Network, camera detection, cloud-based auto-recovery, ERPS, and loop prevention. Lysora LS2-24GT4SFP-P  it also supports PoE watchdog, PoE service failure detection, PoE power overload protection, local upgrade, online upgrade, EEE, cable testing, and jumbo frames up to 9216 bytes.

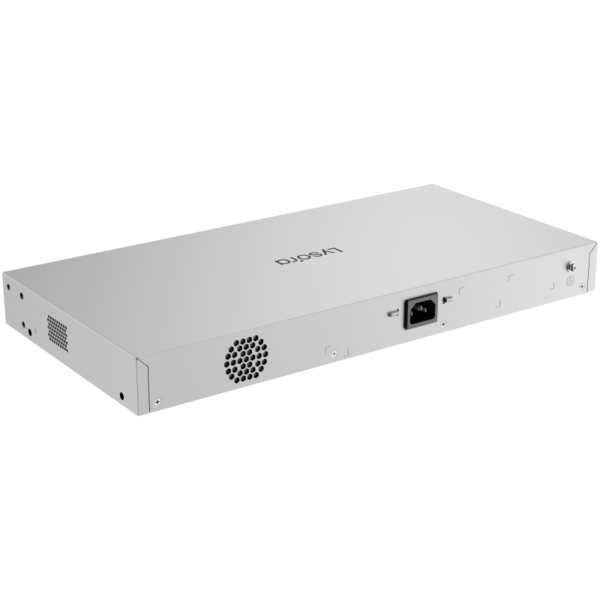

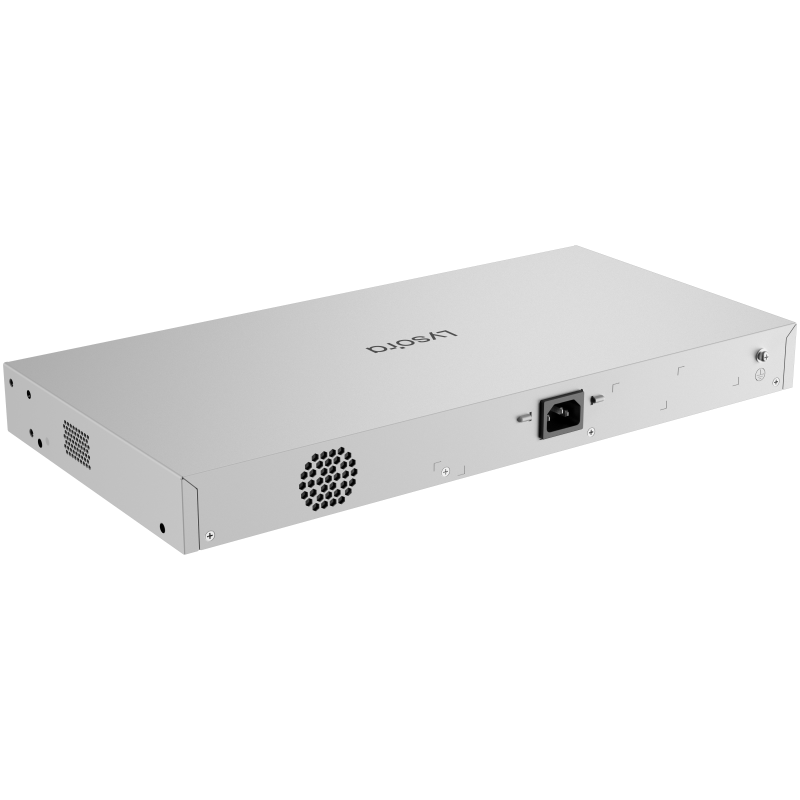

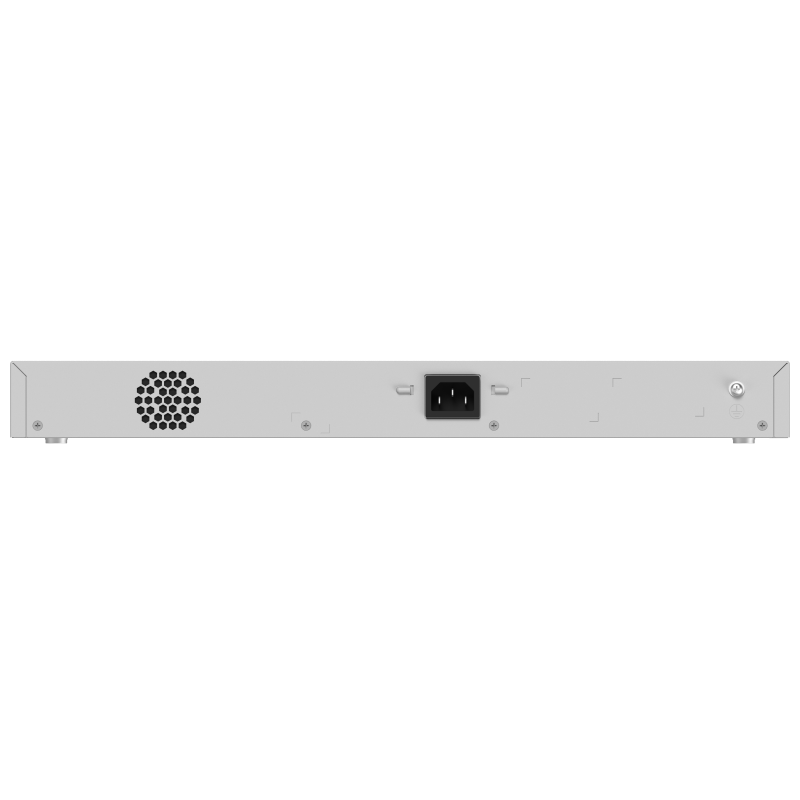

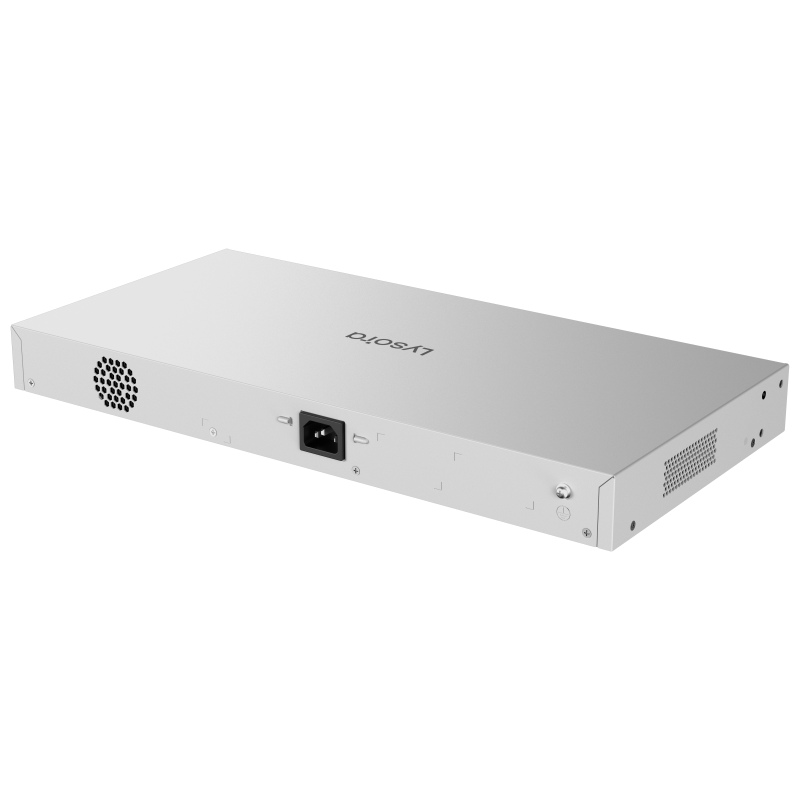

The switch has a metal enclosure and supports rack/desk mounting. It uses one fixed fan with air cooling and front-to-rear plus left-to-rear airflow. The operating temperature is 0°C to +50°C, with 10% RH to 90% RH non-condensing operating humidity. The specified MTBF is 400,000 hours.

Key Features

• 370W PoE Budget — Provides a 370W PoE budget with 24 PoE/PoE+ output ports.
• 24-Port Gigabit — Includes 24 × 10/100/1000BASE-T RJ45 ports.
• 4× 1GE SFP — Provides 4 × 1GE SFP ports for optical connectivity.
• Layer 2 Management — Supports VLAN, STP/RSTP/MSTP, LLDP/LLDP-MED, LACP, ACL, and QoS features.
• Advanced Security — Supports 802.1X, RADIUS, DHCP snooping, IP source guard, and ARP anti-spoofing.
• Cloud Management — Supports web, cloud, and app management.

Best Suited For

• Layer 2 networks requiring 24 Gigabit RJ45 ports
• Deployments requiring 24 PoE/PoE+ output ports
• Networks requiring a 370W PoE budget
• Installations requiring 4 × 1GE SFP ports
• Networks requiring VLAN, STP/RSTP/MSTP, LACP, ACL, and QoS features
• Rack or desk-mounted network installations with the specified cooling requirements

Not Suited For

• Deployments requiring 10GE SFP+ ports, as these are not provided
• Networks requiring a PoE budget above 370W
• Applications requiring more than 24 PoE/PoE+ output ports
• Networks requiring IPv4 or IPv6 static routing or OSPF, as these are specified as not supported
• Environments operating outside the specified 0°C to +50°C operating temperature range
