Lysora LS2T-8GT2SFP-HP 8-Port Industrial Layer 2 Managed PoE Switch with 2× 1GE SFP Ports and 240W PoE Budget

The Lysora LS2T-8GT2SFP-HP is an 8-port Industrial Layer 2 Managed PoE Switch with 8 × 10/100/1000BASE-T RJ45 ports and 2 × 1GE SFP ports. Lysora LS2T-8GT2SFP-HP it provides 8 PoE/PoE+ output ports with a 240 W PoE budget. The switch features 20 Gbps switching capacity, 14.88 Mpps forwarding rate, 4.1 Mbit buffer size, 256 MB RAM, and 16 MB flash memory.

The switch supports up to 4,094 VLANs and 8,000 MAC address entries. Ethernet switching features include port-based VLAN, IEEE 802.1Q VLAN, Voice VLAN, STP/RSTP/MSTP, LLDP/LLDP-MED, static MAC address, MAC address filtering, static aggregation, LACP, interface flow control, and inbound or outbound interface-based rate limiting.

IP services include ARP, IPv4 ping, IPv4 traceroute, ICMPv6, IPv6 ping, IPv6 traceroute, DNS/DNSv6 client, and DHCP client. IPv4 and IPv6 static routing and OSPFv2/OSPFv3 are not supported.

The switch supports IGMPv1 and IGMPv2 snooping, basic IGMPv3 snooping, and IGMP filtering. Full IGMPv3 snooping and IGMPv1/v2/v3 support are not specified as supported. ACL and QoS features include Standard and Extended ACL, 802.1p and DSCP priority-based traffic classification, egress queues, SP, SP+WRR, WRR, and tail-drop congestion avoidance.

Security features include 802.1X authentication, MAC address-based and port-based 802.1X authentication, RADIUS, port isolation, broadcast/multicast/unknown-unicast storm control, DHCP snooping, IP-MAC-port binding, ARP anti-spoofing, IP source guard, and CPU protection policy.

For management and monitoring, the switch supports web, cloud, and app management, mirroring, self-organizing network, HTTPS login, Syslog, SNMPv1/v2c/v3, NTP client, camera detection, local upgrade, online upgrade, and cloud-based auto-recovery. Lysora LS2T-8GT2SFP-HP it also supports PoE watchdog, EEE, cable testing, and a 9216-byte jumbo frame length.

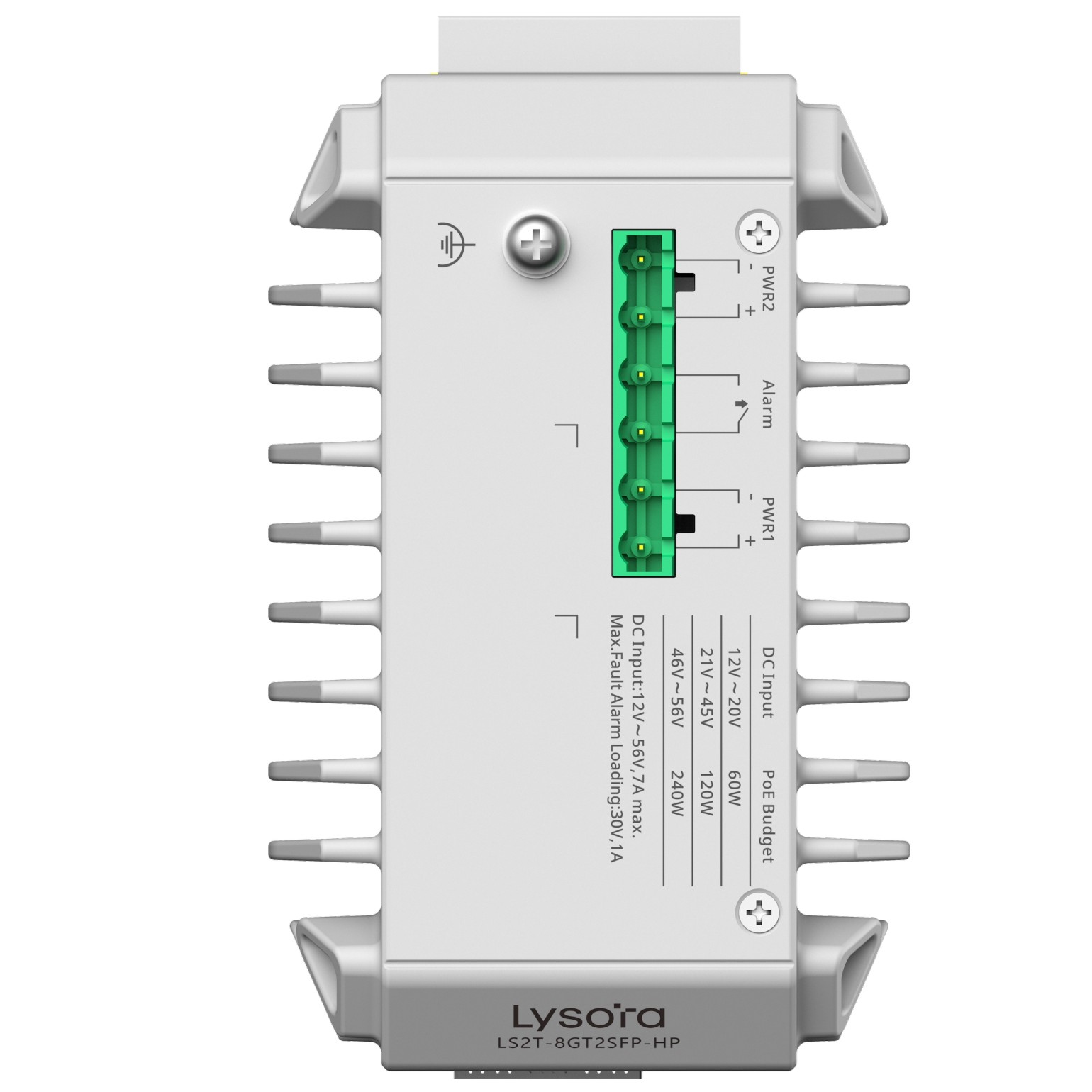

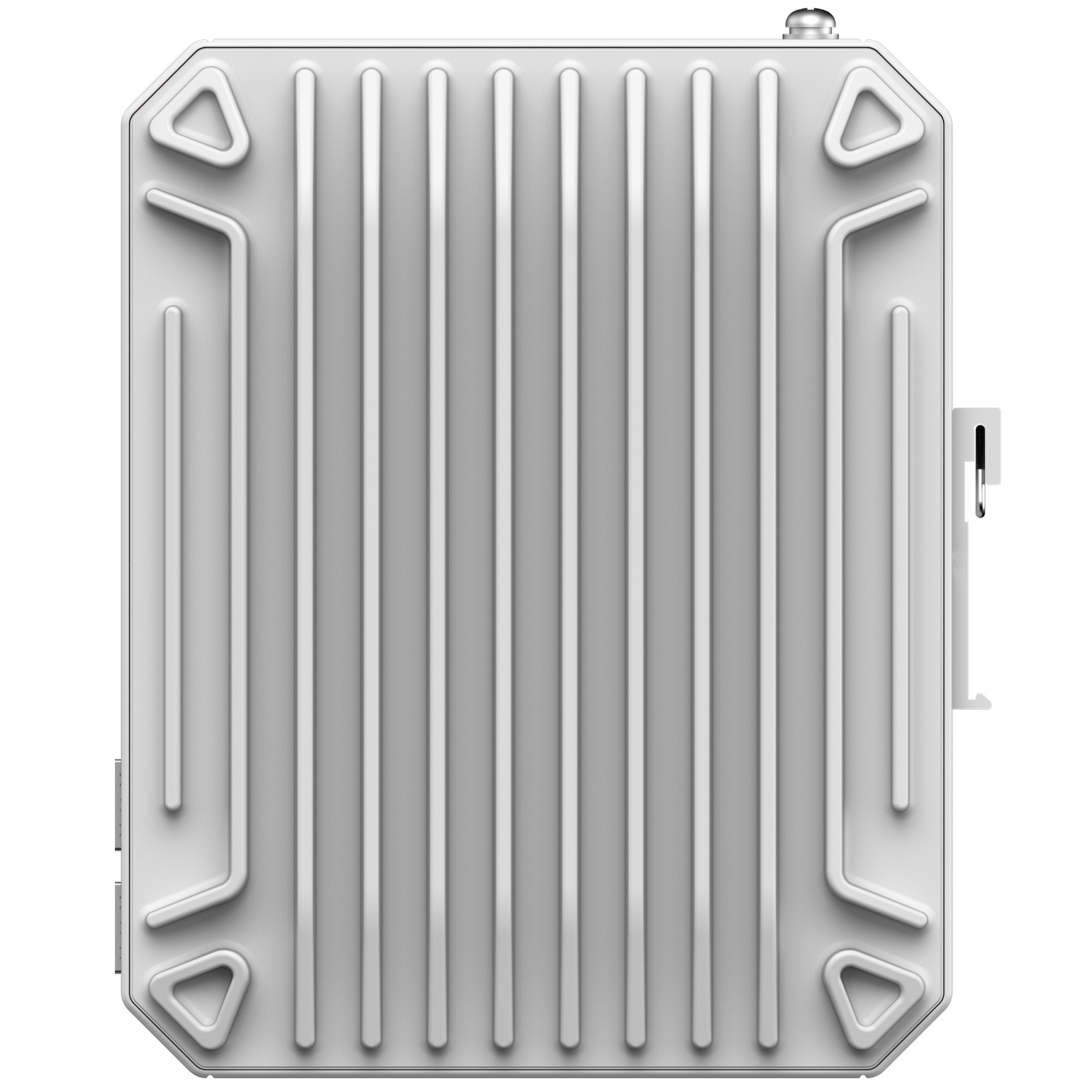

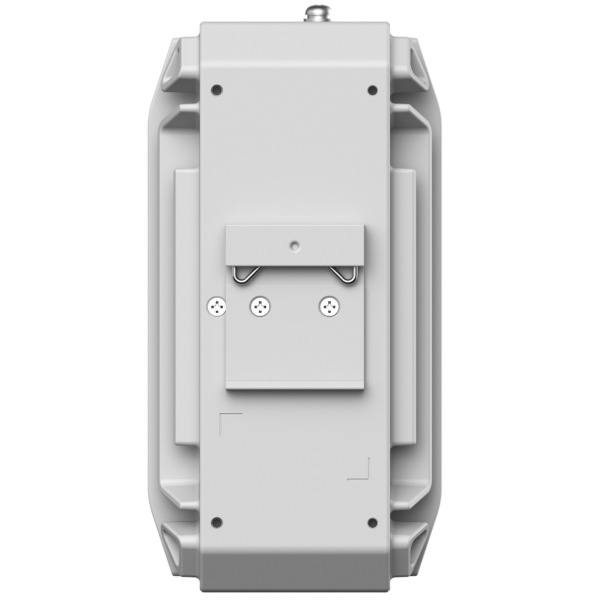

The switch has a metal enclosure, IP40 rating, fanless design, natural cooling, and DIN rail/wall mounting. Operating temperature depends on installation conditions and ranges from –40°C to +65°C in a sealed cabinet up to –40°C to +80°C with specified ventilation. Operating humidity is 5% RH to 95% RH, non-condensing. The MTBF is 400,000 hours.

Best Suited For

• Industrial installations requiring 8 × 10/100/1000BASE-T ports.
• Networks requiring 1GE SFP connectivity.
• Applications requiring 8 PoE/PoE+ output ports with a 240 W PoE budget.
• Installations requiring DIN rail or wall mounting.
• Environments requiring fanless operation and natural cooling.

Not Suited For

• Applications requiring 10GE SFP+ ports, as they are Not Specified.
• Applications requiring Layer 3 static routing or OSPF, as these features are not supported.
• Applications requiring Full IGMPv3 snooping, as it is not supported.
• Applications requiring AC power input, as the specified power method is DC power input.
