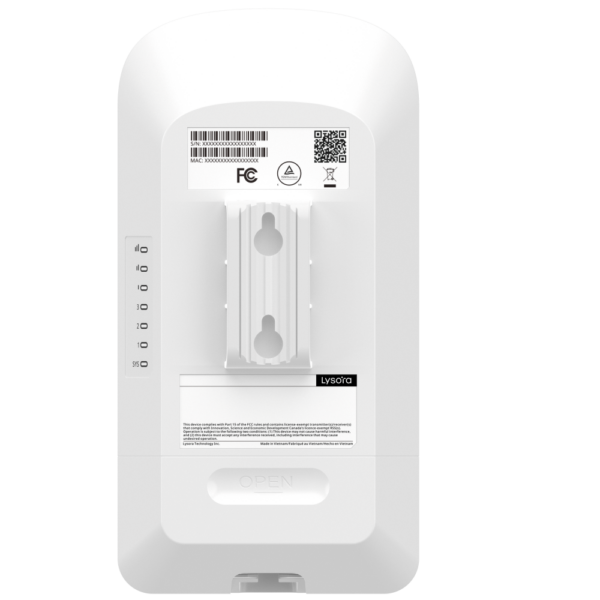

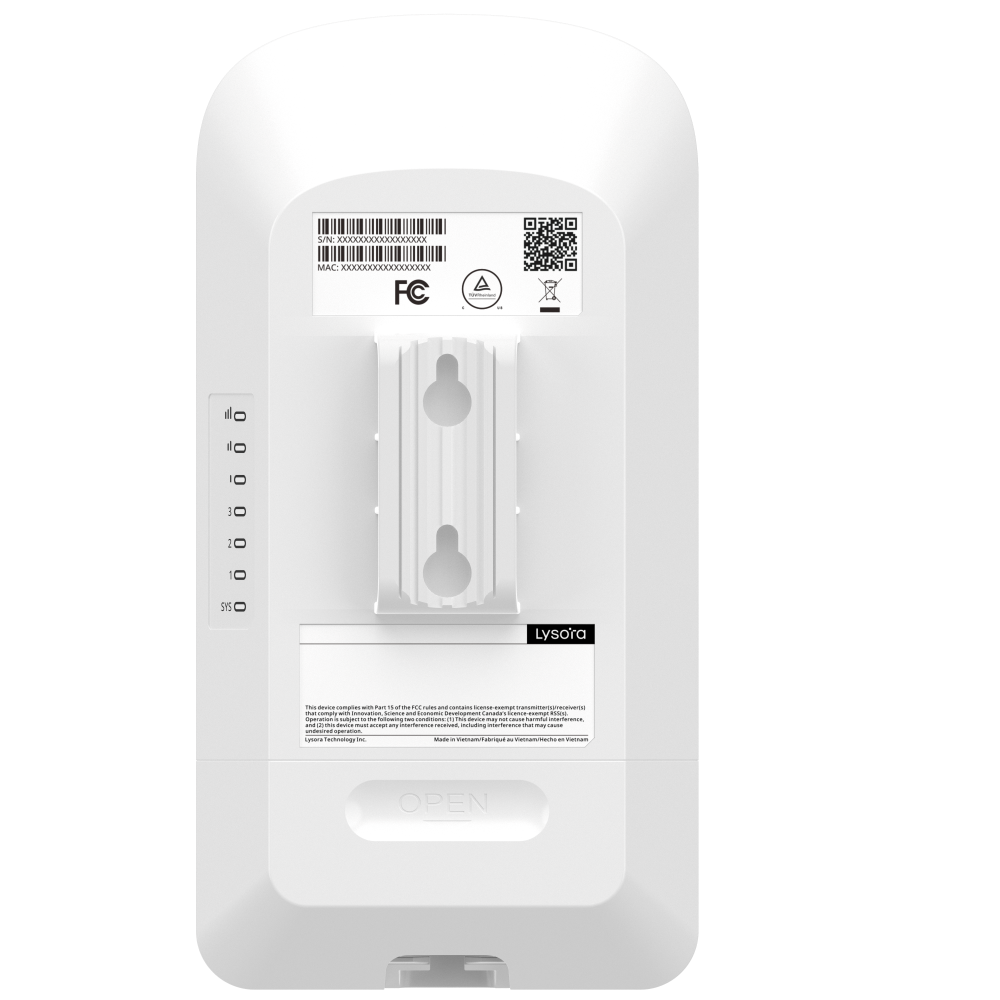

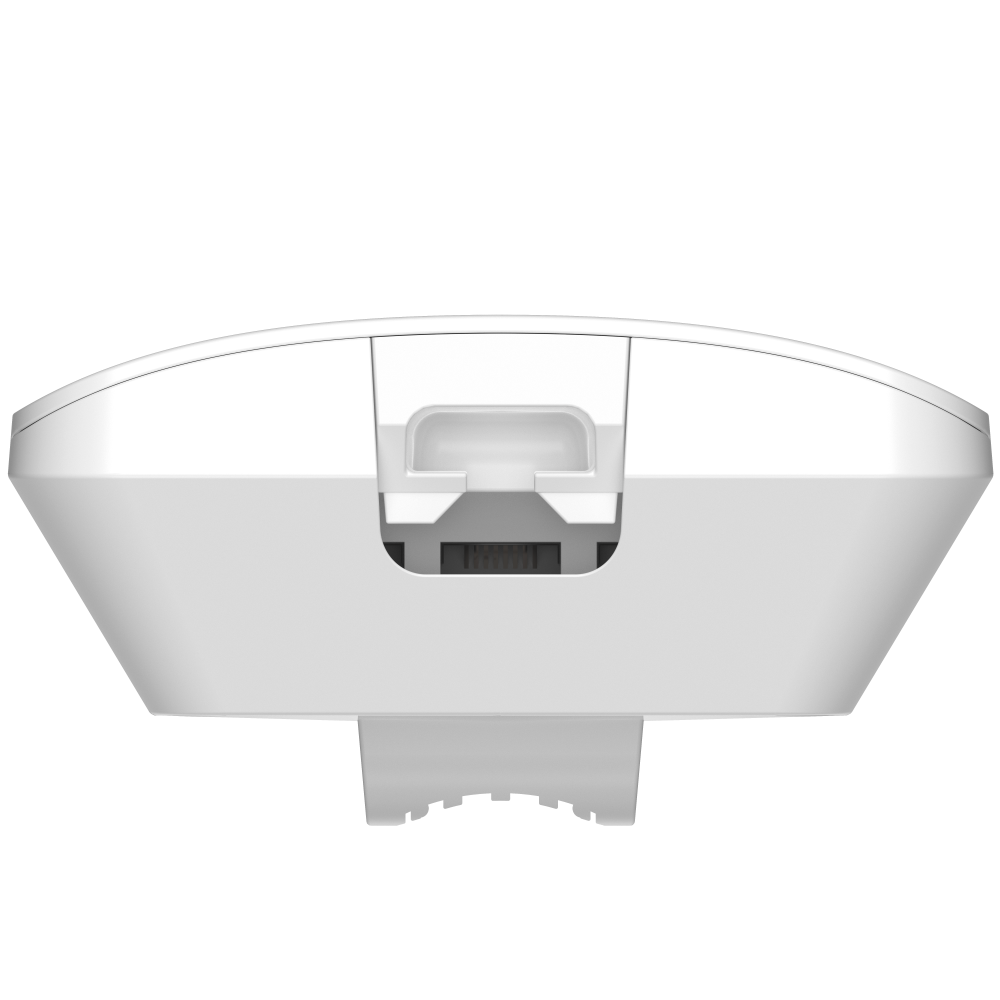

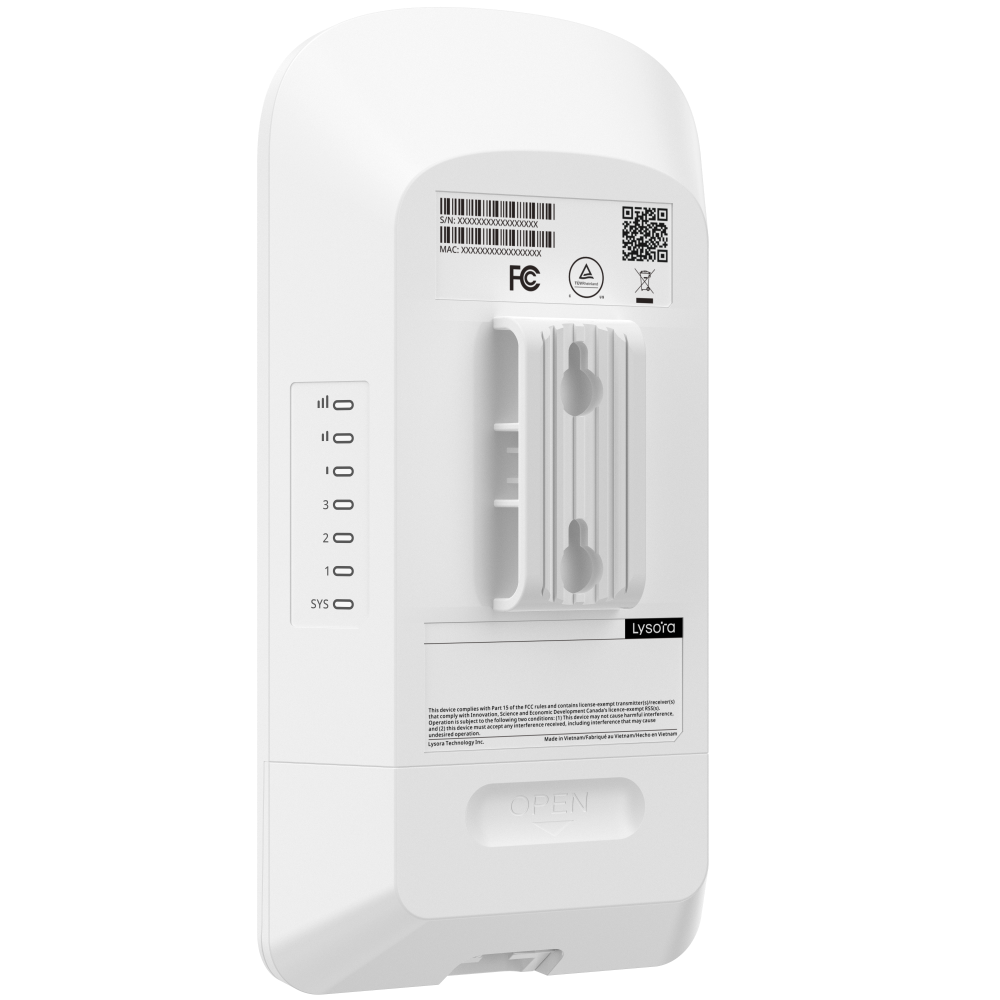

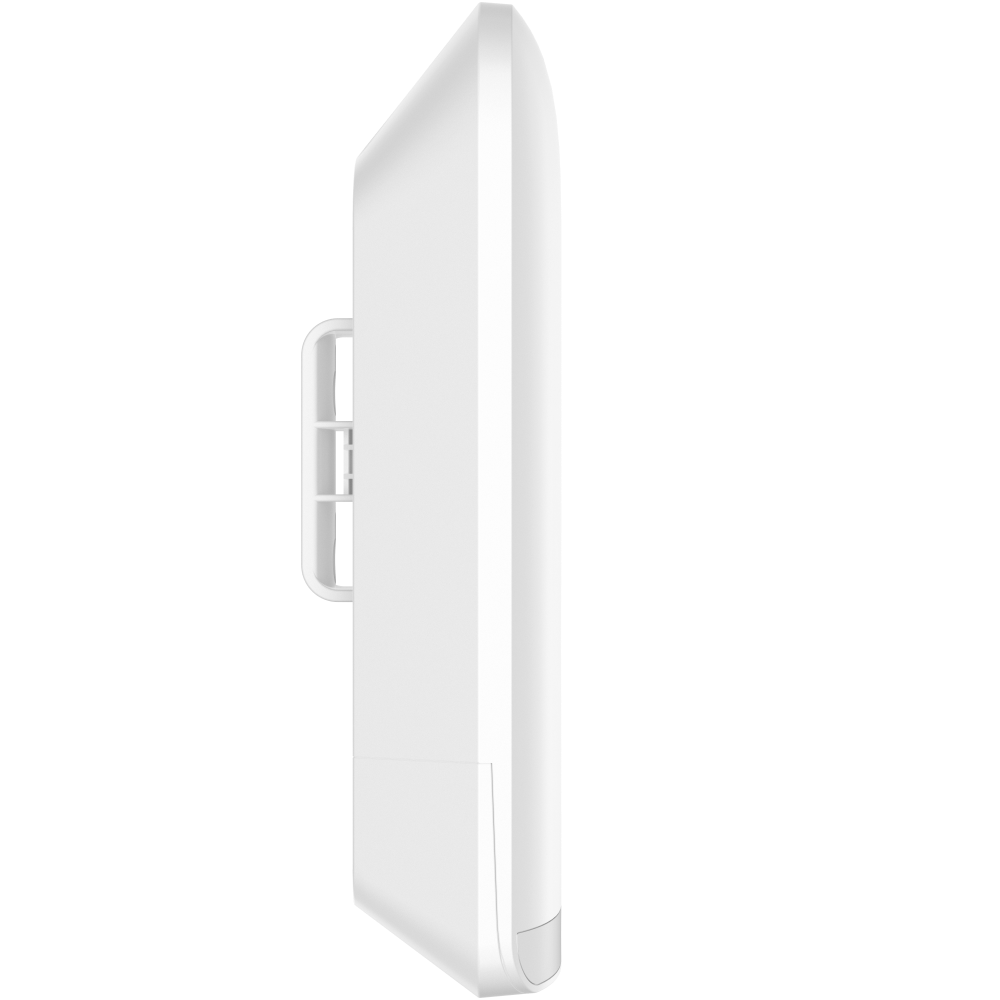

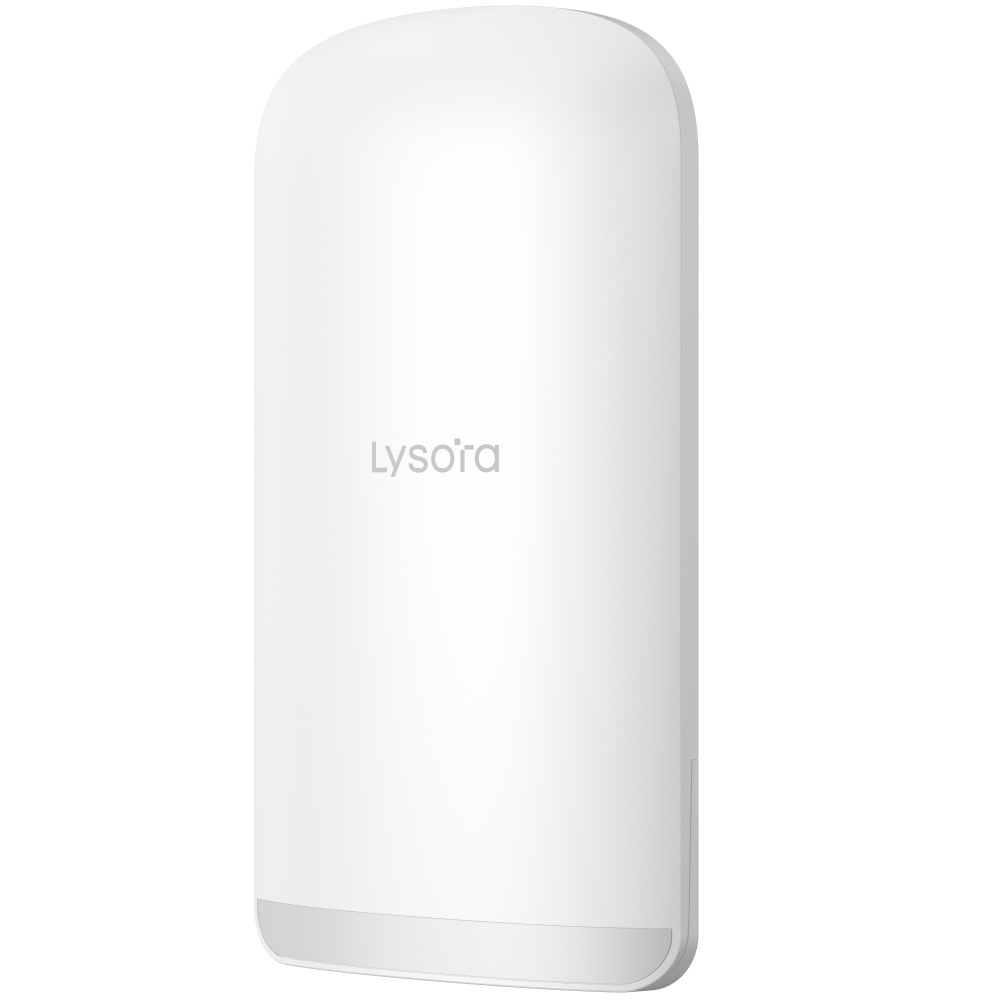

Lysora CPE3-P 5 GHz CPE with 13 dBi Built-in Antenna and 3 km Bridge Distance

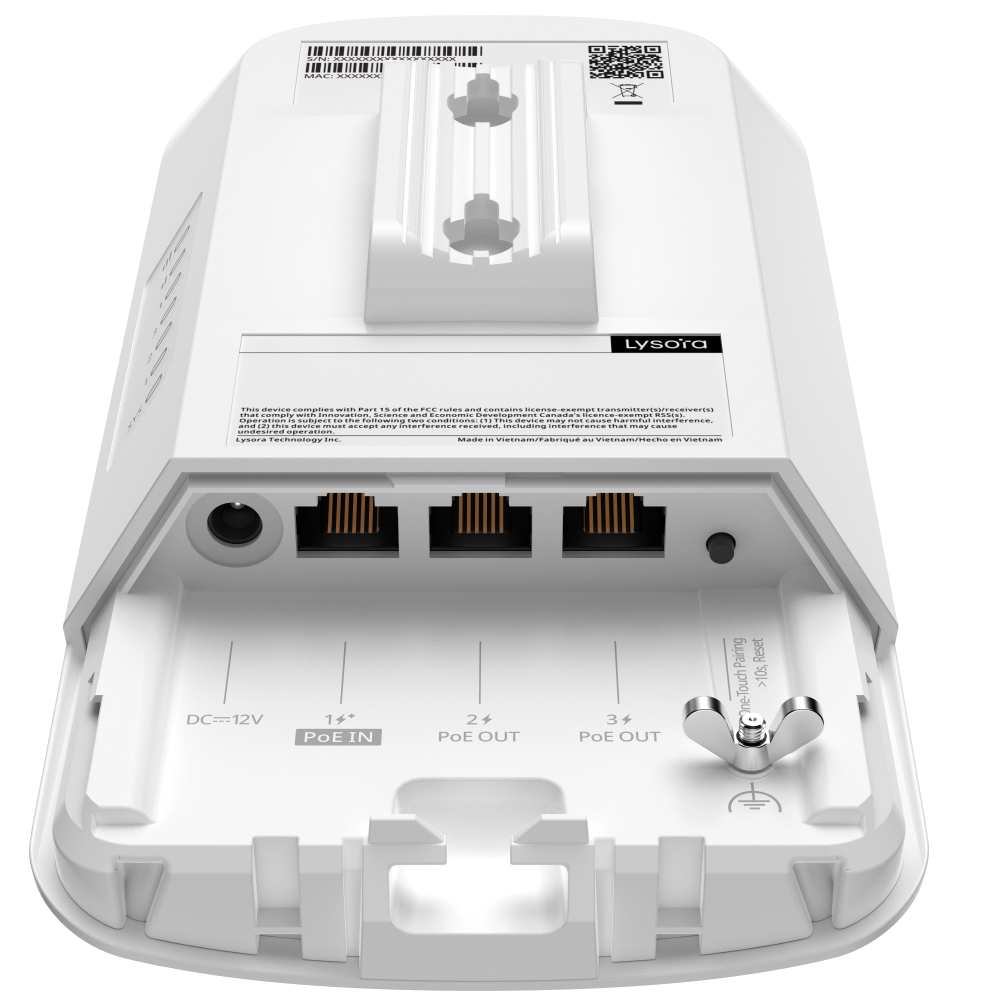

The Lysora CPE3-P is a 5 GHz CPE with a 13 dBi built-in antenna, supporting IEEE 802.11 a/b/g/n/ac standards. It provides a 5 GHz wireless data rate of 867 Mbps and 2×2 MIMO, with a maximum bridge distance of 3 km. The device includes 3 × 10/100BASE-T networking ports and supports 2.4 GHz and 5 GHz wireless protocols. Lysora CPE3-P it supports Base Station and CPE working modes, WLAN TDMA, WDS, SSID hiding, antenna alignment, spectrum scan, and VLAN.

For management and maintenance, the CPE3-P supports Self Organizing Network, SNMP, SSH, web management, and cloud management. The Lysora CPE3-P it supports wall or pole mounting and has an IP55 rating. The device operates from –30°C to +55°C and supports 5% RH to 95% RH non-condensing operating humidity.

Best Suited For

• 5 GHz wireless bridging applications up to the specified 3 km maximum bridge distance.
• Applications requiring a 13 dBi built-in antenna.
• Networks requiring 2×2 MIMO at 5 GHz.
• Wall or pole mounting installations.
• Applications requiring Base Station or CPE working modes.
• Networks requiring VLAN, SNMP, SSH, web management, or cloud management.

Not Suited For

• Applications requiring a bridge distance greater than 3 km
• Applications requiring networking interfaces faster than 10/100BASE-T
• Applications requiring antenna gain greater than 13 dBi
• Applications requiring an IP rating higher than IP55
• Applications requiring wireless standards other than IEEE 802.11 a/b/g/n/ac
