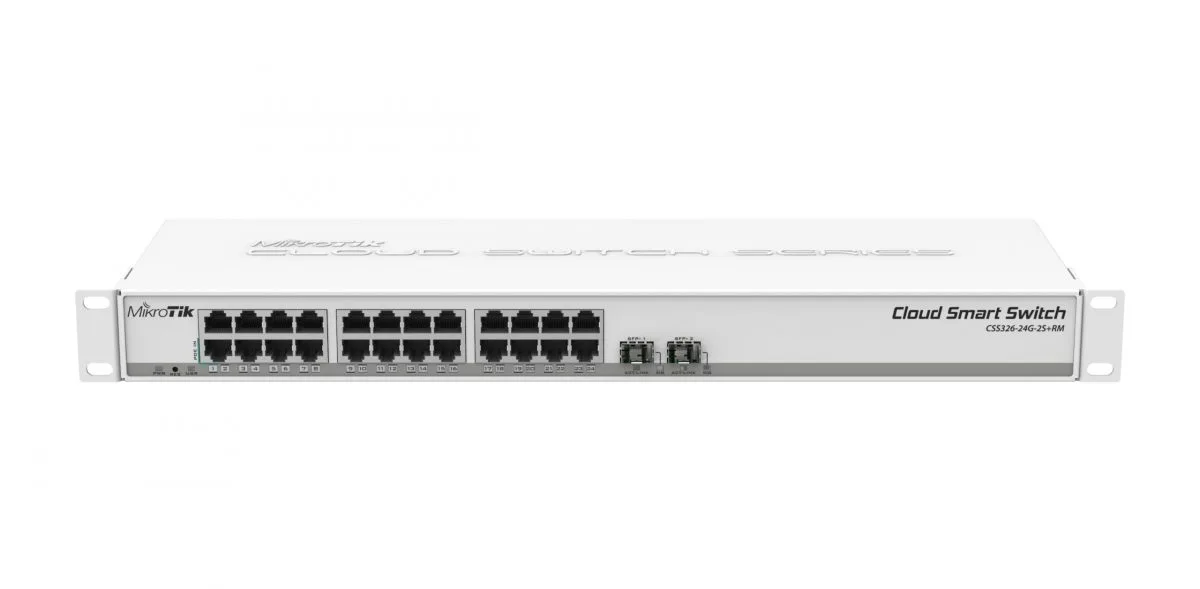

MikroTik CSS326-24G-2S+RM | 24-Port Gigabit Smart Switch with 2 SFP+

Name: MikroTik CSS326-24G-2S+RM | 24-Port Gigabit Smart Switch with 2 SFP+ - FGTECH STORE
SKU: FGINNJSFZZ19
Price: 15699.00 INR
Availability: InStock

SKU: FGINNJSFZZ19

Upgrade your network with the MikroTik CSS326-24G-2S+RM smart switch, featuring 24 Gigabit Ethernet ports and 2 SFP+ ports for 10G connections. Managed by SwOS, it offers efficient, powerful network management at an affordable price.

Original price was: ₹18,999.00.Current price is: ₹15,699.00. Inc. tax (₹13,304.24Exc. Tax)

Compare

Add to wishlist

Description

MikroTik CSS326-24G-2S+RM is a reliable, cost-effective 24-port Gigabit Ethernet smart switch designed for seamless network management. It features two SFP+ ports for 10G fiber connections and is managed through MikroTik’s SwOS, providing a user-friendly interface and advanced management features.

Cloud Smart Switch 326-24G-2S+RM is SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports in 1U rackmount case that provides wire speed connectivity with several new switching features.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

Switching results

CSS326-24G-2S+RM
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	3,576.1	43,427.8	10,338.3	42,345.9	65,476.2	33,523.8
Switching	Non blocking Layer 2 capacity	3,576.1	86,855.7	10,338.3	84,691.7	65,476.2	67,047.6
Switching	Non blocking Layer 1 throughput	3,576.1	44,000.0	10,338.3	44,000.0	65,476.2	44,000.0
Switching	Non blocking Layer 1 capacity	3,576.1	88,000.0	10,338.3	88,000.0	65,476.2	88,000.0

Additional information

Weight	1.725 kg
Dimensions	57 × 19.5 × 7 cm
Badges	24Hr Dispatch

Product Details

Brand Name	Mikrotik
Model Name	CSS326-24G-2S+RM
Dimension(cm)	57X19,5X7
Weight(kg)	1.73

Product code	CSS326-24G-2S+RM
Switch chip model	98DX3216
Dimensions	443 x 144 x 44 mm
Operating System	SwOS
Storage size	2 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 70°C
Suggested price	$159.00

Powering

Number of DC inputs	2 (PoE-IN, DC jack)
DC jack input Voltage	10-30 V
Max power consumption	19 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-30 V

Ethernet

10/100/1000 Ethernet ports

24

Fiber

SFP+ ports

2

Certification & Approvals

Certification	CE, EAC, ROHS
IP	20

Warranty & Manufacturer Details

Warranty Period	1 Year
Warranty Provider	Contact Fgtech Store for service warranty
Country of Origin	China
Manufacturer Details	SIA Mikrotlks, Unijas iela 2, Riga, LV-1039 LATVIA
Importer Details	Mikrotik India, Green Park, Delhi 110016
Packer Details	FGTECH INNOVATIONS LLP, Sakinaka, Andheri East, Mumbai 400072

Download Brochure

Brochure	Open
Quick Guide	Open
Safety and regulatory information	Open
User Manual	Open
Dimensions	Open
SFP compatibility list	Open
SwOS software manual	Open
Declaration of conformity	Open (CE)
