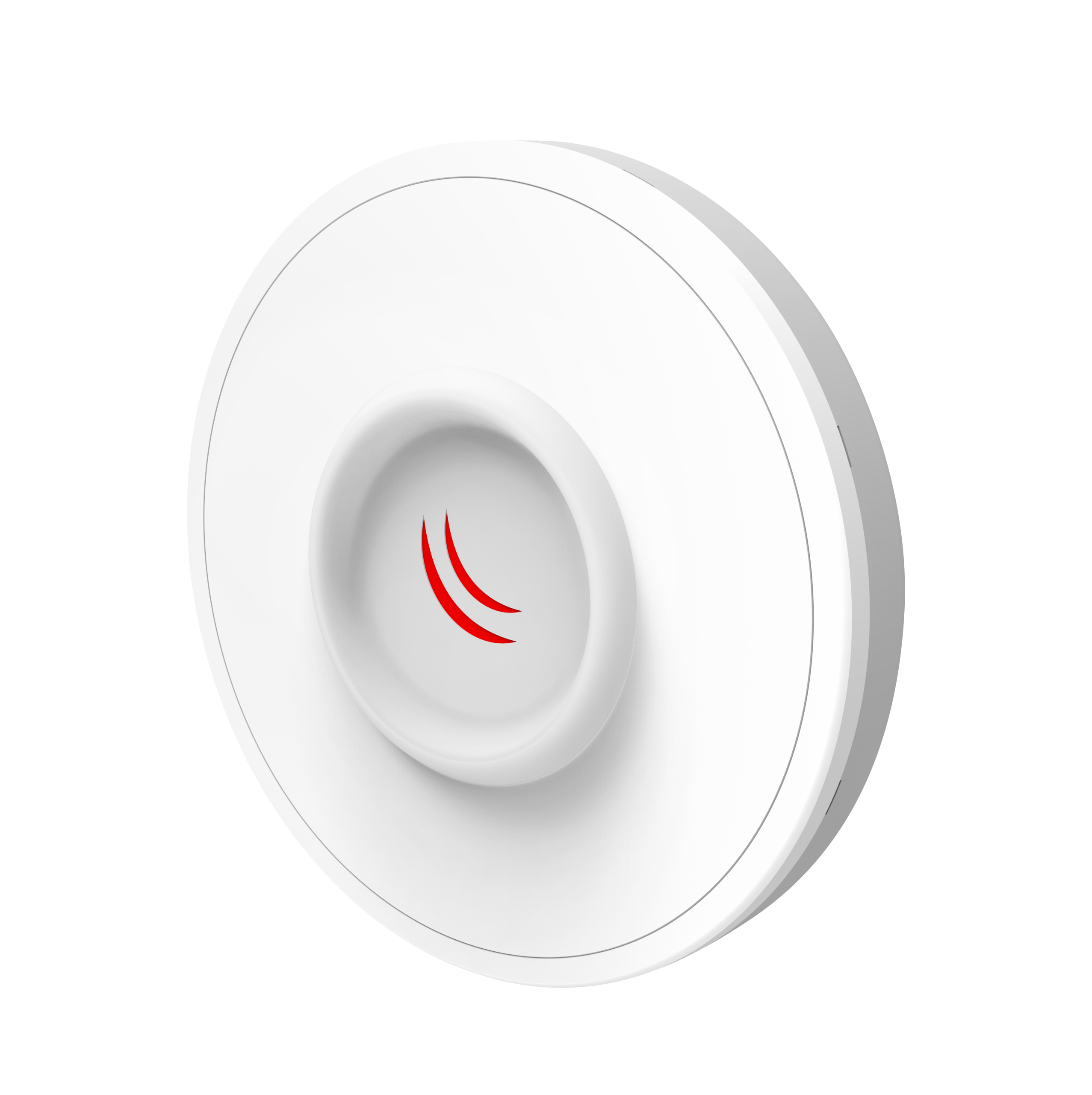

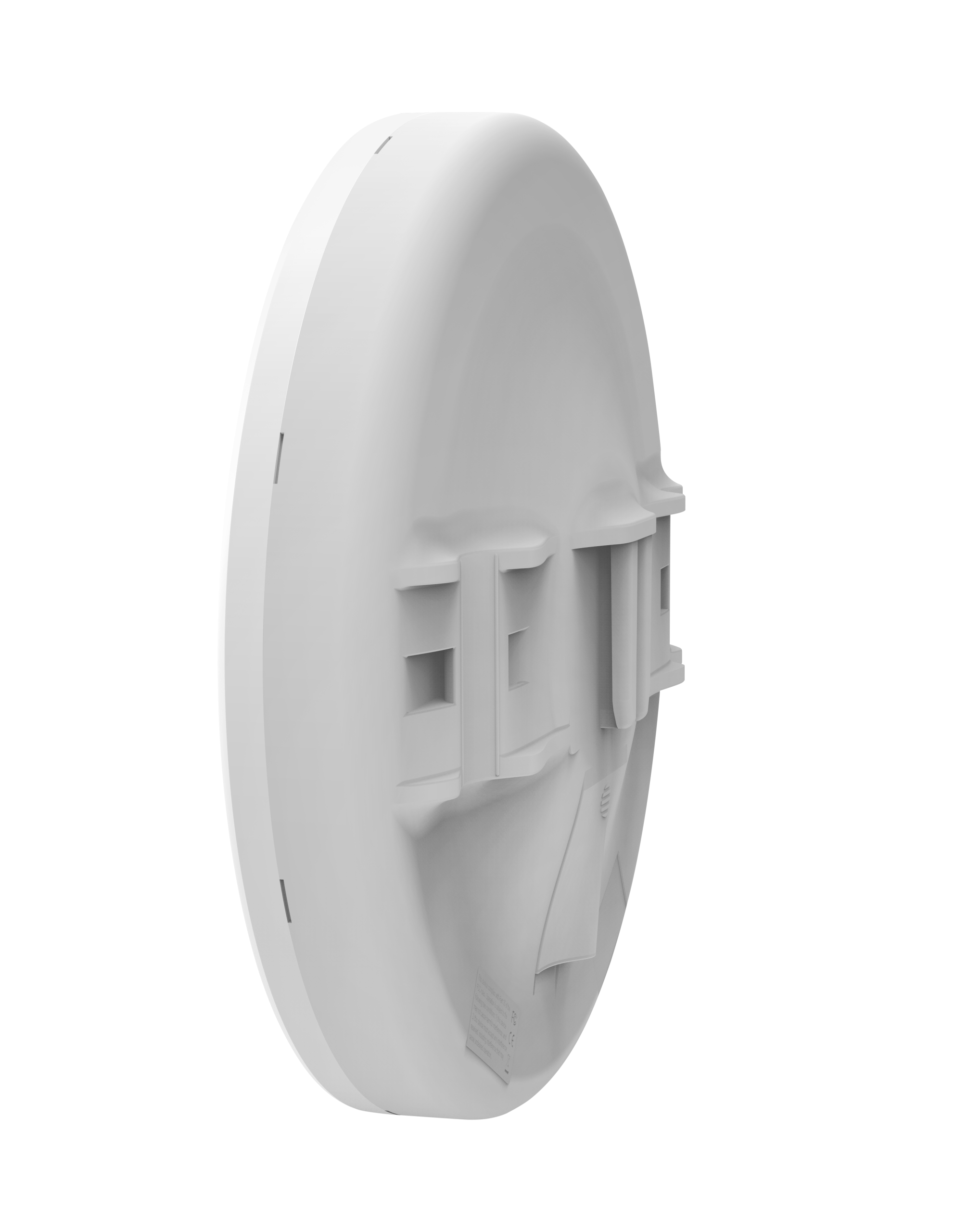

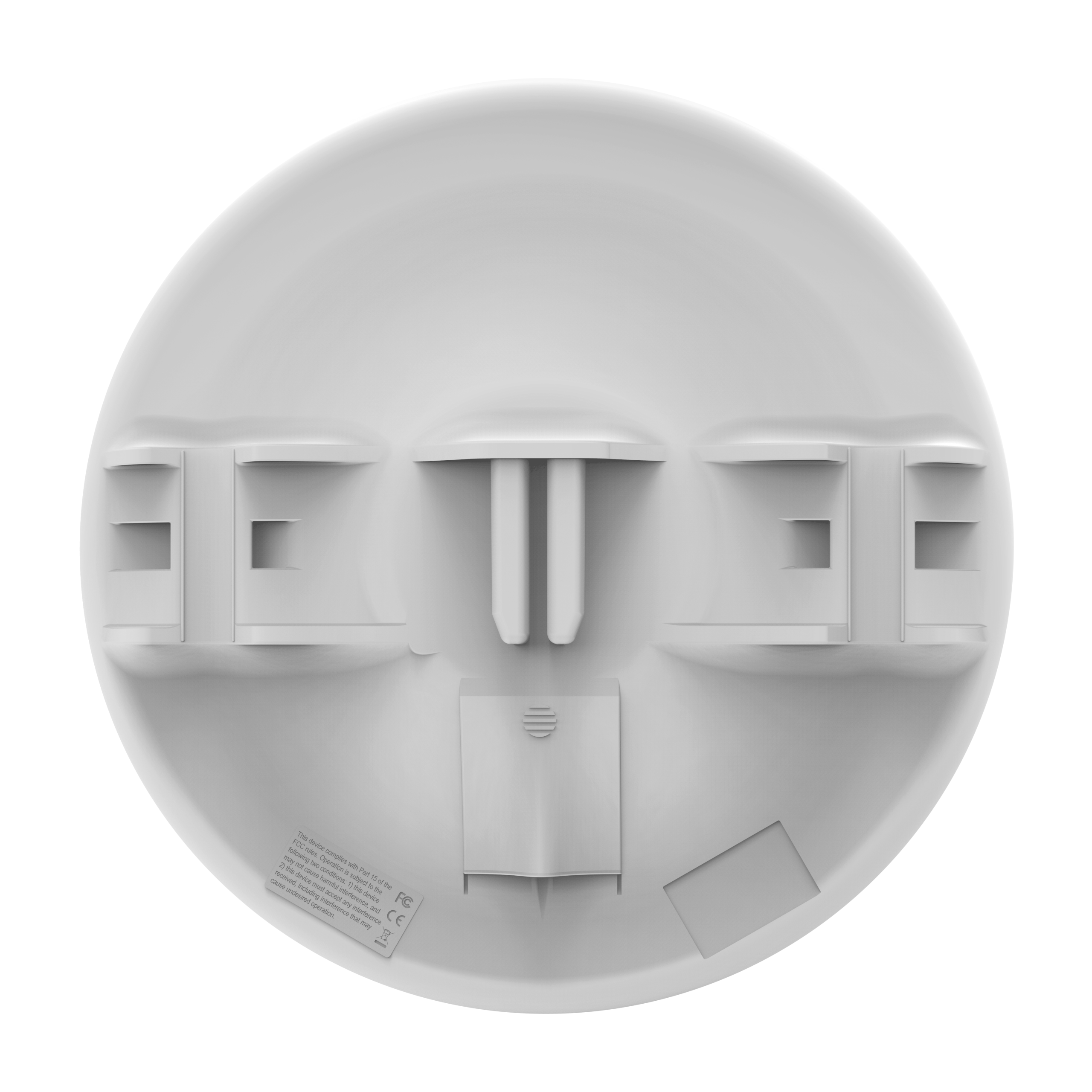

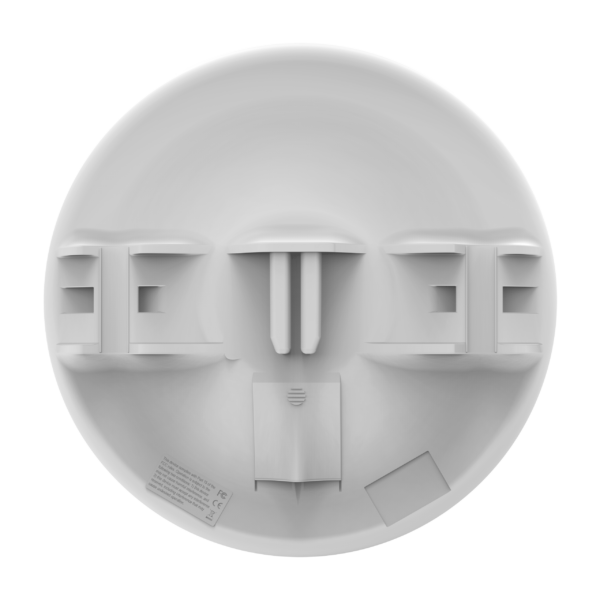

Mikrotik DISC Lite5 | airfiber solution for P2P & P2MP as CPE

Mikrotik DISC Lite5 is an innovative and high-performance 5 GHz airFiber solution, designed for Point-to-Point (P2P) and Point-to-Multi-Point (P2MP) wireless communication. This device is perfect for building long-range outdoor wireless links and providing high-speed internet access in rural or remote locations. With its compact design and advanced technology, the DISC Lite5 offers exceptional performance, reliability, and cost-efficiency for last-mile connectivity and fixed wireless access (FWA).

DISC Lite5 is an integrated 21dBi Dual Chain 802.11n CPE with a 600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet port and RouterOS L3 installed. The DISC uses a backfire type antenna which allows to reach 21dBi gain in such a low cost and compact package.

Key Features:

• 5 GHz Frequency Band: Operates in the 5 GHz band, which is less congested than the 2.4 GHz spectrum, providing a more stable and interference-free connection for high-speed data transfer.
• High Gain Antenna: Equipped with a 24 dBi antenna for enhanced long-range connectivity and the ability to establish stable connections over greater distances (up to 50+ km).
• Point-to-Point & Point-to-Multi-Point: Supports both P2P and P2MP wireless setups, making it highly versatile for various network architectures and deployment scenarios.
• Advanced AirFiber Technology: Incorporates airFiber technology, which is specifically designed for high-capacity, low-latency links, ensuring fast and reliable performance in demanding environments.
• Compact & Lightweight Design: The lightweight and compact form factor allows for easy installation, whether mounted on poles, walls, or rooftops.
• Weatherproof Build: Built to withstand harsh weather conditions, the DISC Lite5 is ideal for outdoor deployments with its IP65 rating for waterproof and dustproof protection.
• Cost-Effective Solution: Provides excellent value for last-mile connectivity or wireless ISPs (WISPs) needing an affordable yet powerful solution for high-speed, long-range internet access.

Applications:

• Point-to-Point Wireless Links: Establish high-speed links between buildings, towers, or data centers over long distances, supporting high-capacity connections for backhaul traffic or site-to-site connectivity.
• Fixed Wireless Access (FWA): Deliver fast internet connectivity to residential and commercial customers in rural or remote areas where traditional wired connections are not feasible.
• Telecom & ISP Networks: A great solution for telecom operators or ISPs providing cost-effective last-mile internet solutions, especially for small and medium-sized businesses or customers in hard-to-reach areas.
• Public Wi-Fi Networks: Perfect for providing wireless internet access in public spaces, offering users a reliable and stable connection.

Specifications:

• Frequency Band: 5 GHz
• Antenna Gain: 24 dBi
• Max Range: Up to 50+ km (depending on environment)
• Weatherproof: IP65 rated
• Power Supply: 24V Passive PoE
• Form Factor: Outdoor CPE (Customer Premises Equipment)
• Weight: Light and compact for easy installation
• Protocols Supported: AirFiber technology for high-throughput, low-latency links

IN THE BOX

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
