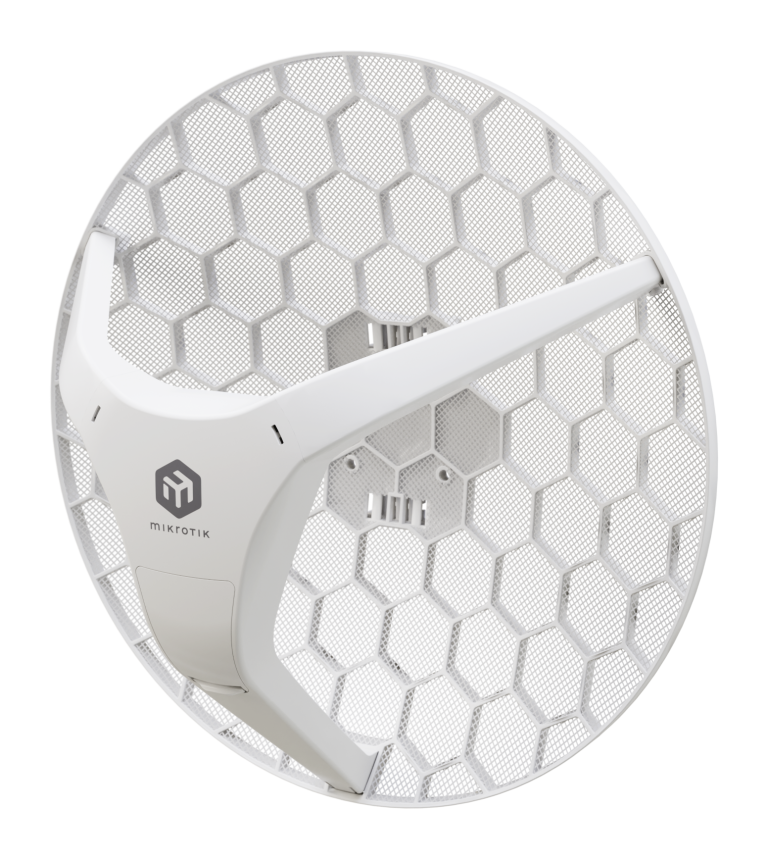

The LHG XL 5 ac is Long Range 5GHz 802.11ac wireless device with an integrated dual polarization 27 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

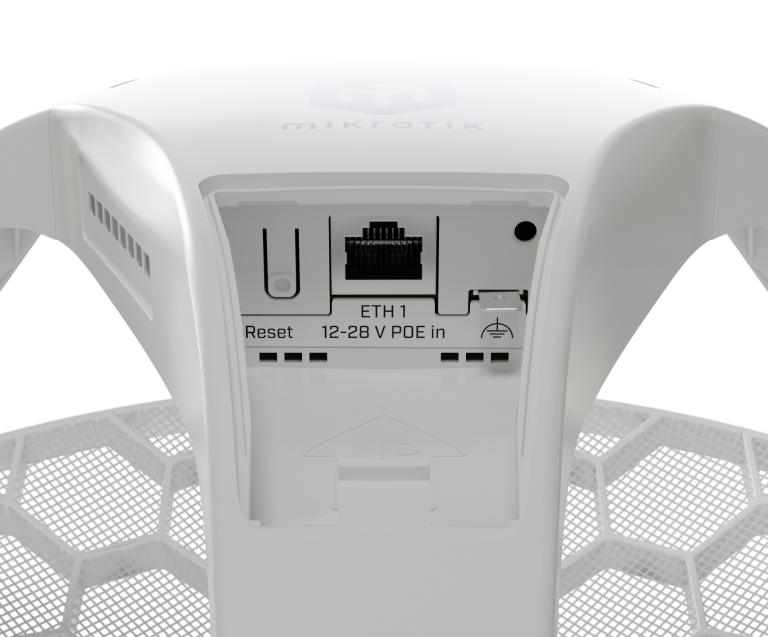

The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.
– LHG XL 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– LHG XL 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Shipped as a kit of 4 units (RBLHGG-5acD-XL4pack) – 4 antennas in a single box.
Included parts
24V 0.38A power adapter
Metal rings (two)
Gigabit PoE injector
K-LHG kit
Wireless specifications
5 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 25 | -96 |
54MBit/s | 21 | -80 |
MCS0 | 25 | -96 |
MCS7 | 20 | -75 |
MCS9 | 18 | -70 |
Ethernet test results
RBLHGG-5acD-XL | IPQ-4018 1G one port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 82,2 | 998.2 | 243,9 | 999.0 | 1484,8 | 760.2 |
Bridging | 25 bridge filter rules | 82,2 | 998.2 | 243,9 | 999.0 | 359,2 | 183.9 |
Routing | none (fast path) | 82,2 | 998.2 | 243,9 | 999.0 | 1488 | 761.9 |
Routing | 25 simple queues | 82,2 | 998.2 | 243,9 | 999.0 | 506,3 | 259.2 |
Routing | 25 ip filter rules | 82,2 | 998.2 | 240,8 | 986.3 | 242,9 | 124.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544).
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes.
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results.
IPsec test results
RBLHGG-5acD-XL | IPQ-4018 IPsec throughput | ||||||
Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Single tunnel | AES-128-CBC + SHA1 | 37.9 | 424.5 | 59 | 241.7 | 61.6 | 31.5 |
256 tunnels | AES-128-CBC + SHA1 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
256 tunnels | AES-128-CBC + SHA256 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
256 tunnels | AES-256-CBC + SHA1 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
256 tunnels | AES-256-CBC + SHA256 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544).
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes.
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results.
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
