Mikrotik SXTsq 5 AC RBSXTsqG-5acD

SKU: FGINOU5ZM78V

Low-cost small-size 16dBi 5GHz dual chain integrated CPE/Backbone with AC support and Gigabit Ethernet.

Original price was: ₹7,999.00.Current price is: ₹6,199.00. Inc. tax (5,253.39Exc. Tax)

Payment Methods:

Description

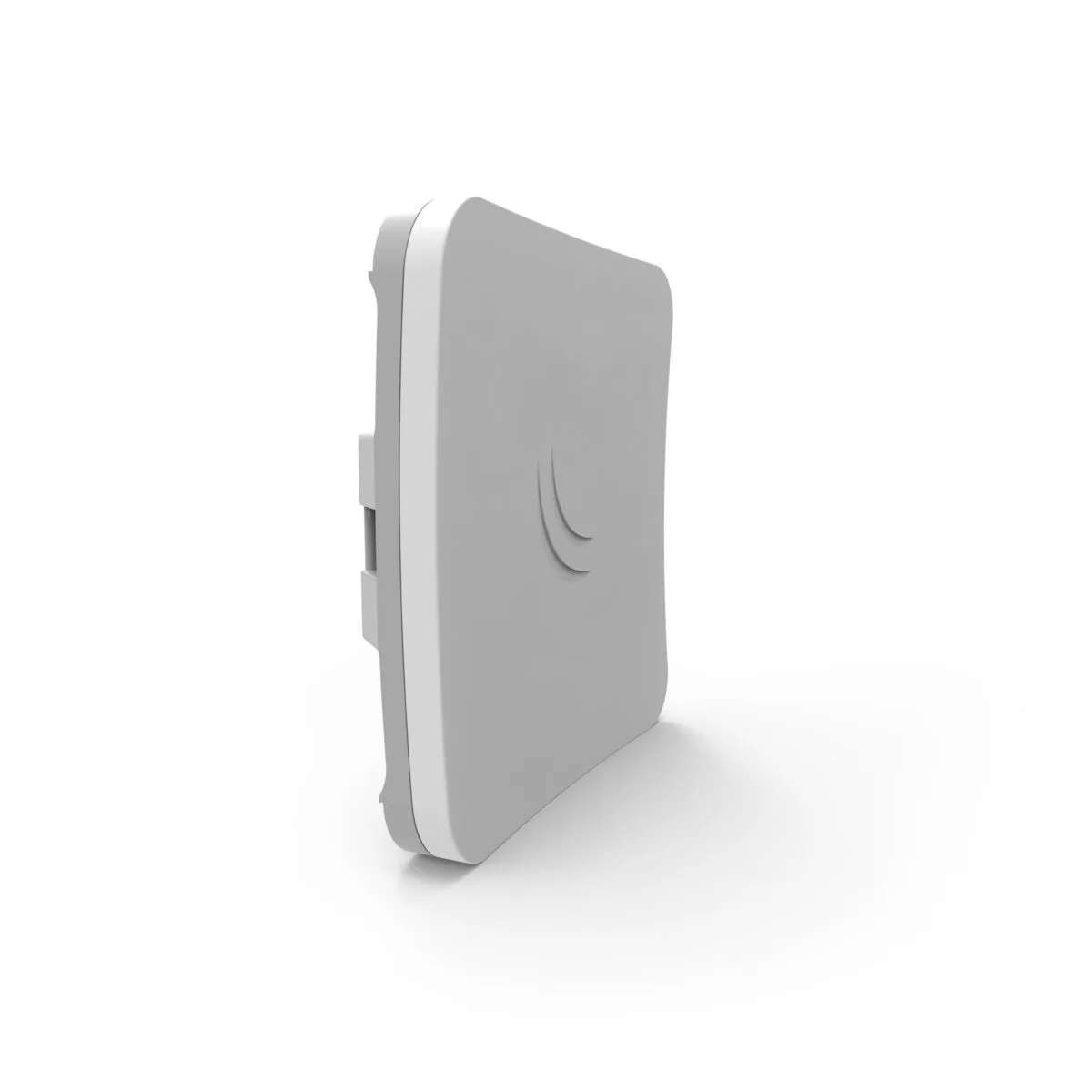

Mikrotik SXTsq 5 AC RBSXTsqG-5acD image 0

The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced – the SXTsq is two times thinner.

– SXTsq 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

– SXTsq 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Included parts

24V 0.38A power adapter

Metal ring (one)

Gigabit PoE injector

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 21 -80
MCS0 25 -96
MCS7 20 -75
MCS9 18 -70



Ethernet test results

RBSXTsqG-5acD IPQ-4018 1G one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 82,2 998.2 243,9 999.0 1484,8 760.2
Bridging 25 bridge filter rules 82,2 998.2 243,9 999.0 359,2 183.9
Routing none (fast path) 82,2 998.2 243,9 999.0 1488 761.9
Routing 25 simple queues 82,2 998.2 243,9 999.0 506,3 259.2
Routing 25 ip filter rules 82,2 998.2 240,8 986.3 242,9 124.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544).
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes.
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results.

IPsec test results

RBSXTsqG-5acD IPQ-4018 IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 37.9 424.5 59 241.7 61.6 31.5
256 tunnels AES-128-CBC + SHA1 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-128-CBC + SHA256 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-256-CBC + SHA1 34.4 385.3 37.9 155.2 39.8 20.4
256 tunnels AES-256-CBC + SHA256 34.4 385.3 37.9 155.2 39.8 20.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544).
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes.
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results.
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
Product Details

Brand Name Mikrotik
Model Name Mikrotik SXTsq 5 AC RBSXTsqG-5acD
Dimension(cm) 25.5X18X4
Weight(kg) 0.50
Product code RBSXTsqG-5acD
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 129 x 129 x 34 mm
RouterOS license 3
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $65.00

Powering

Number of DC inputs 1 (PoE-IN)
Max power consumption 7 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-28 V

Wireless specifications

Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 16
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5

Ethernet

10/100/1000 Ethernet ports 1

Certification & Approvals

Certification CE, FCC, IC, EAC, ROHS
IP IP54

Warranty & Manufacturer Details

Warranty Period 1 Year
Warranty Provider Contact Fgtech Store for service warranty
Country of Origin China
Manufacturer Details SIA Mikrotlks, Unijas iela 2, Riga, LV-1039 LATVIA
Importer Details Mikrotik India, Green Park, Delhi 110016
Packer Details FGTECH INNOVATIONS LLP, Sakinaka, Andheri East, Mumbai 400072

Download Brochure

Brochure Open
Quick Guide Open
User Manual Open
Block Diagram Open
Horizontal Elevation Open
Horizontal Azimuth Open
RouterOS software manual Open
Declaration of conformity Open (CE)
RouterOS current release routeros-7.14.3-arm.npk
RouterOS current release wireless-7.14.3-arm.npk
