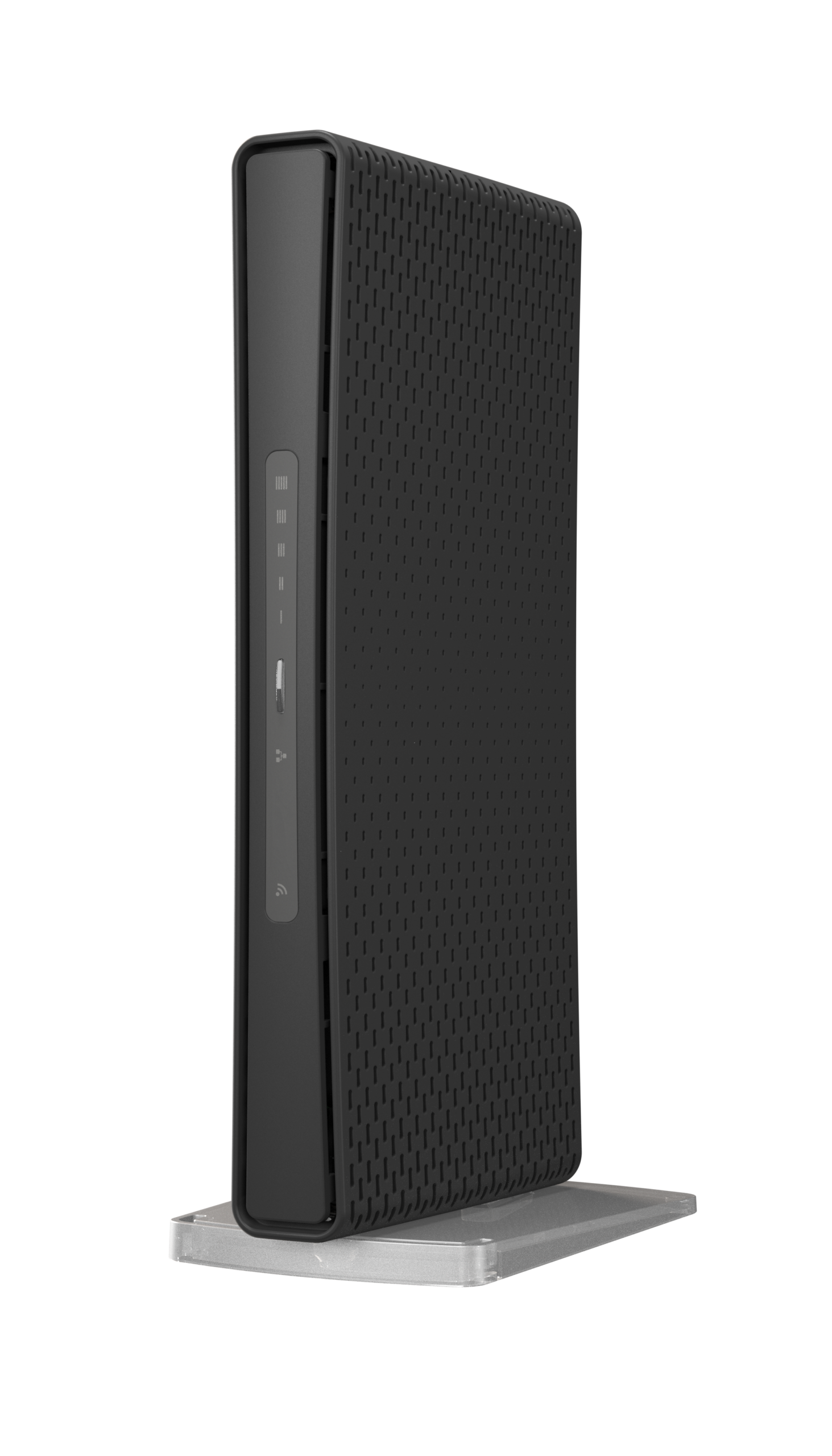

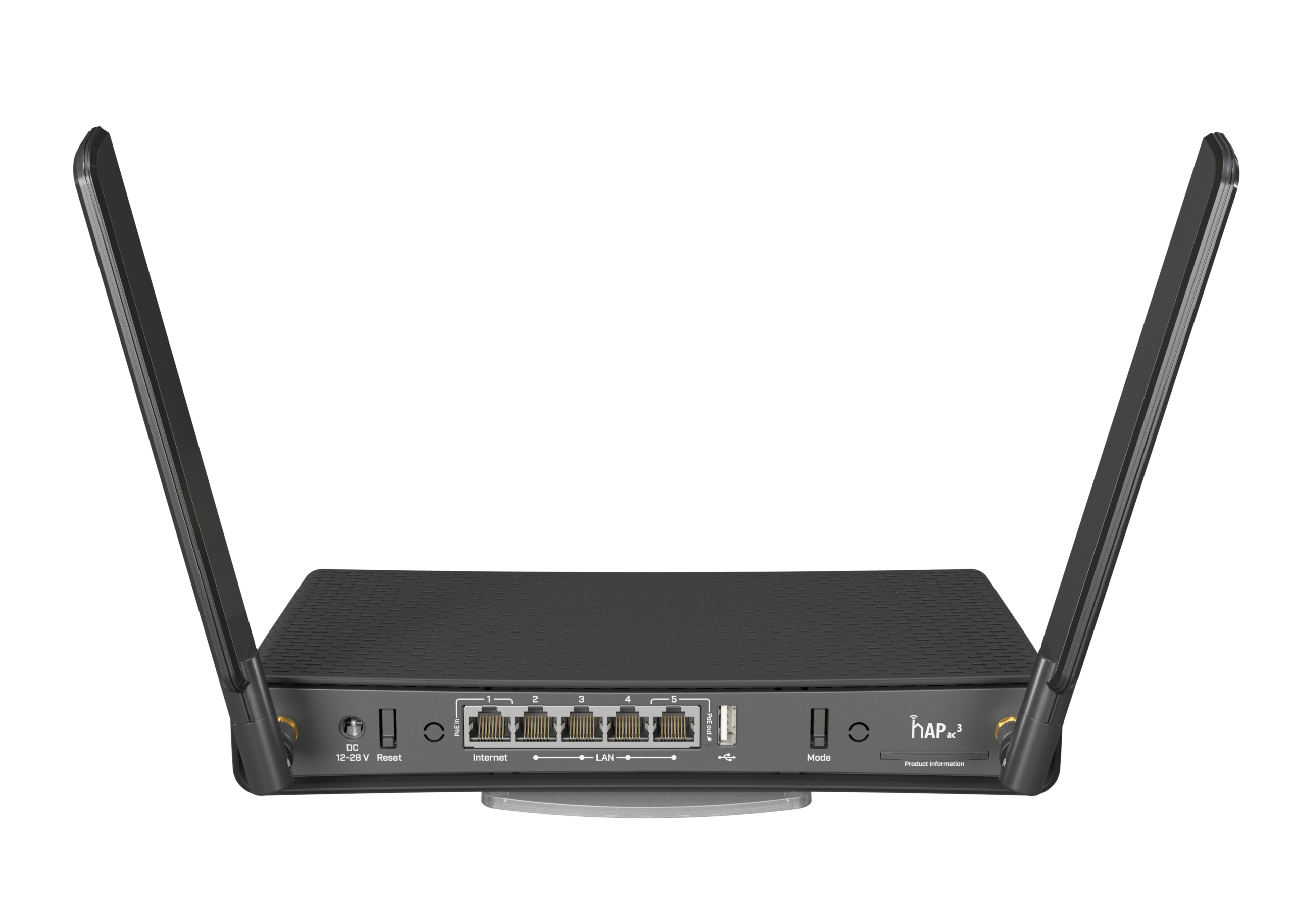

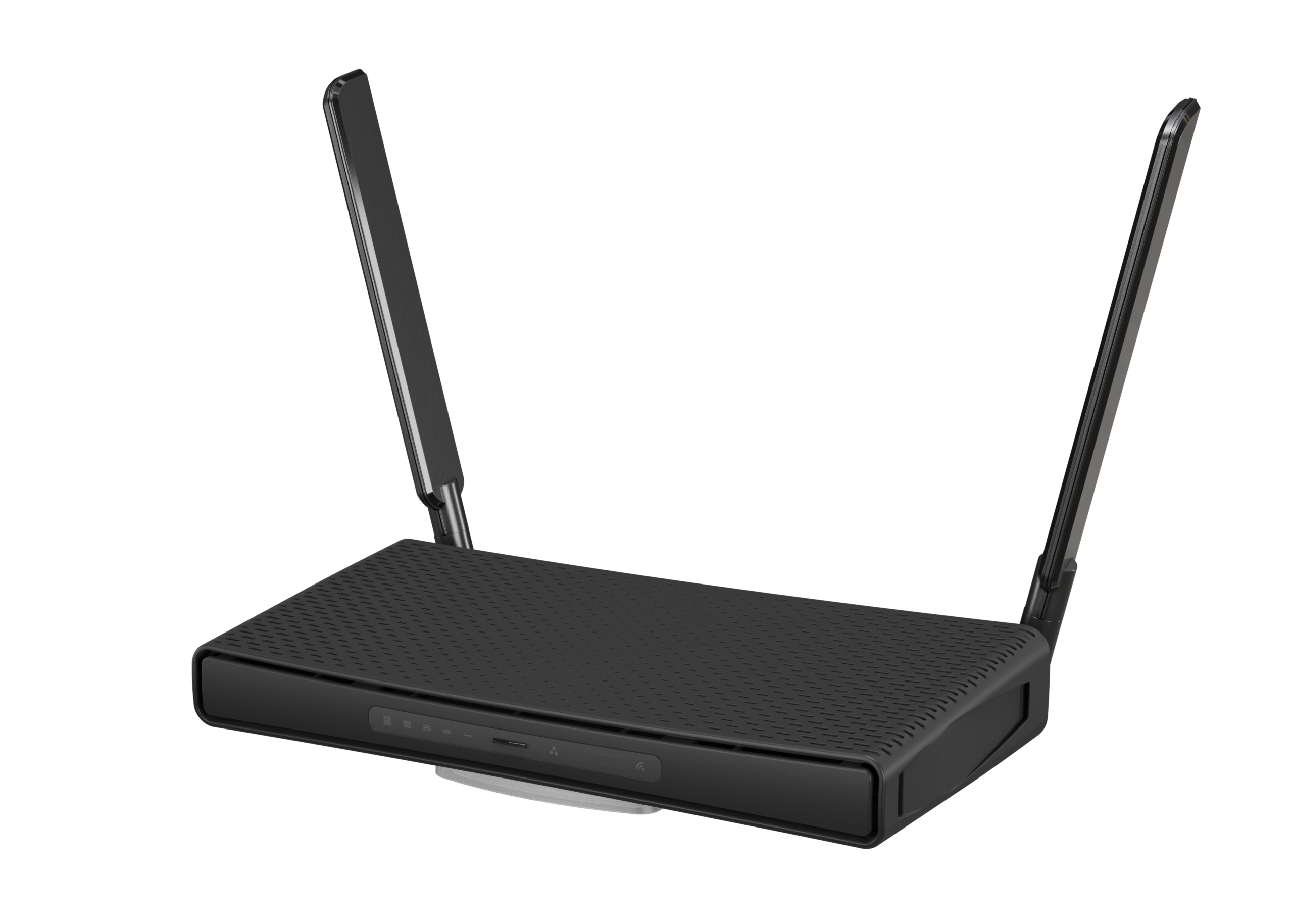

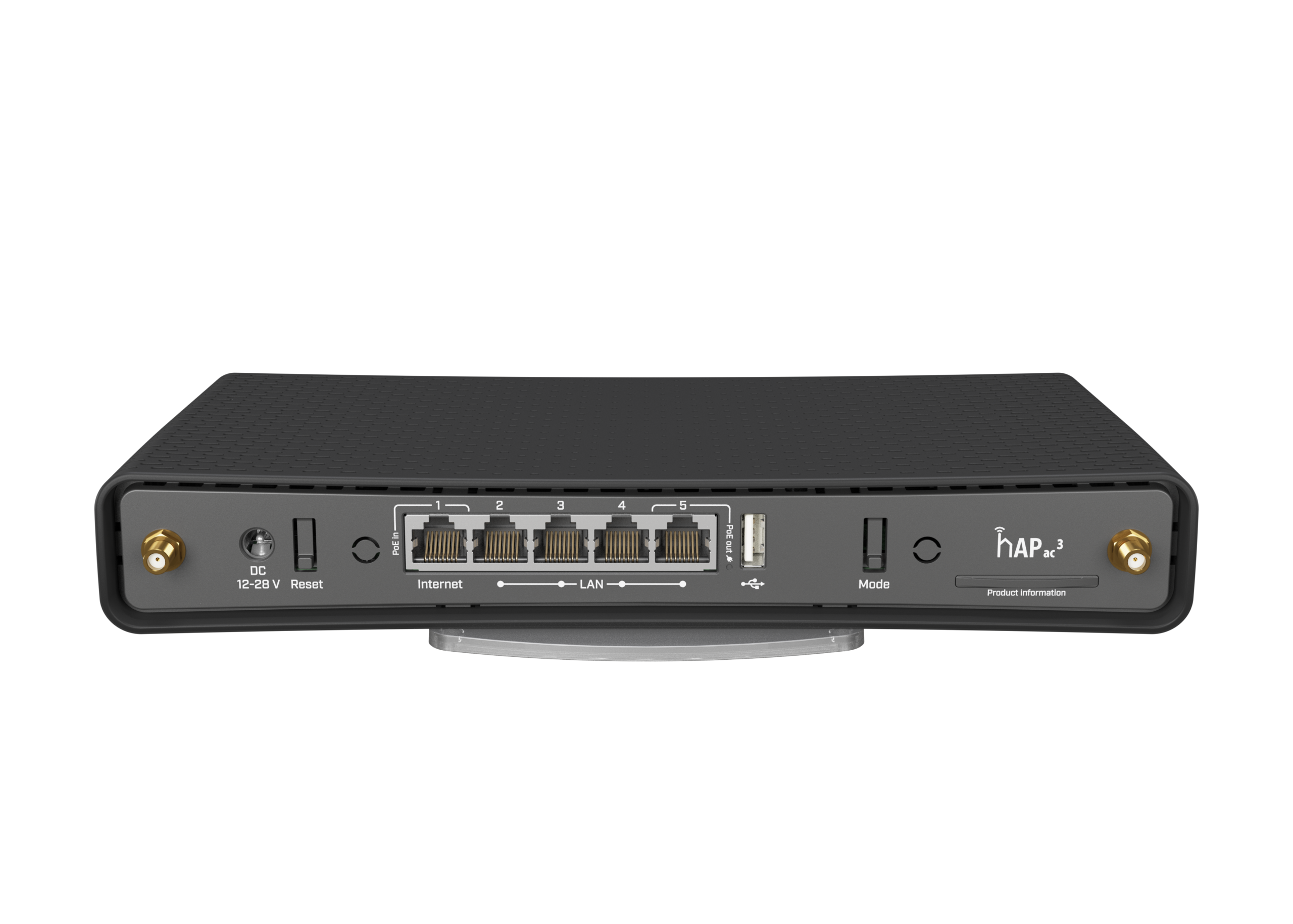

Mikrotik hAP ac3 RBD53iG-5HacD2HnD | Dual-Band Wireless Router with 5 Gigabit Ports

SKU: FGIN1VPC6Y5H

Experience superior connectivity with the Mikrotik hAP ac3 RBD53iG-5HacD2HnD. This wireless dual-band router comes with 5 Gigabit Ethernet ports and advanced RouterOS features, perfect for home and small office use.


Original price was: ₹14,999.00.Current price is: ₹11,799.00. Inc. tax (9,999.15Exc. Tax)

Estimated shipping date: 04/12/2024 - 05/12/2024

Description

Mikrotik hAP ac3 RBD53iG-5HacD2HnD is a top-tier wireless dual-band router designed for seamless and reliable connectivity. It features 5 Gigabit Ethernet ports and supports both 2.4GHz and 5GHz WiFi bands, ensuring robust coverage and fast network speeds suitable for homes and small offices.

Key Features:

  • Dual-Band WiFi Support: Operates on both 2.4GHz and 5GHz frequencies for optimal wireless performance.
  • High-Speed Connectivity: Equipped with 5 Gigabit Ethernet ports for superior wired network performance.
  • Powerful Performance: Built with a quad-core CPU and ample RAM, enabling it to handle complex tasks and multiple devices.
  • RouterOS: Integrated with MikroTik’s RouterOS, providing advanced networking features like routing, firewalls, VPN, and traffic management.
  • Sleek Design: The router boasts a modern, compact design that blends seamlessly into any environment.
  • PoE Capabilities: Features Power over Ethernet for simplified installation and versatility.

Ideal for:

  • Home Networking: Enjoy streaming, gaming, and connecting smart home devices with reliable speed and minimal lag.
  • Small Office Use: Efficiently manage multiple connections with secure, fast, and stable networking solutions.
  • Dual-Band Operations: Enhanced performance through simultaneous dual-band operations to reduce interference.

Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.

Is your old router struggling to reach every corner of your home? Well, forget about that! We have included external high gain wireless antennas with outstanding coverage. Only strong and stable wireless connection in every room from now on!

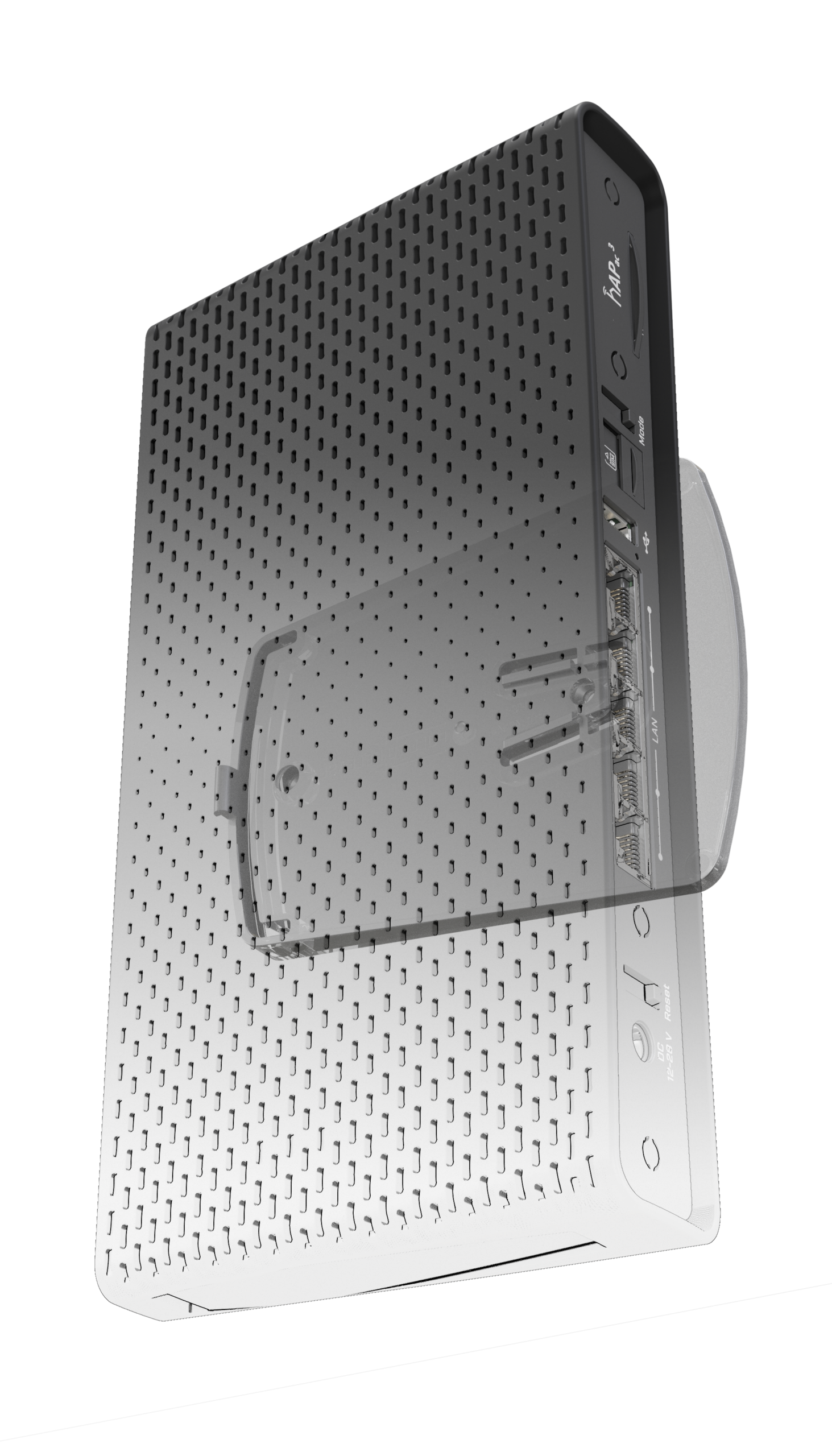

With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, Mikrotik hAP ac3 RBD53iG-5HacD2HnD can satisfy even the biggest and most demanding households. With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.

Ethernet test results

RBD53iG-5HacD2HnD IPQ-4019 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 162,5 1973.4 469,9 1924.7 1488,4 762.1
Bridging 25 bridge filter rules 162,5 1973.4 351,2 1438.5 352,1 180.3
Routing none (fast path) 162,5 1973.4 469,9 1924.7 1488,4 762.1
Routing 25 simple queues 162,5 1973.4 468,6 1919.4 493,4 252.6
Routing 25 ip filter rules 162,5 1973.4 222,8 912.6 227,4 116.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RBD53iG-5HacD2HnD IPQ-4018 IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 37.9 424.5 59 241.7 61.6 31.5
256 tunnels AES-128-CBC + SHA1 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-128-CBC + SHA256 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-256-CBC + SHA1 34.4 385.3 37.9 155.2 39.8 20.4
256 tunnels AES-256-CBC + SHA256 34.4 385.3 37.9 155.2 39.8 20.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

Additional information
Weight 1.05 kg
Dimensions 39 × 21 × 5 cm
Brand

Badges

24Hr Dispatch

Product Details

Details
Product code RBD53iG-5HacD2HnD
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Switch chip model IPQ-4019
Dimensions 251 x 129 x 39 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $109.00

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5
WiFi speed AC1200

Ethernet

Details
10/100/1000 Ethernet ports 5
Number of 1G Ethernet ports with PoE-out 1

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 30 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V

PoE-out

Details
PoE-out ports Ether5
PoE out Passive PoE
Max out per port output (input 18-30 V) 0.5 A
Max total out (A) 0.5 A

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP20

Other

Details
Mode button Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 22 -80
MCS0 26 -96
MCS7 21 -75
MCS9 19 -70
