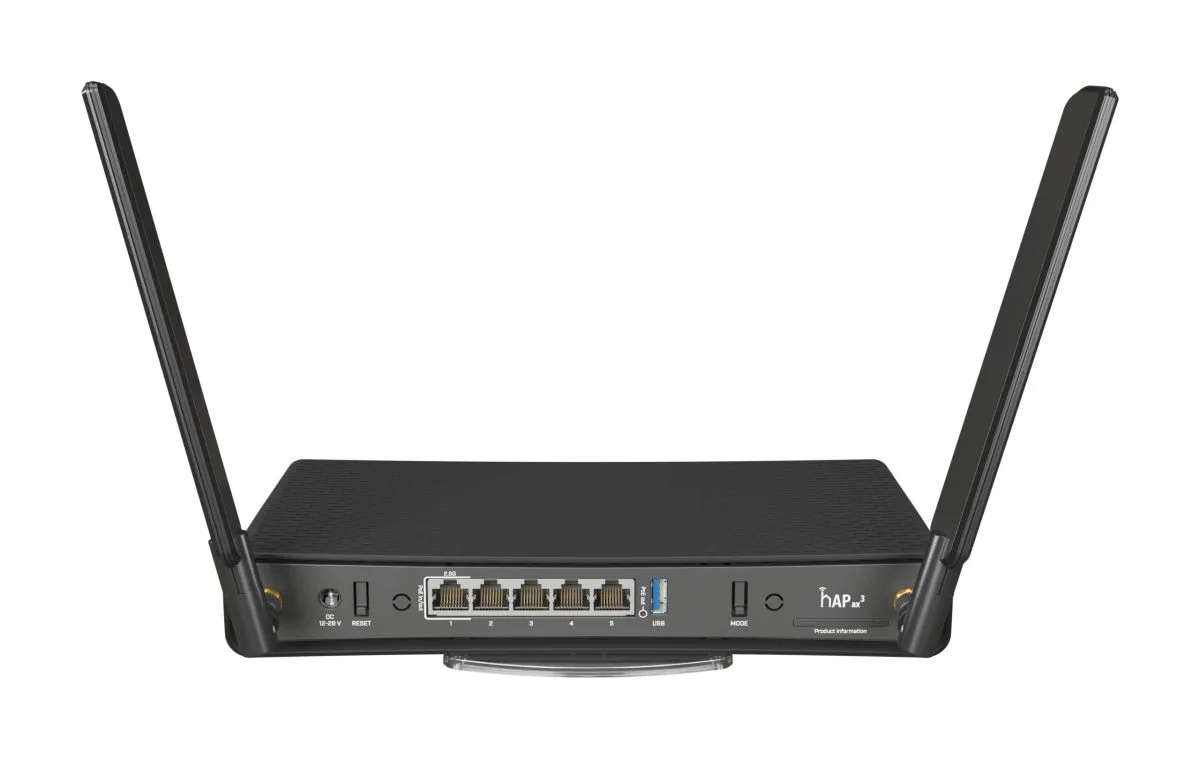

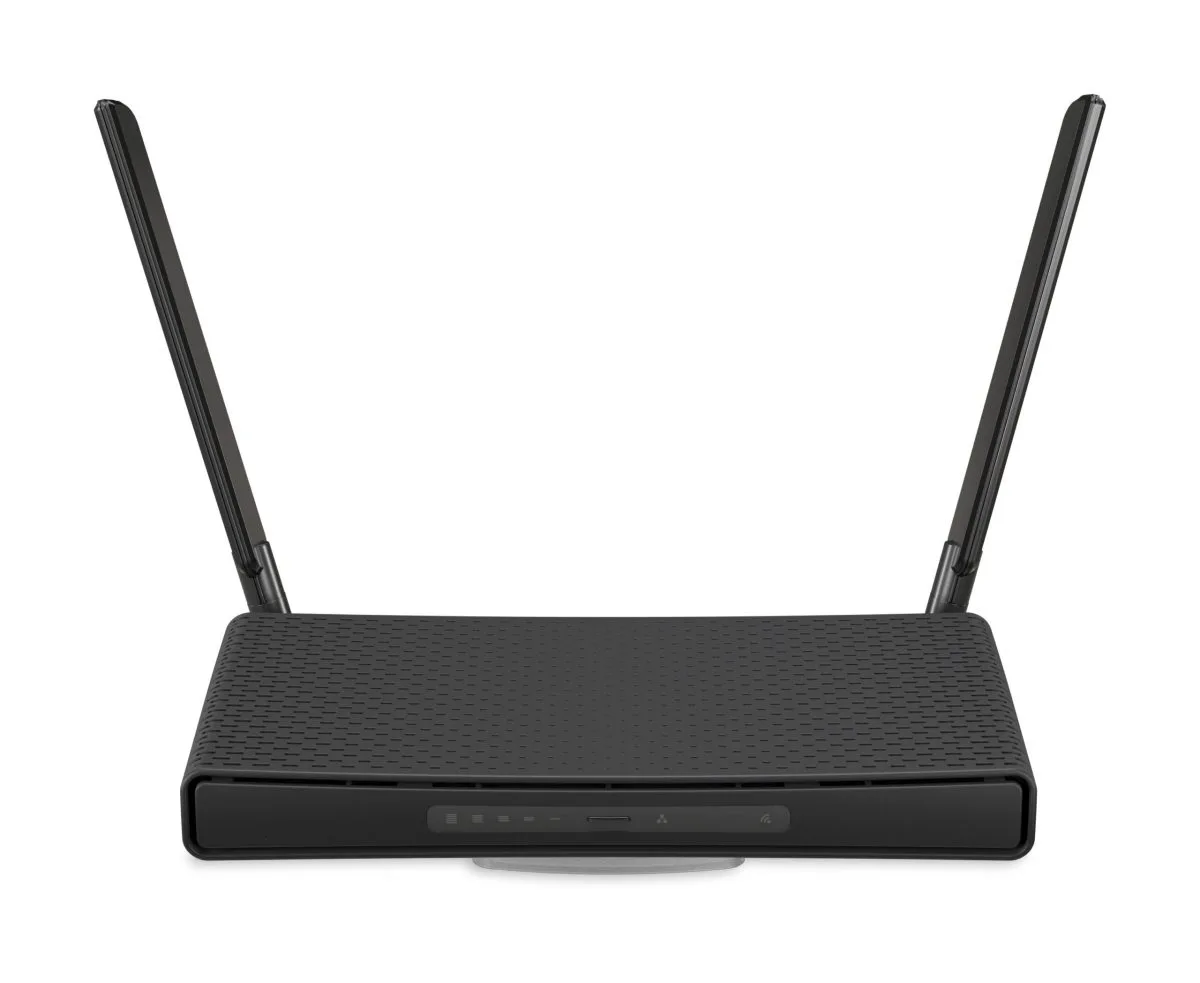

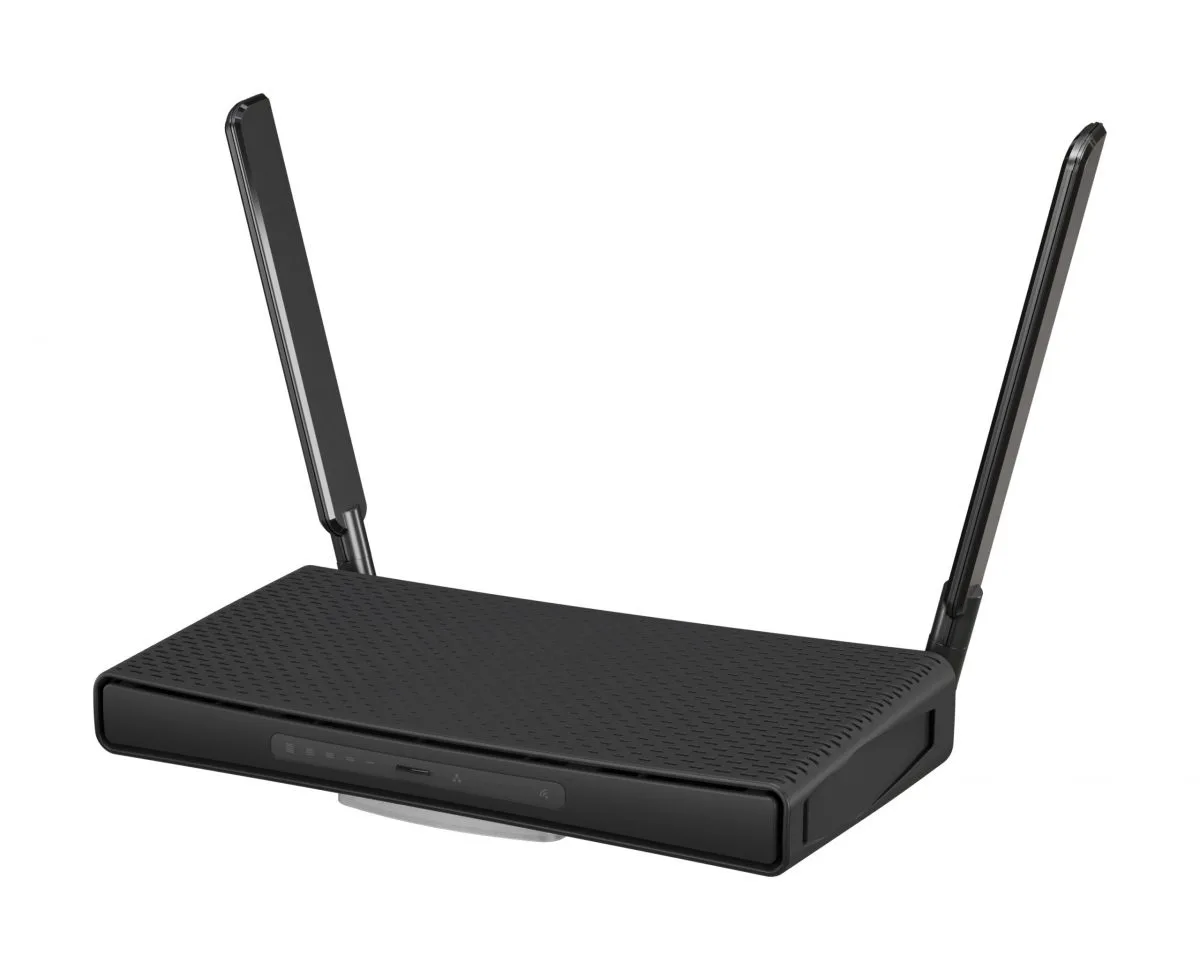

Mikrotik HAP AX3 C53UiG+5HPaxD2HPaxD | The Ultimate Home Networking Powerhouse!
Mikrotik hap ax3 C53UiG+5HPaxD2HPaxD wifi6 wireless, 1GB RAM + 128 MB NAND, 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port, USD 3.0 Port for additional storage/LTE modem backup. WPA3 advanced encryption
Original price was: ₹16,999.00.₹13,999.00Current price is: ₹13,999.00. Inc. tax (₹11,863.56Exc. Tax)
Description
Mikrotik hAP ax3 is our most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop your family from comfortable browsing, streaming, gaming, and so on. There’s enough processing power for everyone. And we’ve added a speedy USB 3 port for all your storage purposes or an additional LTE modem.
Depending on your overall setup, our AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment – that’s just how hAP ax³ works. Home network speeds are getting serious. There are 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port.
Mikrotik hAP ax3 can ease your mind on multiple levels simultaneously. European-based production, our famous Nordic work ethic, and cooperation with the EU lawmakers ensure full compliance with all the necessary safety policies. Multiple power options (DC Jack & PoE-in) result in fewer worries about potential downtime. The latest RouterOS v7 updates and the addition of WPA3 advanced encryption support bring unprecedented software security.
To sum things up – Mikrotik hAP ax3 is among the fastest, safest, and most powerful choices in the home access point world. Wired or wireless. And it comes with the most advanced networking software on the market – RouterOS. Unlike many other vendors, we don’t limit what you can do. There are no paywalls or confusing subscriptions. All our devices share the same limitless operating system. Imagination is the only limitation.
Some might ask – why do we even need higher wireless speeds? Well, countless use cases have been previously impossible or difficult to pull off. For example, working with large media files over the wireless network – without the need to download and upload everything. Do you really have the time to wait? Grab a hAP ax³ and save more time for the essential things in life.
Included parts
24V 1.5A power adapter
HGO indoor antenna kit
K-47 wall mount set
hAP case base
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 27 | -100 |
| 11MBit/s | 27 | -94 |
| 6MBit/s | 29 | -96 |
| 54MBit/s | 27 | -80 |
| MCS0 | 29 | -96 |
| MCS7 | 26 | -75 |
| MCS9 | 24 | -70 |
| MCS11 | 22 | -67 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 28 | -96 |
| 54MBit/s | 26 | -80 |
| MCS0 | 28 | -96 |
| MCS7 | 25 | -75 |
| MCS9 | 23 | -70 |
| MCS11 | 20 | -67 |
Ethernet test results
| C53UiG+5HPaxD2HPaxD | IPQ-6010 All port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 219.2 | 2662 | 593.5 | 2430.9 | 1509.2 | 821 |
| Bridging | 25 bridge filter rules | 218.1 | 2649.1 | 460.3 | 1885.3 | 468.5 | 254.9 |
| Routing | none (fast path) | 218.9 | 2657.8 | 596.6 | 2443.6 | 1228.3 | 668.2 |
| Routing | 25 simple queues | 218.5 | 2653.5 | 463.4 | 1898 | 468.5 | 254.9 |
| Routing | 25 ip filter rules | 215.3 | 2614.4 | 279.6 | 1145.2 | 281.8 | 153.3 |
IPsec test results
| C53UiG+5HPaxD2HPaxD | IPQ-6010 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 78.4 | 878.1 | 91.9 | 376.4 | 93.6 | 47.9 |
| 256 tunnels | AES-128-CBC + SHA1 | 50.1 | 561.1 | 55.5 | 227.3 | 58.6 | 30 |
| 256 tunnels | AES-128-CBC + SHA256 | 50 | 560 | 55.4 | 226.9 | 58.6 | 30 |
| 256 tunnels | AES-256-CBC + SHA1 | 49.4 | 553.3 | 54.8 | 224.5 | 58.6 | 30 |
| 256 tunnels | AES-256-CBC + SHA256 | 49.4 | 553.3 | 55 | 225.3 | 58.6 | 30 |
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
| Weight | 1.02 kg |
|---|---|
| Dimensions | 39 × 21 × 5 cm |
| Badges |
24Hr Dispatch |
| Brand Name | Mikrotik |
| Model Name | Mikrotik HAP AX3 (C53UiG+5HPaxD2HPaxD) |
| Dimension(cm) | 39X21X5 |
| Weight(kg) | 1.02 |
| Product code | C53UiG+5HPaxD2HPaxD |
| Architecture | ARM 64bit |
| CPU | IPQ-6010 |
| CPU core count | 4 |
| CPU nominal frequency | auto (864 - 1800) MHz |
| Switch chip model | IPQ-6010 |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $139.00 |
Wireless capabilities
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 3.3 |
| Wireless 2.4 GHz chip model | QCN-5022 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | QCN-5052 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| WiFi speed | AX1800 |
Ethernet
| 10/100/1000 Ethernet ports | 4 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Number of 2.5G Ethernet ports | 1 |
Peripherals
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
Powering
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 38 W |
| Max power consumption without attachments | 15 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 18-28 V |
PoE-out
| PoE-out ports | Ether 1 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 0.625 A |
| Max total out (A) | 0.625 A |
| Total output current | 0.625 |
| Total output power | 15 |
Certification & Approvals
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 20 |
Other
| CPU temperature monitor | Yes |
| Mode button | Yes |
Warranty & Manufacturer Details
| Warranty Period | 1 Year |
| Warranty Provider | Contact Fgtech Store for service warranty |
| Country of Origin | China |
| Manufacturer Details | SIA Mikrotlks, Unijas iela 2, Riga, LV-1039 LATVIA |
| Importer Details | Mikrotik India, Green Park, Delhi 110016 |
| Packer Details | FGTECH INNOVATIONS LLP, Sakinaka, Andheri East, Mumbai 400072 |
| Brochure | Open |
| Quick Guide | Open |
| User Manual | Open |
| FCC Grant of Certification (2.4GHz) | Open |
| FCC Grant of Certification (5GHz) | Open |
| Block Diagram | Open |
| RouterOS software manual | Open |
| Declaration of conformity | Open (CE) |
| RouterOS current release | routeros-7.14.3-arm64.npk |
| RouterOS current release | wifi-qcom-7.14.3-arm64.npk |
