Mikrotik QRT 5 | 5GHz Radio for PTP & PTMP Wireless Solution

Mikrotik QRT 5 is a high-performance 5GHz radio optimized for Point-to-Point (PTP) and Point-to-MultiPoint (PTMP) wireless solutions. With its integrated high-gain antenna and rugged design, it ensures reliable, long-distance connectivity even in challenging outdoor environments.

Key Features:

• Integrated 5GHz Radio & Antenna: Features an integrated high-gain antenna system, designed to deliver superior 5GHz wireless performance for both PTP and PTMP links.
• Long-Range Communication: Built for long-distance connections, the QRT 5 ensures excellent signal coverage, with minimal interference and optimal throughput over extended ranges.
• Weatherproof Design: With an IP64-rated enclosure, this unit is durable and can withstand harsh outdoor conditions, making it perfect for long-term outdoor deployments.
• High Gain for Better Coverage: The integrated antenna offers high-gain performance, ideal for wireless ISPs and large-scale network deployment.
• Compact and Efficient: Its compact design makes it easy to install while maintaining high performance in both urban and rural environments.
• Supports Multiple Applications: Ideal for creating fixed wireless access, extending wireless networks, and backhaul links for remote locations.

Applications:

• Point-to-Point (PTP) Links: Set up long-distance high-speed links between buildings or locations.
• Point-to-MultiPoint (PTMP): Perfect for connecting multiple sites or creating outdoor Wi-Fi hotspots with efficient distribution.
• Wireless ISPs: Ideal for deploying a wireless backhaul network to service multiple customers in

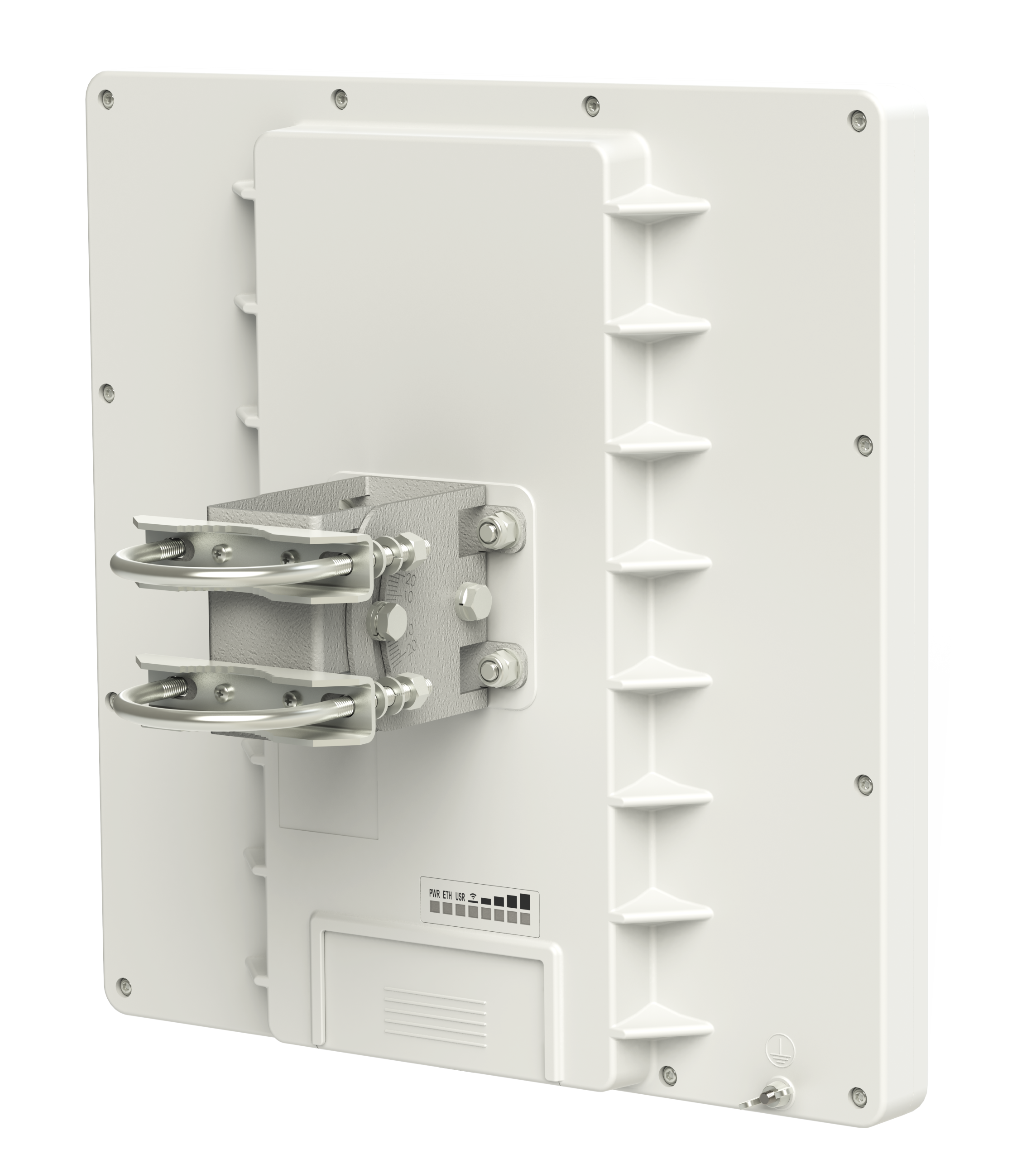

The QRT 5 is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 24dBi antenna and a high power 5GHz wireless transmitter.

Inside is the high power RB911 dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11n high speed wireless.

Easy to use and quick to deploy, QRT is ideal for point to point links.

– RB911G-5HPnD-QRT-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

– RB911G-5HPnD-QRT (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Ethernet test results

1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
